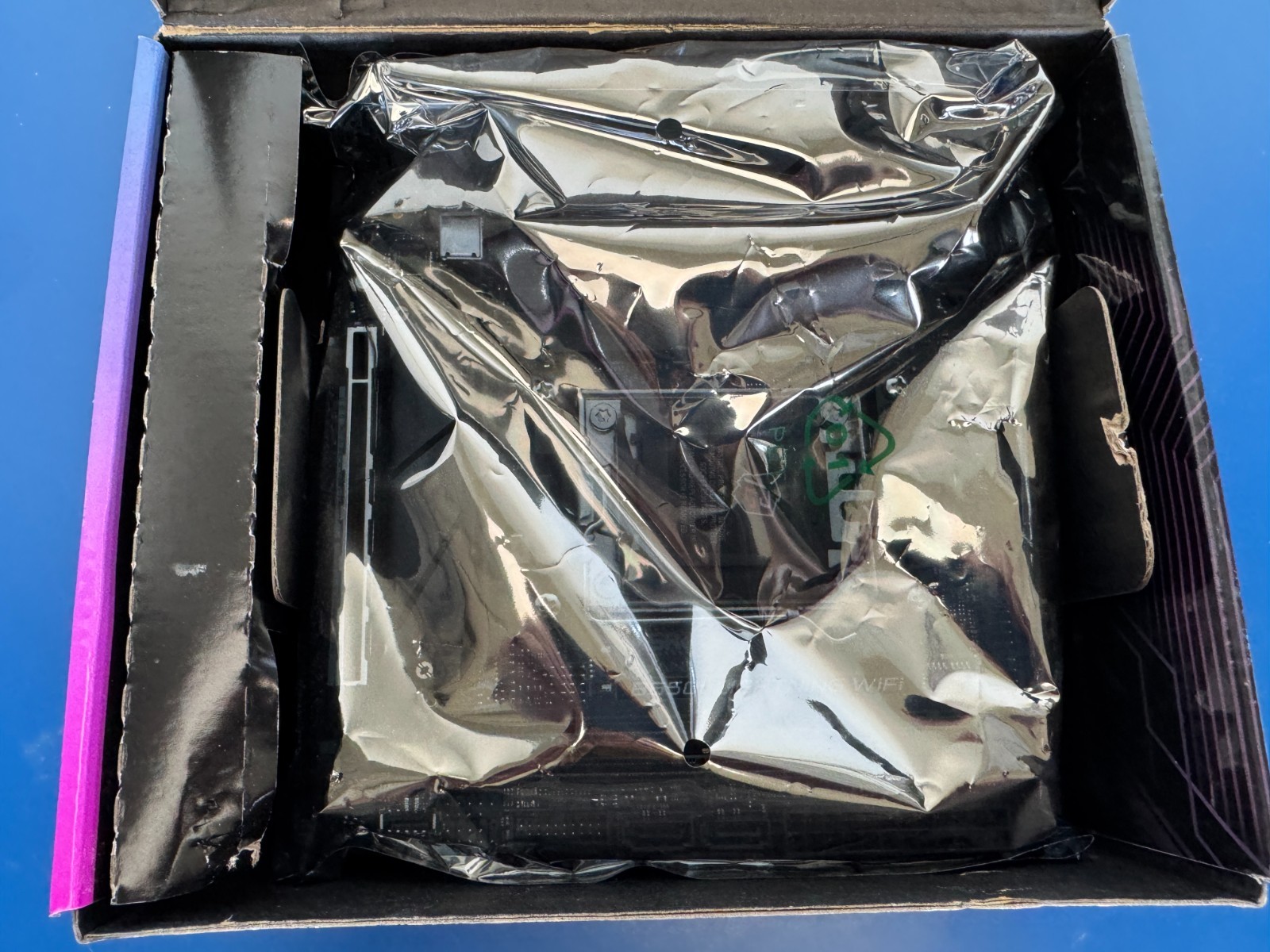

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.

Learn more about ASRock B650I LIGHTNING WIFI

Model

Brand

ASRock

Model

B650I LIGHTNING WIFI

Part Number

B650I LIGHTNING WIFI

Supported CPU

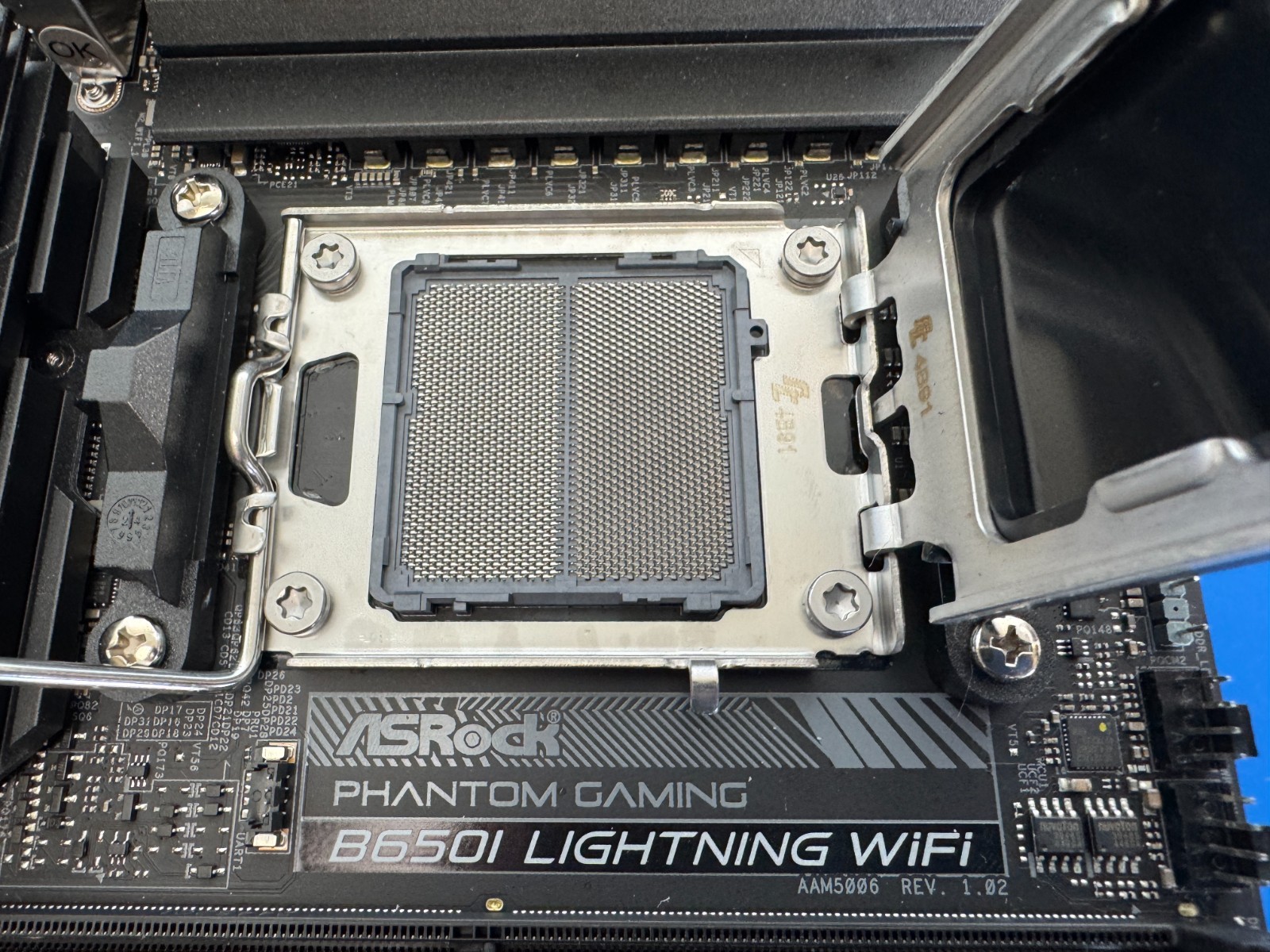

CPU Socket Type

AM5

CPU Type

– Supports AMD Socket AM5 RyzenTM CPU 7000 Series Processors

Chipsets

Chipset

AMD B650

Memory

Number of Memory Slots

Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 96GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking
(EXPO) memory modules
* Please refer to Memory Support List on ASRock’s website for more information.
(https://www.asrock.com/)

Memory Standard

DDR5 6400

Maximum Memory Supported

96GB

Expansion Slots

PCI Express 4.0 x16

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* Supports NVMe SSD as boot disks
– 15µ Gold Contact in VGA PCIe Slot (PCIE1

Storage Devices

SATA 6Gb/s

CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks

SATA RAID

Supports RAID 0 and RAID 1 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10

Onboard Audio

Audio Channels

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio

Onboard LAN

Max LAN Speed

2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Phantom Gaming LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control

Wireless LAN

802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band* support
* Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability
will depend on the different regulation status of each country and region.
It will be activated (for supported countries) through Windows Update and software
updates once available.
* A 6GHz compatible router is required for 6E functionality.
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.2 + High speed class II
– Supports MU-MIMO

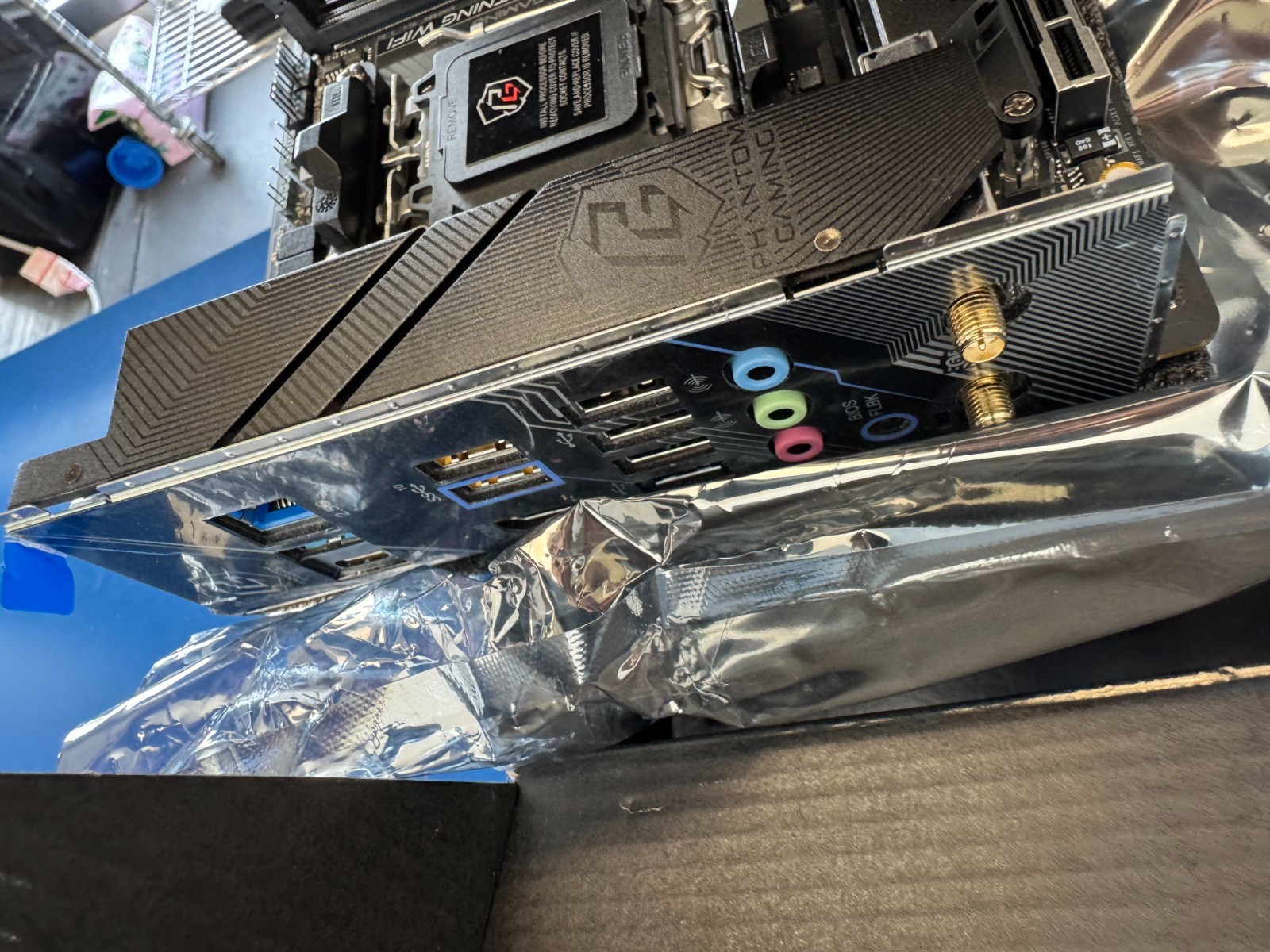

Rear Panel Ports

Back I/O Ports

2 x Antenna Ports
– 1 x HDMI Port
– 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are Lightning Gaming Ports.)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors

Other Connectors

2 x Addressable LED Headers*
– 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header
* Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1/WP and CPU_FAN2/WP support the fan power up to 2A (24W).
*** CHA_FAN1/WP supports the fan power up to 2A (24W).
*** CPU_FAN1/WP, CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin
fan is in use.

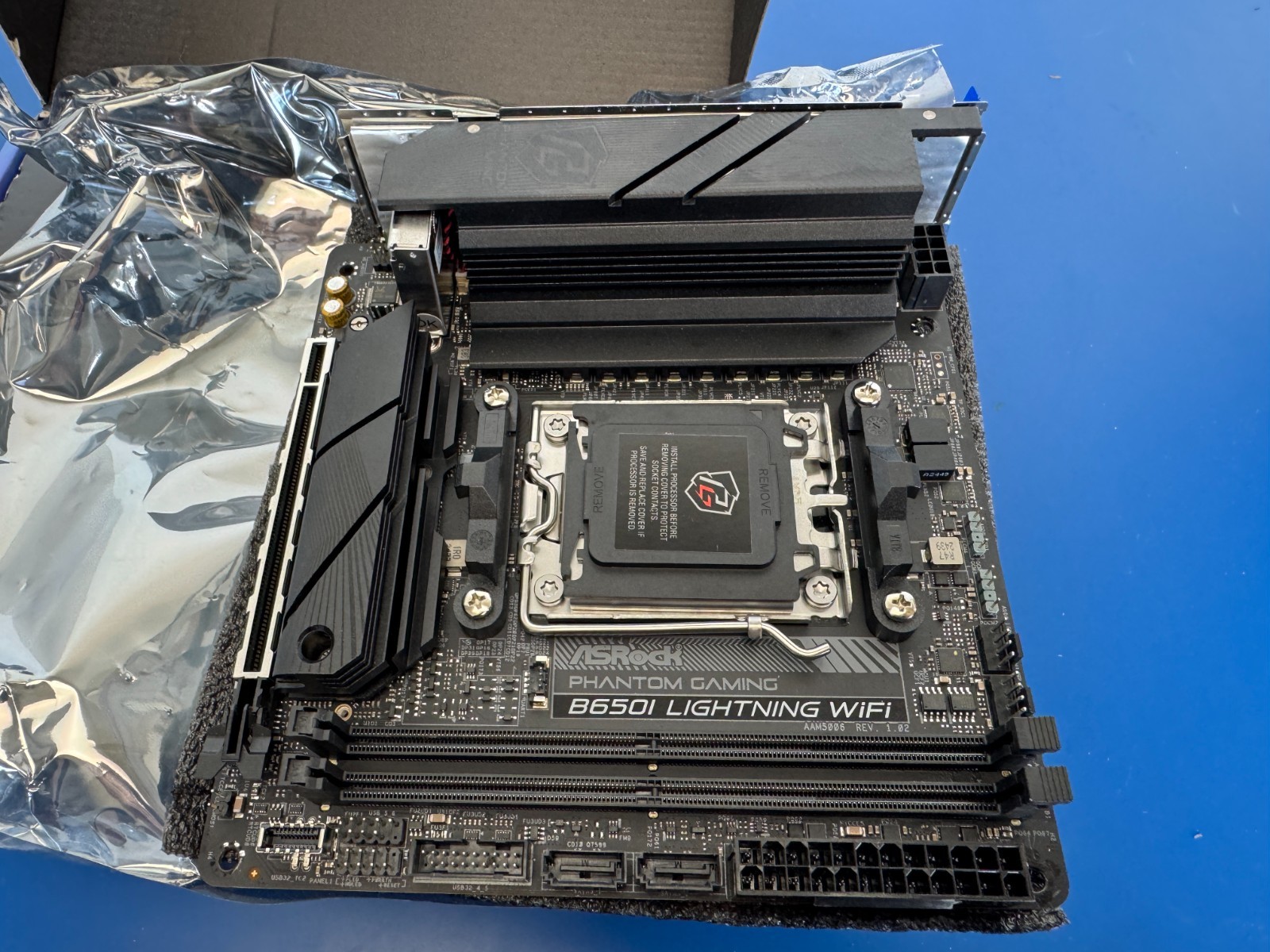

Physical Spec

Form Factor

Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– 8 Layer PCB

Dimensions (W x L)

6.7″ x 6.7″

Windows 11 Compatibility

Windows 11

Microsoft® Windows® OS 10 64-bit / 11 64-bi

Features

Features

Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Phantom Gaming LAN Software
– ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
