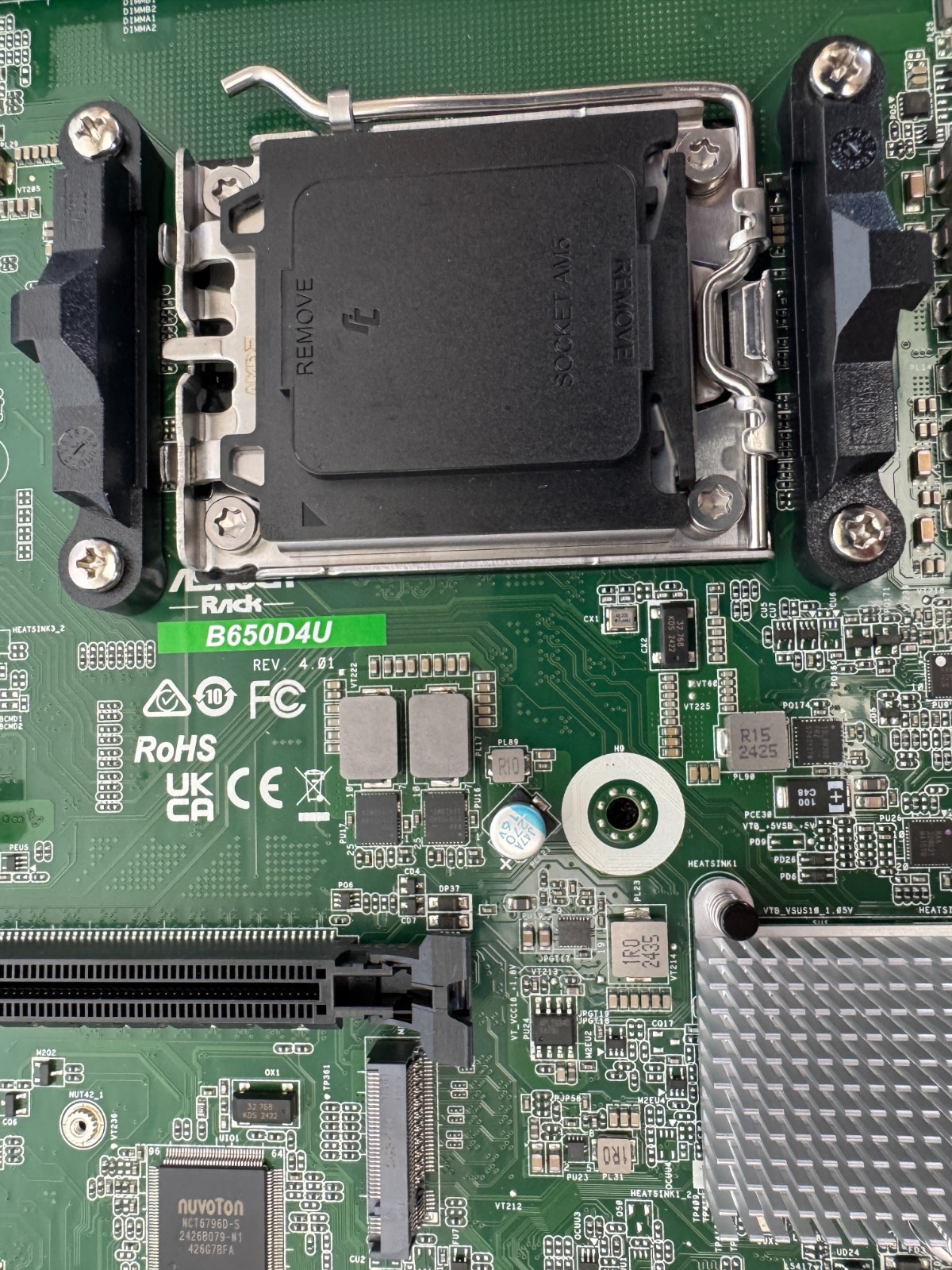

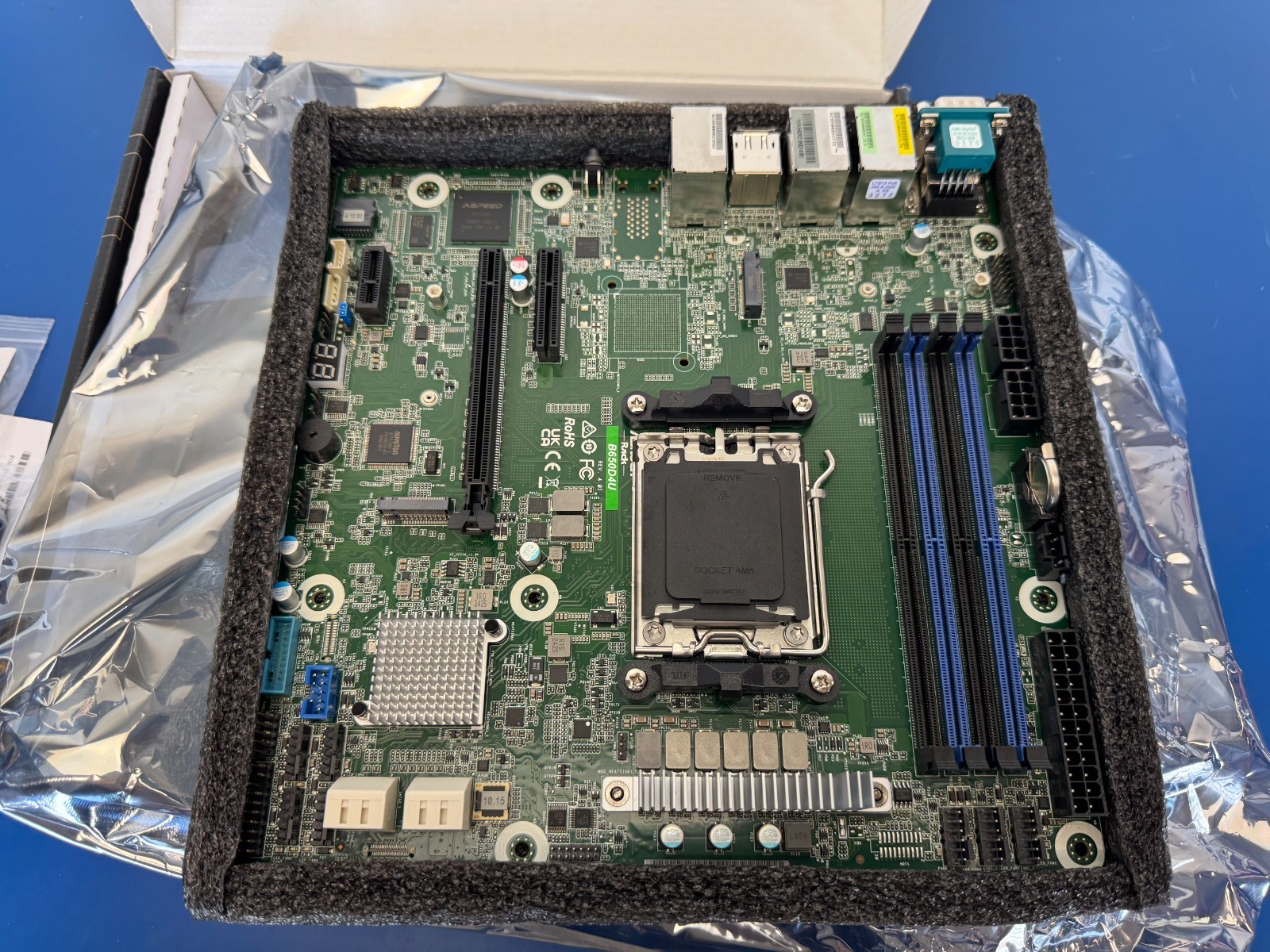

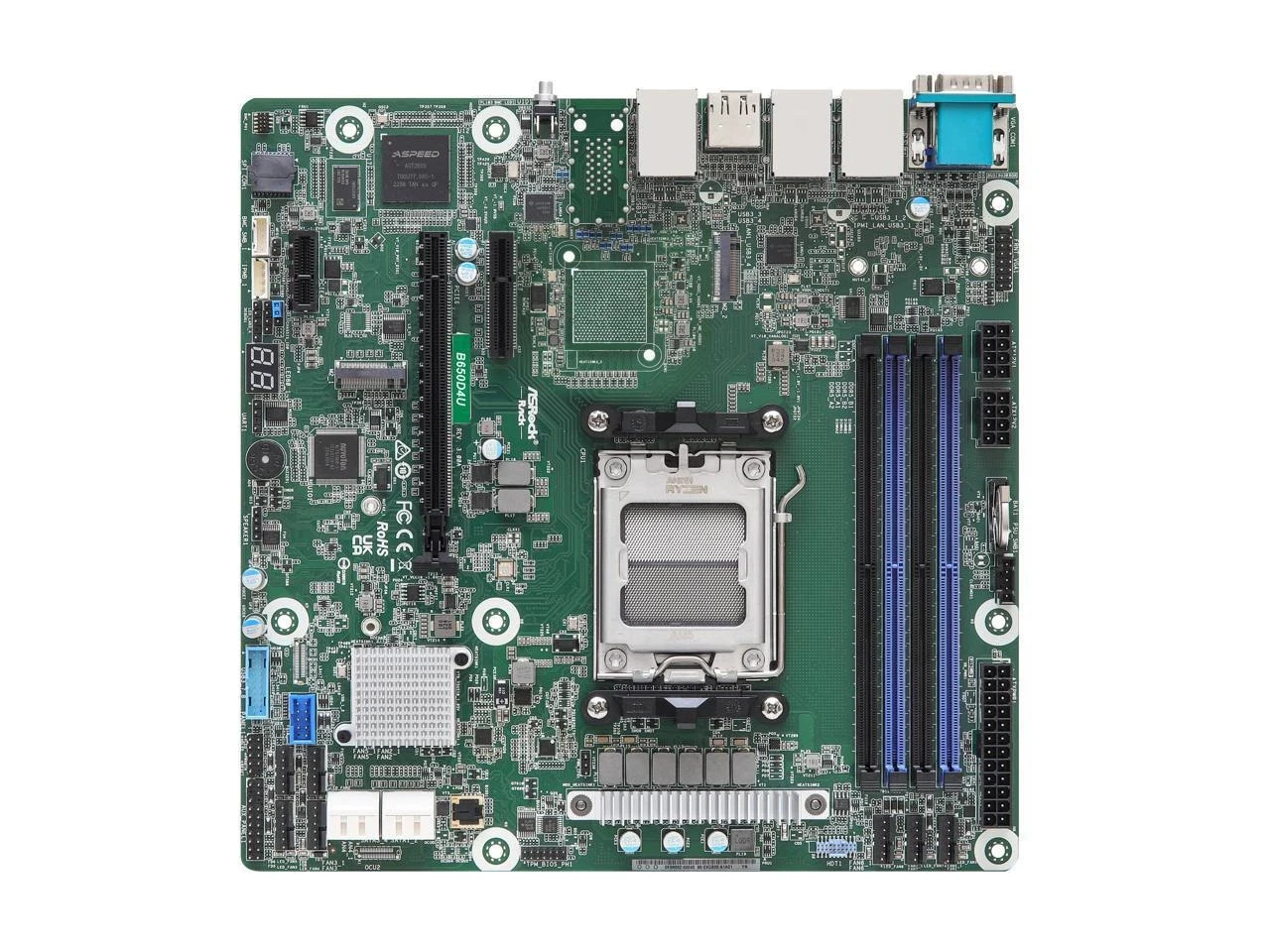

AsRock Rack B650D4U Micro-ATX Server Motherboard Single Socket AMD EPYC™ 4004
AsRock Rack B650D4U Micro-ATX Server Motherboard Single Socket AMD EPYC™ 4004 - Image 2
AsRock Rack B650D4U Micro-ATX Server Motherboard Single Socket AMD EPYC™ 4004 - Image 3
AsRock Rack B650D4U Micro-ATX Server Motherboard Single Socket AMD EPYC™ 4004 - Image 4
AsRock Rack B650D4U Micro-ATX Server Motherboard Single Socket AMD EPYC™ 4004 - Image 5
AsRock Rack B650D4U Micro-ATX Server Motherboard Single Socket AMD EPYC™ 4004 - Image 6
AsRock Rack B650D4U Micro-ATX Server Motherboard Single Socket AMD EPYC™ 4004 - Image 7
AsRock Rack B650D4U Micro-ATX Server Motherboard Single Socket AMD EPYC™ 4004 - Image 8

AsRock Rack B650D4U Micro-ATX Server Motherboard Single Socket AMD EPYC™ 4004

$344.21

Out of stock

Additional information

Brand

Form Factor

Socket Type

Compatible CPU Brand

MPN

Description

OUTLUT Computers & Electronic Inc.

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Comes exactly as pictured.

Learn more about ASRock Rack B650D4U

Model
Brand
AsRock Rack
Model
B650D4U
Supported CPU
CPU Socket Type

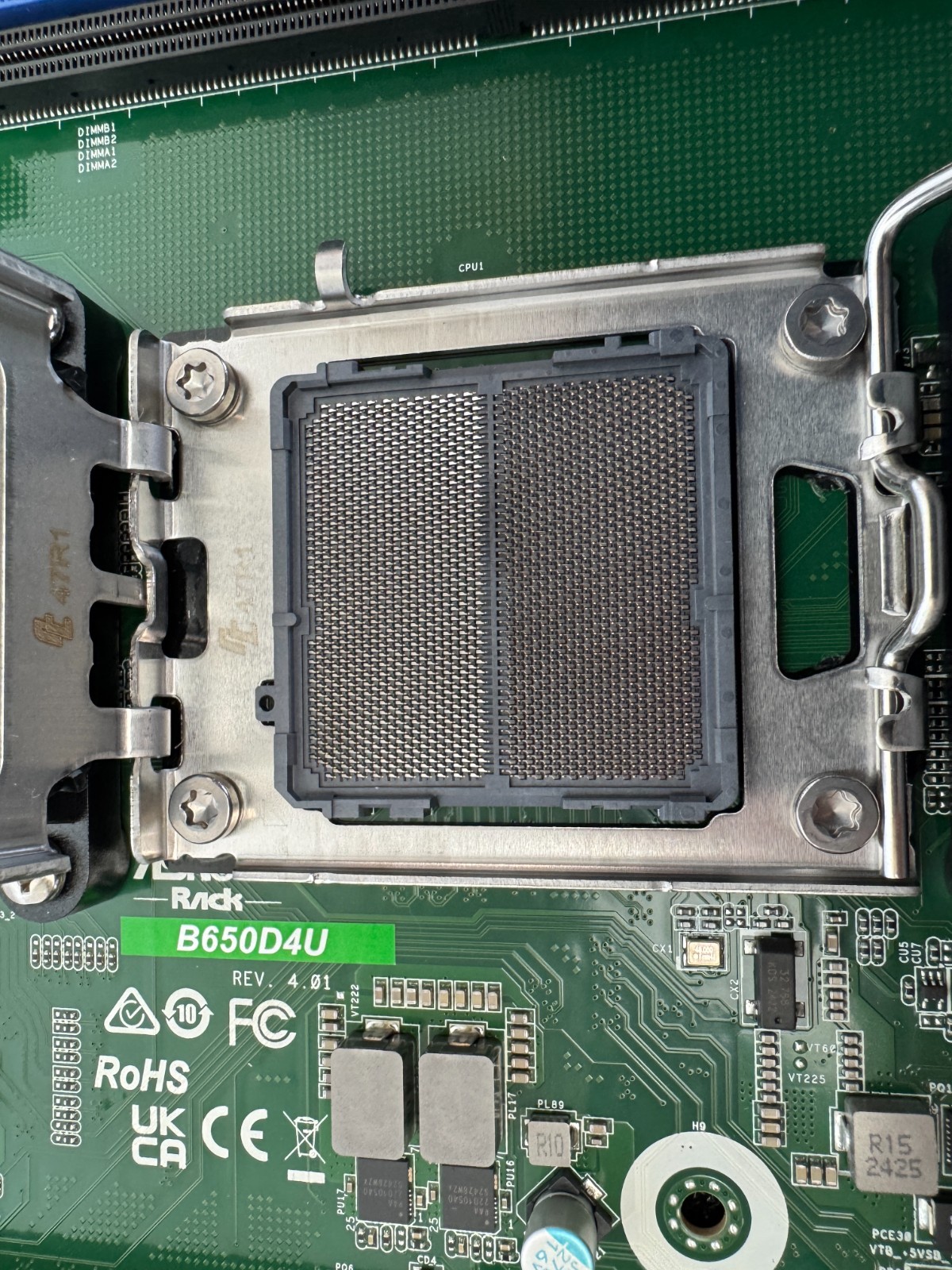

Single Socket AM5 (LGA 1718)
CPU Type
Supports AMD Ryzen 7000 series Processors
Number of Processor Support
1
CPU Features
Thermal Design Power: Up to 170W by proper cooling solution
Chipsets
North Bridge
AMD B650E
Memory
Memory Slots
4 DIMM slots (2DPC)
DDR5 288-pin ECC/non-ECC UDIMM
Memory Standard
5200 MHz (1DPC); 3600 MHz (2DPC)
Maximum Memory Supported
Max. Capacity per DIMM: 48GB
ECC Supported
Yes
Expansion Slots
PCI Express 5.0 x16
SLOT6: PCIe5.0 x16 [CPU]
PCI Express x4
SLOT7: PCIe5.0 x4 [CPU]
PCI Express x1
SLOT4: PCIe4.0 x1 [FCH]
Storage Devices
SATA
4 x SATA 6.0Gb/s
M.2
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]
Onboard Video
Onboard Video Chipset
Aspeed AST2600
Onboard LAN
LAN Chipset
Intel i210: 2 RJ45 (1GbE)
1 Realtek RTL8211F for dedicated management GLAN
LAN Speed
10/100/1000Mbps
Rear Panel Ports
Back I/O Ports
UID Button/LED: 1 UID button w/ LED
VGA Port: 1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port: 1 DB9 (COM)
USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
RJ45: 2 RJ45 (1GbE), 1 dedicated IPMI
Onboard Ports
Other Connectors
Power Connector: 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN activity LED
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header: 1
Speaker Header: 1
Buzzer: 1
Fan Header: 7 (6-pin)
TPM Header: 1 (13-pin, SPI)
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1
Others: 1 (3-pin, 80 debug port header)
Dimensions
Form Factor
Micro ATX
Dimensions (W x L)
9.6″ x 9.6″


Shipping Information
This item ships to Canada & USA only !

Terms of Sales

We take painstaking care to pack our customers items for maximum safety.  All items will usually ship within 24h!  All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.



Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received in.
