Description
OUTLUT Computers & Electronic Inc.

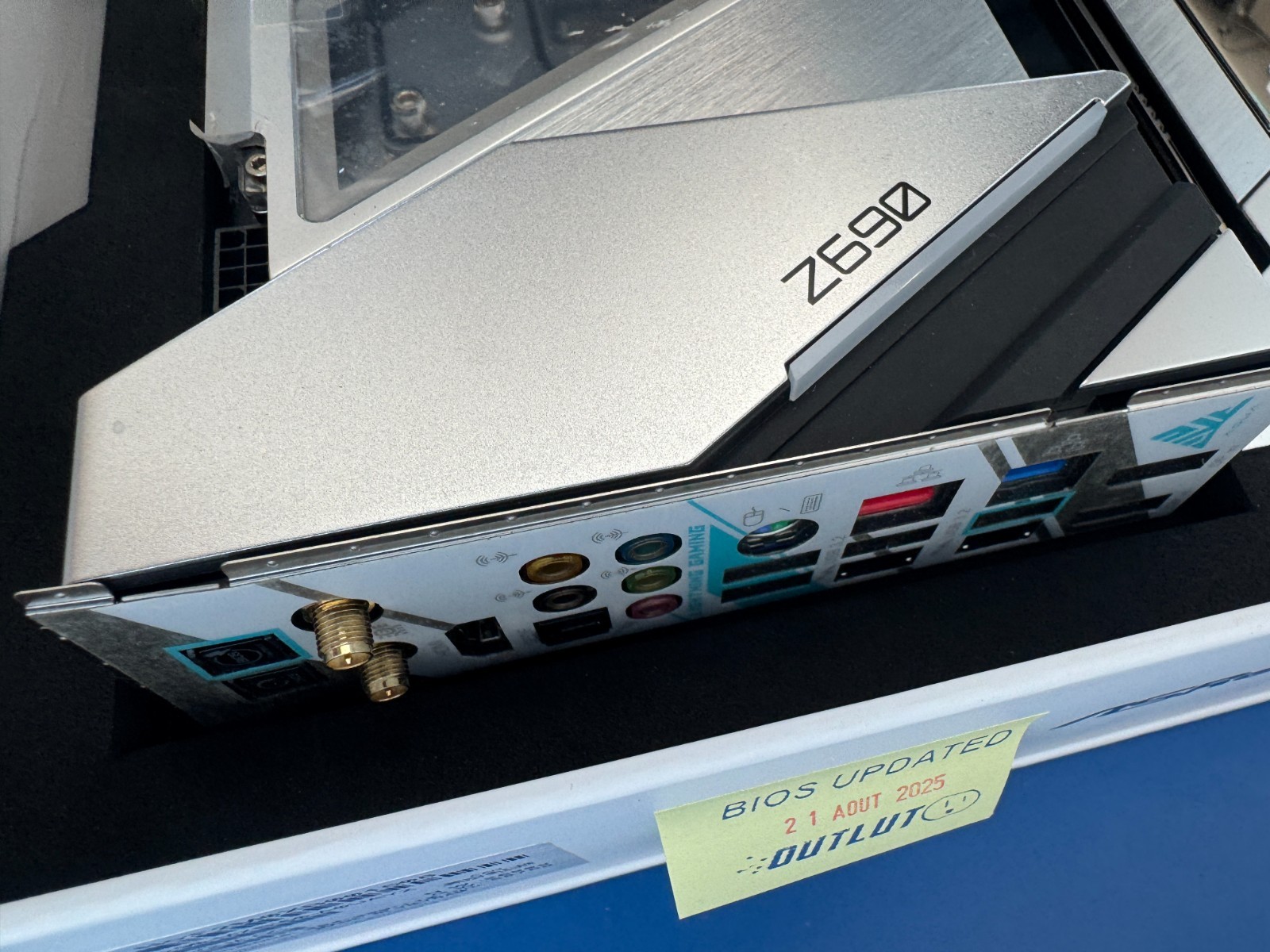

Assembled in a system and removed, never actually used. Professionally tested to ensure 100% functionality. Bios updated to latest.

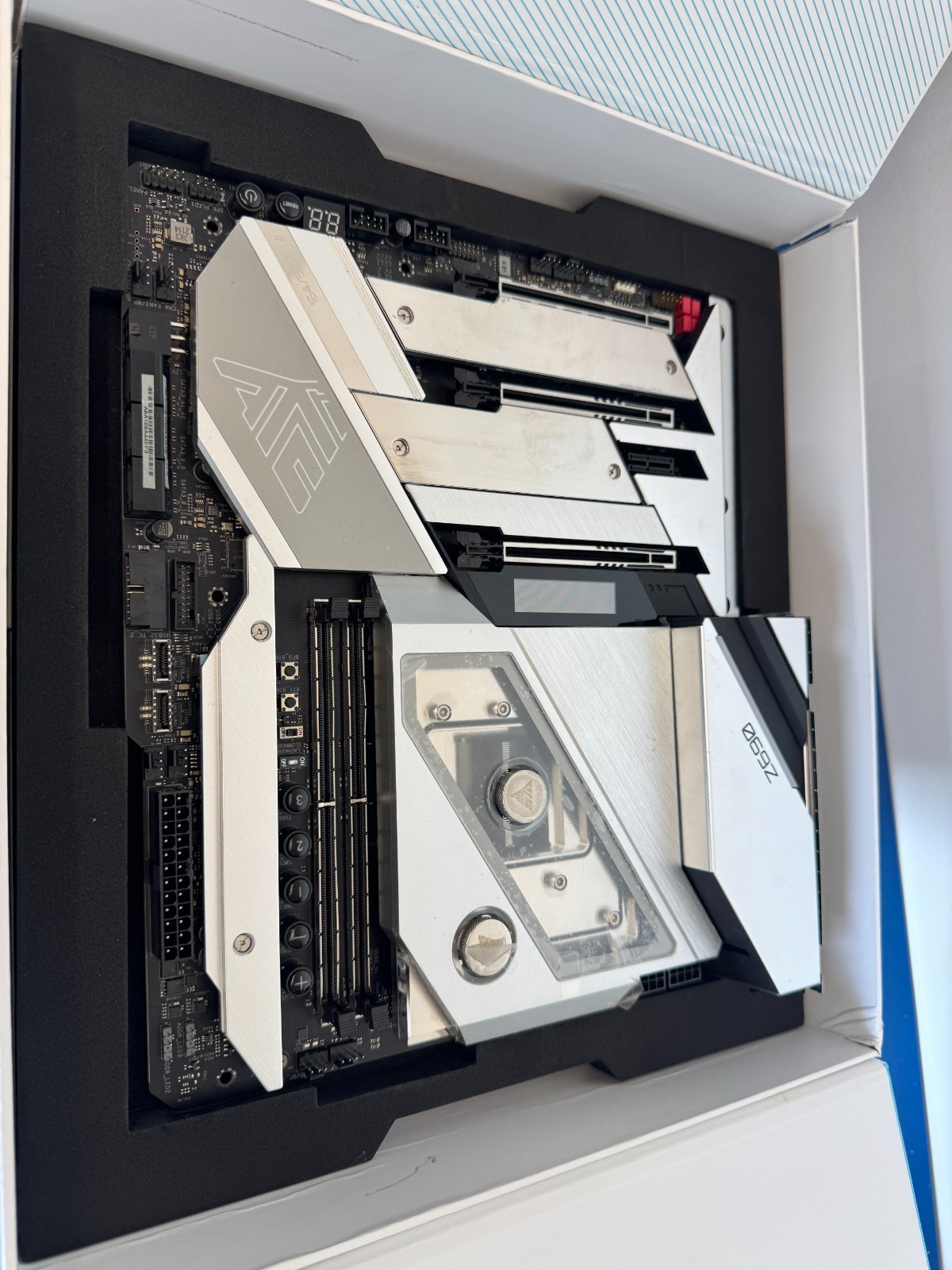

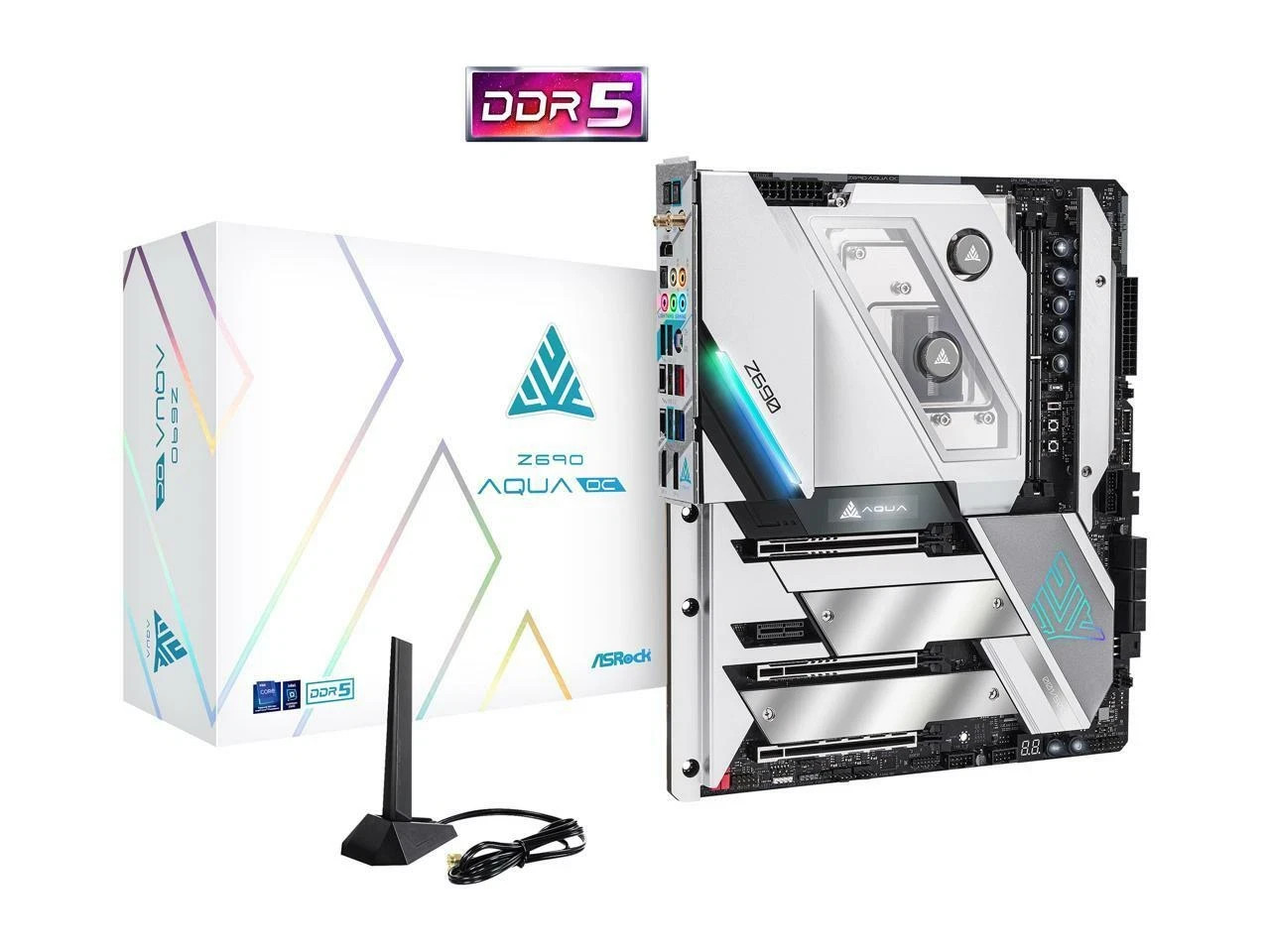

Learn more about ASRock Z690 AQUA OC Model Brand ASRock Model Z690 AQUA OC Supported CPU CPU Socket Type LGA 1700* Dedicated LGA1700 mounting bracket is required. CPU Type Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors Supported CPU Technologies Turbo Boost Technology 3.0 Chipsets Chipset Intel Z690 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Memory Number of Memory Slots 2x288pin (DDR5) Memory Standard DDR5 7000+(OC)** Supports DDR5 4800 (1DPC) natively. Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 5.0 x16 2 x PCI Express 5.0 x16* Supports NVMe SSD as boot disks. PCI Express 4.0 x16 1 x PCI Express 4.0 x16* Supports NVMe SSD as boot disks. PCI Express x1 1 x PCIe Gen3 x1 Other Slots 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage Devices SATA 6Gb/s 6 x SATA 6Gb/s* If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. M.2 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) mode*
* Supports Intel Optane Technology (M2_2 and M2_3 only).
Intel Optane Ready Yes SATA RAID 0/1/5/10 Onboard Audio Audio Chipset Realtek ALC1220 Audio Channels 7.1 Channels Onboard LAN LAN Chipset Marvell (Aquantia) AQC113CS Second LAN Chipset Killer E3100G Max LAN Speed 10Gbps + 2.5Gbps Wireless LAN 802.11ax Wi-Fi 6E ModuleIEEE 802.11a/b/g/n/ax Bluetooth Yes Rear Panel Ports Back I/O Ports 2 x Antenna Ports1 x PS/2 Mouse/Keyboard Port1 x HDMI Port2 x DisplayPort 1.4 Input1 x Optical SPDIF Out Port2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)2 x USB4 Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)*2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)**2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)1 x Clear CMOS Button1 x BIOS Flashback ButtonHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)* Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging.** USB3_2 is ASMedia ASM3042.** USB3_1 and USB3_2 are the Lightning Gaming Ports. Internal I/O Connectors Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s) (Support ESD Protection) Other Connectors 1 x SPI TPM Header1 x Power LED and Speaker Header1 x RGB LED Header*3 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x Front Panel Audio Connector (15µ Gold Audio Connector)1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED1 x Retry Button1 x Safe Boot ButtonV-Probe: 4-set of onboard voltage measurement points laidRapid OC Buttons: +/buttons to adjust OC frequency1 x Slow Mode Switch1 x LN2 Mode Switch1 x NickShih’s OC Profile 1 Button with LED1 x NickShih’s OC Profile 2 Button with LED1 x NickShih’s OC Profile 3 Button with LED* Supports in total up to 12V/3A, 36W LED Strip.** Support in total up to 5V/3A, 15W LED Strip.*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**** CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.***** CPU_FAN2/WP_3A, CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use. Physical Spec Form Factor Extended ATX LED Lighting RGB Dimensions (W x L) 12.0″ x 10.5″ Power Pin 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)1 x 6 pin 12V Power Connector (Hi-Density Power Connector) Windows Compatibility Windows 11 Supported Features Features Unique FeatureASRock USB4- ASRock USB4 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol)ASRock USB 3.2 Gen2- ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium Power Choke- 105A SPS (Smart Power Stage)- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Shaped PCB Design- Matte Black PCB- High Density Glass Fabric PCB- 12 Layer PCB- 2oz Copper PCBAQUA Cooling ArmorServer-Grade Low-Loss PCBMarvell (Aquantia) 10G LANKiller 2.5G LAN802.11ax Wi-Fi 6EKiller DoubleShot ProASRock Auto Driver InstallerASRock Steel SlotsASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Status OLEDASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS- 256Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, VCCIN_AUX, VDD2, DRAM(VDD, VDDQ, VPP), +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH, CPU Core PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL, Atom Core PLL Voltage Multi-adjustmentSoftware and UEFISoftware- ASRock Motherboard Utility (A-Tuning)- Killer Control Center- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer* These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD- Drivers, Utilities, AntiVirus Software (Trial Version)OS- Microsoft Windows 10 64-bit / 11 64-bit
Shipping Information
This item ships to Canada & USA only !
Terms of Sales
We take painstaking care to pack our customers items for maximum safety. All items will usually ship within 24h! All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.
Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received in.
