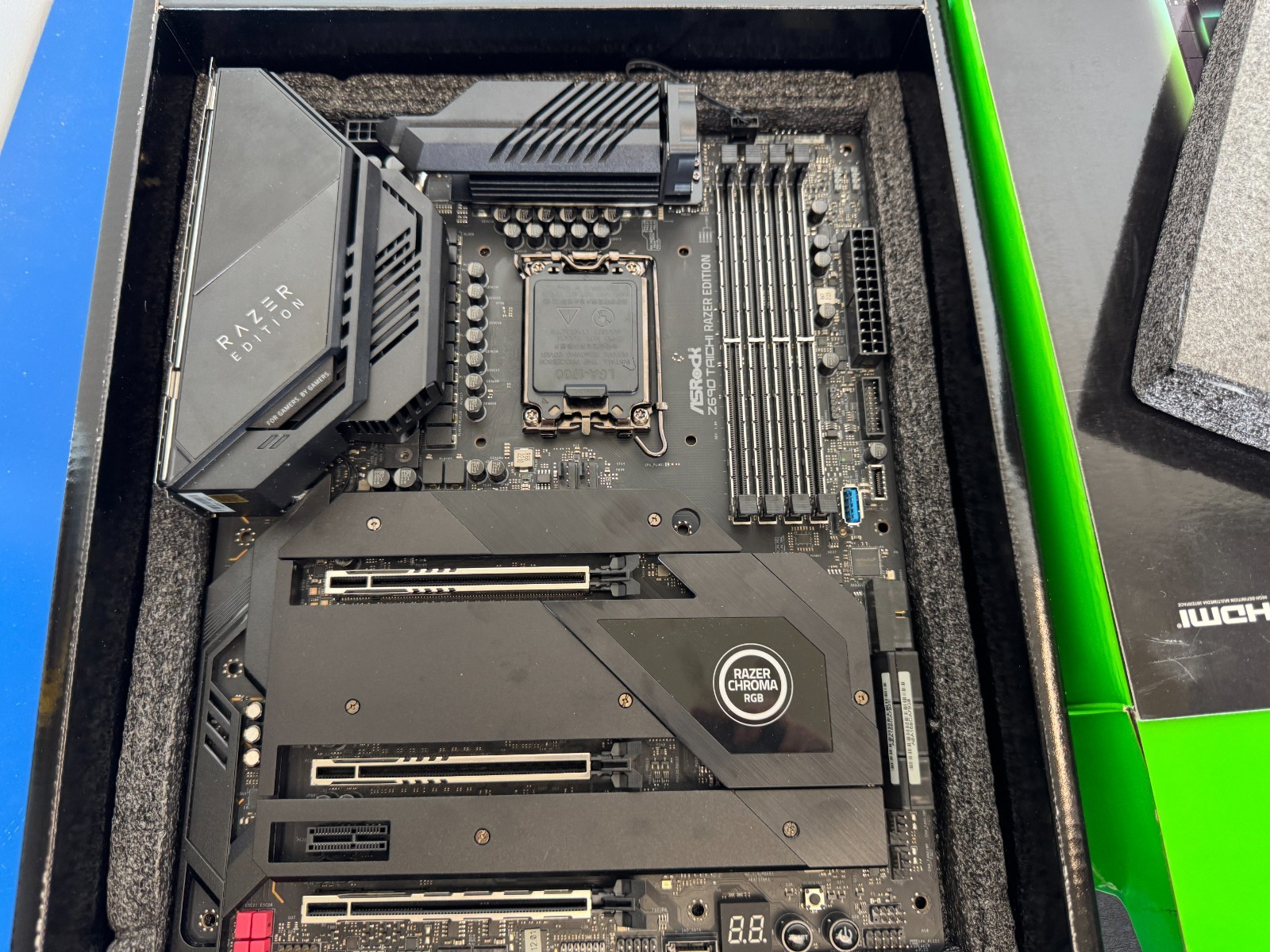

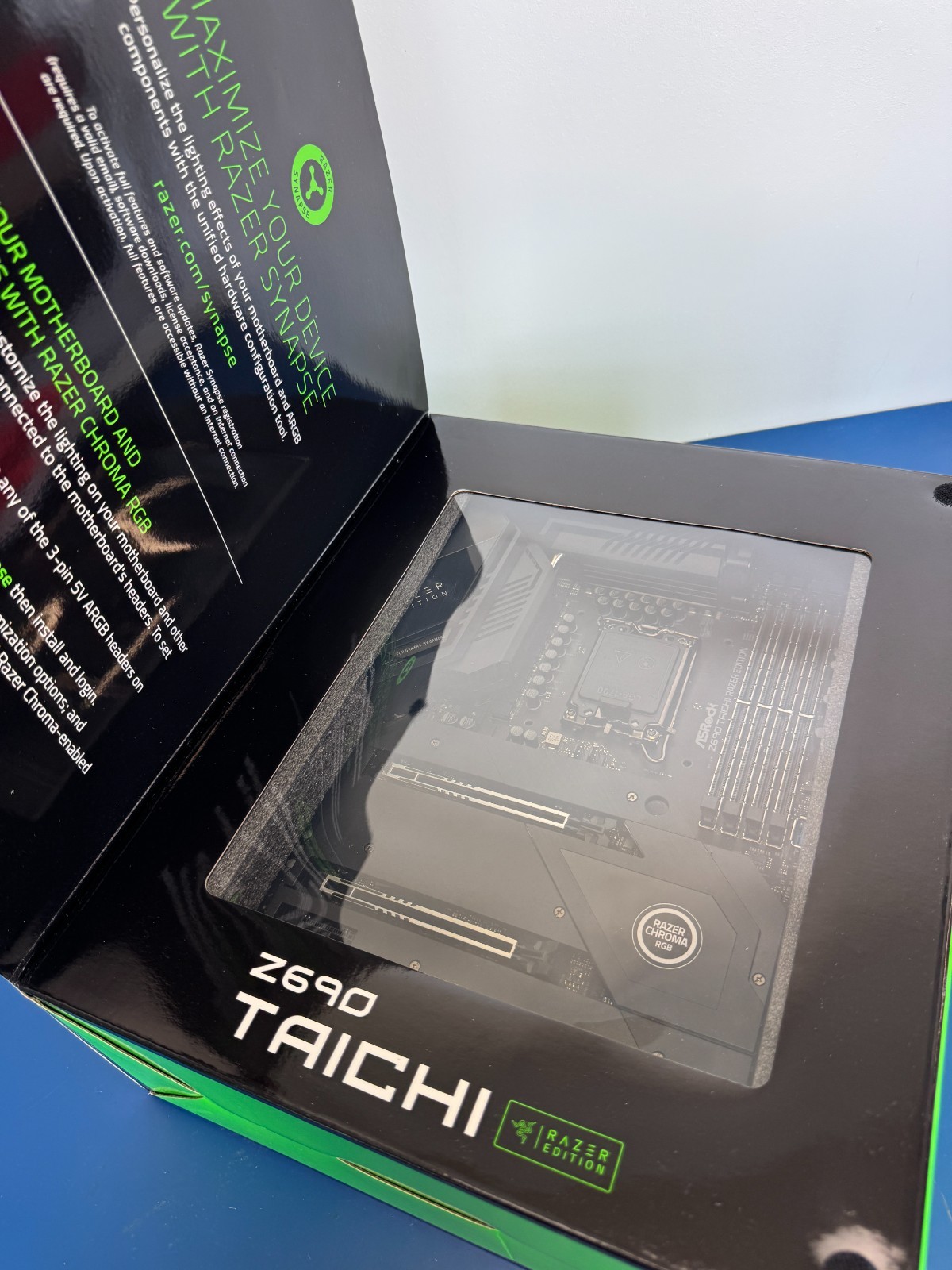

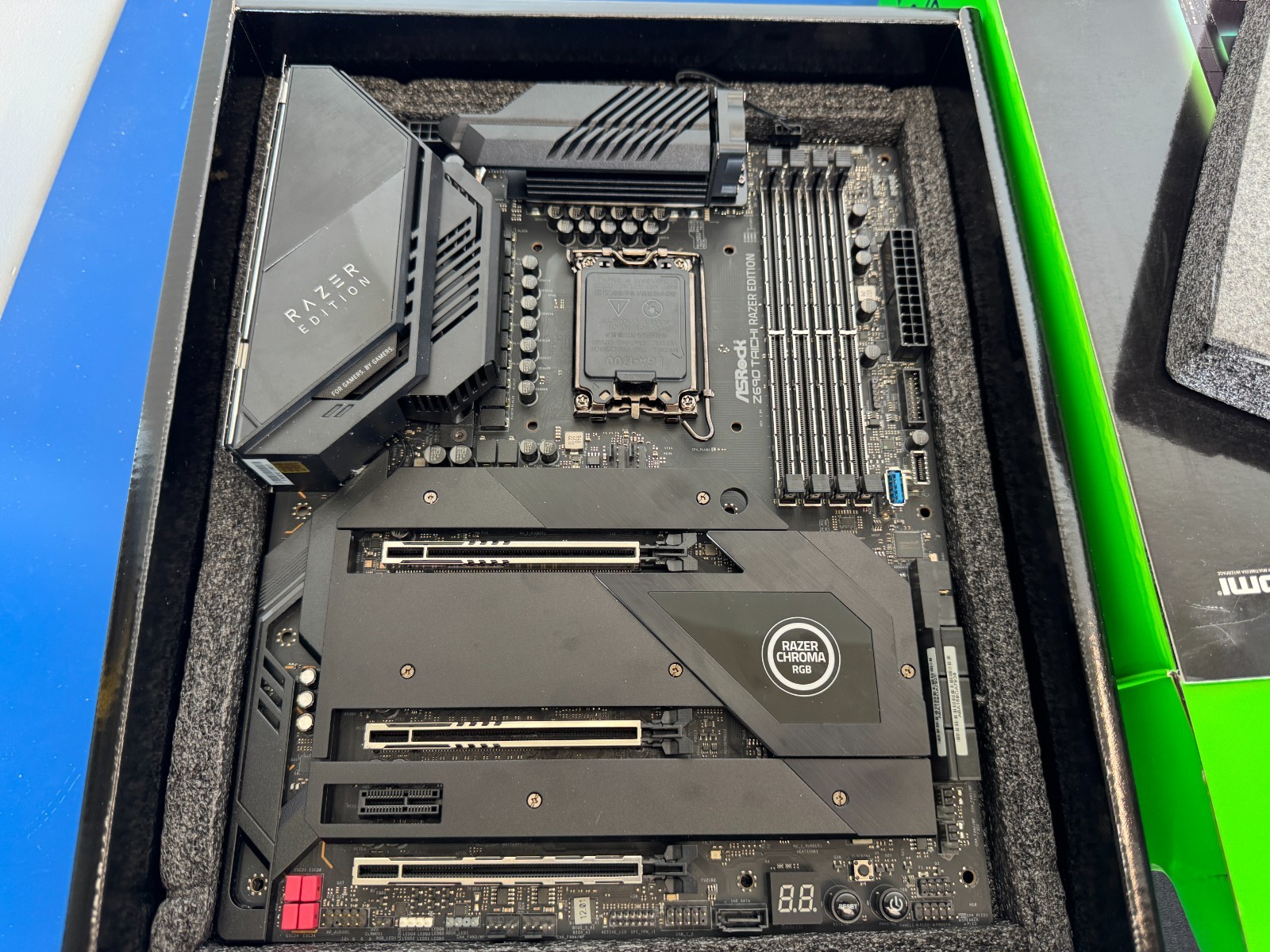

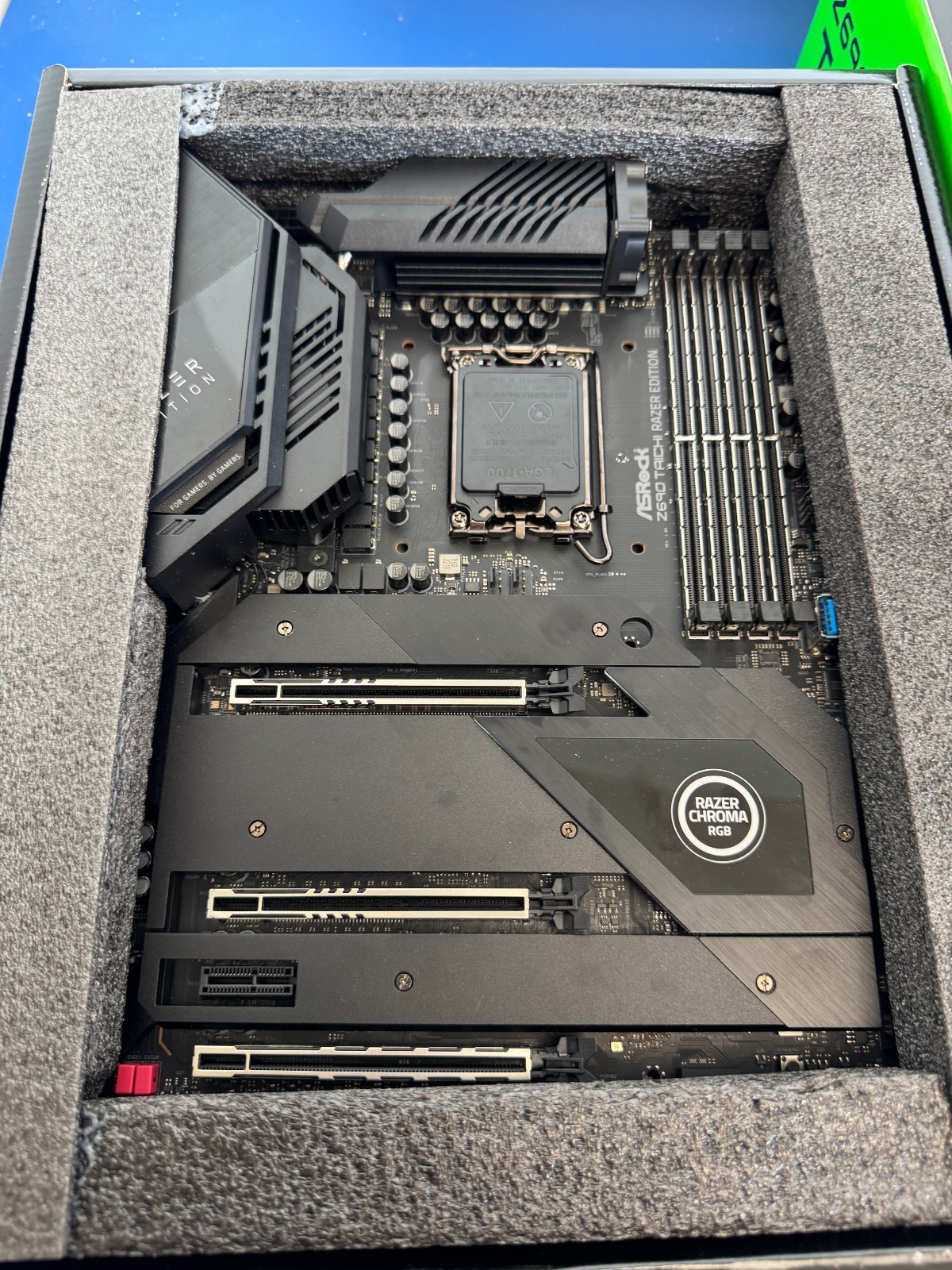

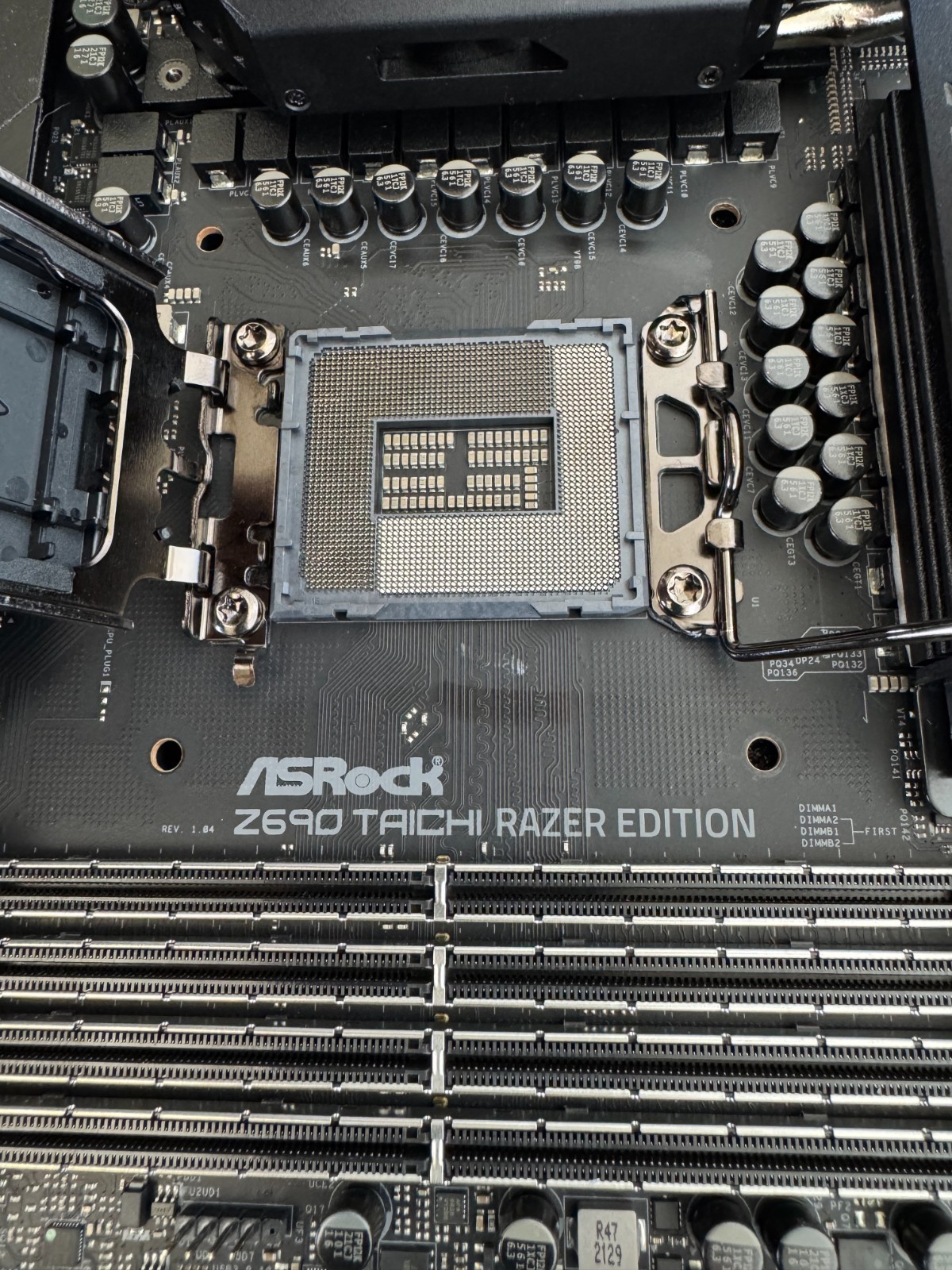

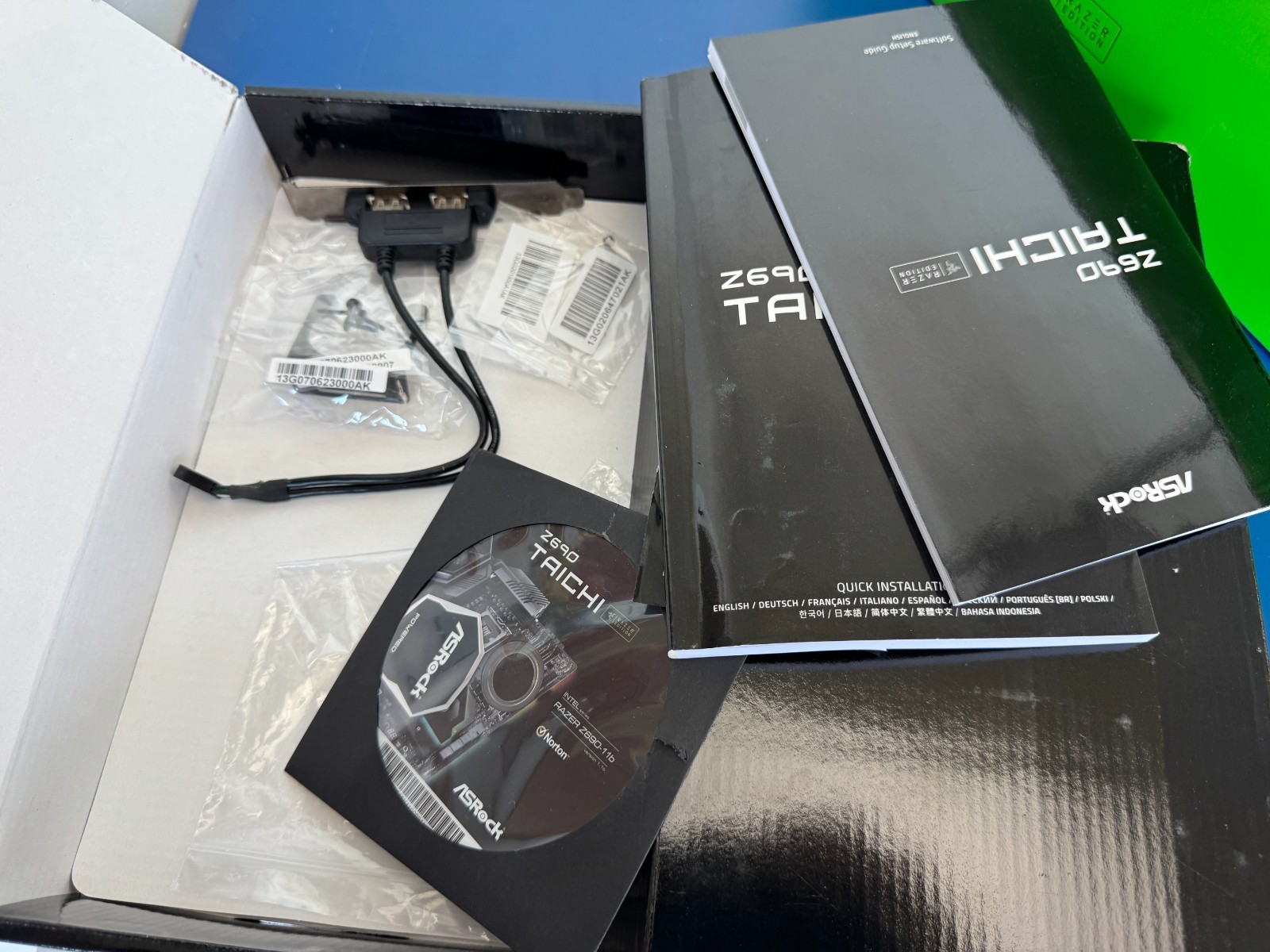

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Learn more about ASRock Z690 Taichi Razer Edition

Model

Brand

ASRock

Model

Z690 Taichi Razer Edition

Supported CPU

CPU Socket Type

LGA 1700

* Dedicated LGA1700 mounting bracket is required.

CPU Type

Supports 12th 13th 14th Gen Intel Core Processors Supports Intel Pentium / Celeron Processors

Supported CPU Technologies

Turbo Boost Technology 3.0

Chipsets

Chipset

Intel Z690

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5 6400+(OC)** Supports DDR5 4400 (1DPC) / 3600 (2DPC) natively.* Please refer to Memory Support List on ASRock’s website for more information. (https://www.asrock.com/)

Maximum Memory Supported

128GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 5.0 x16

3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16 (PCIE1); dual at Gen5x8 (PCIE1) / Gen5x8 (PCIE2); triple at Gen5x8 (PCIE1) / Gen5x8 (PCIE2) / Gen4x4 (PCIE4))** Supports NVMe SSD as boot disks.

PCI Express x1

1 x PCIe Gen3 x1

Other Slots

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)15µ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)

Storage Devices

SATA 6Gb/s

6 x SATA3 6.0 Gb/s1 x Independent SATA3 6.0 Gb/s

M.2

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*1 x M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes** Supports Intel Optane Technology (M2_2 and M2_3 only).* Supports Intel Volume Management Device (VMD).* Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.

Intel Optane Ready

Yes

SATA RAID

0/1/5/10

Onboard Audio

Audio Chipset

Realtek ALC1220

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Killer E3100G

Second LAN Chipset

Intel I219V

Max LAN Speed

10/100/1000/2500Mbps + 10/100/1000Mbps

Wireless LAN

802.11ax Wi-Fi 6E ModuleIEEE 802.11a/b/g/n/ax

Bluetooth

Yes

Rear Panel Ports

Back I/O Ports

2 x Antenna Ports1 x HDMI Port1 x Optical SPDIF Out Port2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)2 x USB 4.0 Thunderbolt 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)* Supports USB PD 2.0 up to 9V@3A (27W) / 5V@3A (15W) charging.4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)* USB3_2, USB3_3 and USB3_4 are from Intel Z690; USB3_1 is from ASMedia ASM3042.* USB3_1_2 are the Lightning Gaming Ports.* Ultra USB Power is supported on USB3_3 port.* ACPI wake-up function is not supported on USB3_3 port.2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)1 x BIOS Flashback ButtonHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)

Internal I/O Connectors

Onboard USB

2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)1 x Independent USB 3.2 Gen1 Type-A Connector2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

Other Connectors

1 x SPI TPM Header1 x Power LED and Speaker Header1 x RGB LED Header* Supports in total up to 12V/3A, 36W LED Strip.3 x Addressable LED Headers* Support in total up to 5V/3A, 15W LED Strip.1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.* CPU_FAN3/WP supports the water cooler fan of maximum 2A (24W) fan power.4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.1 x VRM/Water Pump Fan Connector (4-pin)* The VRM/Water Pump Fan Connector supports the VRM fan of maximum 2A (24W) fan power.* CPU_FAN2/WP_3A, CPU_FAN3/WP, VRM_FAN1/WP, CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.1 x Front Panel Audio Connector (15µ Gold Audio Connector)1 x Clear CMOS Button1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0″ x 9.6″

Power Pin

1 x 24 pin ATX Power Connector (Hi-Density Power Connector)2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

Windows Compatibility

Windows 11

Ready

Features

Features

Unique Feature:ASRock USB 4.0- ASRock USB 4.0 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol)ASRock USB 3.2 Gen2- ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 90A Power Choke- 105A SPS (Smart Power Stage)- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 8 Layer PCB- 2oz Copper PCBServer-Grade Low-Loss PCBKiller 2.5G LAN802.11ax Wi-Fi 6EKiller DoubleShotTM ProASRock Auto Driver InstallerASRock Steel SlotsASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS Feature:- 256Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, DRAM, VCCIN_AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustmentSupport CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarSoftware and UEFI:Software- ASRock Motherboard Utility (A-Tuning)- Killer Control Center* These utilities can be downloaded fromASRock Live Update & APP Shop.- Razer Synapse 3* Razer Synapse 3 can be downloaded from razer.com/synapse-3.UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID InstallerOS:- Microsoft Windows 10 64-bit / 11 64-bit
