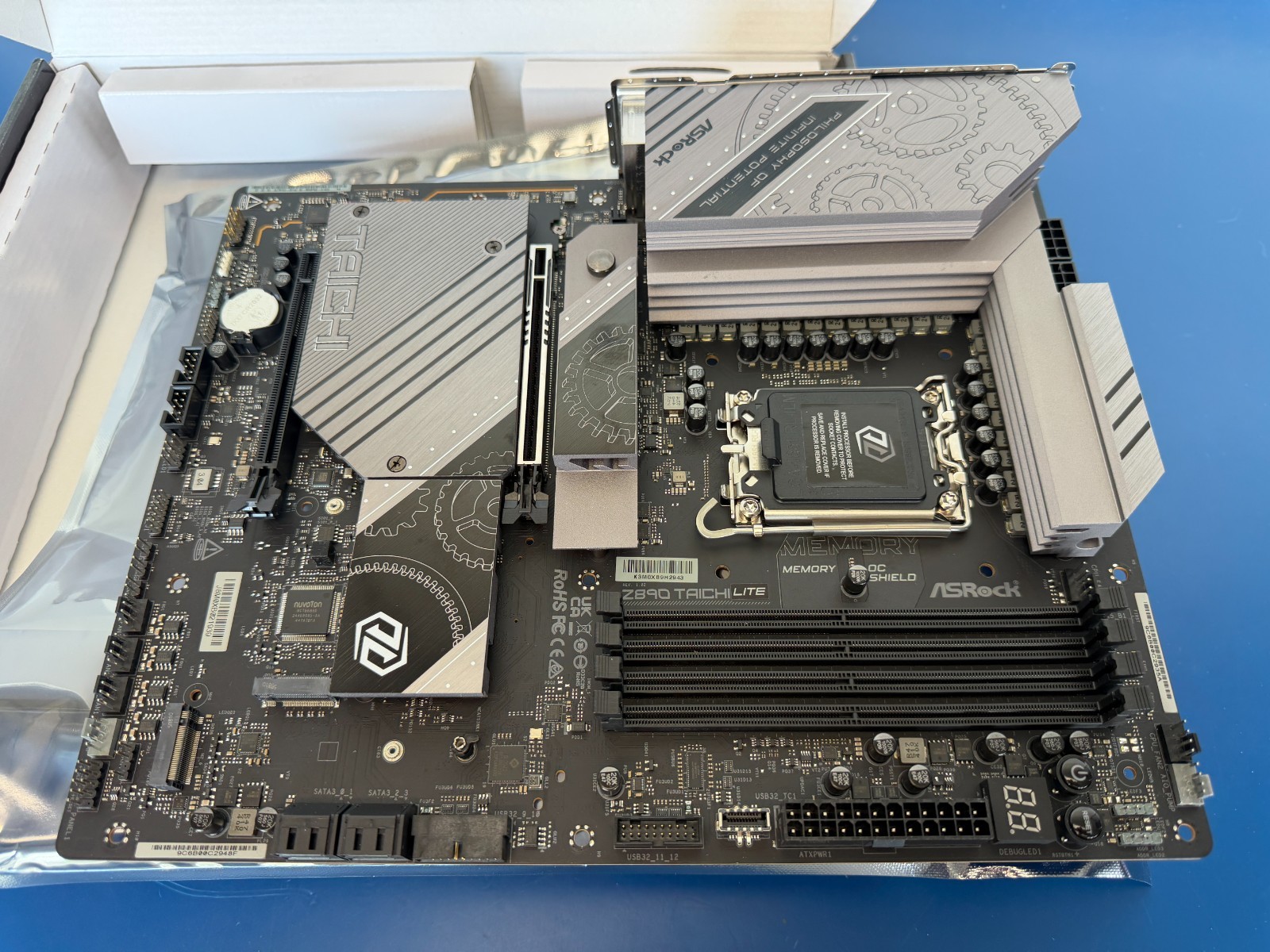

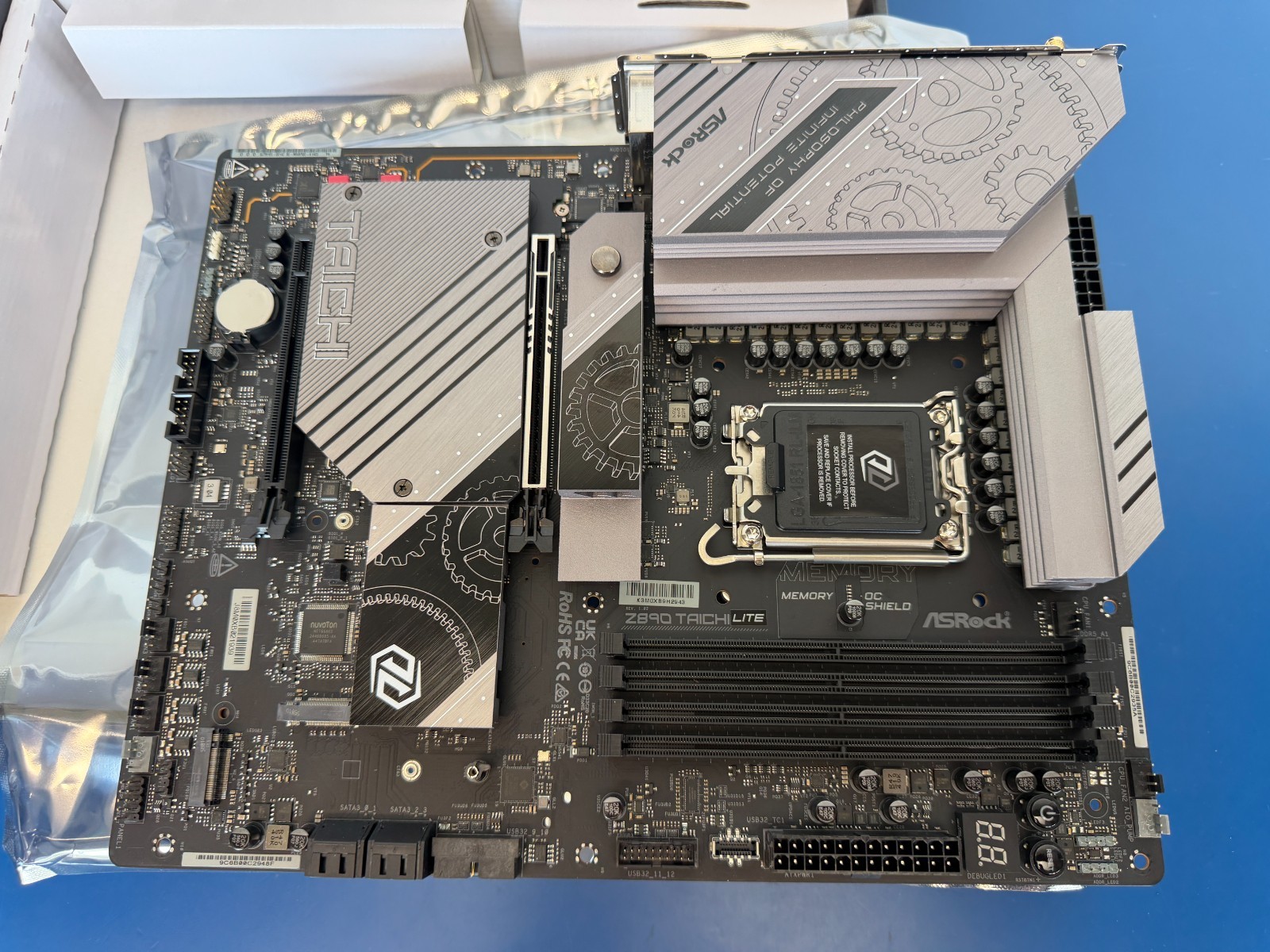

Name: ASRock Z890 Taichi Lite LGA 1851 Intel Z890 SATA 6Gb/s ATX Motherboard
Brand: ASRock
Price: 340.33 CAD
Availability: InStock

Description

OUTLUT Computers & Electronic Inc.

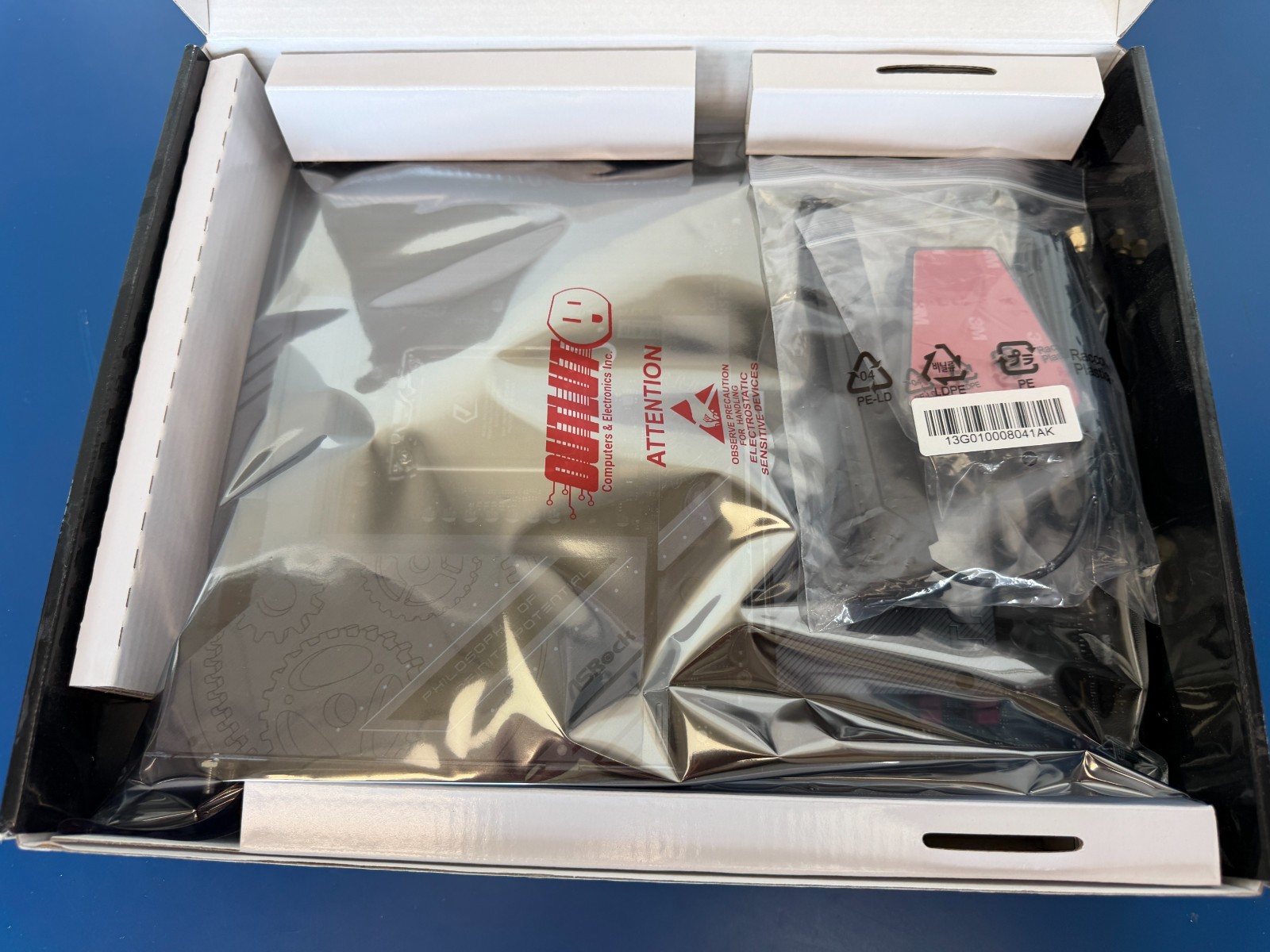

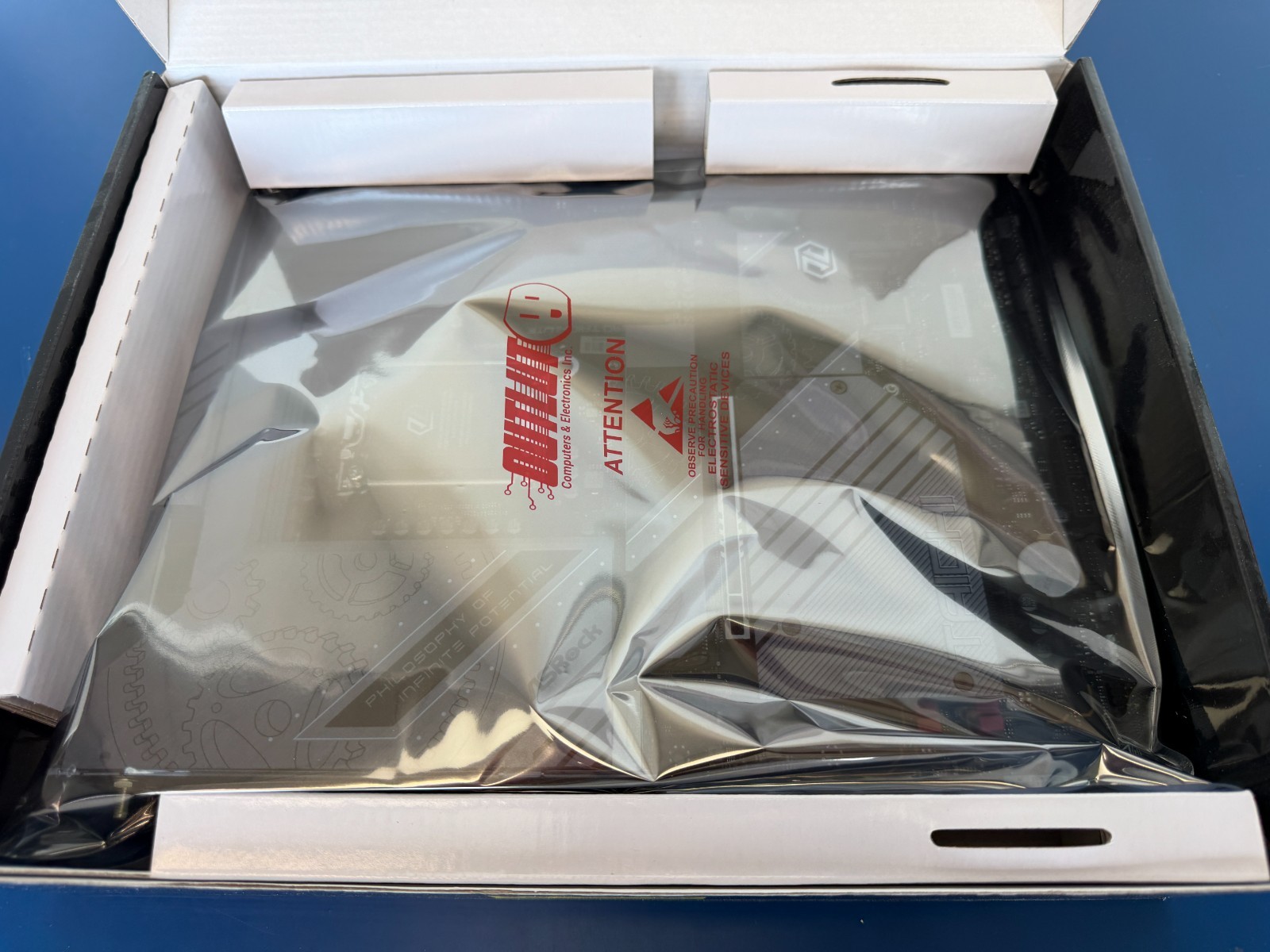

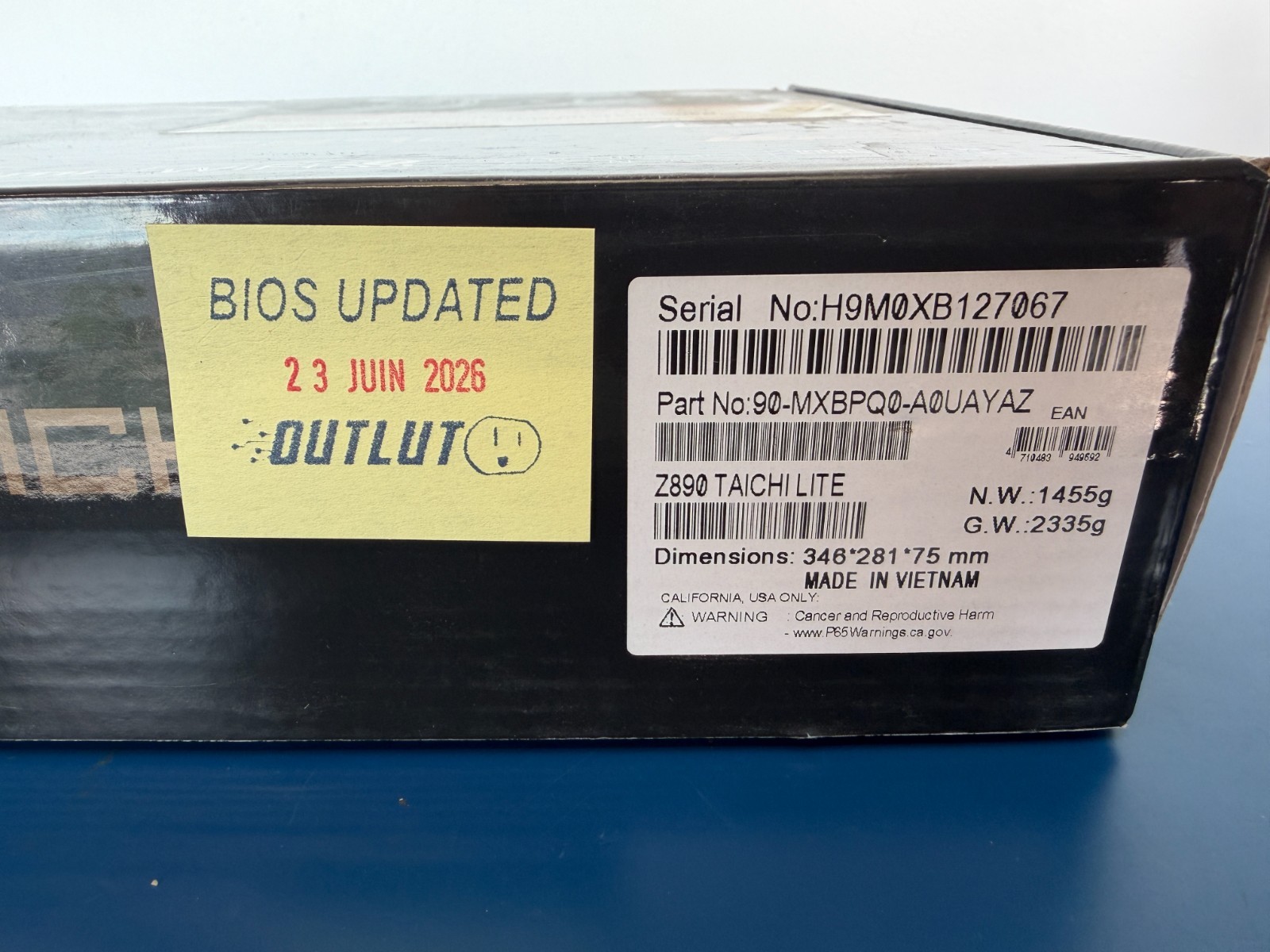

Pristine condition never used open box. Professionally tested to ensure 100% functionality. Bios updated to latest.

Learn more about ASRock Z890 Taichi Lite

Model

Brand: ASRock

Model: Z890 Taichi Lite

Supported CPU

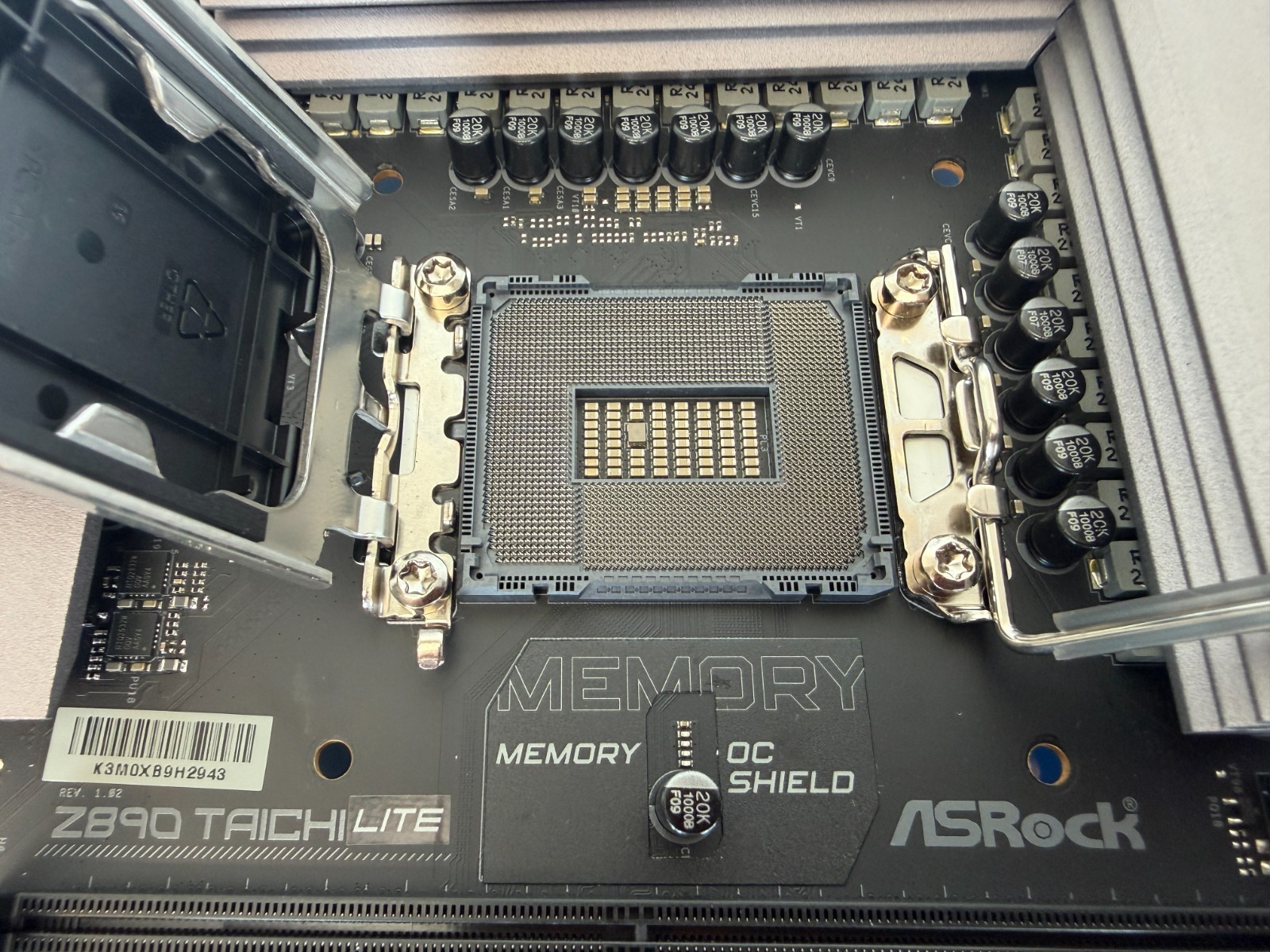

CPU Socket Type: LGA 1851

CPU Type: Intel Core Ultra Processors (Series 2)

Chipsets

Chipset: Intel Z890

Memory

Number of Memory Slots: 4x288pin (DDR5)

Memory Standard: DDR5 5600

Maximum Memory Supported: 256GB

Channel Supported: Dual Channel

Memory Feature: Supports DDR5 non-ECC, un-buffered memory up to 9200+(OC)
– 1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
– 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
– 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
– 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.
Max. capacity of system memory: 256GB
Supports Intel Extreme Memory Profile (XMP) 3.0

Expansion Slots

PCI Express 5.0 x16: CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

PCI Express 4.0 x16: Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*

* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
* If PCIE2 is occupied, M2_4 will be disabled.
* Supports NVMe SSD as boot disks

Storage Devices

SATA 6Gb/s: 4 x SATA 6Gb/s

M.2: CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
* If PCIE2 is occupied, M2_4 will be disabled

SATA RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Additional RAID Controller: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Audio

Audio Chipset: Realtek ALC4082

Audio Channels: 5.1 CH HD Audio with Content Protection
WIMA Audio Capacitors (For Rear Outputs)
ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
Individual PCB Layers for R/L Audio Channel
Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
Nahimic Audio

Onboard LAN

LAN Chipset: Realtek RTL8126-VB

Second LAN Chipset: Dragon RTL8125BG

Max LAN Speed: 5Gbps + 2.5Gbps

Wireless LAN: Wi-Fi 802.11 be

Bluetooth: Bluetooth 5.4

Rear Panel Ports

Back I/O Ports: 2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x Thunderbolt4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
4 x USB 3.2 Gen1 Ports**
2 x USB 2.0 Ports
2 x RJ-45 LAN Ports
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
** USB32_56 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.

Internal I/O Connectors

Onboard USB: 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

Other Connectors: 3 x Thermistor Cable Headers
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).
*** CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Software Feature

BIOS Feature: 256Mb AMI UEFI Legal BIOS with GUI support

Software: Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock Dragon 2.5G LAN Software
* These utilities can be downloaded from ASRock Live Update & APP Shop.

UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

Windows 11: Supported

Physical Spec

Form Factor: ATX

Dimensions (W x L): 12.0″ x 9.6″

Power Pin: 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

Features

Features: Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– Thunderbolt 4 Type-C Ports (40 Gb/s)

Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
– Memory OC Shield

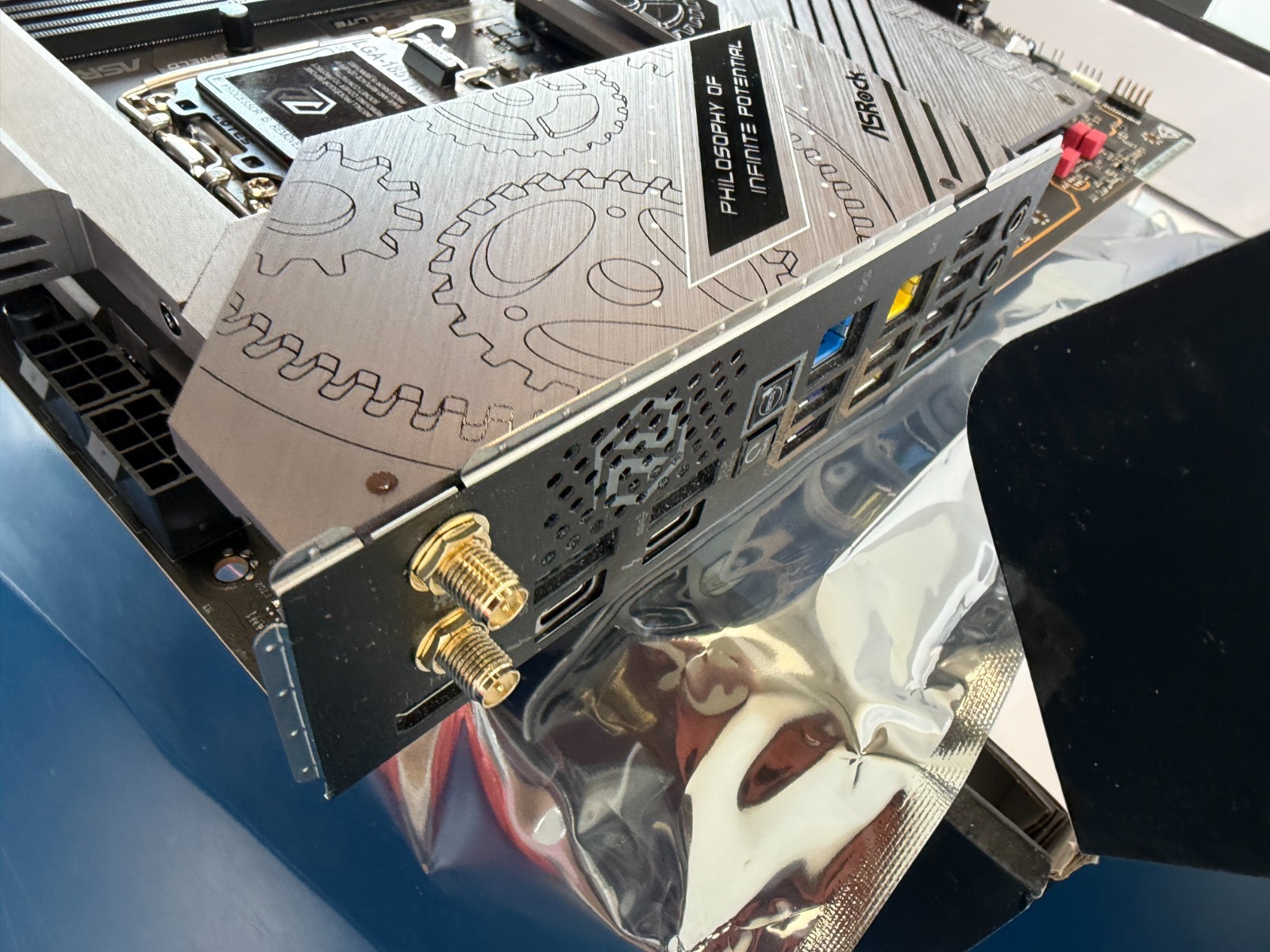

– Flexible Integrated I/O Shield
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

Ultrafast Connectivity
– 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module
– ASRock Lightning Gaming Ports

EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer

Shipping Information

This item ships to Canada & USA only !

Terms of Sales

We take painstaking care to pack our customers items for maximum safety. All items will usually ship within 24h! All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.

Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received in.

A-00-00-00

Additional information

Weight	3 kg
Dimensions	40 × 30 × 10 cm
Brand	ASRock
Form Factor	ATX
Socket Type	LGA 1851
Number of Memory Slots	4x288pin (DDR5)
Model	Z890 Taichi Lite
MPN	Z890 Taichi Lite
Country of Origin	Taiwan
