Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

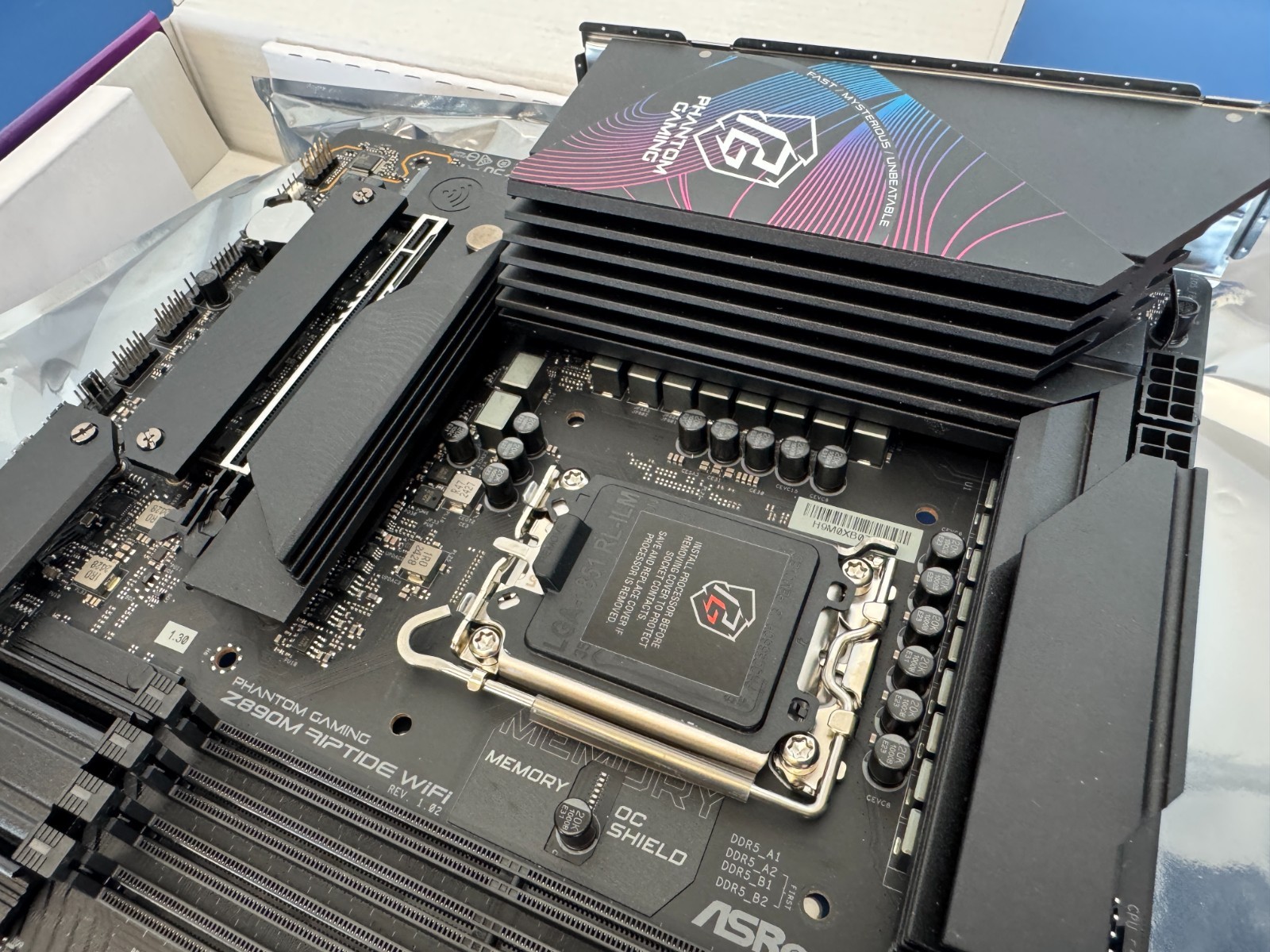

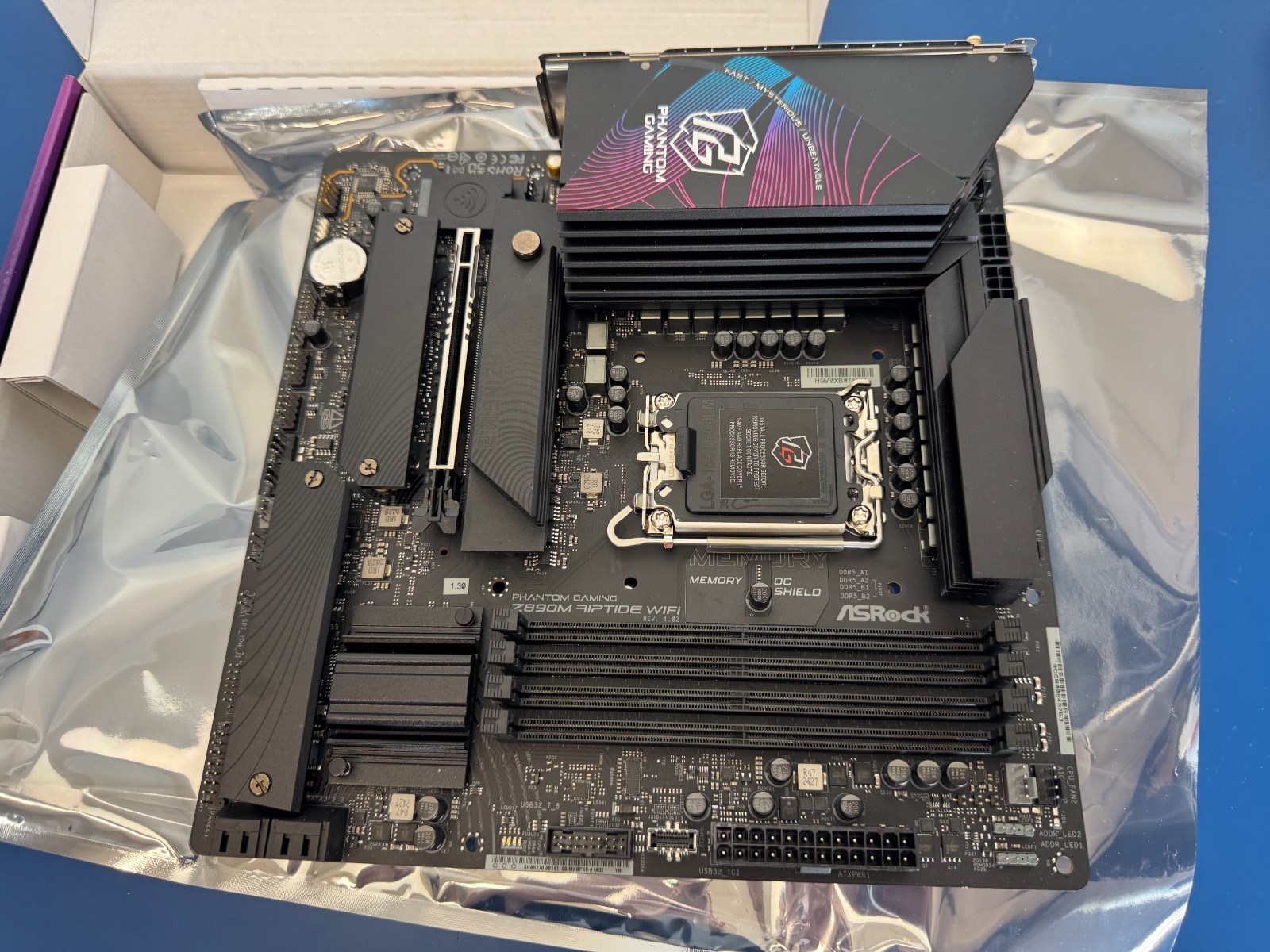

Learn more about ASRock Z890M Riptide WiFi

Model

Brand

ASRock

Model

Z890M Riptide WiFi

Supported CPU

CPU Socket Type

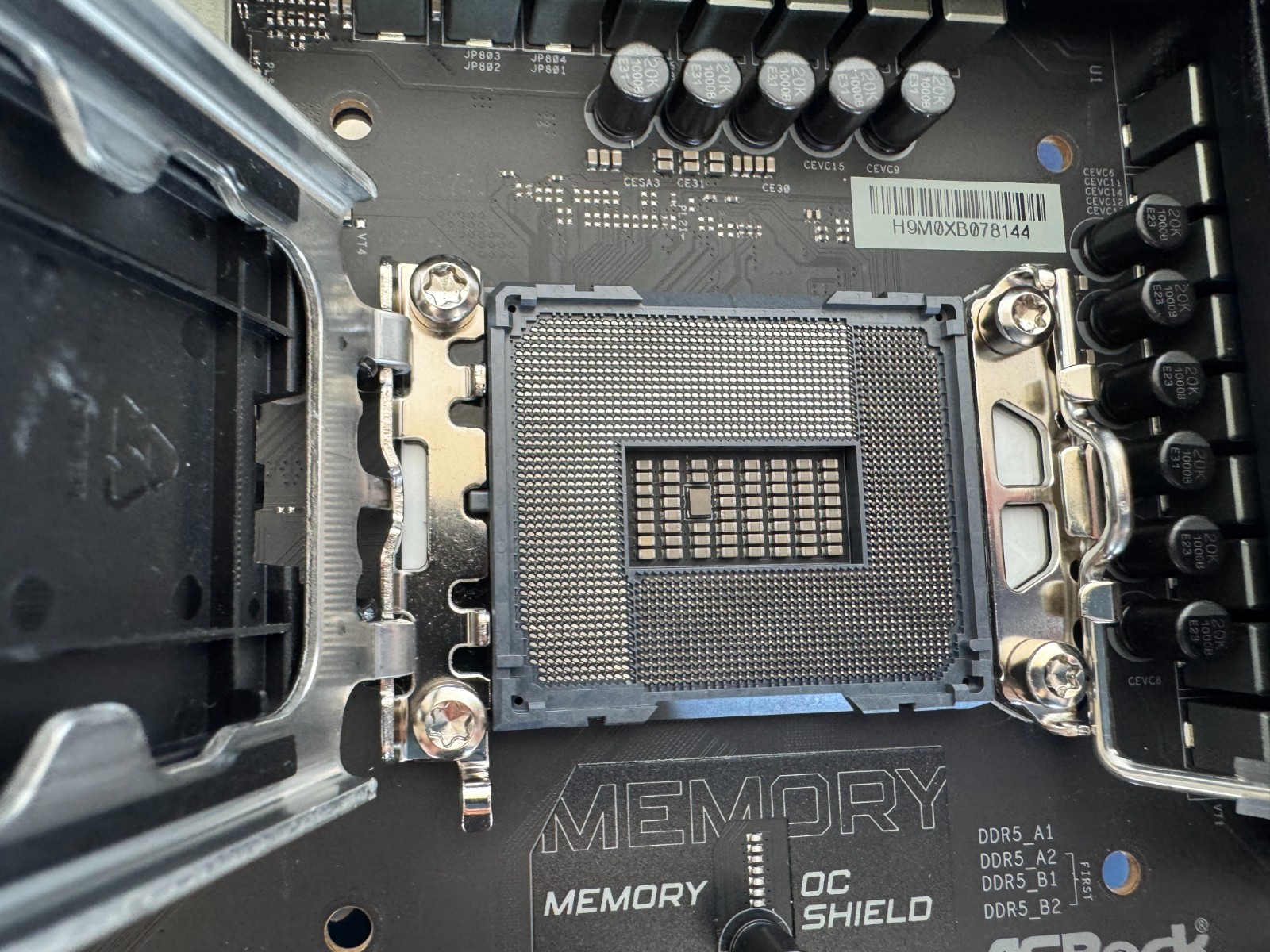

LGA 1851

CPU Type

Intel Core Ultra Processors (Series 2)

Chipsets

Chipset

Intel Z890

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5 5600

Maximum Memory Supported

256GB

Channel Supported

Dual Channel

Memory Feature

Supports DDR5 non-ECC, un-buffered memory up to 9066+(OC)
– 1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
– 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
– 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
– 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.
Max. capacity of system memory: 256GB
Supports Intel Extreme Memory Profile (XMP) 3.0

Expansion Slots

PCI Express 5.0 x16

CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
* Supports NVMe SSD as boot disks

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

* Supports Intel Volume Management Device (VMD)
* Supports NVMe SSD as boot disks

SATA RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Additional RAID Controller

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10

Onboard Audio

Audio Chipset

Realtek ALC897

Audio Channels

7.1 CH HD Audio
Nahimic Audio

Onboard LAN

LAN Chipset

Killer E3100G

Max LAN Speed

2.5Gbps

Wireless LAN

Wi-Fi 802.11 axe

Bluetooth

Bluetooth 5.3

Rear Panel Ports

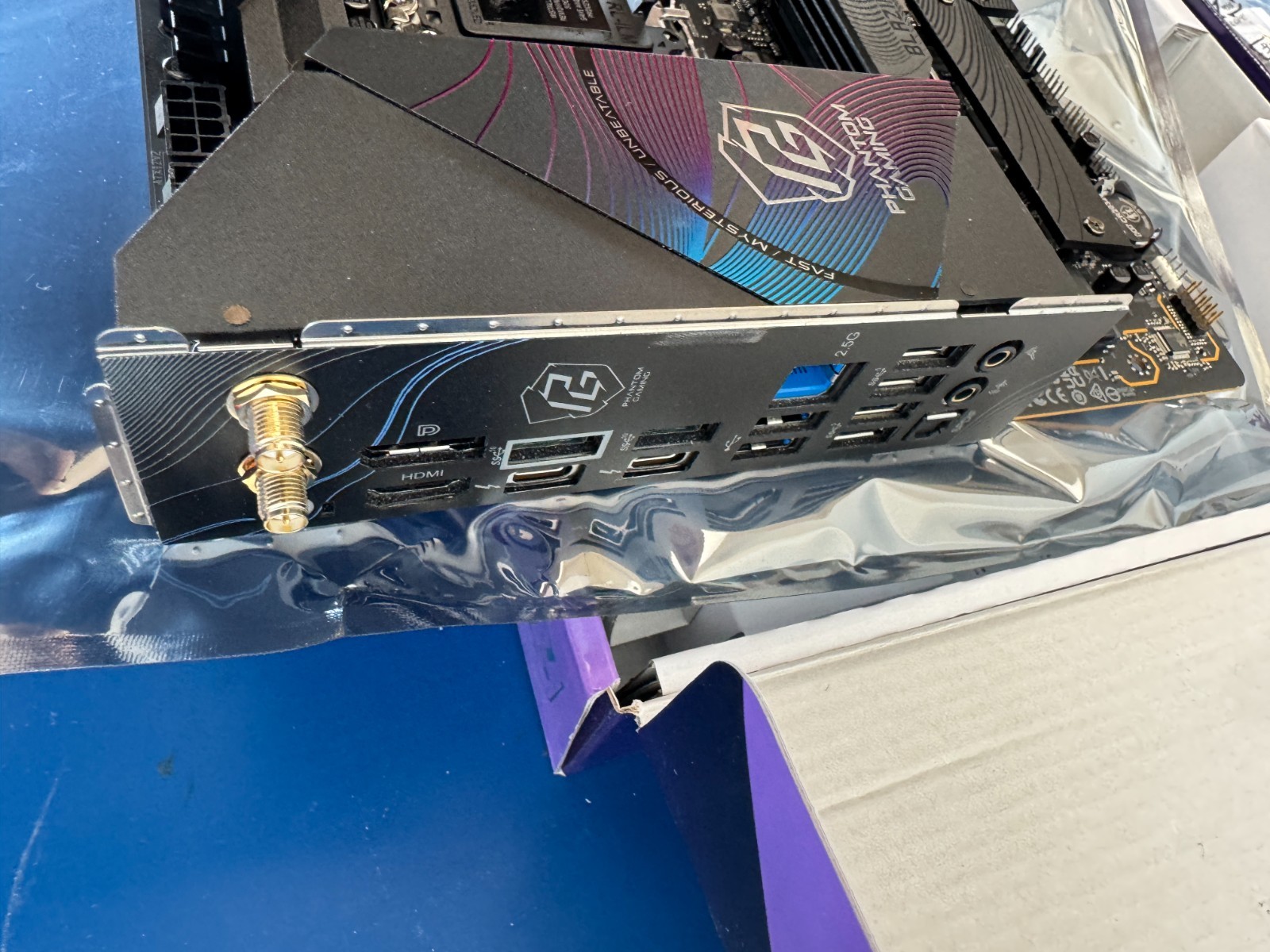

Back I/O Ports

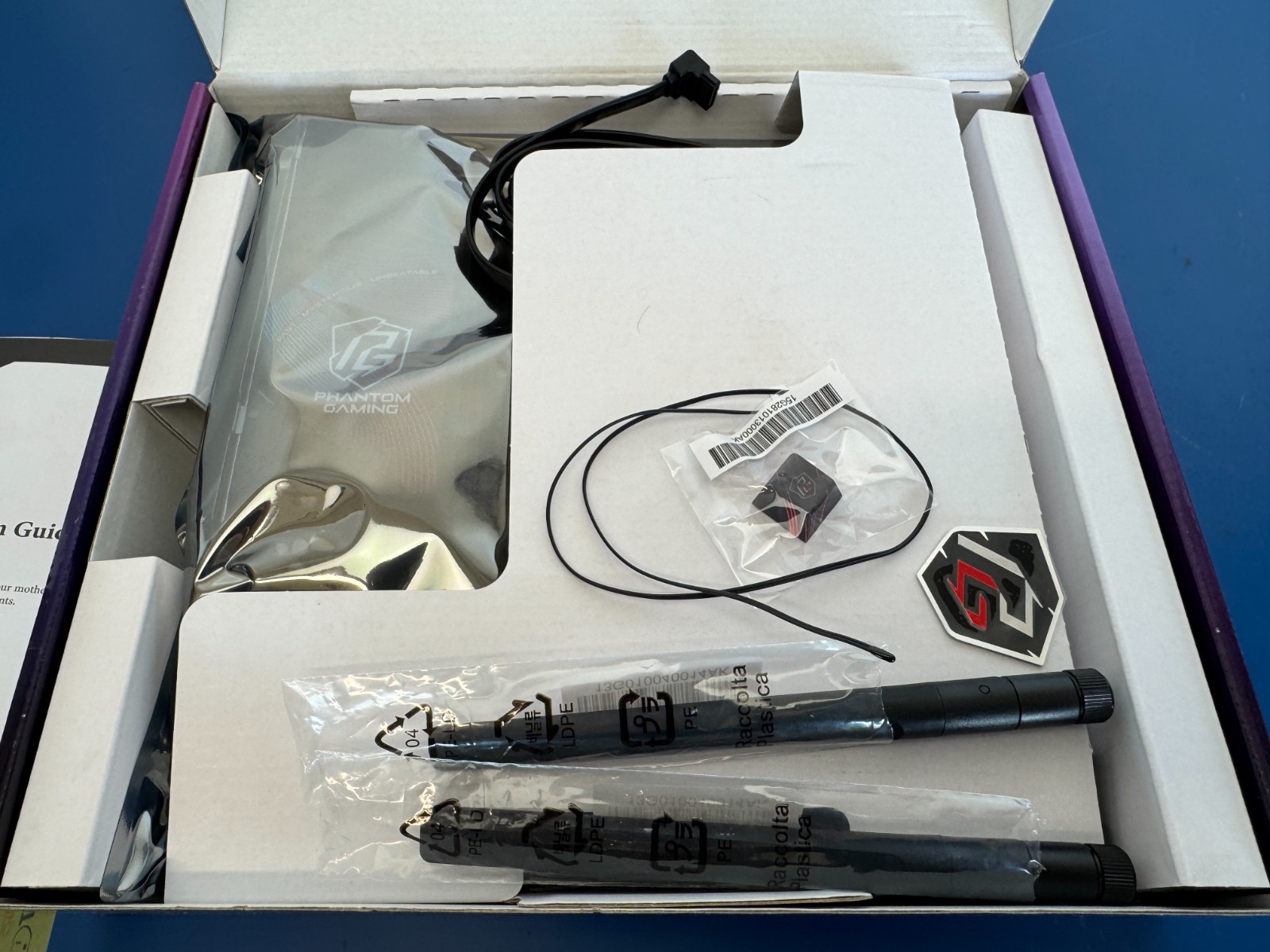

2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
4 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging

Internal I/O Connectors

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

Other Connectors

1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
2 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).
*** CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Software Feature

BIOS Feature

256Mb AMI UEFI Legal BIOS with GUI support

Software

Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– Killer Control Center
– ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.

UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

Windows 11

Supported

Physical Spec

Form Factor

Micro ATX

Dimensions (W x L)

9.6″ x 9.6″

Power Pin

1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

Features

Features

Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– Thunderbolt 4 Type-C Ports (40 Gb/s)

Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 16+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA with Enlarged

Heatsink Armor
– Memory OC Shield
– Flexible Integrated I/O Shield
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

Ultrafast Gaming
– Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module
– Killer DoubleShotTM Pro

EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer

EZ Troubleshooter
– ASRock Post Status Checker
