Description

OUTLUT Computers & Electronic Inc.

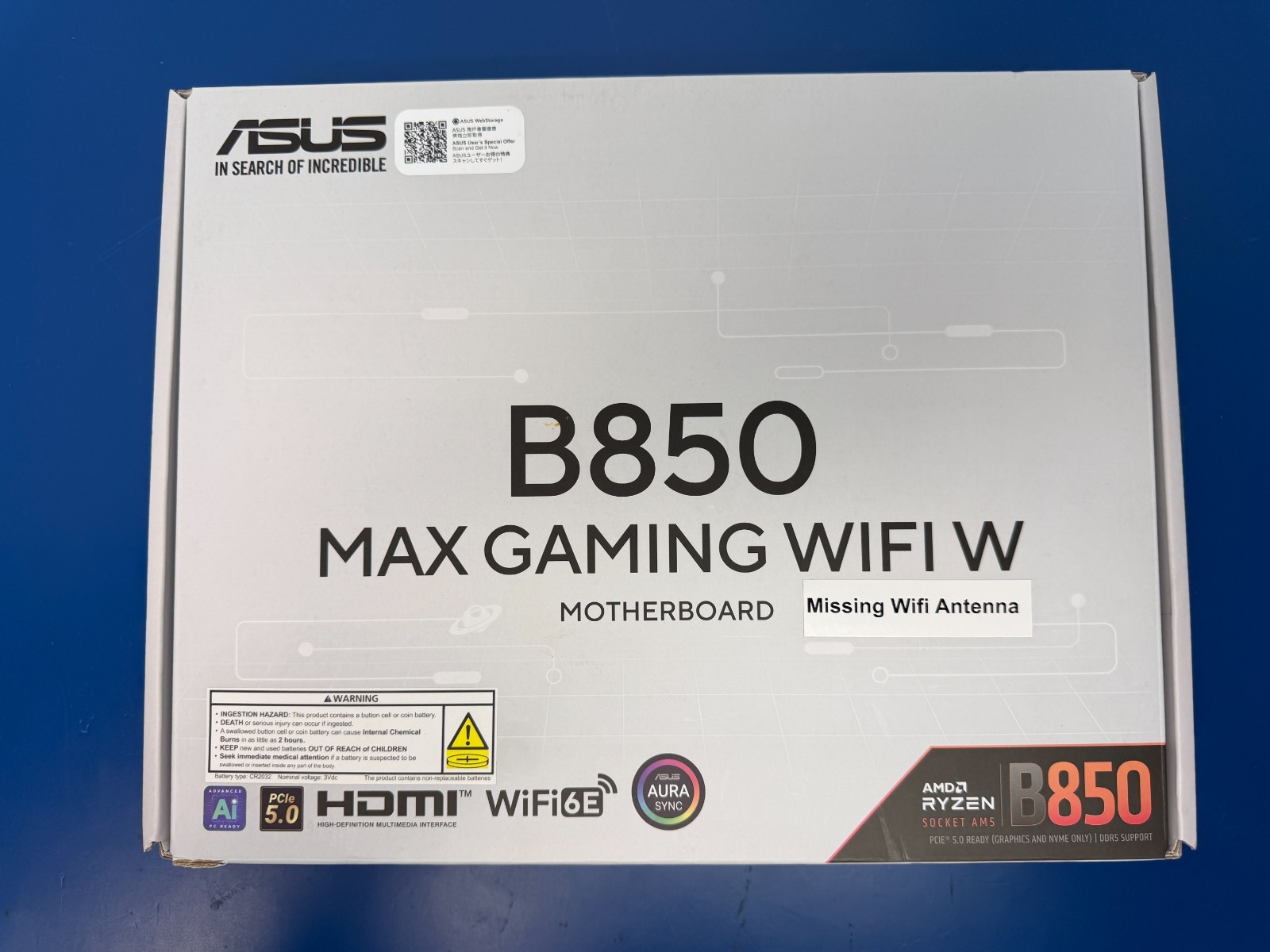

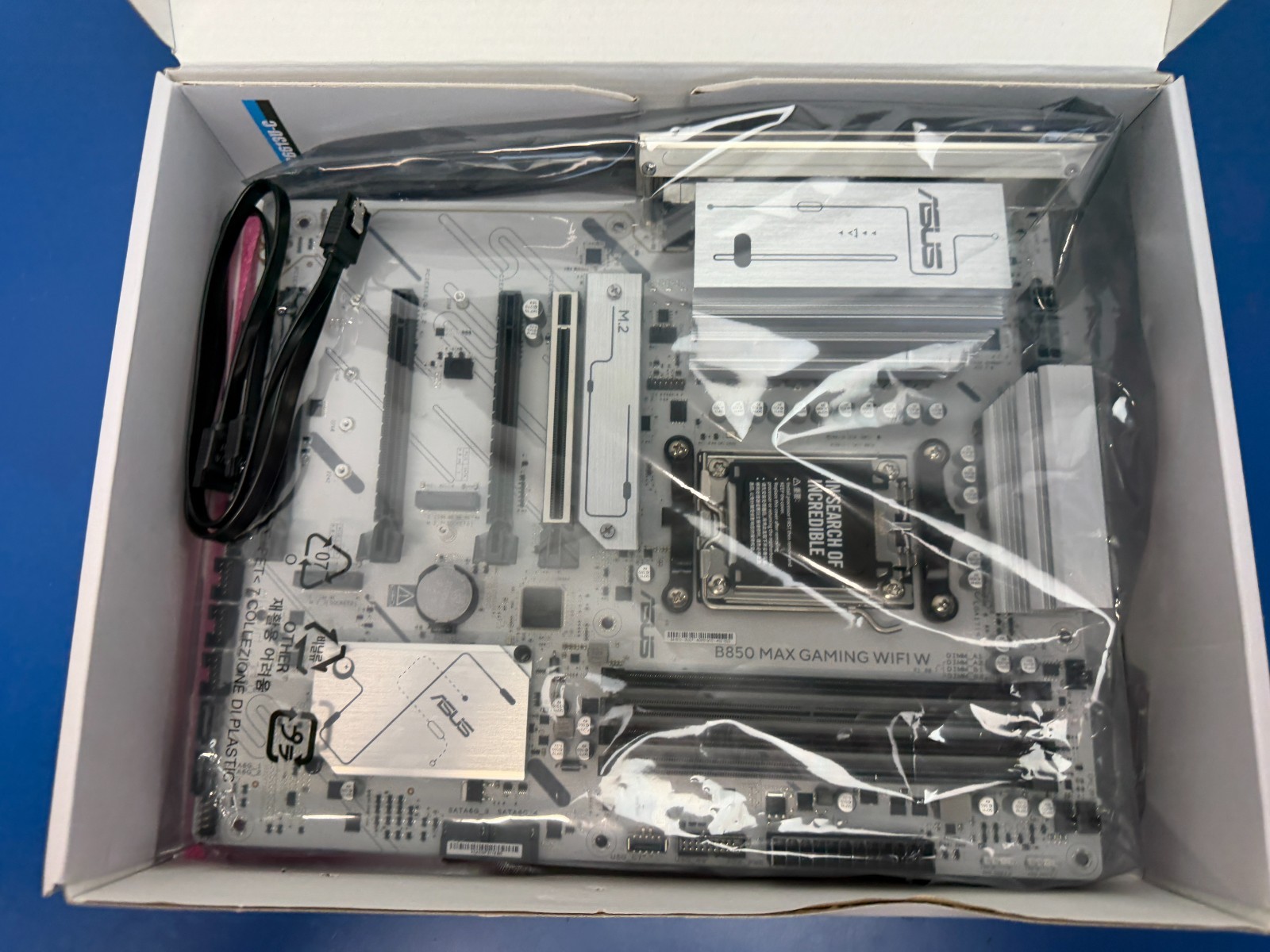

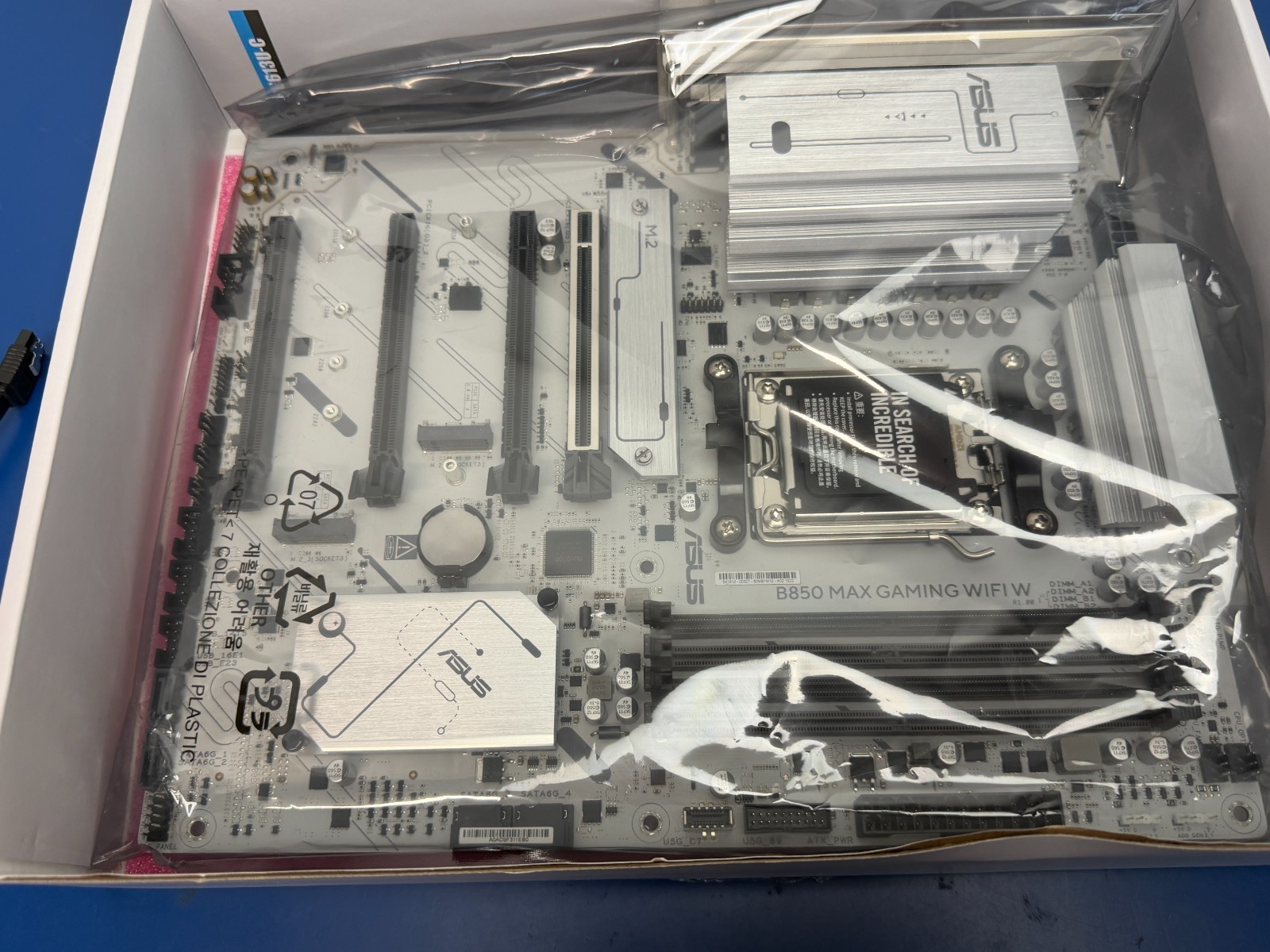

MISSING WIFI ANTENNA. Pristine condition never used open box. Professionally tested to ensure 100% functionality.

Learn more about ASUS B850 MAX GAMING WIFI W

Model

Brand: ASUS

Model: B850 MAX GAMING WIFI W

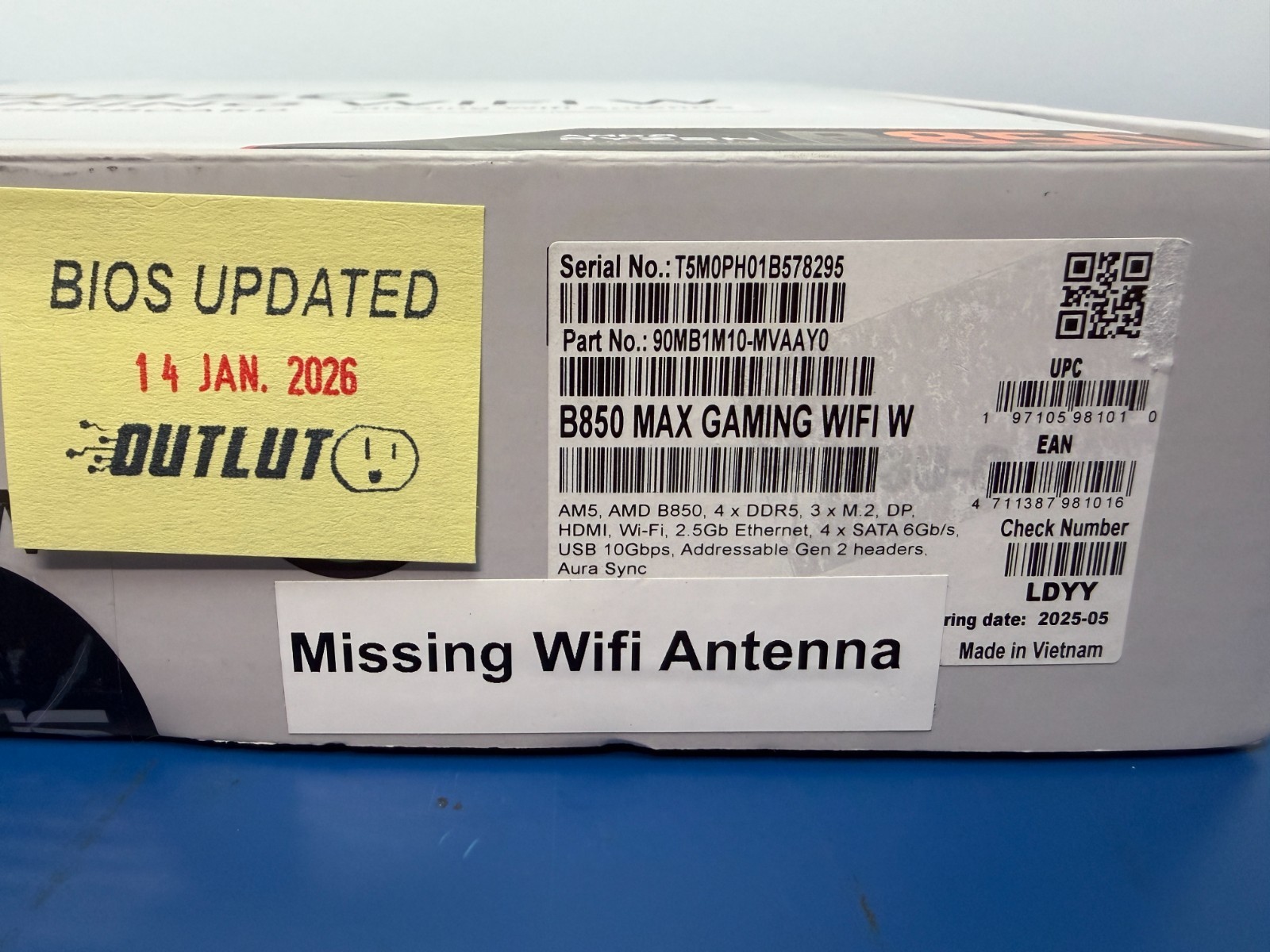

Part Number: 90MB1M10-MVAAY0

Supported CPU

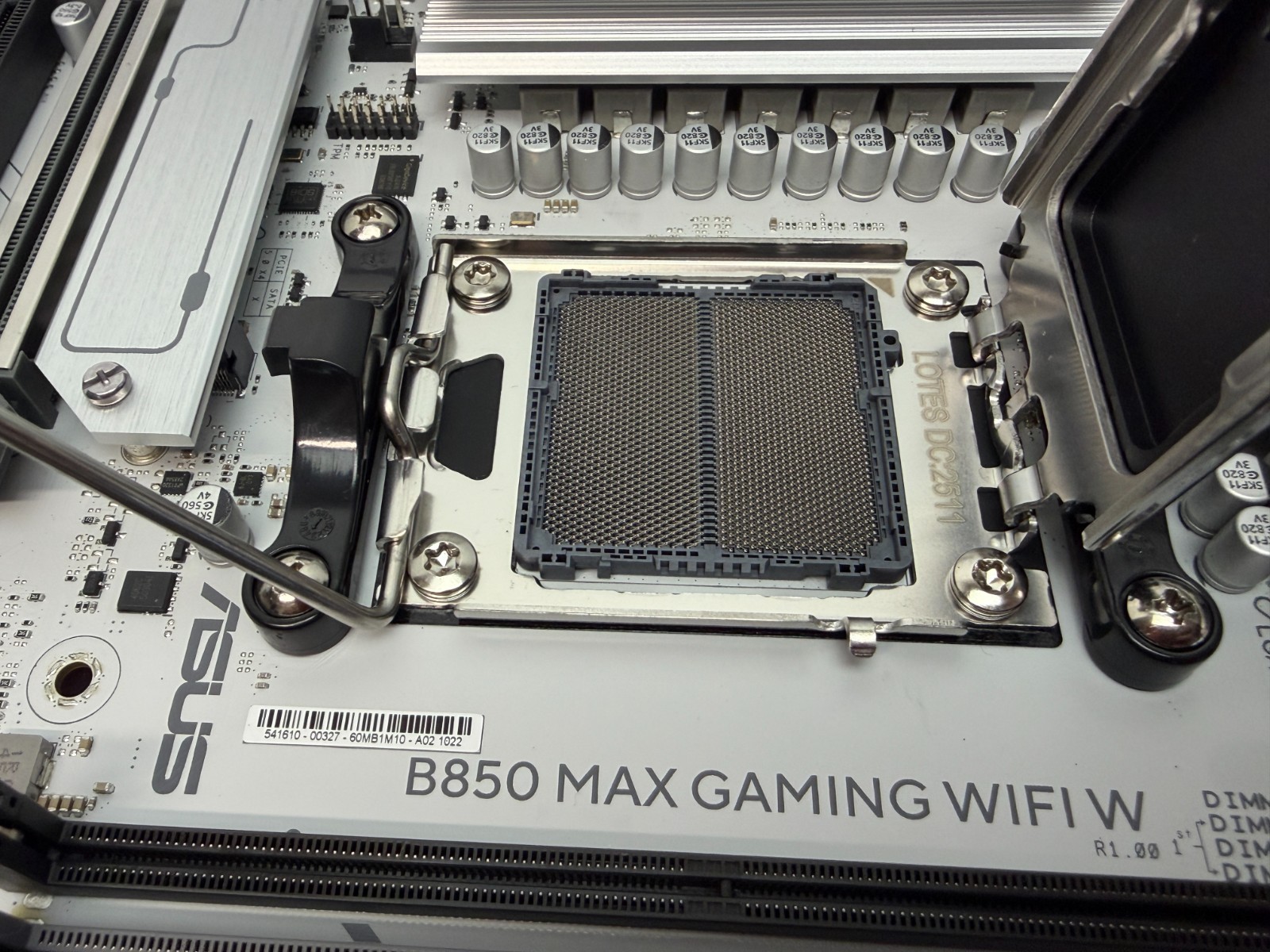

CPU Socket Type: AM5

CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets

Chipset: AMD B850

Memory

Number of Memory Slots: 4x288pin (DDR5)

Memory Standard: Supports up to 8000+MT/s (OC)

Maximum Memory Supported: 256GB

Channel Supported: Dual Channel

ECC Supported: Non-ECC

Buffer Supported: Un-buffered

Memory Feature

Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots

PCI Express 5.0 x16: AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

PCI Express 4.0 x16: AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)

PCI Express 3.0 x16

2 x PCIe 3.0 x16 slots (support x1 mode)***

*** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.

Storage Devices

Serial ATA (SATA): 4 x SATA 6Gb/s

M.2

AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)

AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)

SATA RAID: AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10

Onboard Audio

Audio Channels: Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN

Max LAN Speed: 2.5Gbps

Wireless LAN: Wi-Fi 802.11 ax

Bluetooth: Bluetooth 5.3

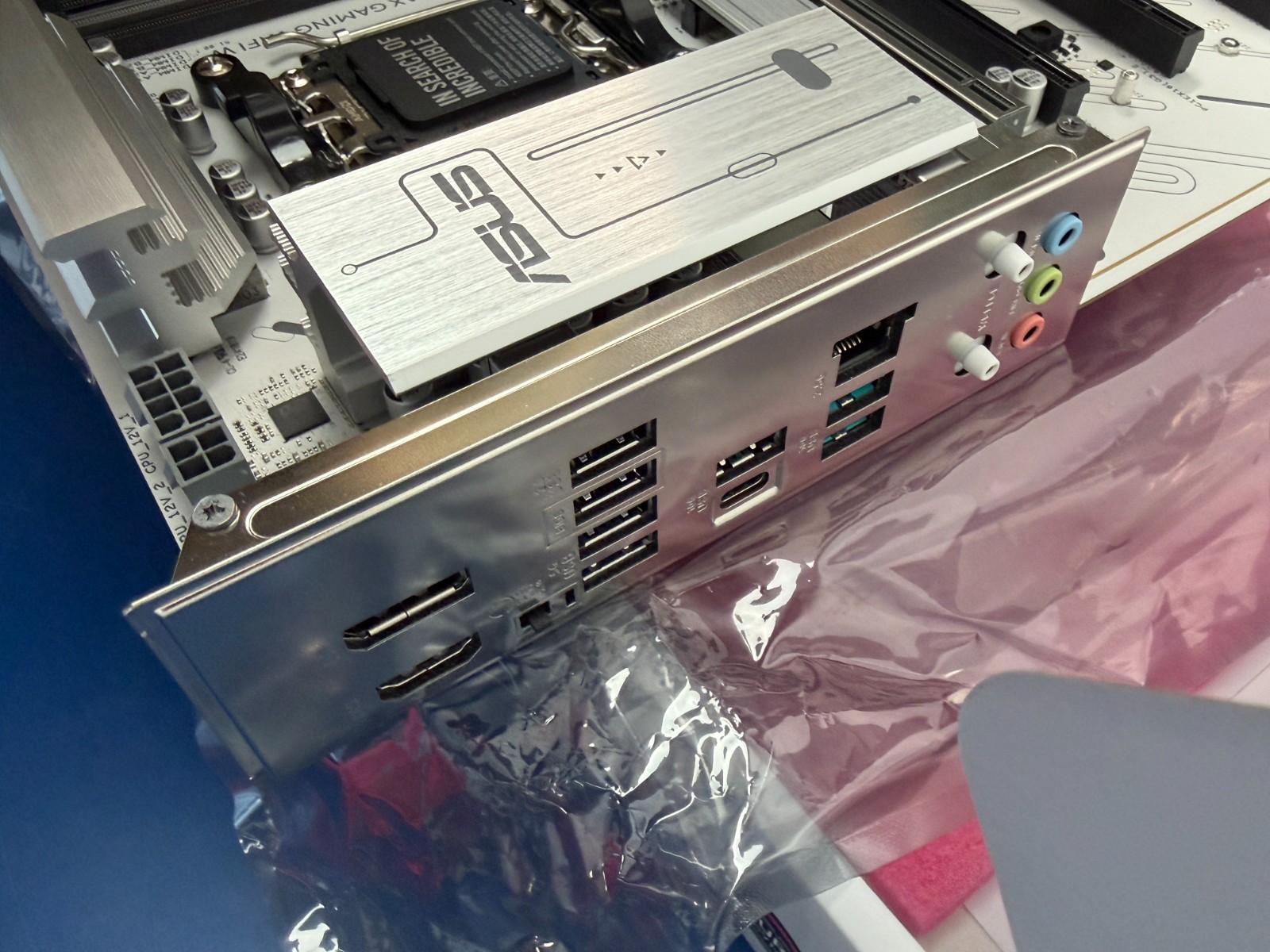

Rear Panel Ports

Back I/O Ports: 1 x USB 10Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors

Onboard USB: 1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports

Other Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan header

Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header

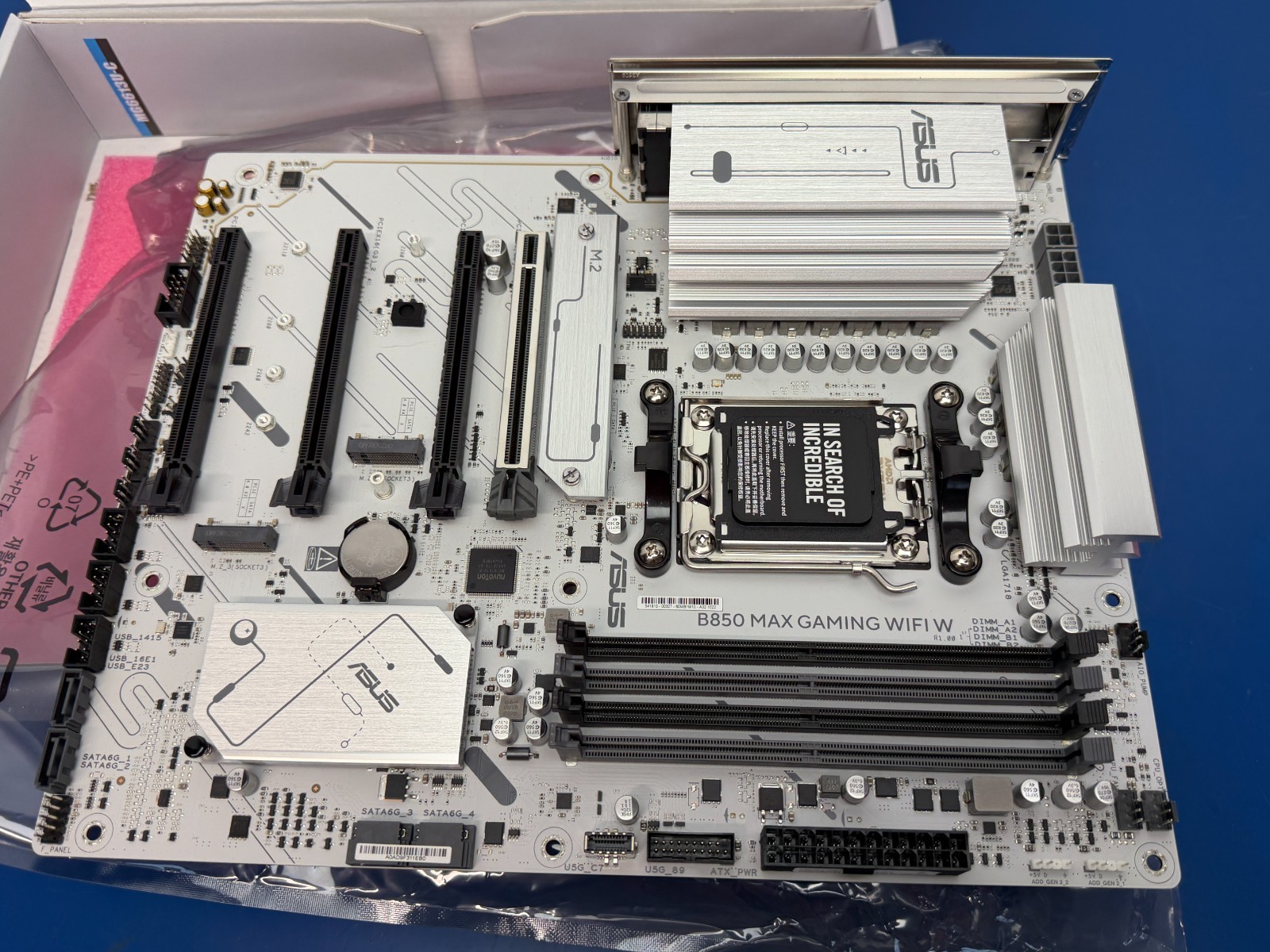

Physical Spec

Form Factor: ATX

Dimensions (W x L): 12.0″ x 9.6″

Power Pin: 1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors

Software Feature

BIOS Feature: 256 Mb Flash ROM, UEFI AMI BIOS

Software: ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey

Features

Features: ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot

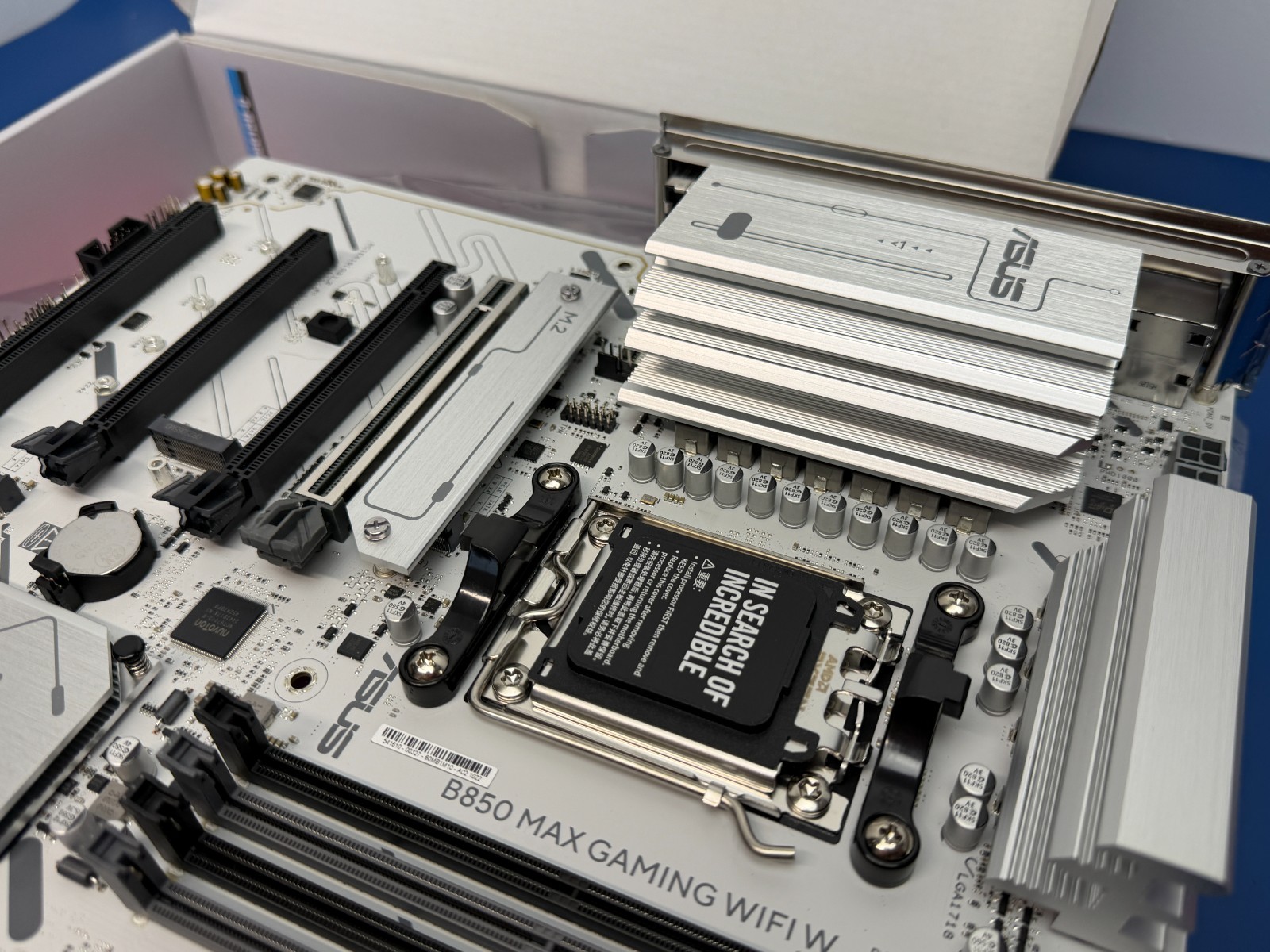

ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Pre-mounted I/O shield
– SafeSlot
Aura Sync
– Addressable RGB Gen 2 headers

Shipping Information

This item ships to Canada & USA only !

Terms of Sales

We take painstaking care to pack our customers items for maximum safety. All items will usually ship within 24h! All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.

Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received in.

A-00-00-00

Additional information

Weight	1.5 kg
Dimensions	36 × 27 × 7 cm
Brand	ASUS
Form Factor	ATX
Model	B850 MAX GAMING WIFI W
MPN	B850 MAX GAMING WIFI W
Number of Memory Slots	4x288pin (DDR5)
Socket Type	AM5
Country of Origin	China
