Description

OUTLUT Computers & Electronic Inc.

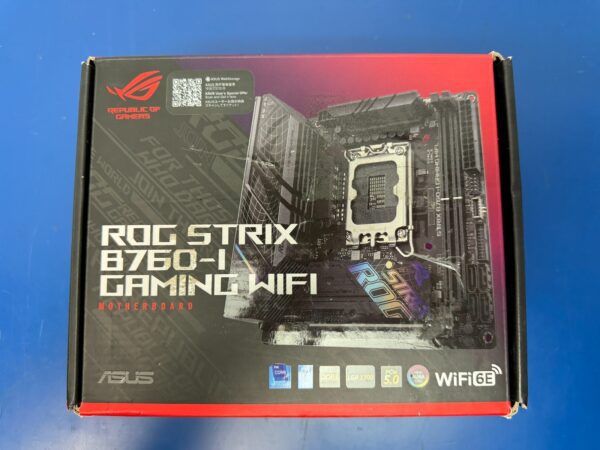

Pristine condition never used open box. Professionally tested to ensure 100% functionality. Bios updated to latest.

Learn more about ASUS ROG STRIX B760-I GAMING WIFI

Model

Brand: ASUS

Model: ROG STRIX B760-I GAMING WIFI

Part Number: 90MB1D90-M0AAY0

Supported CPU

CPU Socket Type: LGA 1700

CPU Type: Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets

Chipset: Intel B760

Memory

Number of Memory Slots: 2x288pin (DDR5)

Memory Standard: DDR5 5600

Maximum Memory Supported: 64GB

Channel Supported: Dual Channel

Memory Feature

DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Expansion Slots

PCI Express 5.0 x16: Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Storage Devices

SATA 6Gb/s: 4 x SATA 6Gb/s

M.2: Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

SATA RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Onboard Audio

Audio Chipset: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Audio Channels: 7.1 Channels

Onboard LAN

Max LAN Speed: 1 x Intel 2.5Gb Ethernet
ASUS LANGuard

Wireless LAN: Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*

Bluetooth: Bluetooth v5.3

Rear Panel Ports

Back I/O Ports: 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
3 x USB 3.2 Gen 1 ports (3 x USB Type-A )
1 x USB 3.2 Gen 1 port (1 x USB Type-C)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMI port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks

Internal I/O Connectors

Onboard USB: 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support additional 2 USB 2.0 ports

Other Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chasis Fan header
1 x 4-pin AIO Pump header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
1 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Physical Spec

Form Factor: Mini ITX

Dimensions (W x L): 6.7″ x 6.7″

Power Pin: 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Windows Compatibility

Windows 11: Supported

Features

Features: Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
ASUS EZ DIY
-CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 header

Shipping Information

This item ships to Canada & USA only !

Terms of Sales

We take painstaking care to pack our customers items for maximum safety. All items will usually ship within 24h! All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.

Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received in.

A-00-00-00

Additional information

Brand	ASUS
Form Factor	Mini-ITX
Socket Type	Lga1700
Country of Origin	Taiwan
