Description

OUTLUT Computers & Electronic Inc.

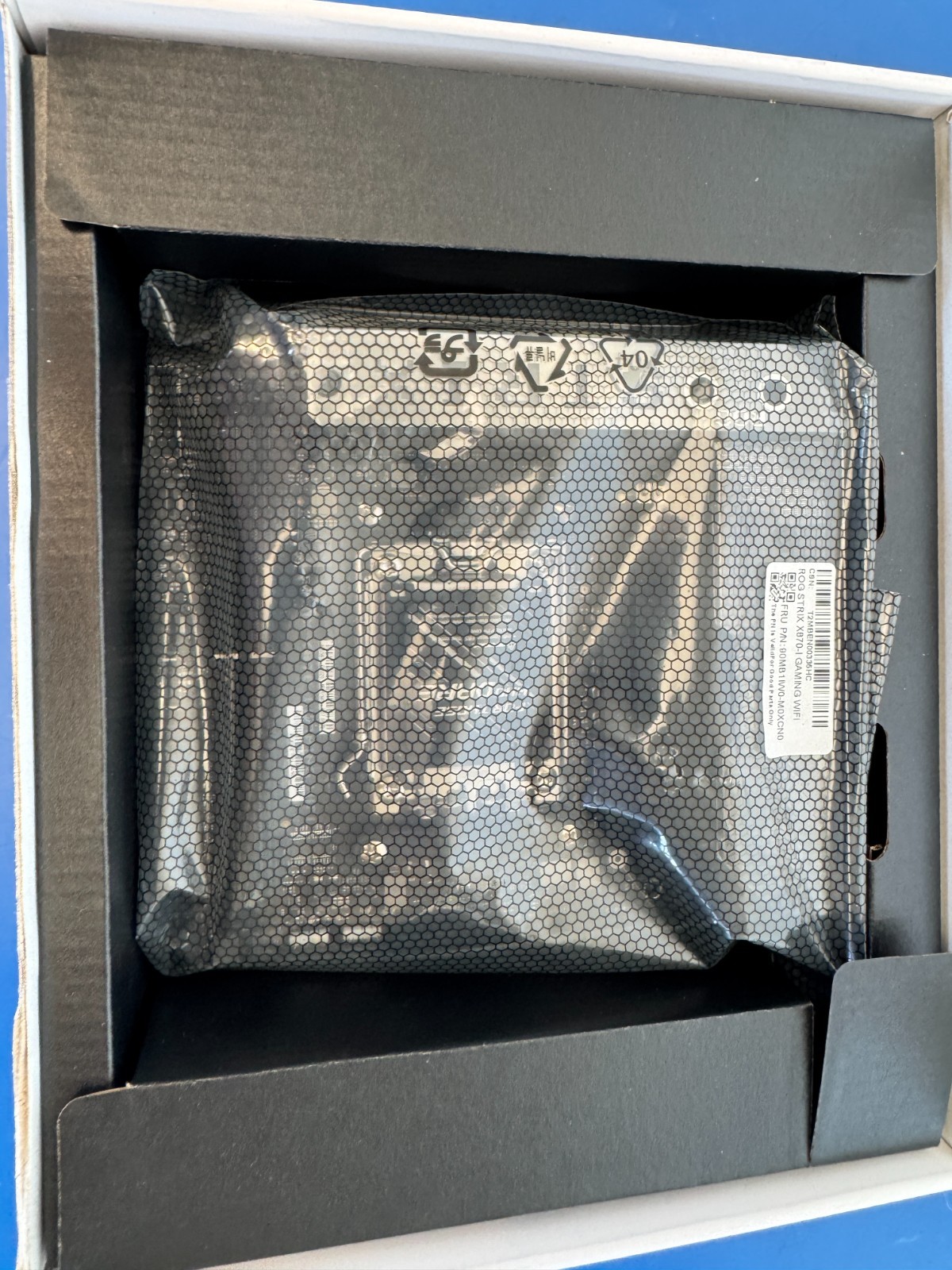

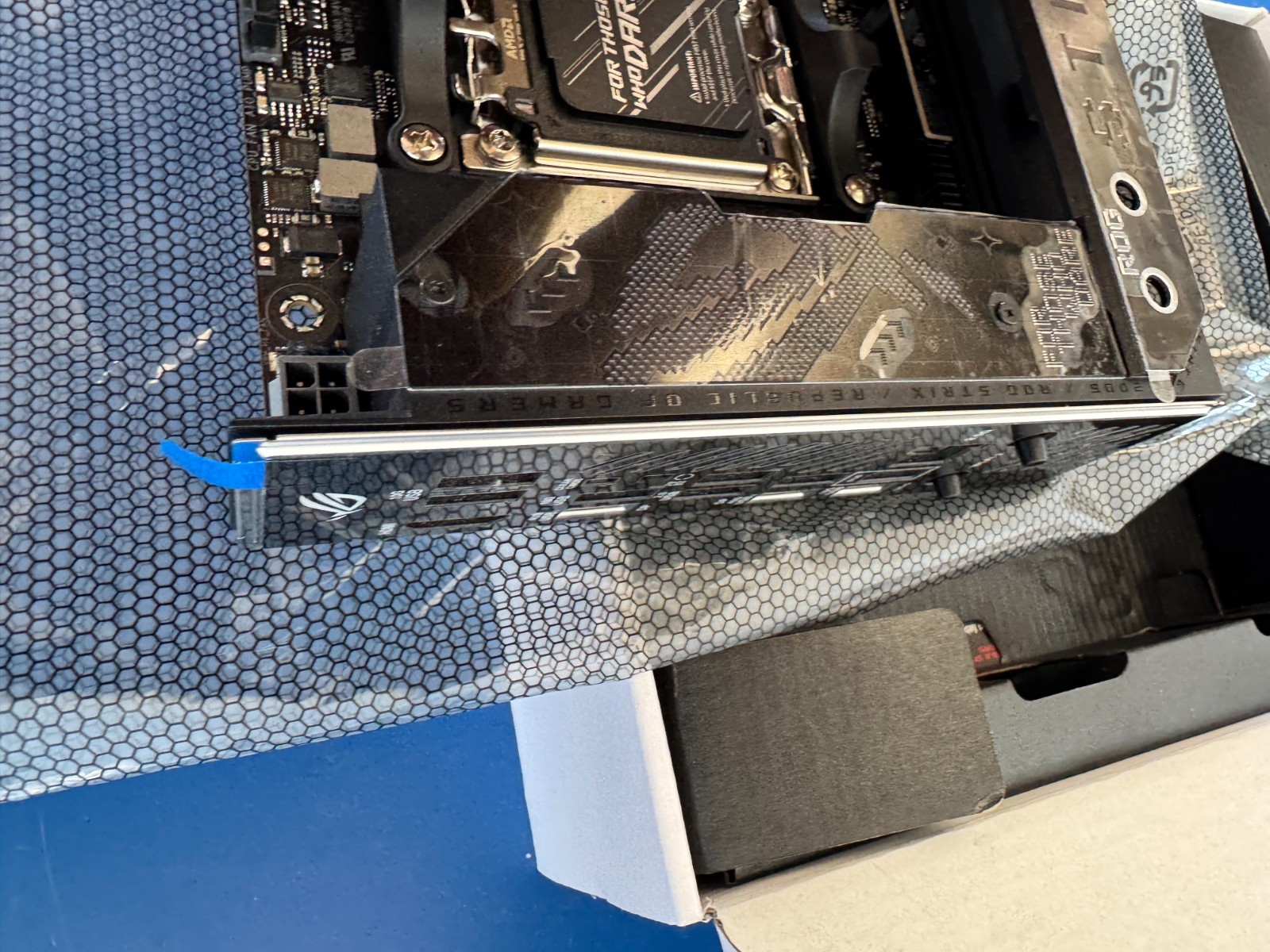

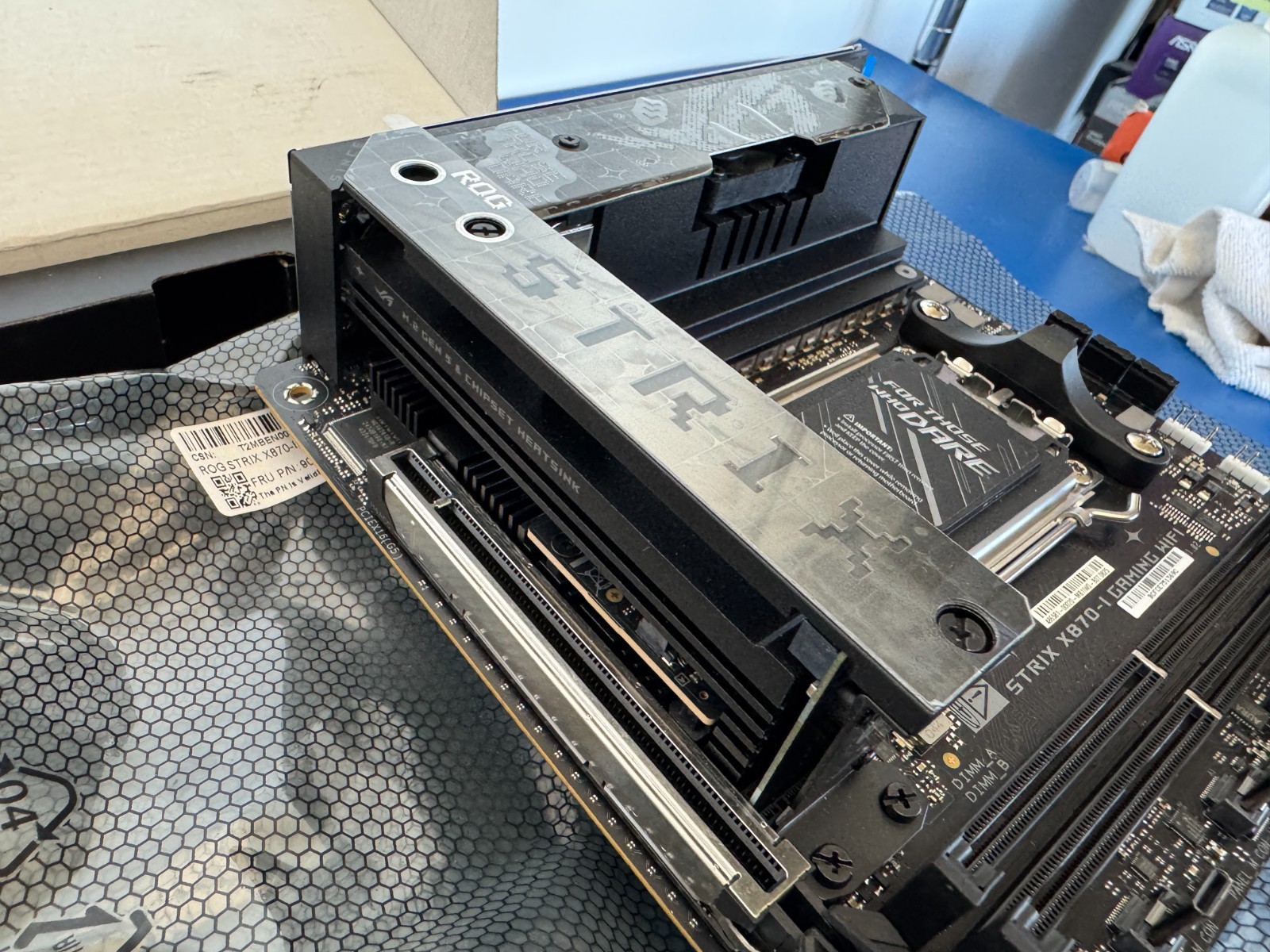

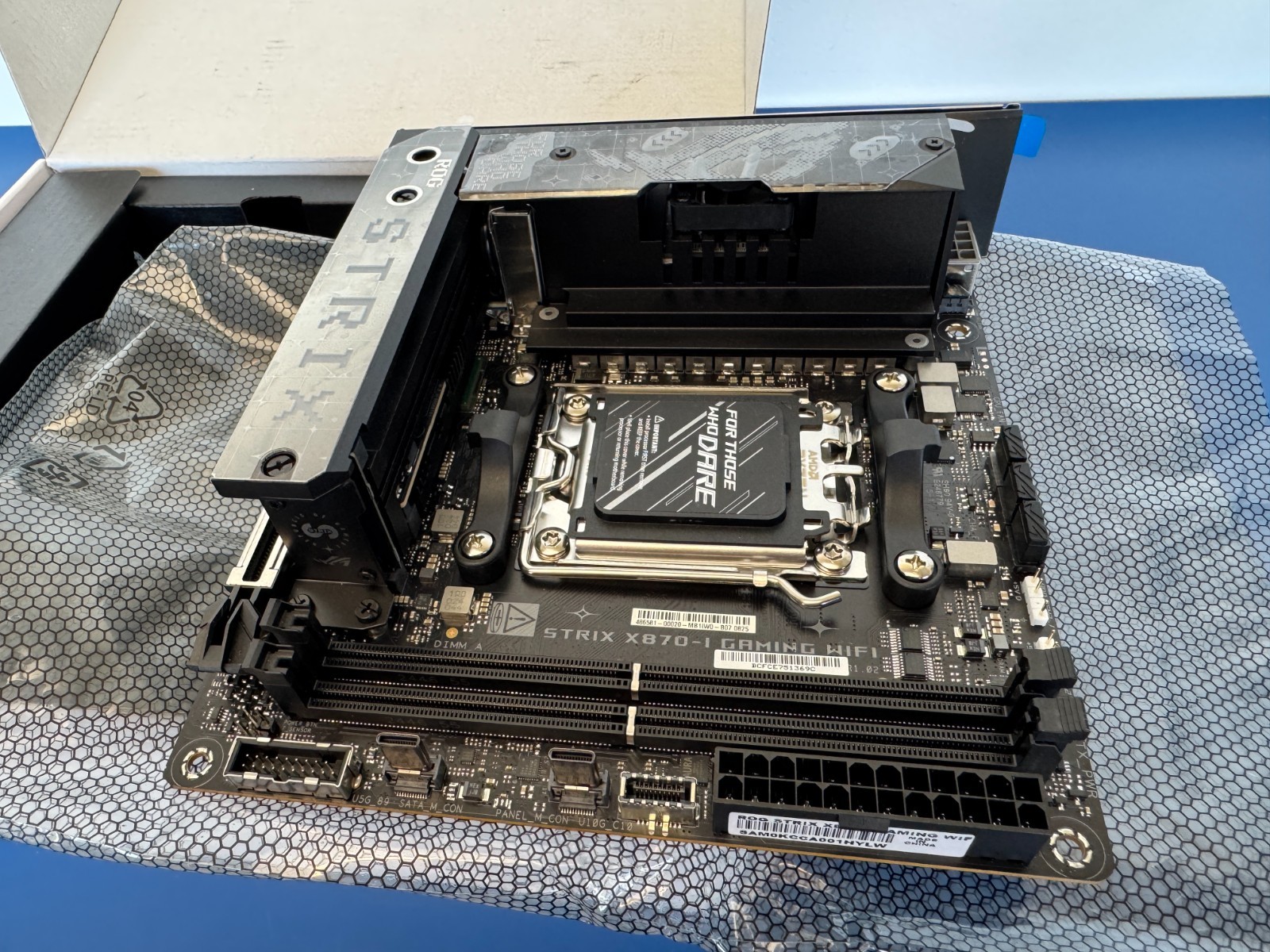

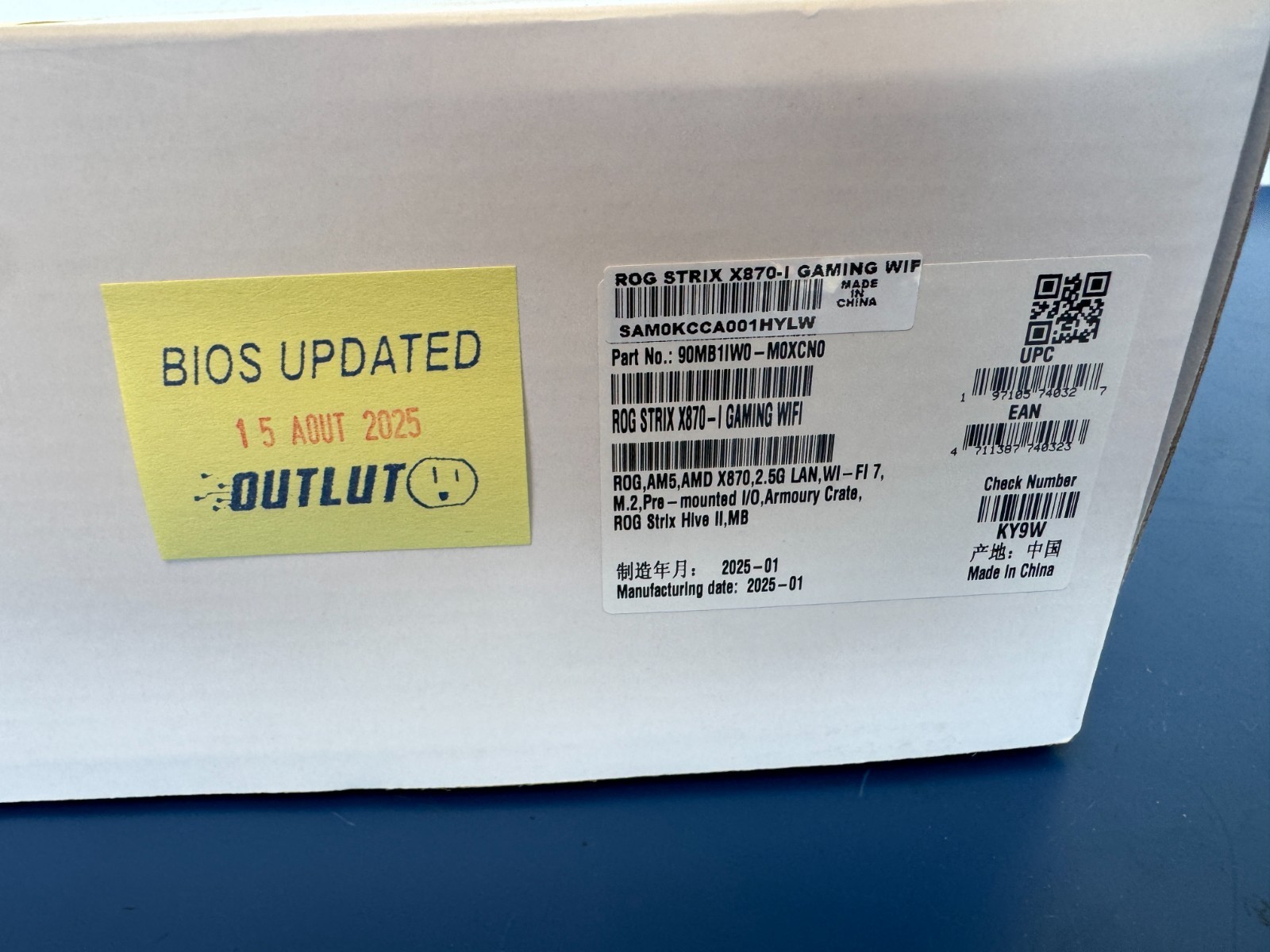

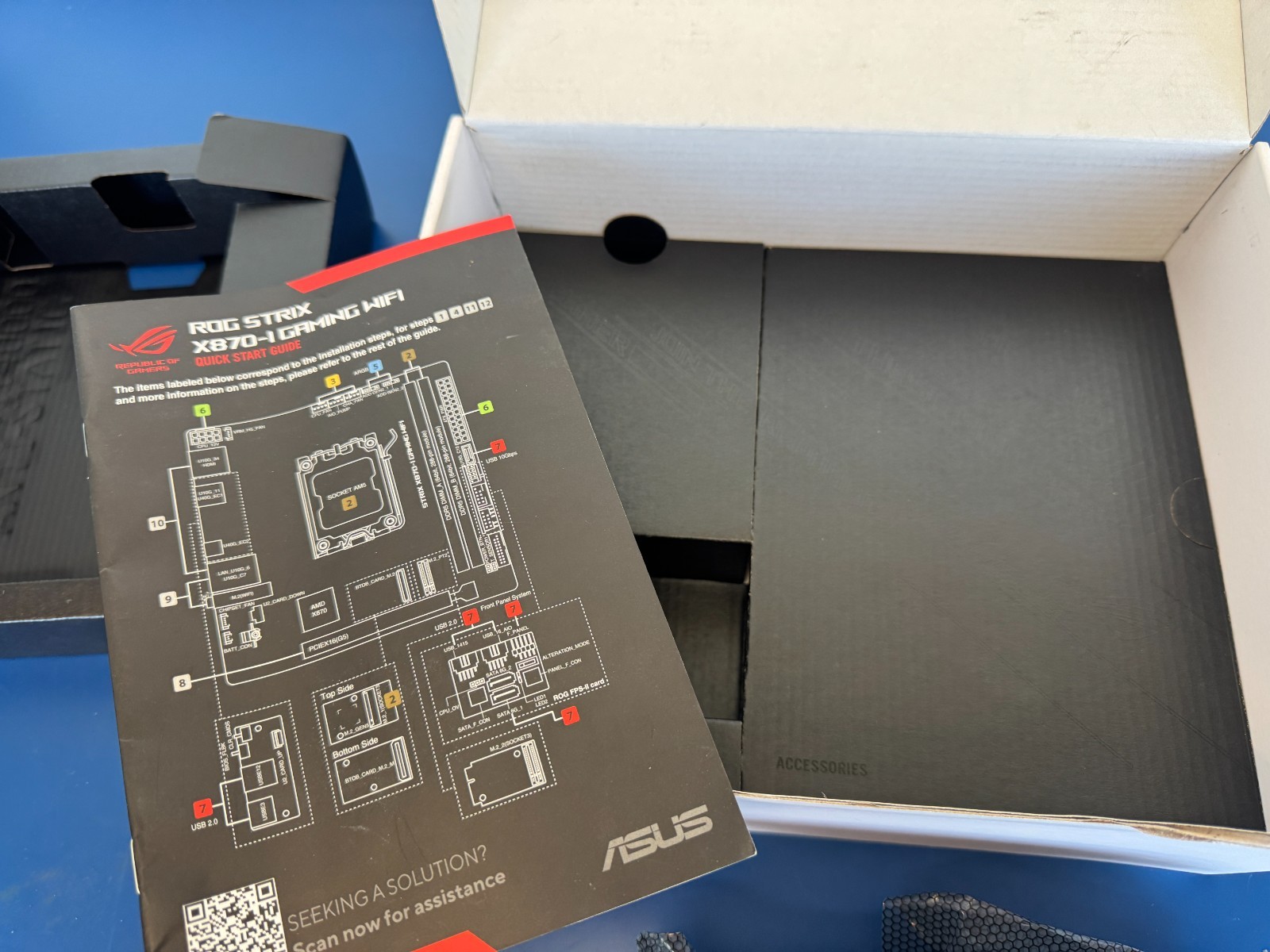

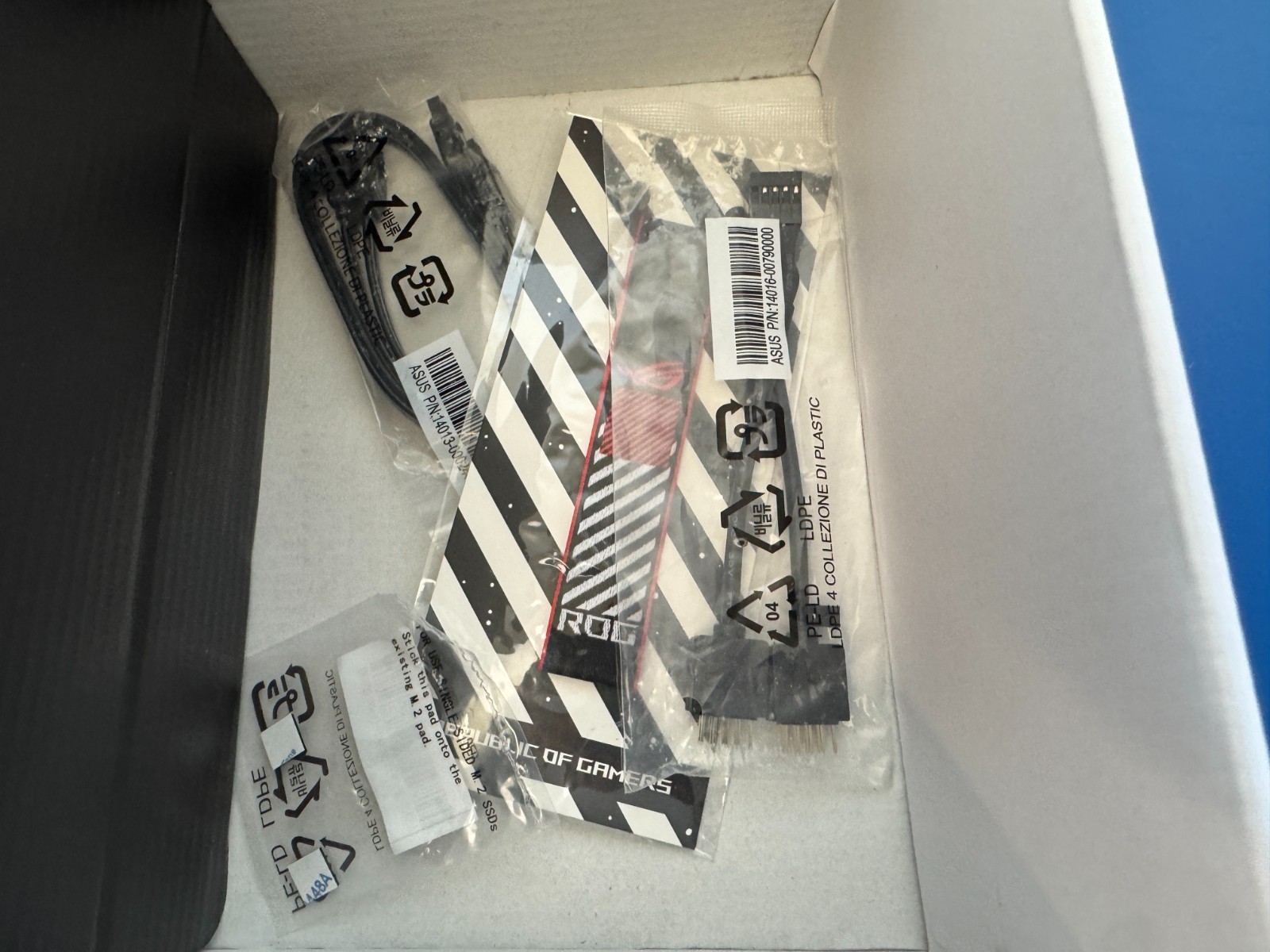

MISSING Original box, Rog FPS-II Card and Wifi antenna. Otherwise, Pristine condition never used open box. Professionally tested to ensure 100% functionality. Bios updated to latest. Comes with all the accessories you see in the pictures.

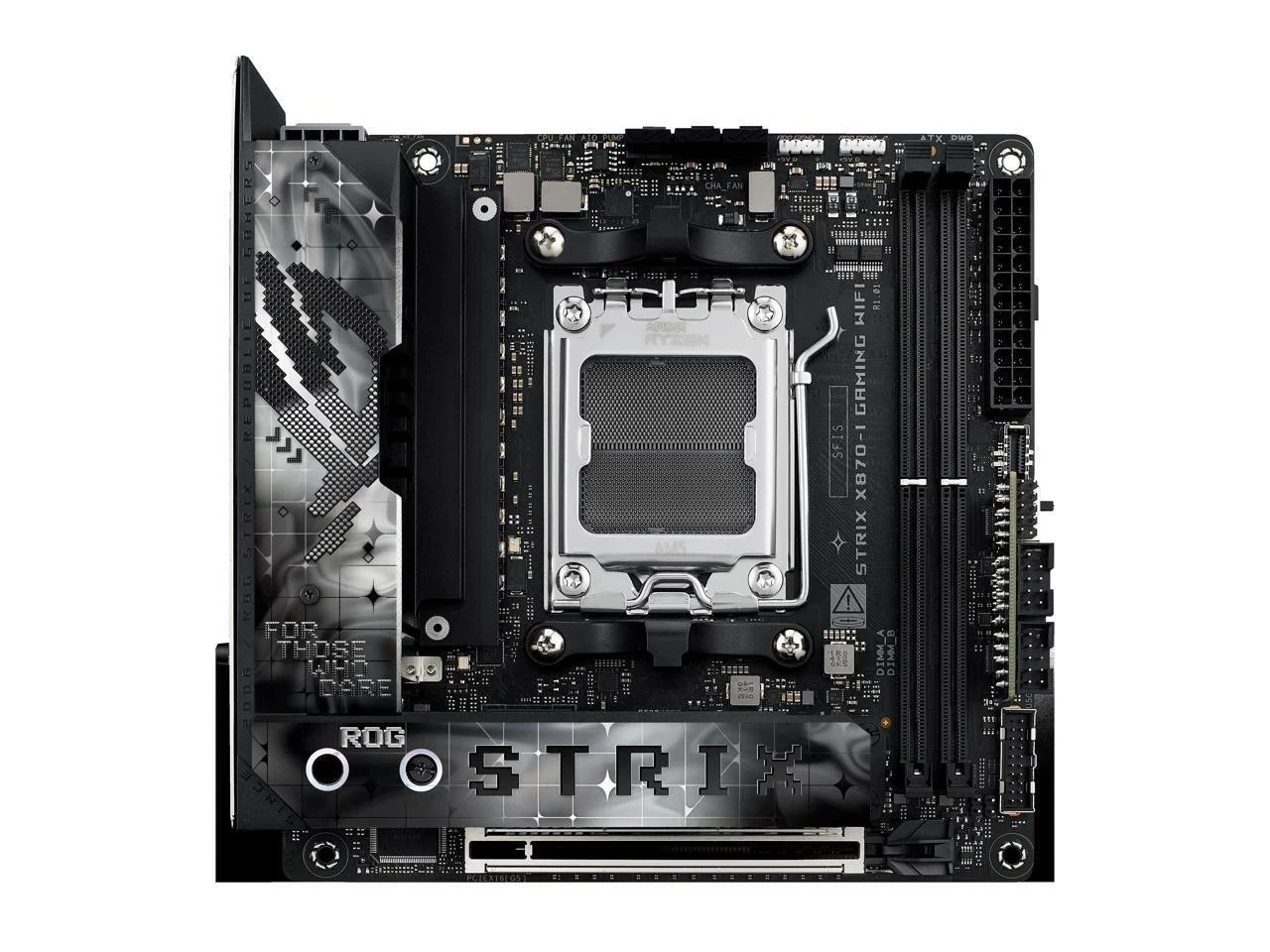

Learn more about ASUS STRIX X870-I GAMING WIFI

Model

Brand: ASUS

Series: ROG

Model: STRIX X870-I GAMING WIFI

Supported CPU

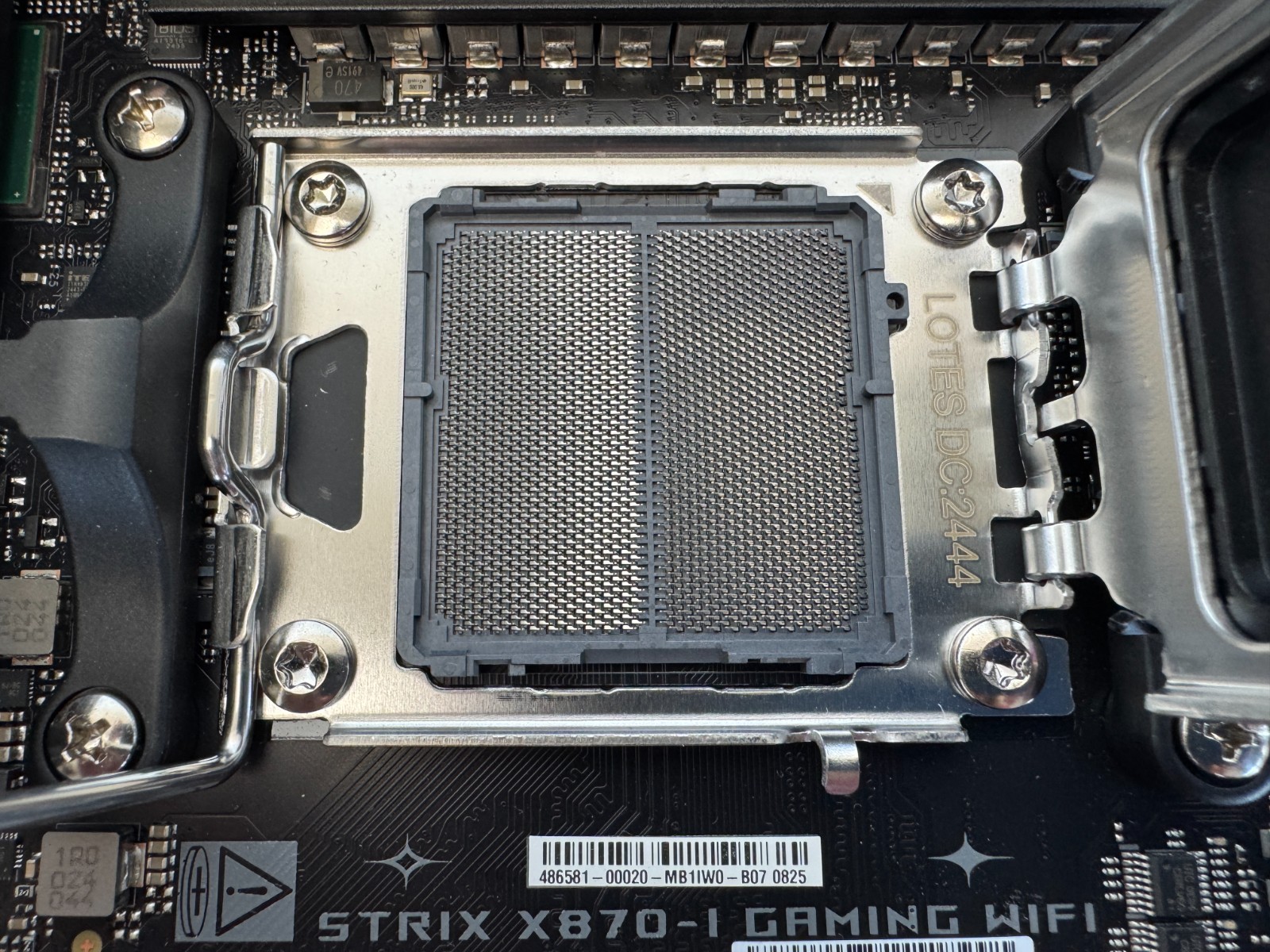

CPU Socket Type: AM5

CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets

Chipset: AMD X870

Memory

Number of Memory Slots: 4x288pin (DDR5)

Maximum Memory Supported: 96GB

ECC Supported: Non-ECC

Buffer Supported: Un-buffered

Memory Feature: 2 x DIMM slots, max. 96GB, DDR5
Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*”
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots

PCI Express 5.0 x16: AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot

PCI Express 4.0 x16: AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

Storage Devices

SATA 6Gb/s: 2 x SATA 6Gb/s

M.2

AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)

AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.

SATA RAID: * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1

Onboard LAN

Max LAN Speed: 2.5Gbps

Wireless LAN: Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

Bluetooth

Bluetooth v5.4***

*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

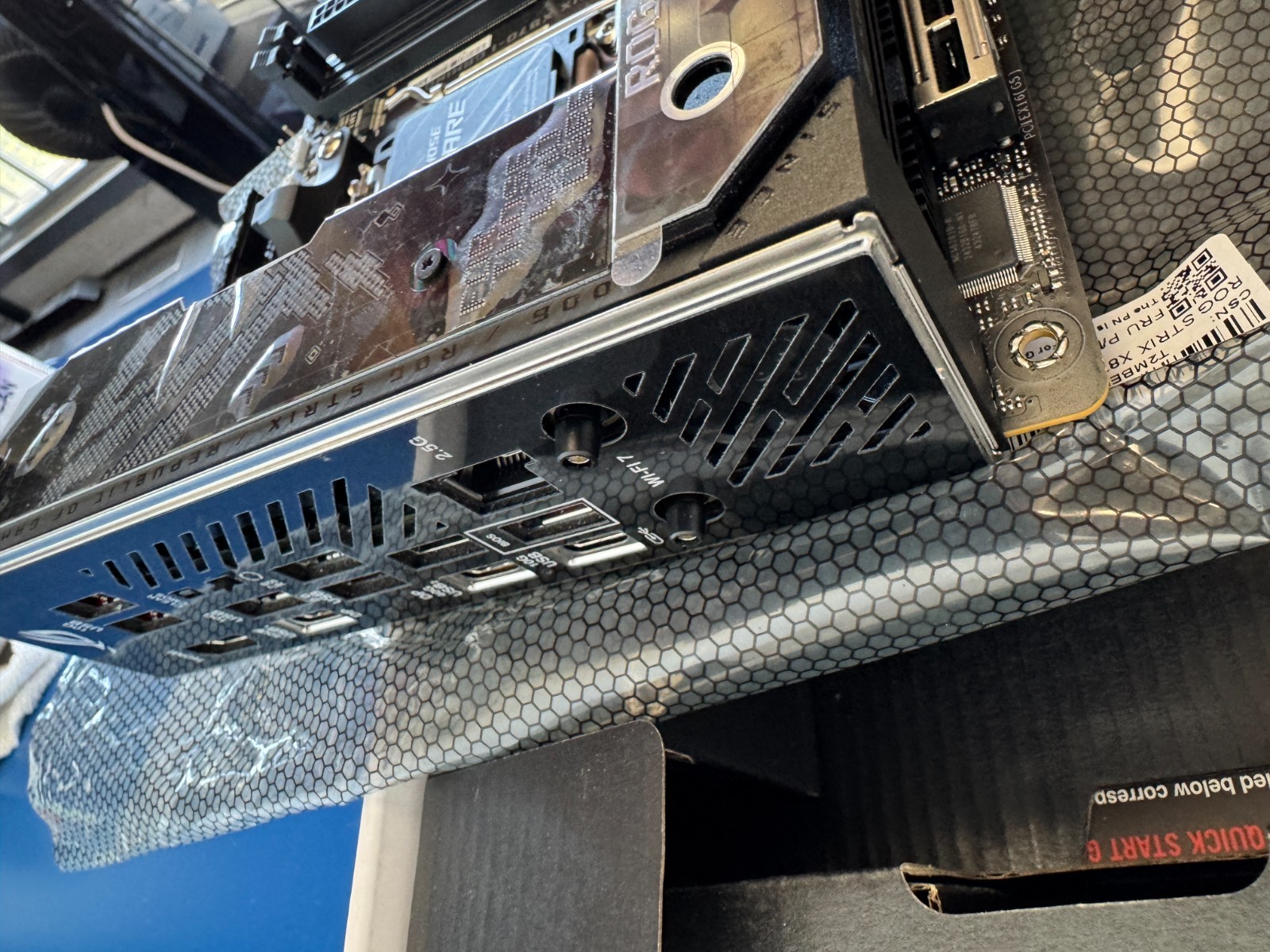

Rear Panel Ports

Back I/O Ports: 1 x Antenna Bracket / 1 x Clear CMOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x Q-Flash Plus Button / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 3.2 Gen 2×2 Type-C / 3 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A

Internal I/O Connectors

Onboard USB: USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header support(s) 2
additional USB 5Gbps ports

Other Connectors: Fan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card
ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3
additional USB 2.0 ports

Physical Spec

Form Factor: Mini ITX

Dimensions (W x L): 6.7″ x 6.7″

Software Feature

BIOS Feature: 256 Mb Flash ROM, UEFI AMI BIOS

Software: ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI
BIOS EZ Mode
– ASUS
MyHotkey
FlexKey
Dynamic OC Switcher

Features

Features: ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Code
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– Aluminum backplate
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 header(s)

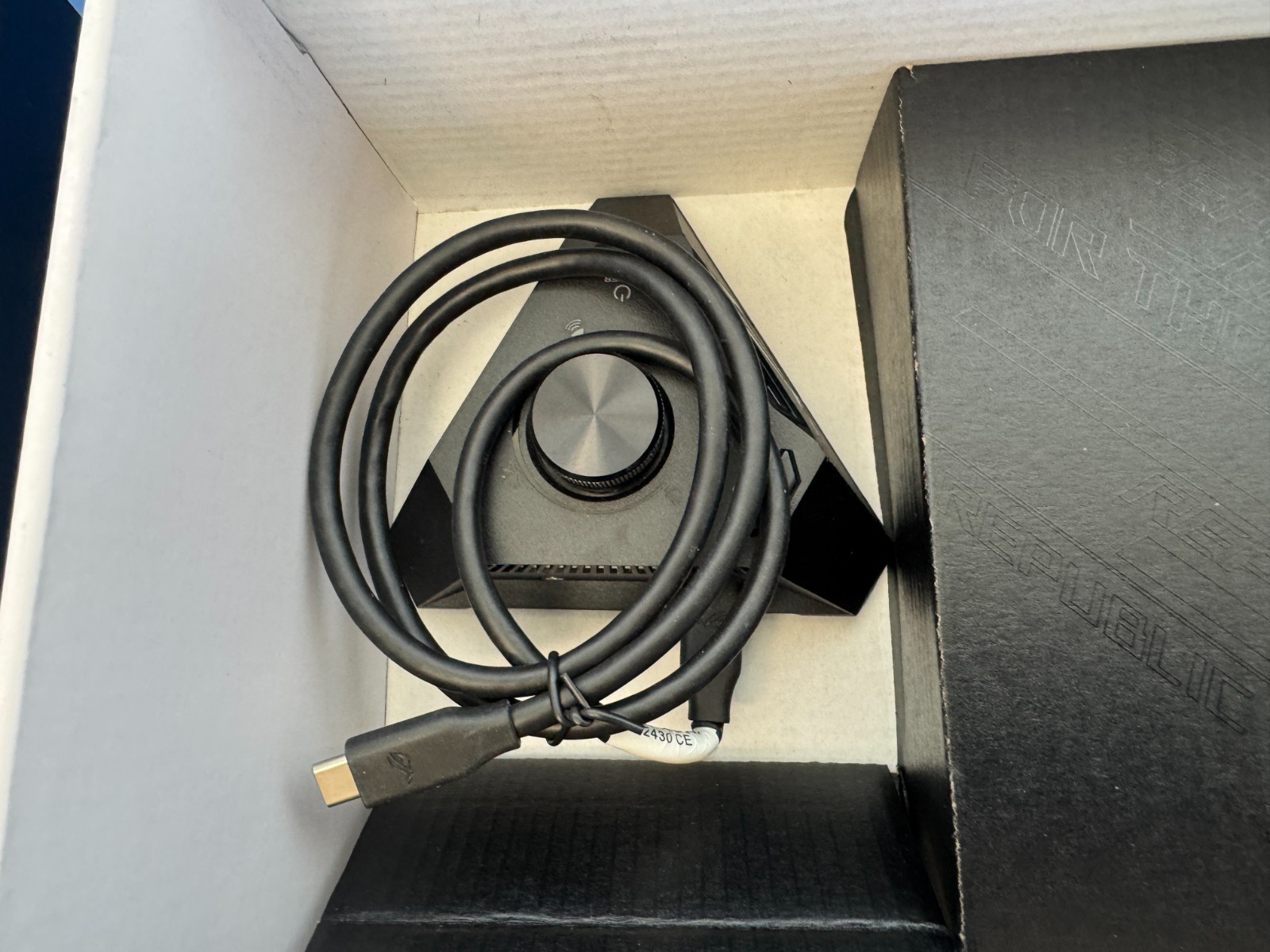

ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1 x Headphone jack with mic in
1 x Power button
1 x FlexKey button
1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

Shipping Information

This item ships to Canada & USA only !

Terms of Sales

We take painstaking care to pack our customers items for maximum safety. All items will usually ship within 24h! All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.

Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received in.

A-00-00-00

Additional information

Form Factor	Mini ITX
MPN	STRIX X870-I GAMING WIFI
Model	STRIX X870-I GAMING WIFI
Number of Memory Slots	4x288pin (DDR5)
Brand	ASUS
Socket Type	AM5
