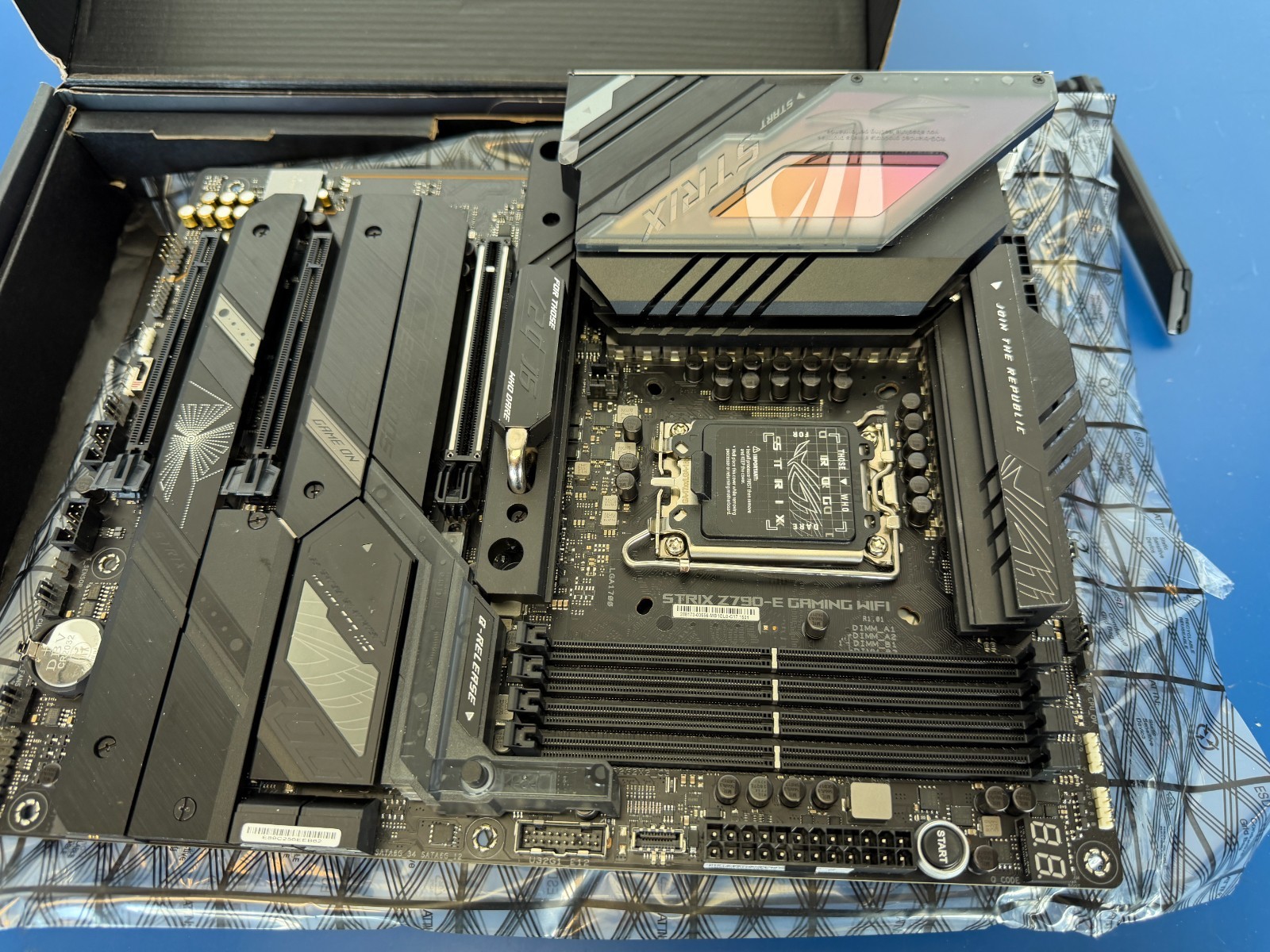

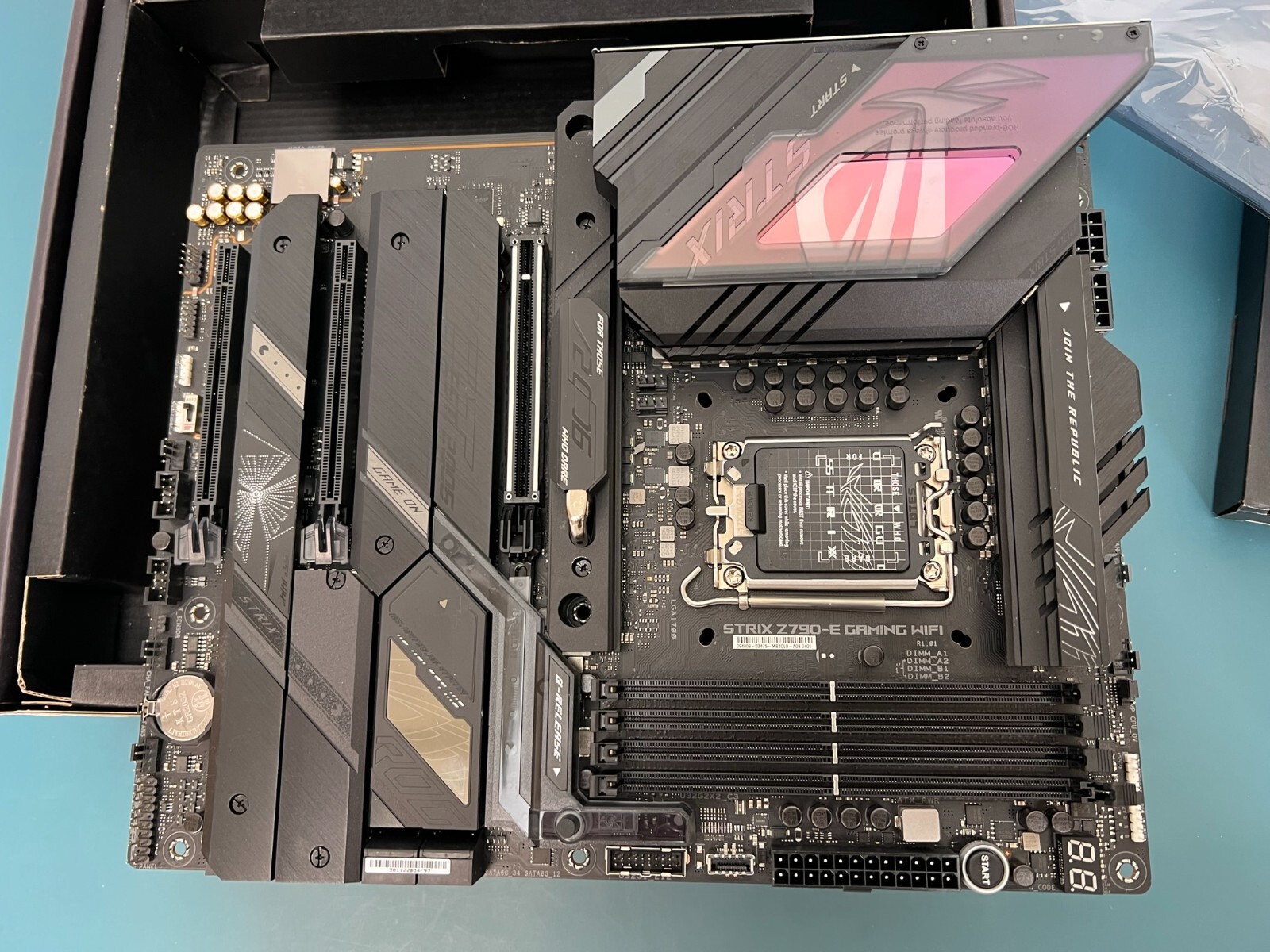

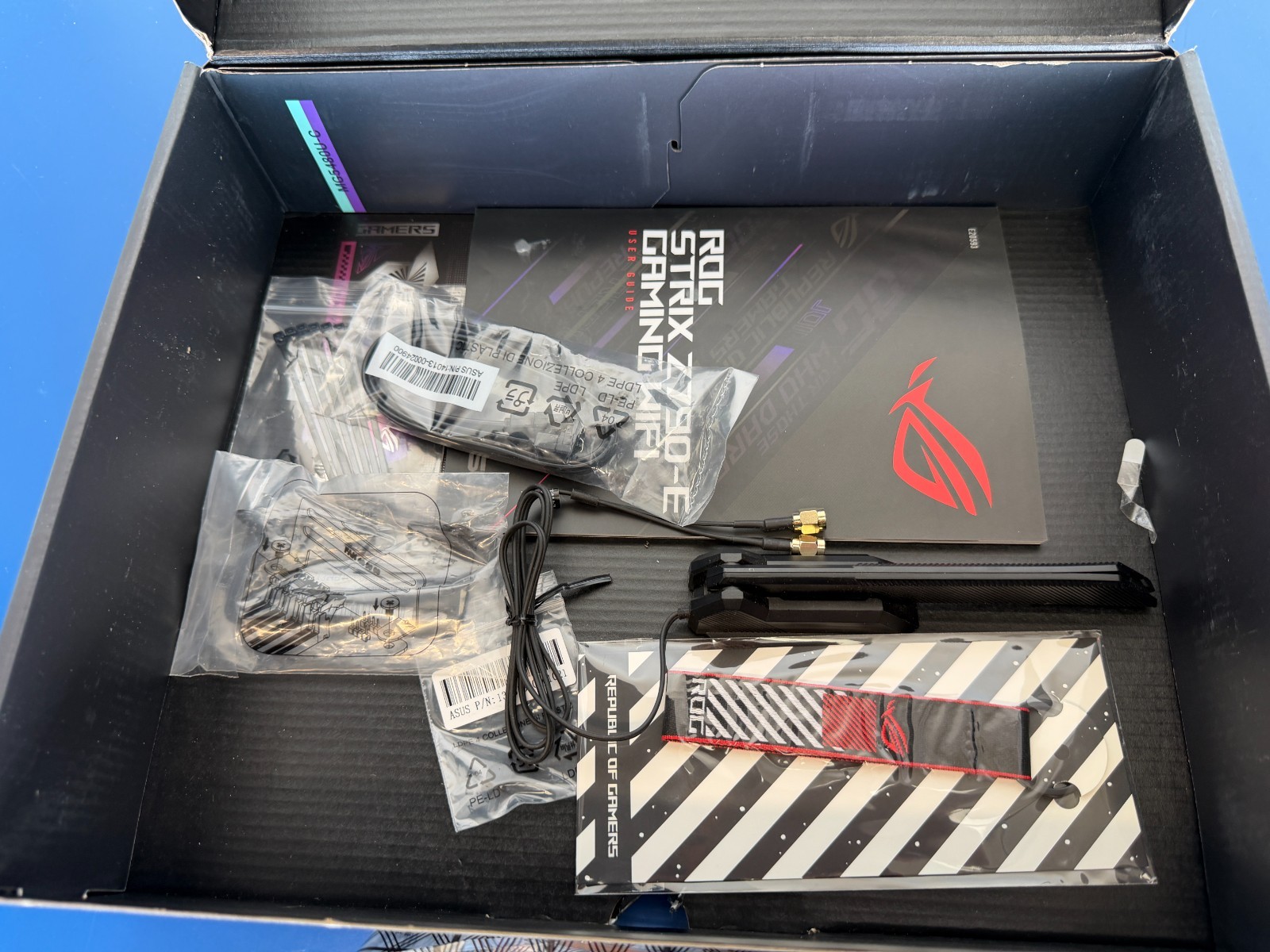

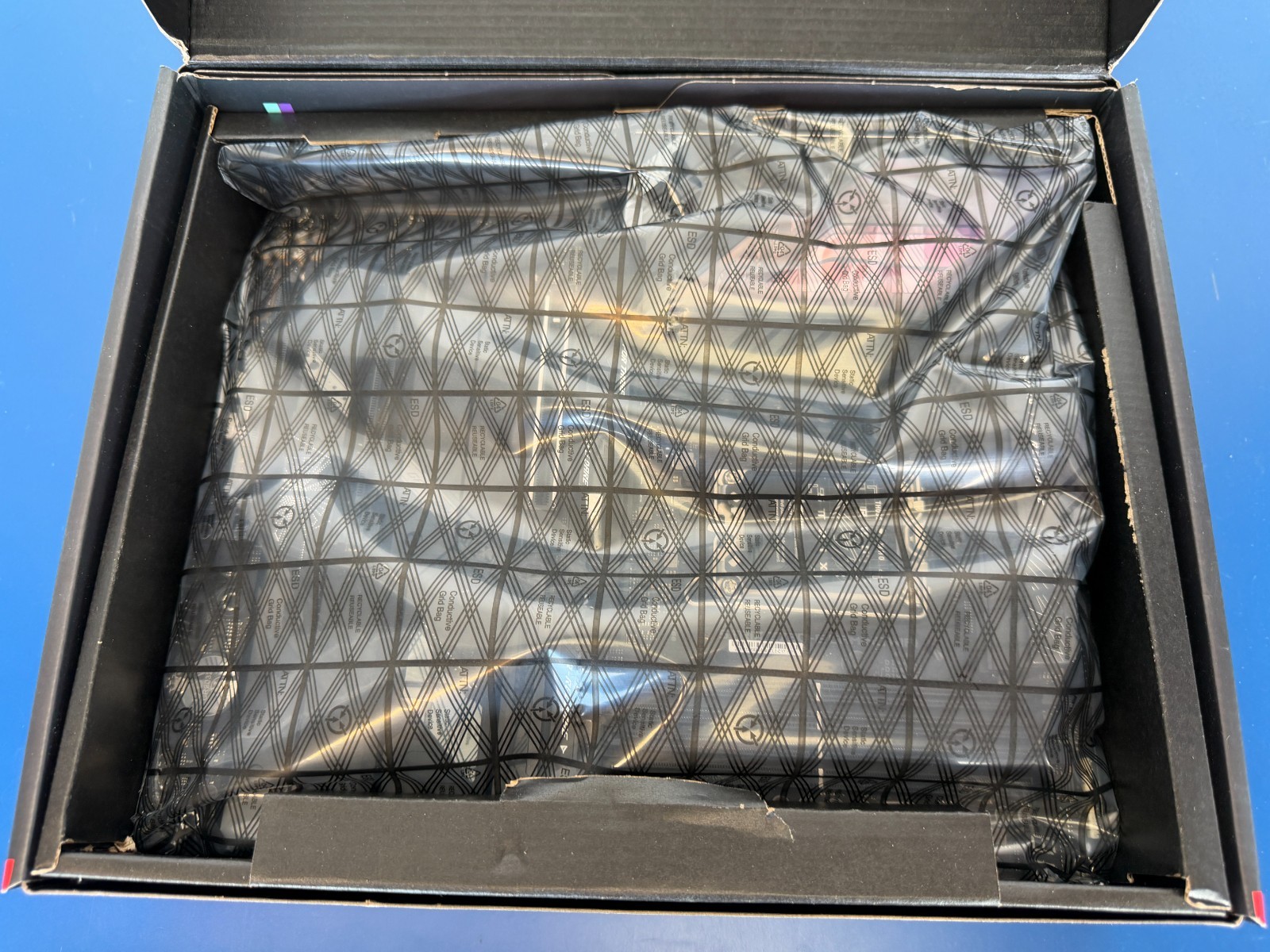

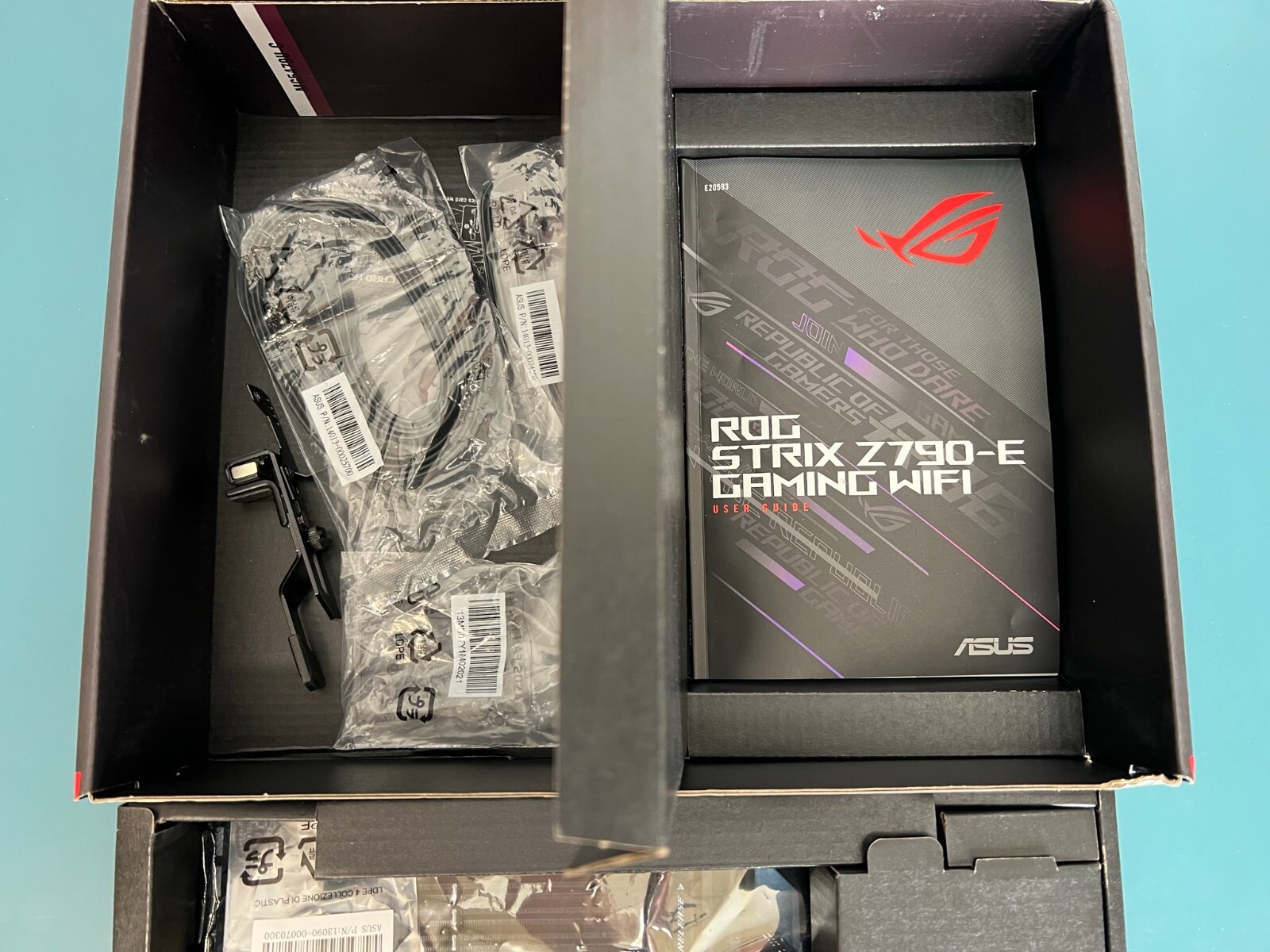

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Learn more about ASUS ROG STRIX Z790-E GAMING WIFI

Model

Brand

ASUS

Series

ROG

Model

ROG STRIX Z790-E GAMING WIFI

Part Number

90MB1CL0-M0AAY0

Supported CPU

CPU Socket Type

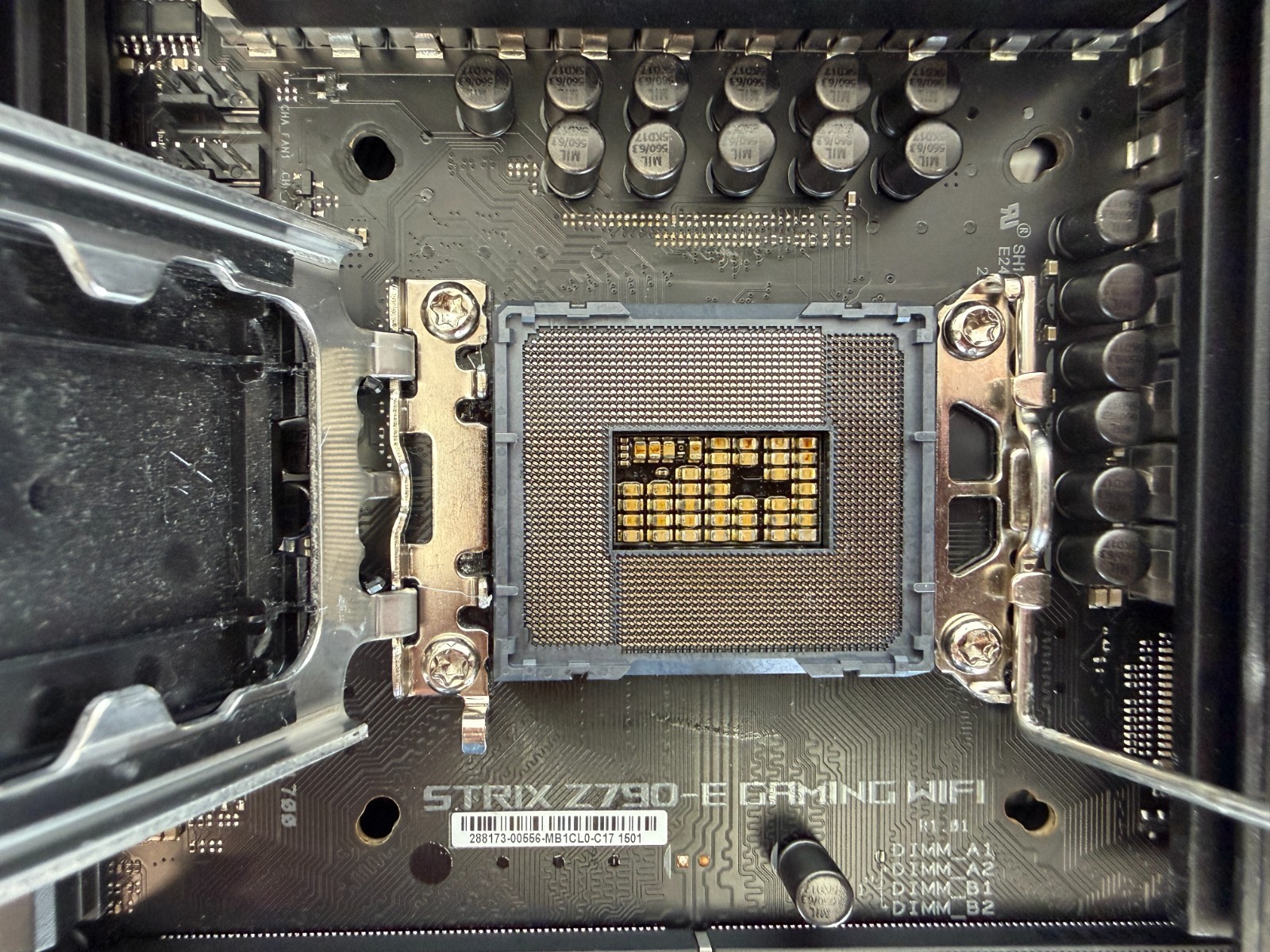

LGA 1700

CPU Type

Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*

* Refer to www.asus.com for CPU support list.

Supported CPU Technologies

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets

Chipset

Intel Z790

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

Supports DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Supports Intel Extreme Memory Profile (XMP)
OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Maximum Memory Supported

128GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 5.0 x16

1 x PCIe 5.0 x16 slot*

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCI Express 4.0 x16

2 x PCIe 4.0 x16 slot (supports x4 mode)

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

Intel 13th & 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

SATA RAID

0/1/5/10

Onboard Audio

Audio Chipset

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback

Audio Features
– SupremeFX Shielding Technology
– ALC4080 + Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

1 x Intel 2.5Gb Ethernet

Max LAN Speed

2.5Gbps

Wireless LAN

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*

* WiFi 6E 6GHz regulatory may vary between countries.

Bluetooth

Bluetooth v5.2

Rear Panel Ports

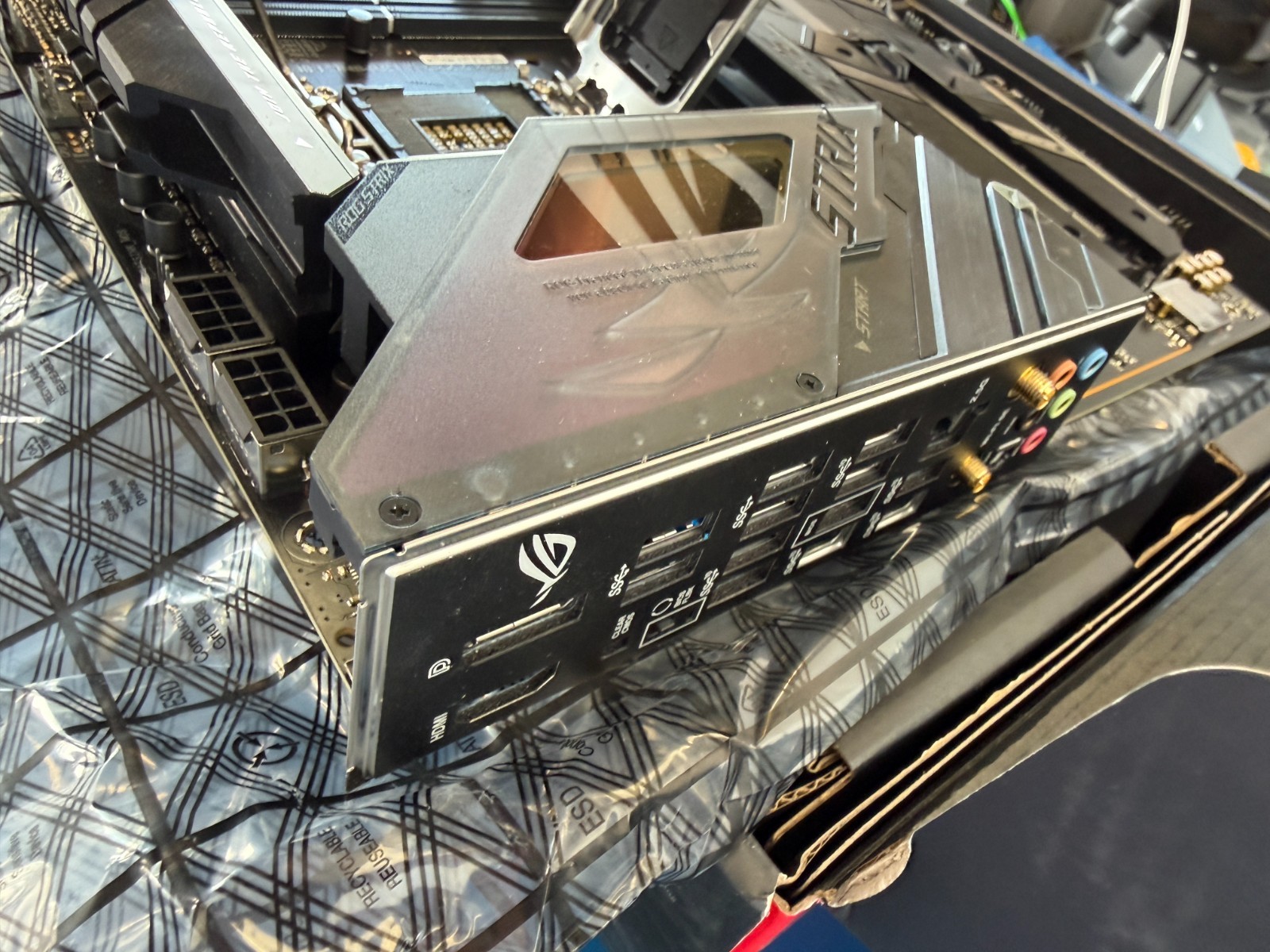

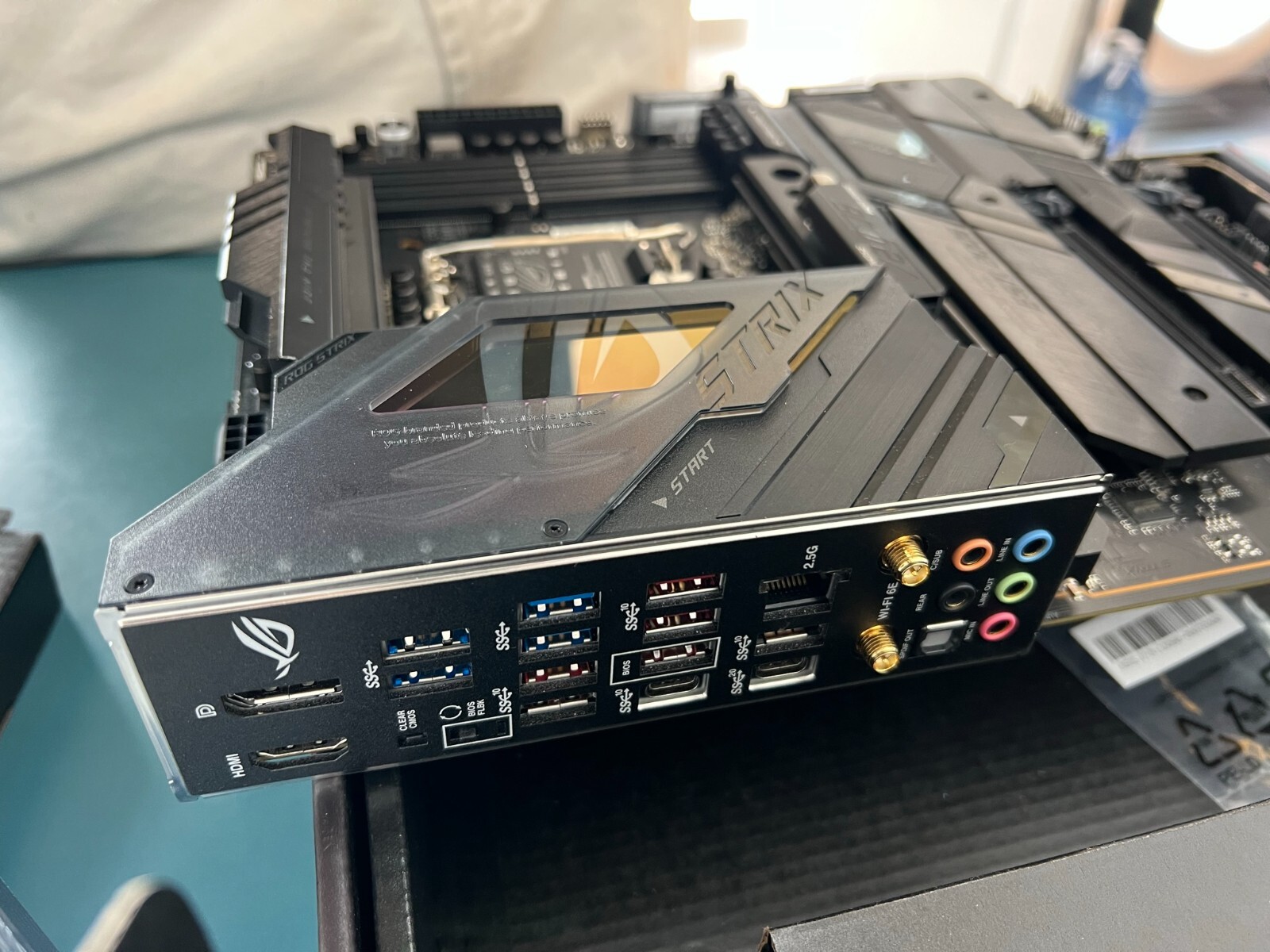

Back I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x HDMI port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

Onboard USB

1 x USB 3.2 Gen 2×2 connector (supports USB Type-C with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Other Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Power button
1 x Thermal Sensor header
1 x Thunderbolt header
