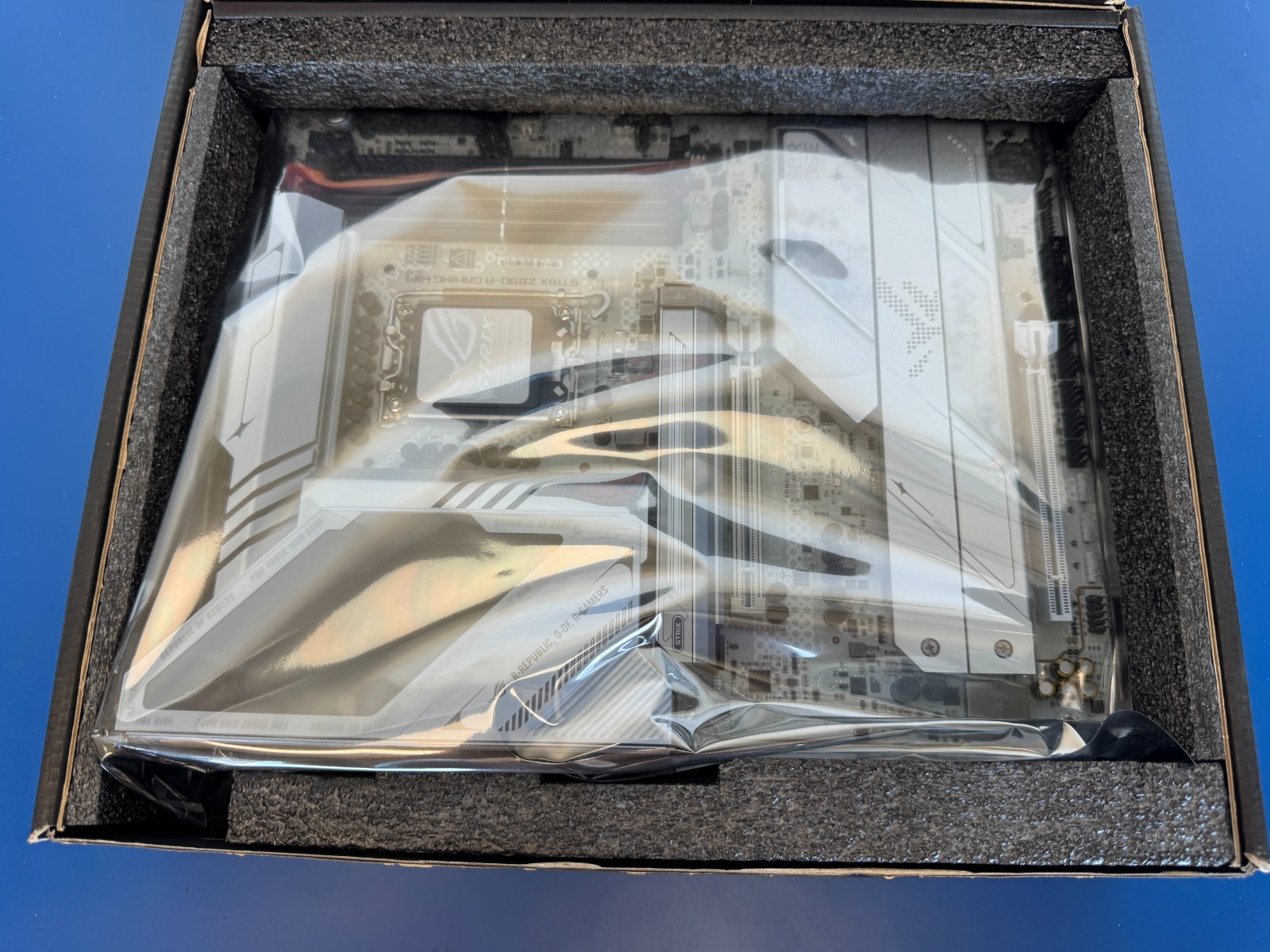

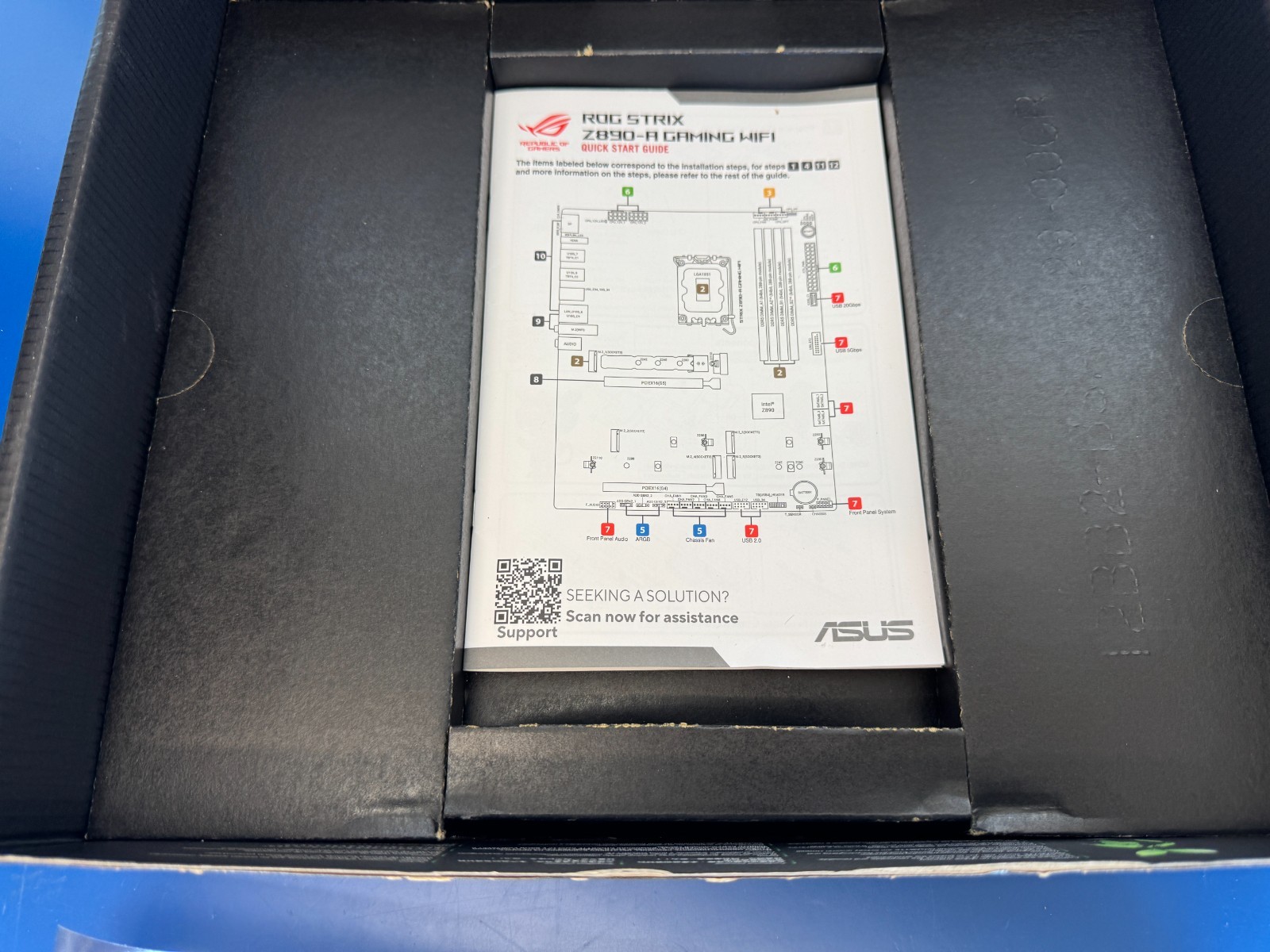

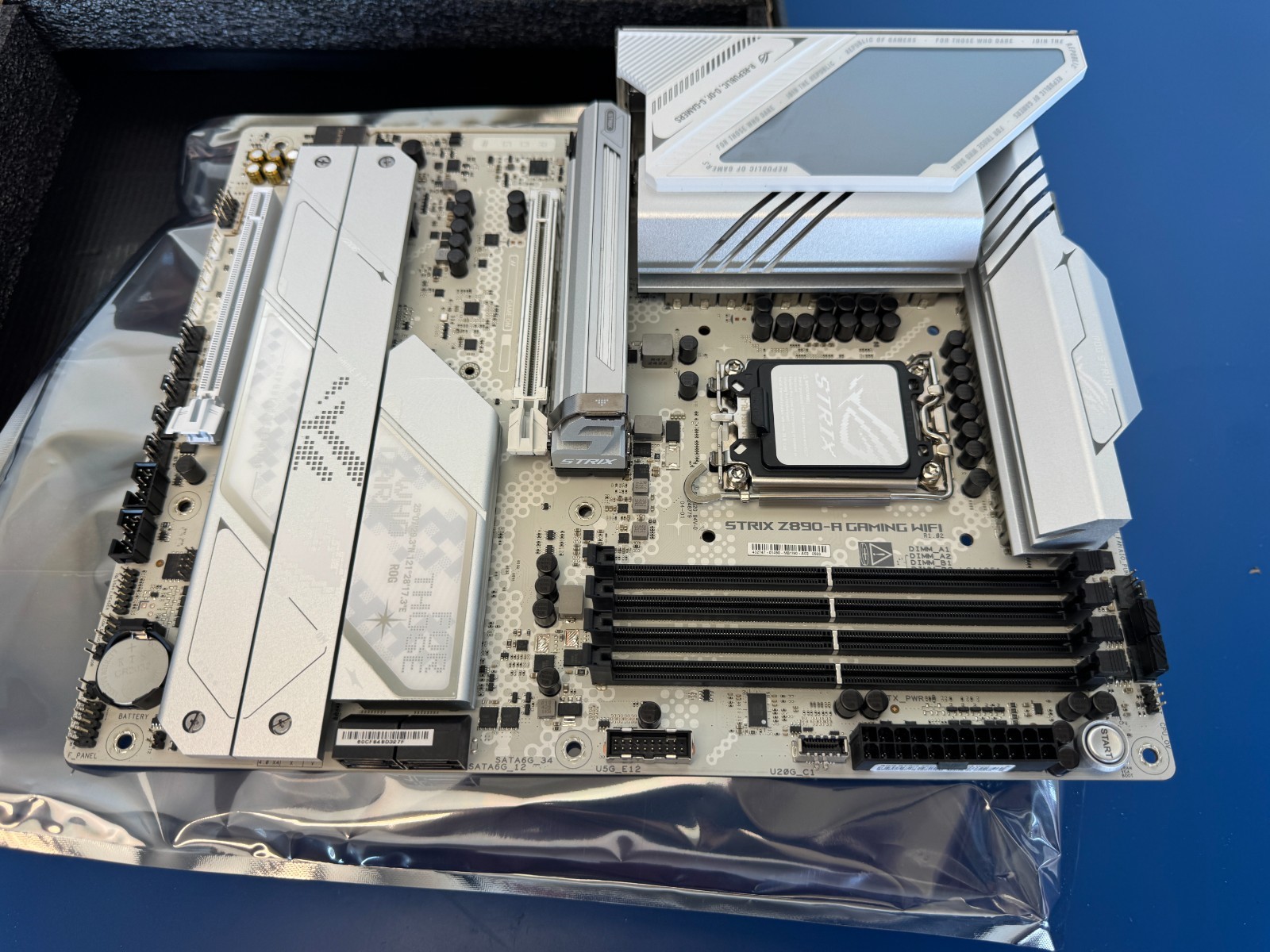

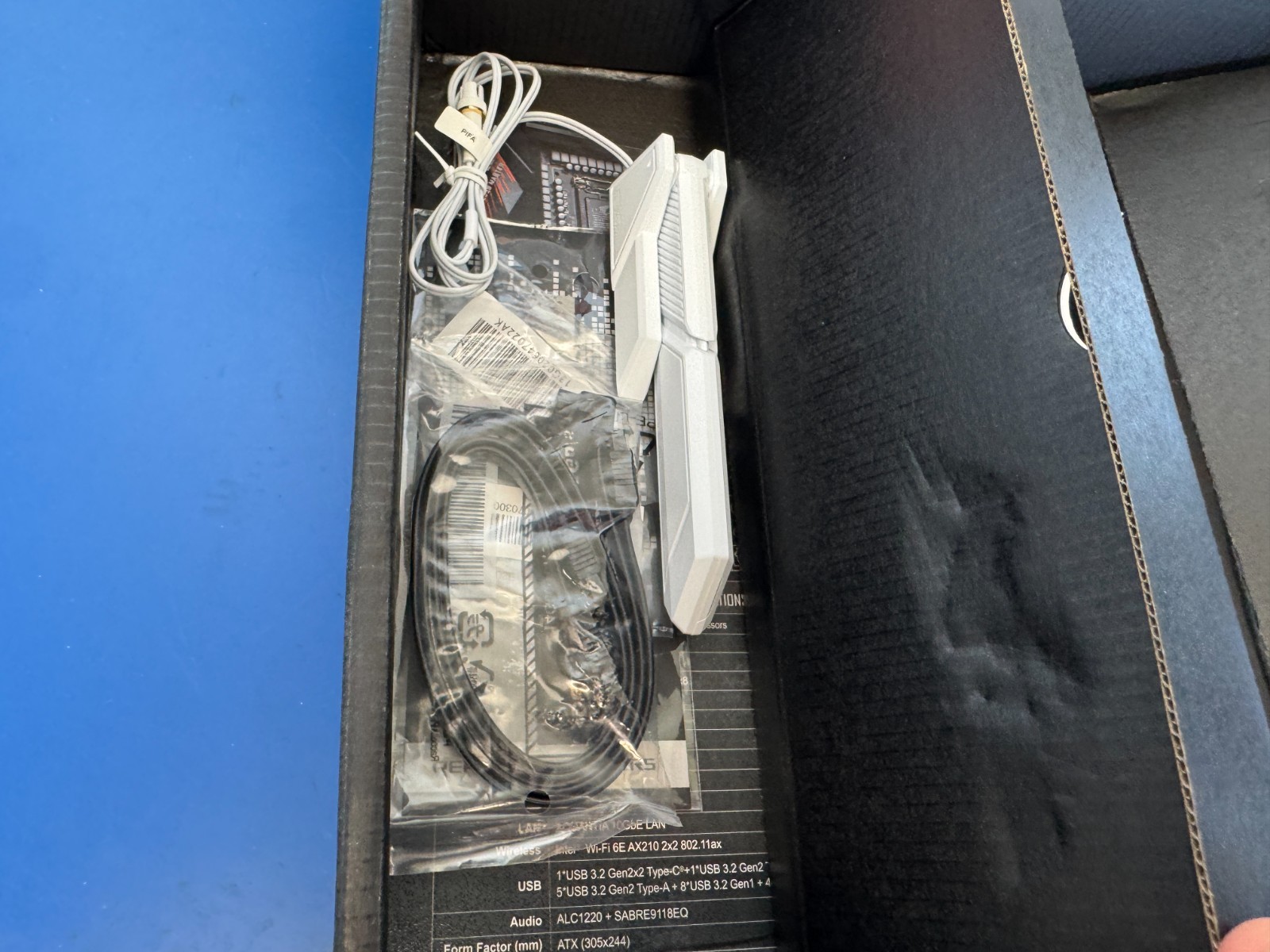

Missing retail box.  Pristine condition never used.  Comes with wifi 7 antenna, manual and Sata cables.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Learn more about ASUS ROG STRIX Z890-A GAMING WIFI

Model

Brand

ASUS

Model

ROG STRIX Z890-A GAMING WIFI

Supported CPU

CPU Socket Type

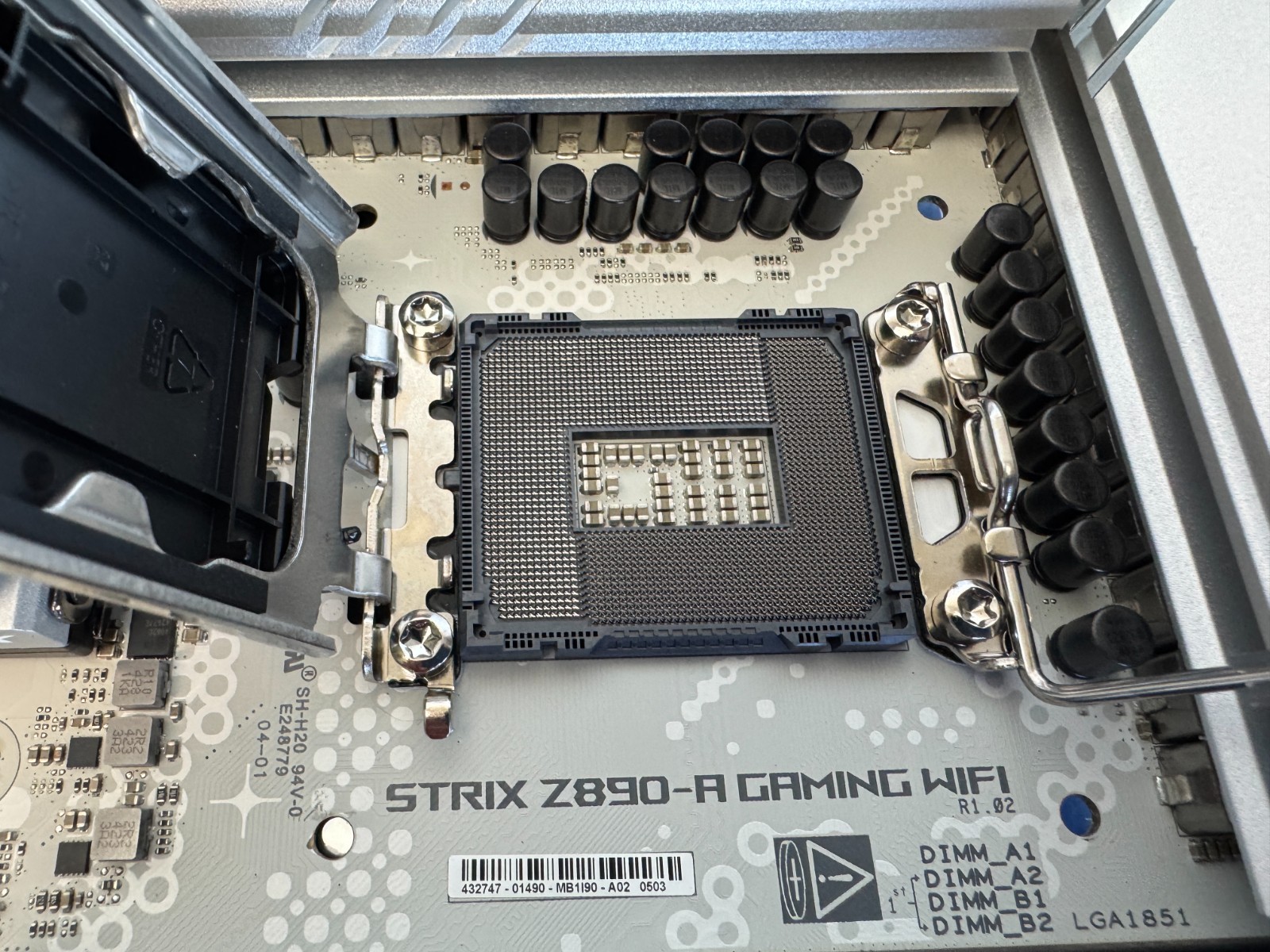

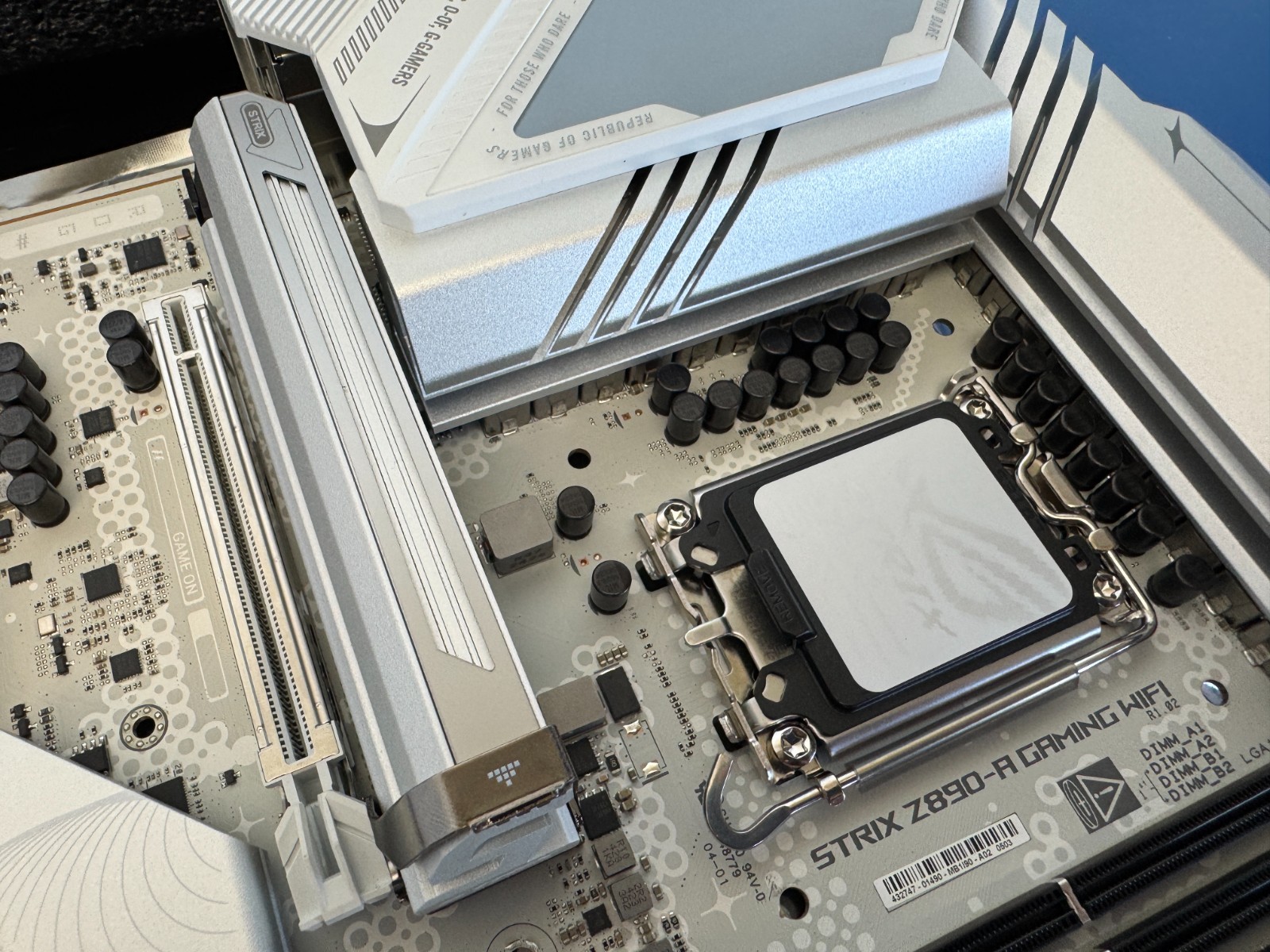

LGA 1851

CPU Type

Intel Core Ultra Processors (Series 2)

Chipsets

Chipset

Intel Z890

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066

Maximum Memory Supported

192GB

Channel Supported

Dual Channel

Memory Feature

Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
Supports DIMM FIT
ASUS Enhanced Memory Profile III (AEMPIII)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots

PCI Express 5.0 x16

Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot

PCI Express 4.0 x16

Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

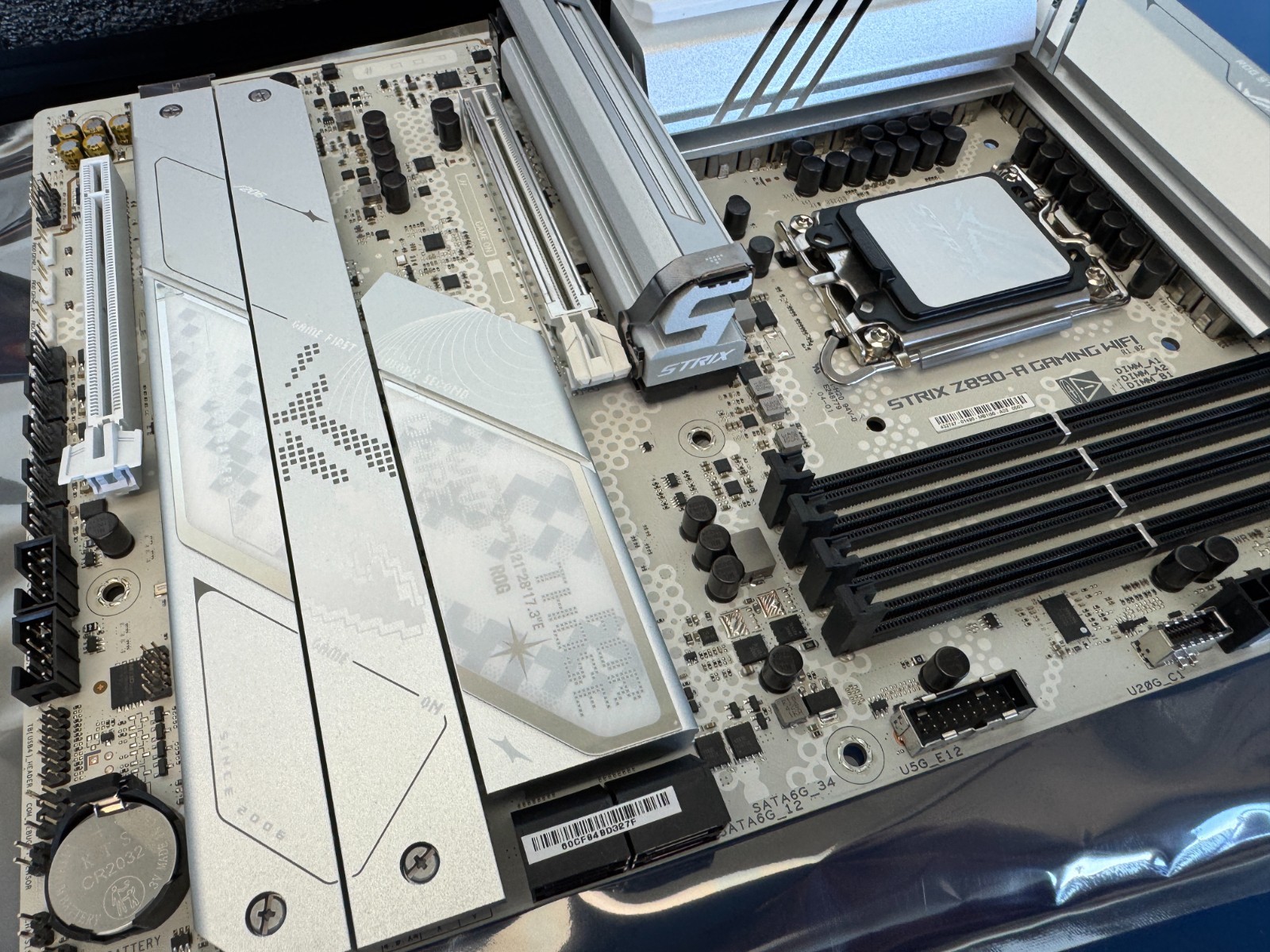

M.2

Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

SATA RAID

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Onboard Audio

Audio Channels

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Onboard LAN

Max LAN Speed

2.5Gbps

Wireless LAN

Wi-Fi 802.11 be

Bluetooth

Bluetooth 5.4

Rear Panel Ports

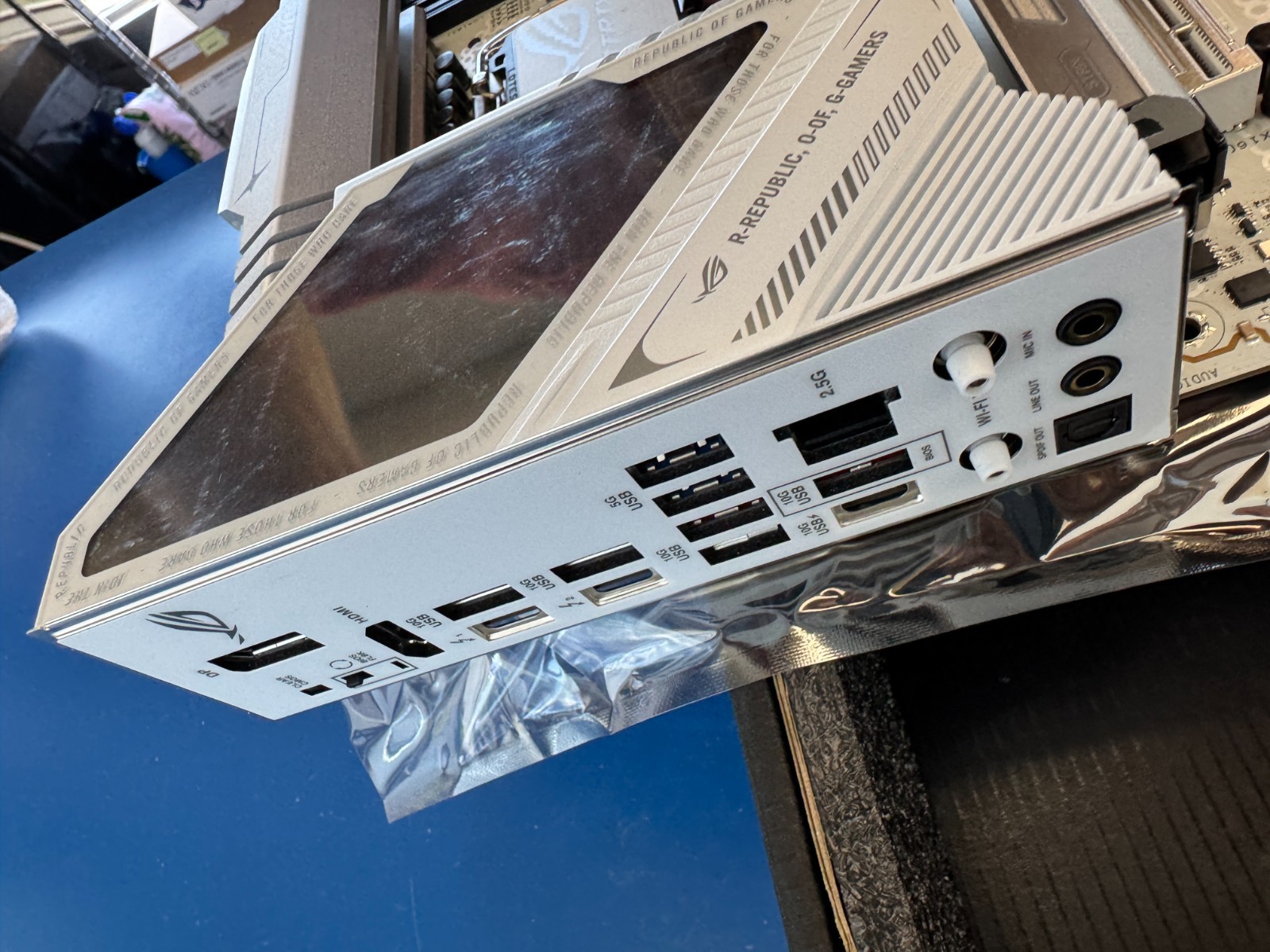

Back I/O Ports

2 x Thunderbolt 4 ports (2 x USB Type-C)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD/PPD Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button

Internal I/O Connectors

Onboard USB

1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Other Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header

Software Feature

BIOS Feature

256 Mb UEFI AMI BIOS

Software

ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
MyAsus
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
MemTest86

Windows 11

Windows 11 (22H2 later)

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0″ x 9.6″

Power Pin

1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors

Features

Features

Extreme Engine Digi+
– 5K Black metallic capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
