Description

OUTLUT Store

100% authentic product.

Missing original retail box, Pristine condition never used. Professionally tested to ensure 100% functionality.

Learn more about ASUS TUF GAMING Z790-PLUS WIFI

Model

Brand: ASUS

Series: TUF

Model: TUF GAMING Z790-PLUS WIFI

Part Number: 90MB1D80-M0AAY0

Supported CPU

CPU Type

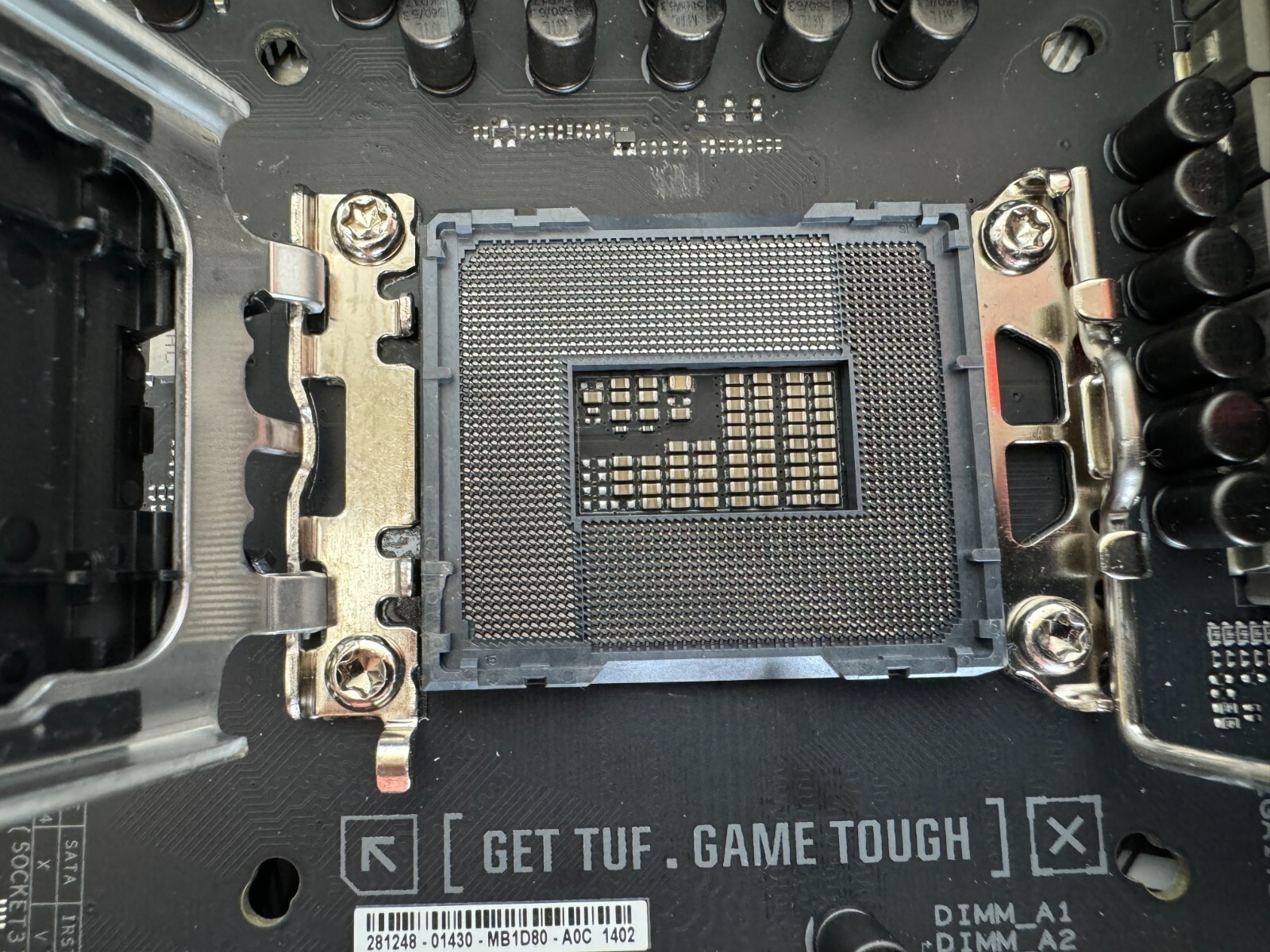

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets

Chipset: Intel Z790

Memory

Number of Memory Slots: 4x288pin (DDR5)

Memory Standard: DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Maximum Memory Supported: 128GB

Channel Supported

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots

PCI Express 5.0 x16: 1 x PCI Express 5.0 x16

PCI Express 4.0 x16: 1 x PCIe 4.0 x16 slot (supports x4 mode)

Other Slots

1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Devices

SATA 6Gb/s: 4 x SATA 6Gb/s

M.2: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

SATA RAID: Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Onboard Audio

Audio Channels: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Onboard LAN

Max LAN Speed: 1 x Intel® 2.5Gb Ethernet
TUF LANGuard

Wireless LAN: Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications

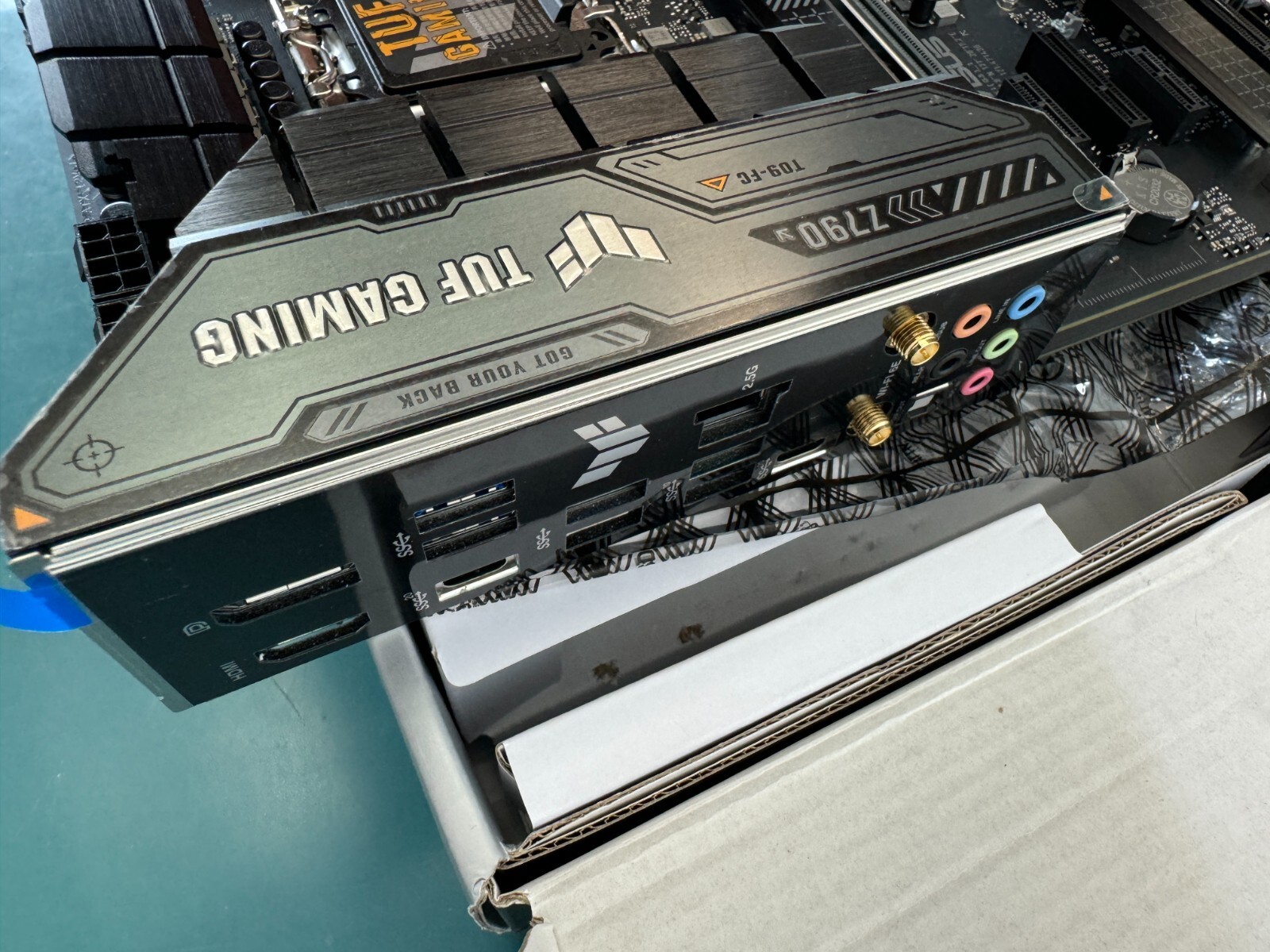

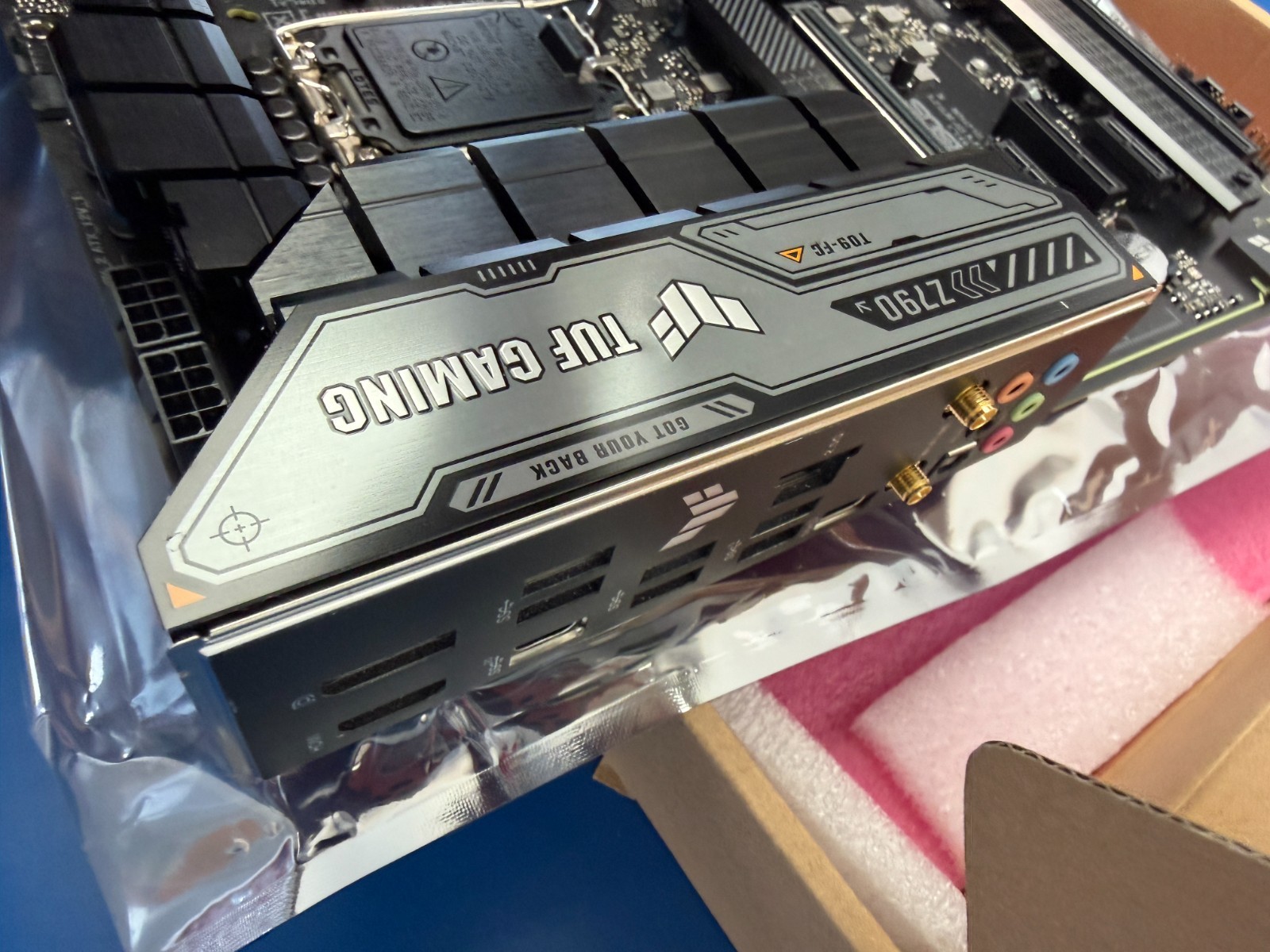

Rear Panel Ports

Back I/O Ports: 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors

Other Connectors: Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header

Physical Spec

Form Factor: ATX

Dimensions (W x L): 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Windows Compatibility

Windows 11: Windows® 11, Windows® 10 64-bit

Features

Features: ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 headers

Shipping Information

This item ships to Canada & USA only !

Terms of Sales

We take painstaking care to pack our customers items for maximum safety. All items will usually ship within 24h!

Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received it. All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.

A-09-04-00

Additional information

Weight	0.0 kg
Brand	ASUS
Form Factor	ATX
Compatible CPU Brand	Intel
Number of Memory Slots	4
Most Suitable For	Gaming
Memory Type	DDR5
Condition	Open box
