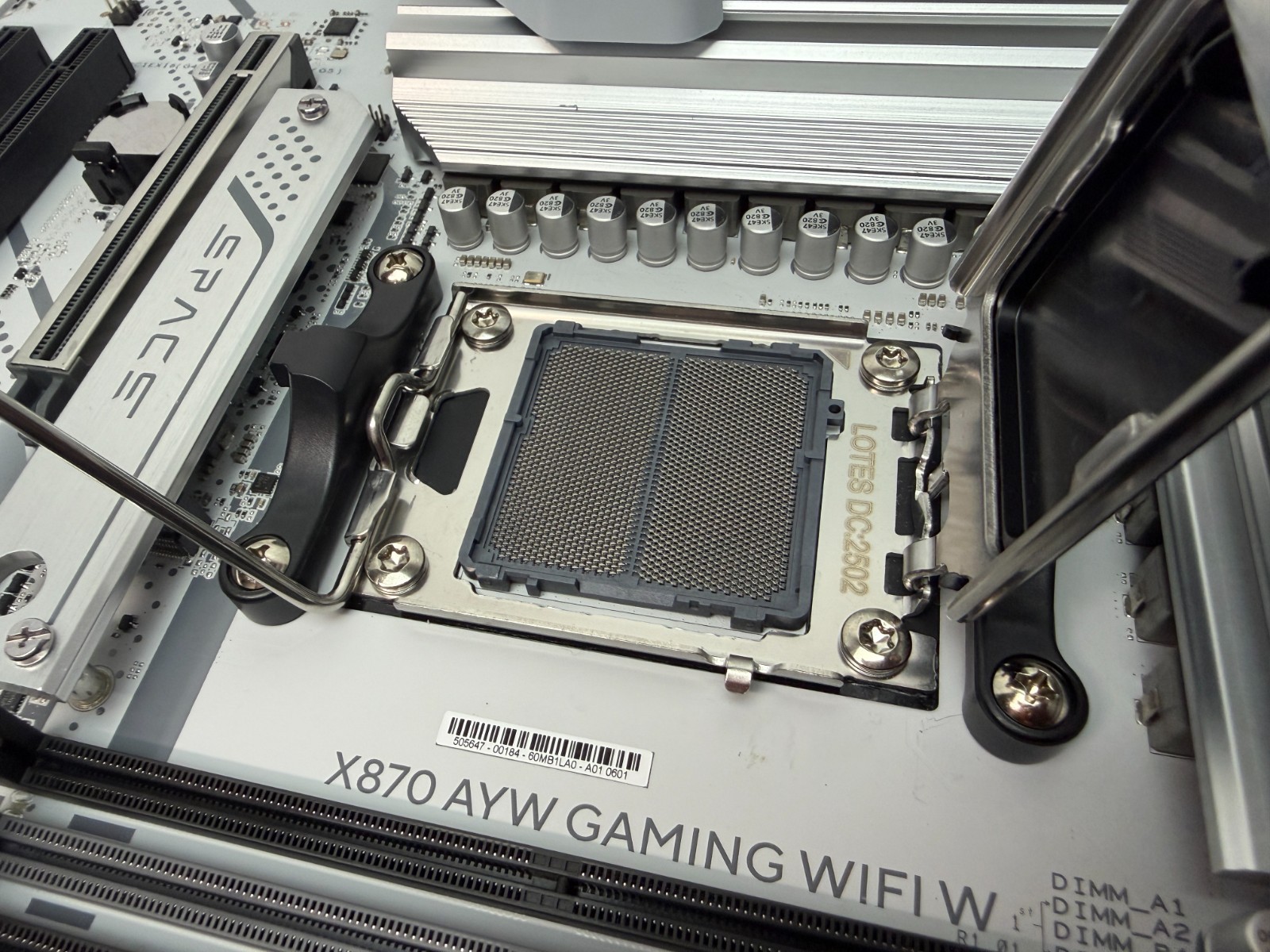

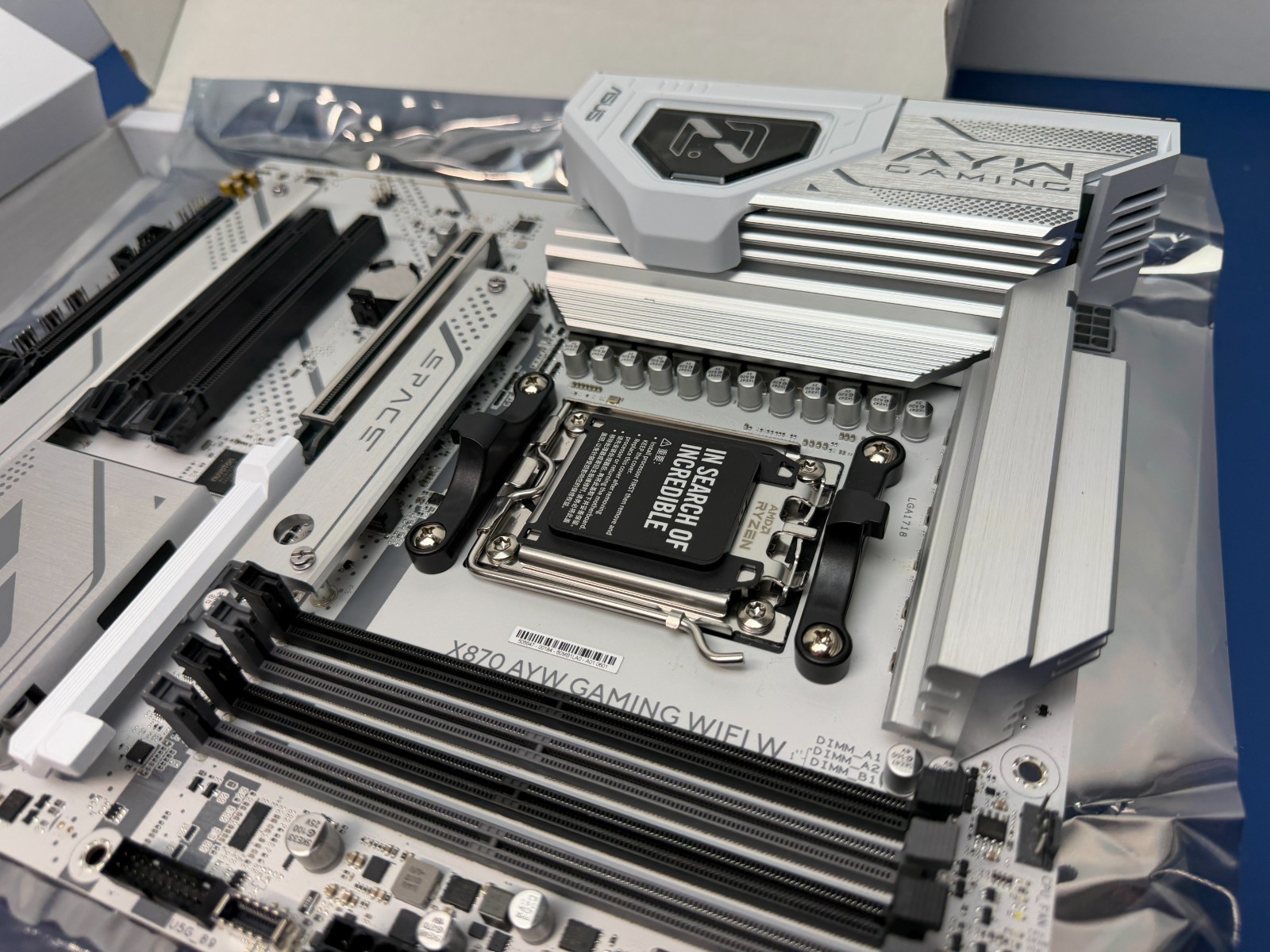

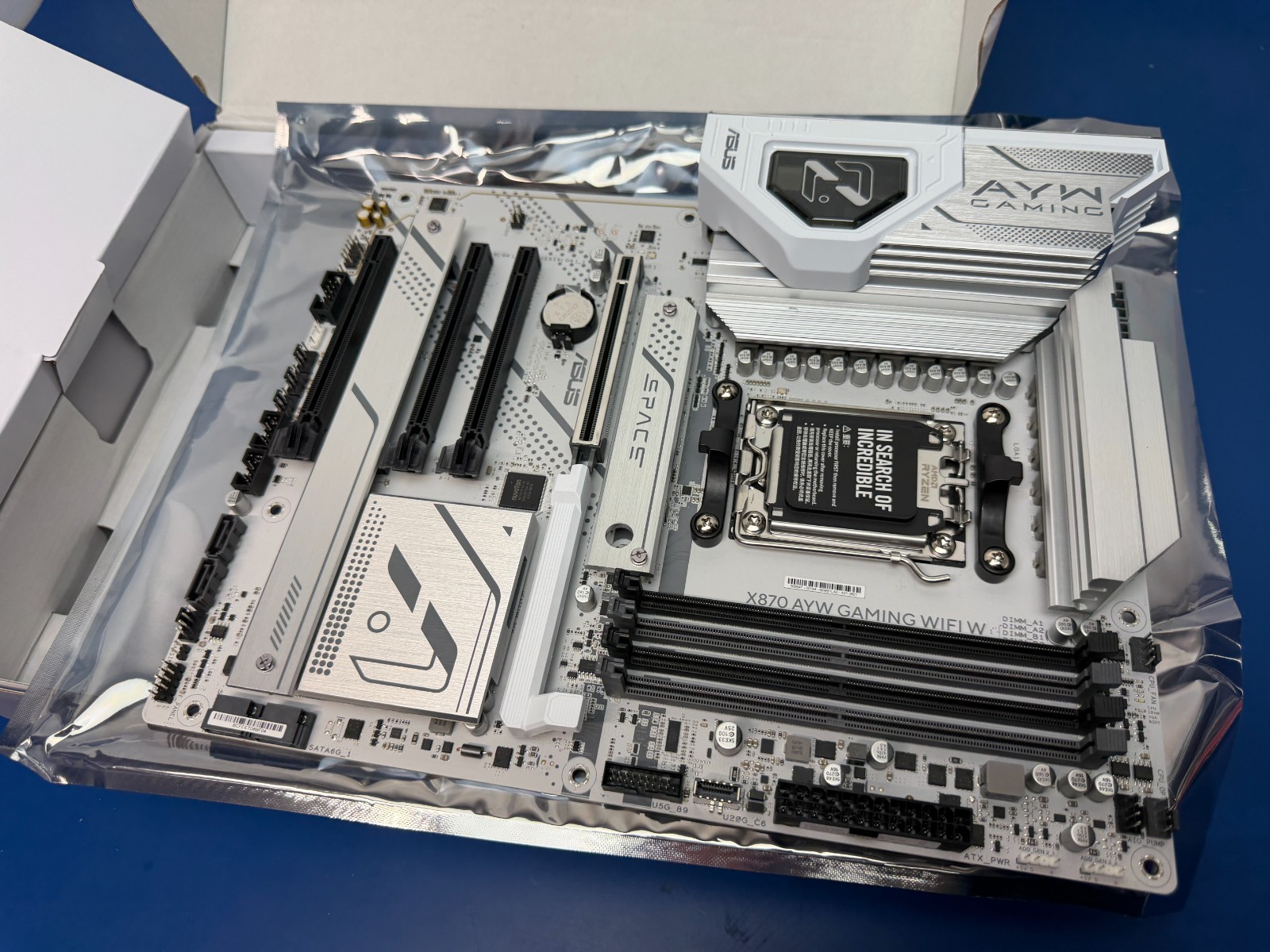

ASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX motherboard, 12+2+1 80A DrMOS power

$195.54

Out of stock

Additional information

Brand

Form Factor

Socket Type

Number of Memory Slots

Model

MPN

Country of Origin

Description

OUTLUT Computers & Electronic Inc.

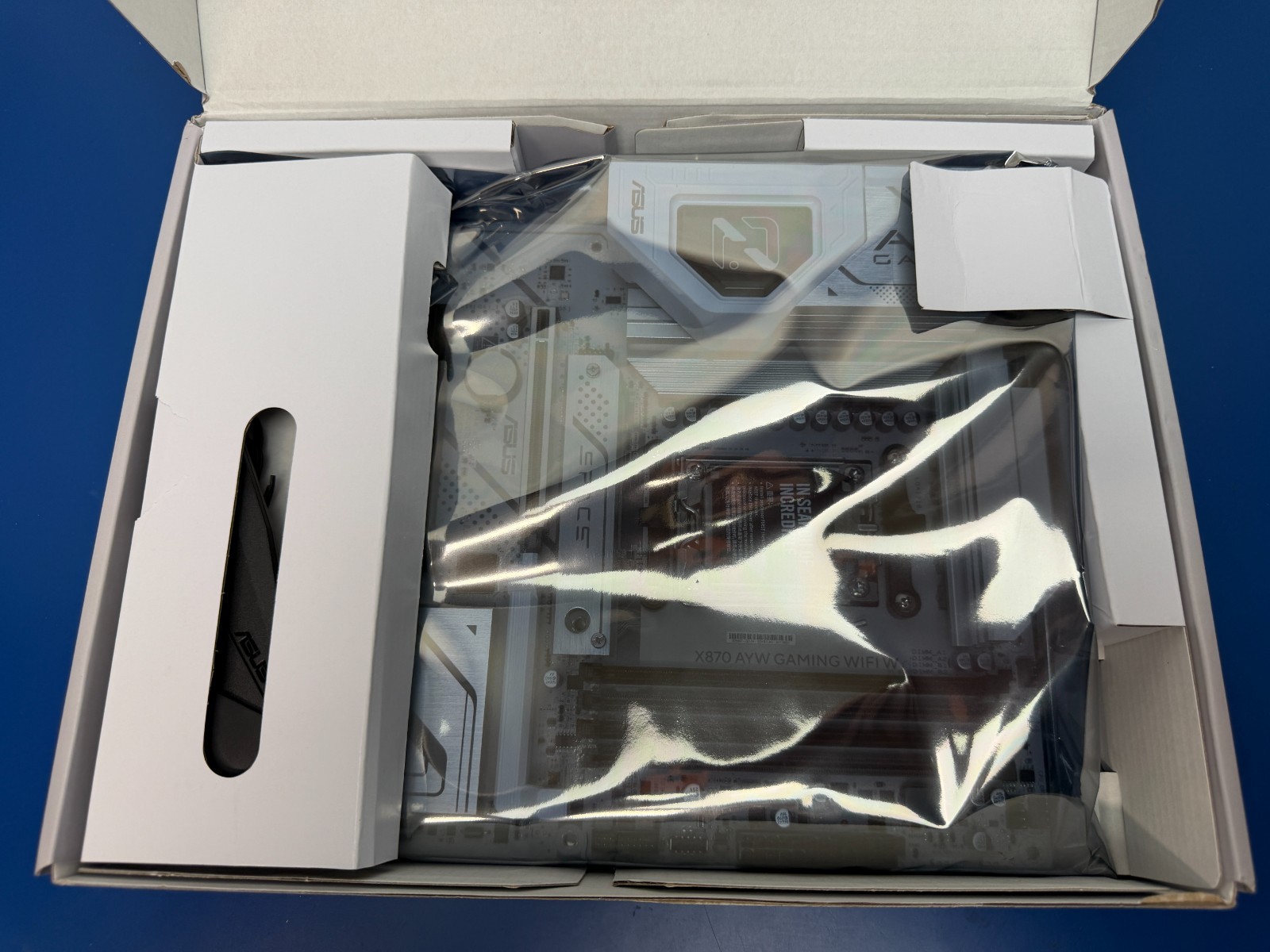

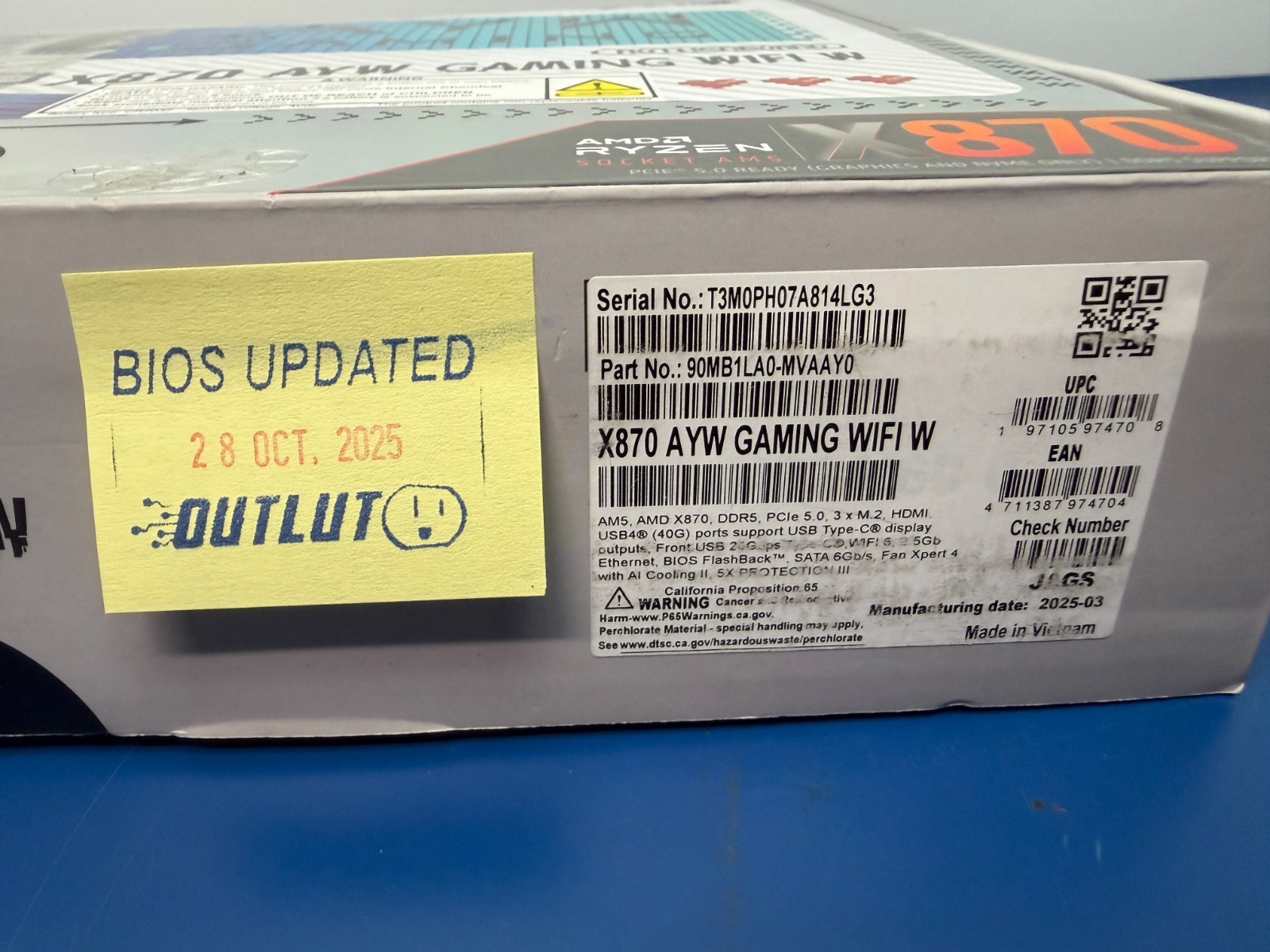

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Learn more about ASUS X870 AYW GAMING WIFI W

Model
Brand
ASUS
Model
X870 AYW GAMING WIFI W
Part Number
90MB1LA0-MVAAY0
Supported CPU
CPU Socket Type
AM5
CPU Type
Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset
AMD X870
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
Up to 8000+MT/s (OC)
Maximum Memory Supported
256GB
Channel Supported
Dual Channel
ECC Supported
Yes
Buffer Supported
Un-buffered
Expansion Slots
PCI Express 5.0 x16
AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)

PCI Express 3.0 x16
1 x PCIe 3.0 x16 slot (support x1 mode)***
*** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**

AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**

AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**

** Specifications vary by CPU types.

SATA RAID
0/1/5/10
Onboard Audio
Audio Channels
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
Max LAN Speed
2.5Gbps
Wireless LAN
Wi-Fi 802.11 ax
Bluetooth
Bluetooth 5.2
Rear Panel Ports

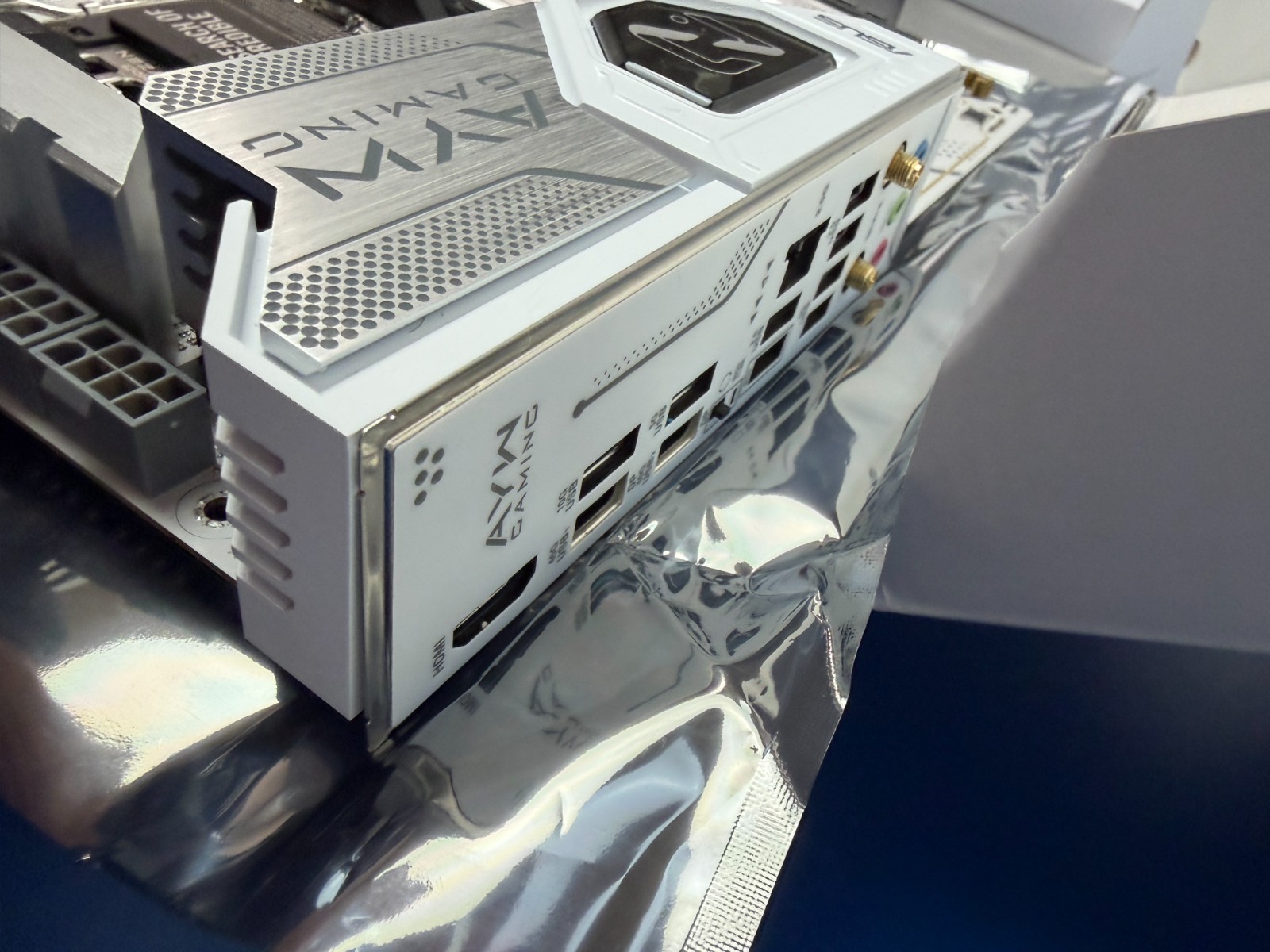

Back I/O Ports
2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port

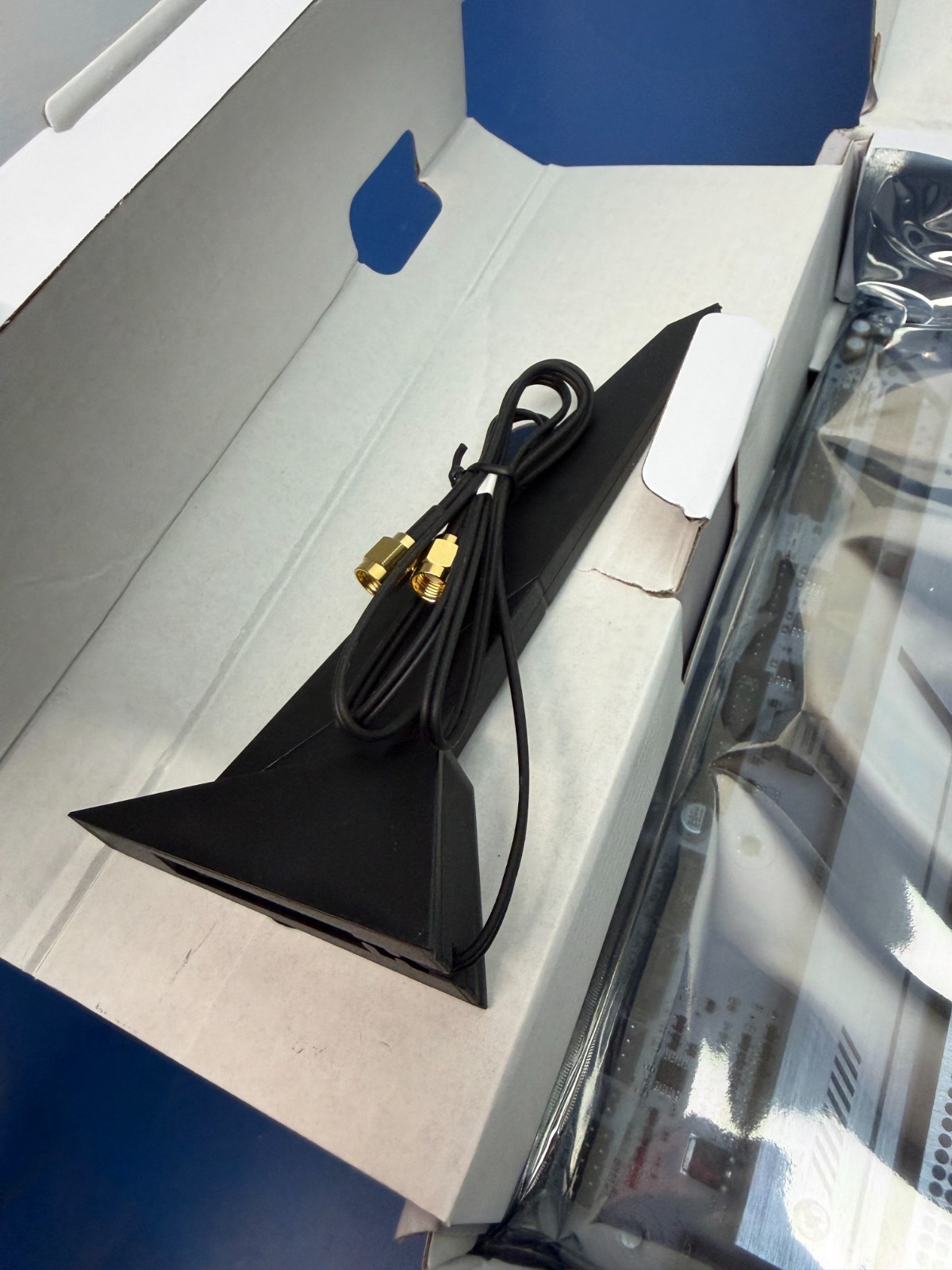

1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0″ x 9.6″
Power Pin
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Software Feature
BIOS Feature
256 Mb Flash ROM, UEFI AMI BIOS
Software
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
Windows 11
Supported
Features
Features
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
Aura Sync
– Addressable RGB Gen 2 headers

Shipping Information
This item ships to Canada & USA only !

Terms of Sales

We take painstaking care to pack our customers items for maximum safety.  All items will usually ship within 24h!  All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.



Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received in.
