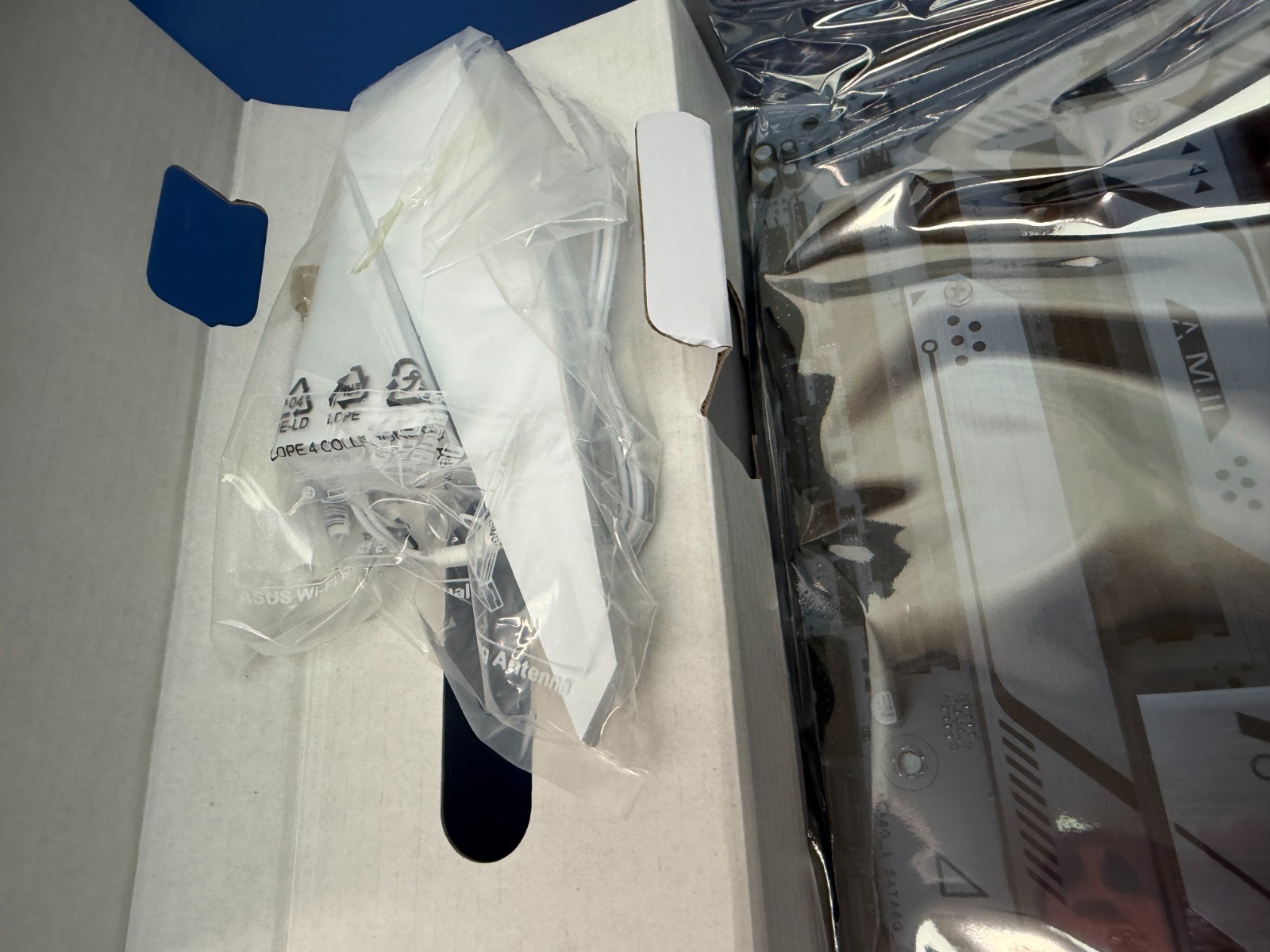

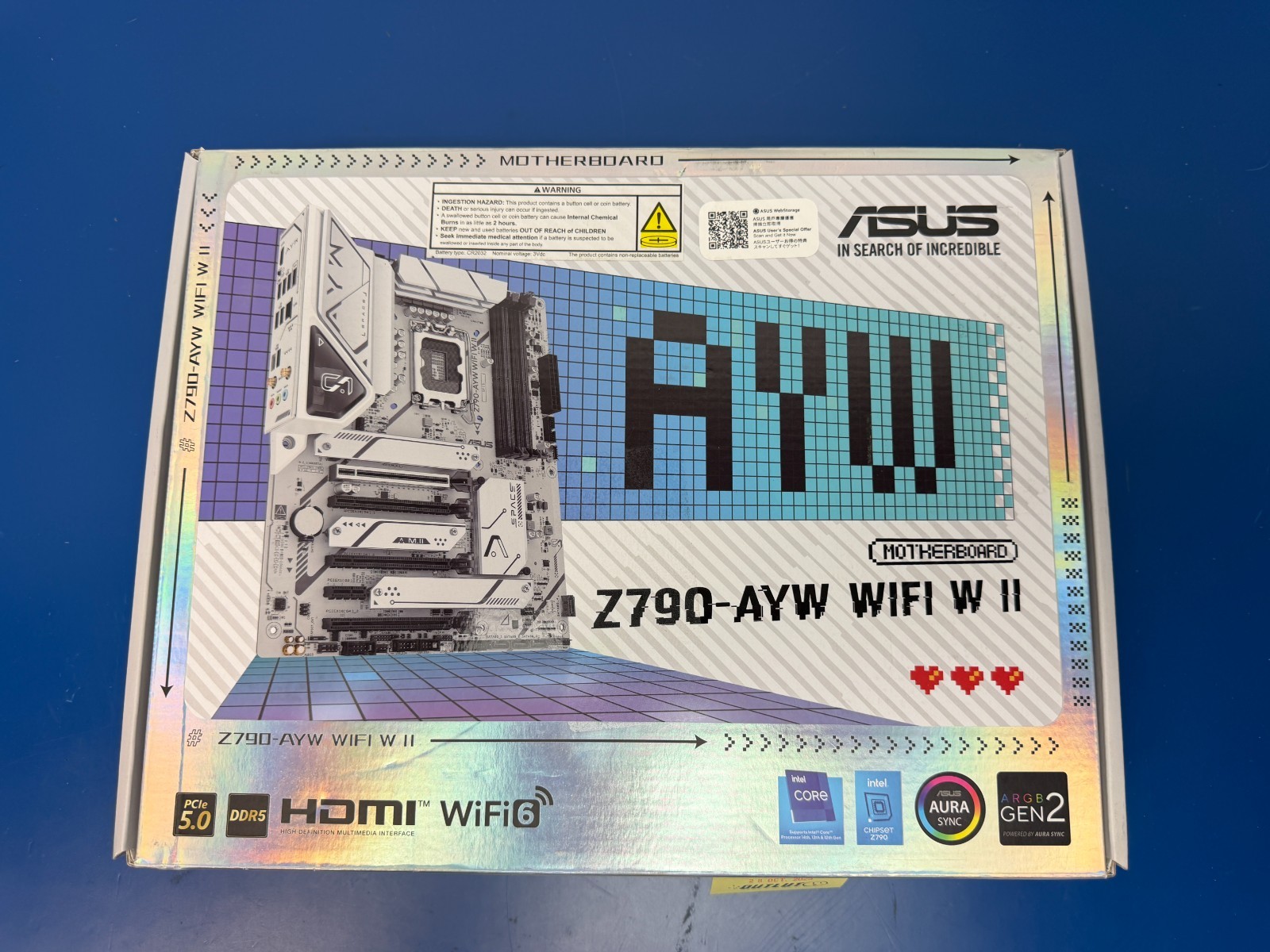

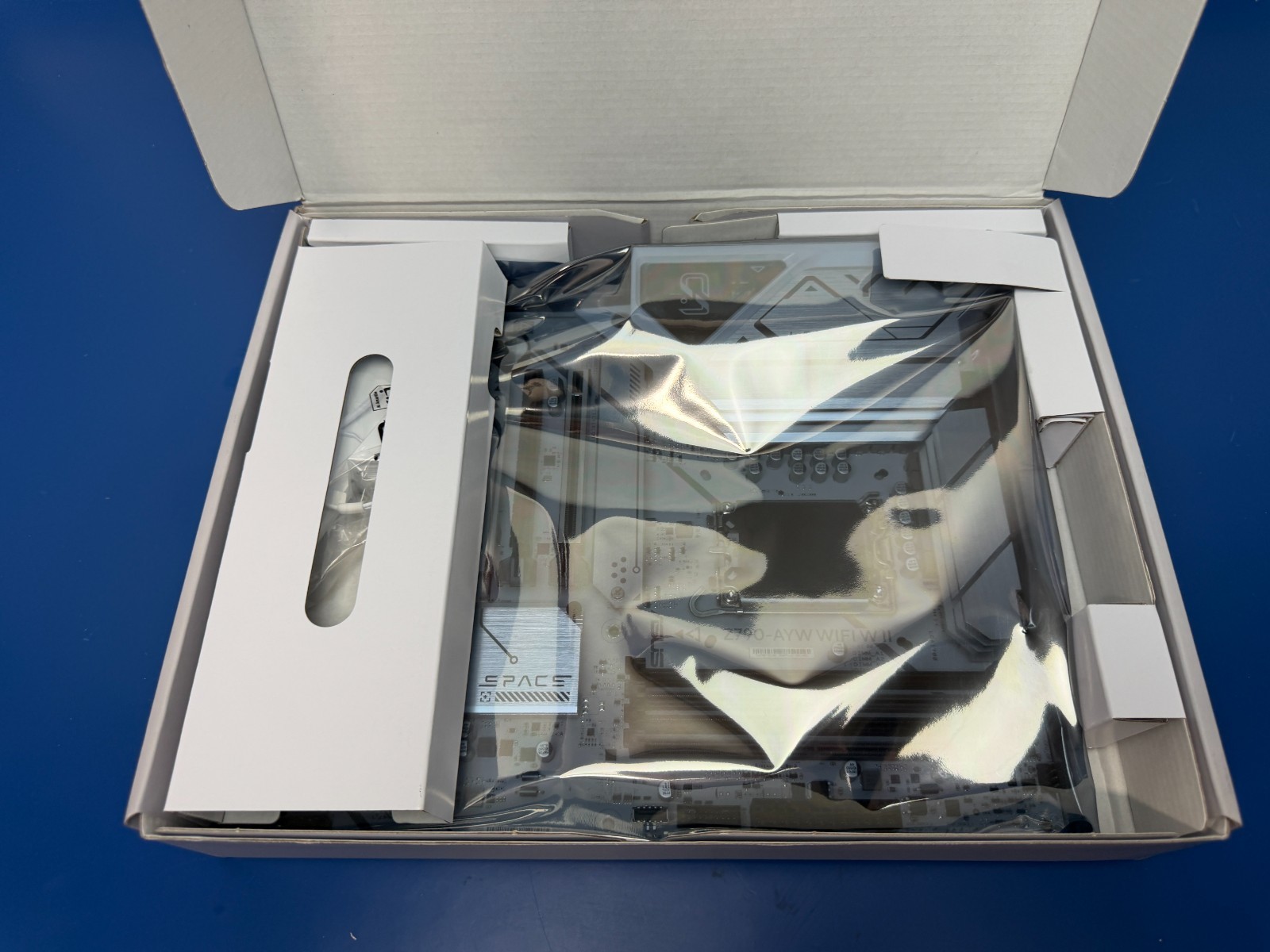

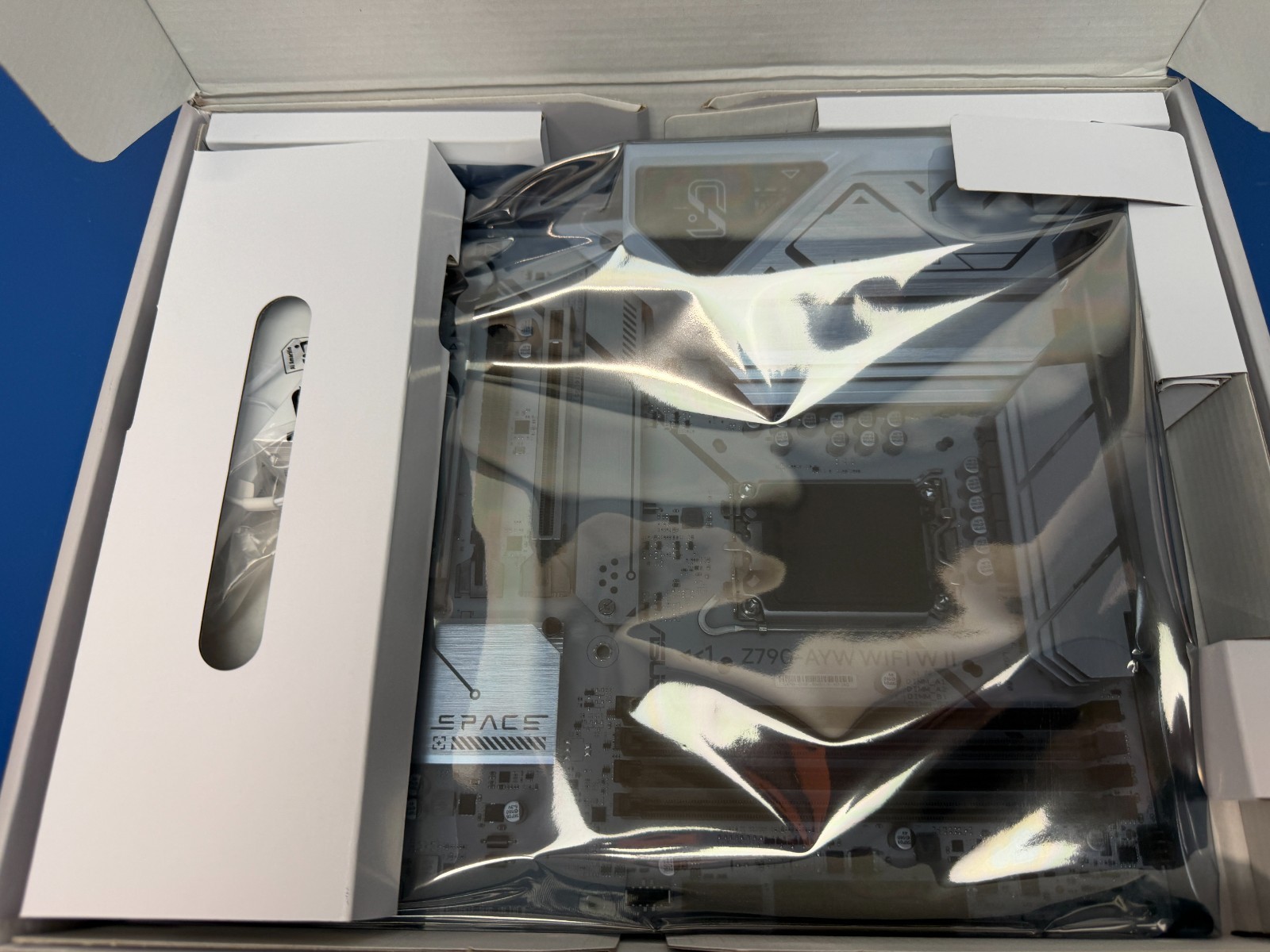

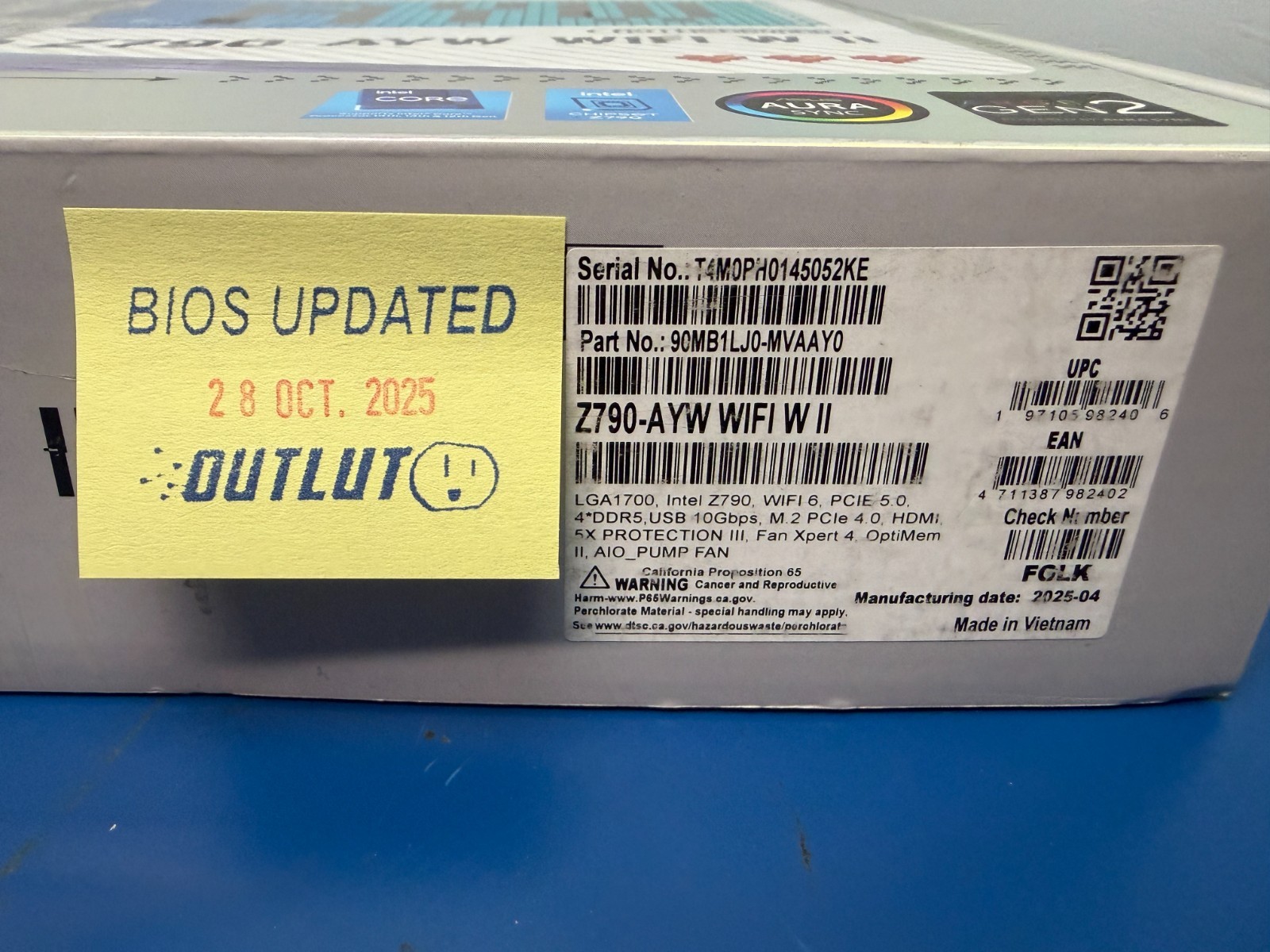

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Learn more about ASUS Z790-AYW WIFI W II

Model

Brand

ASUS

Model

Z790-AYW WIFI W II

Supported CPU

CPU Socket Type

LGA 1700

CPU Type

Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold

Chipsets

Chipset

Intel Z790

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

Up to 8000+(OC)

Maximum Memory Supported

192GB

Channel Supported

Dual Channel

Memory Feature

Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
OptiMem II

Expansion Slots

PCI Express 5.0 x16

Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot

PCI Express 4.0 x16

Intel Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)

PCI Express x1

1 x PCIe 3.0 x1 slot

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

Intel Z790 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

SATA RAID

0/1/5/10

Onboard Audio

Audio Channels

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN

Max LAN Speed

2.5Gbps

Wireless LAN

Wi-Fi 802.11 ax

Bluetooth

Bluetooth 5.3

Rear Panel Ports

Back I/O Ports

2 x USB 10Gbps ports (1 x Type-A+1 x Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors

Onboard USB

1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Other Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin Front Panel System header
1 x Thunderbolt (USB4) Header

Software Feature

BIOS Feature

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Software

ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancelation
ASUS DriverHub
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

Windows 11

Windows 11, Windows 10 64-bit

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0″ x 9.6″

Power Pin

1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Features

Features

ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– M.2 heatsinks
– VRM heatsinks design
ASUS EZ DIY
– BIOS FlashBack button
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Addressable Gen 2 headers
