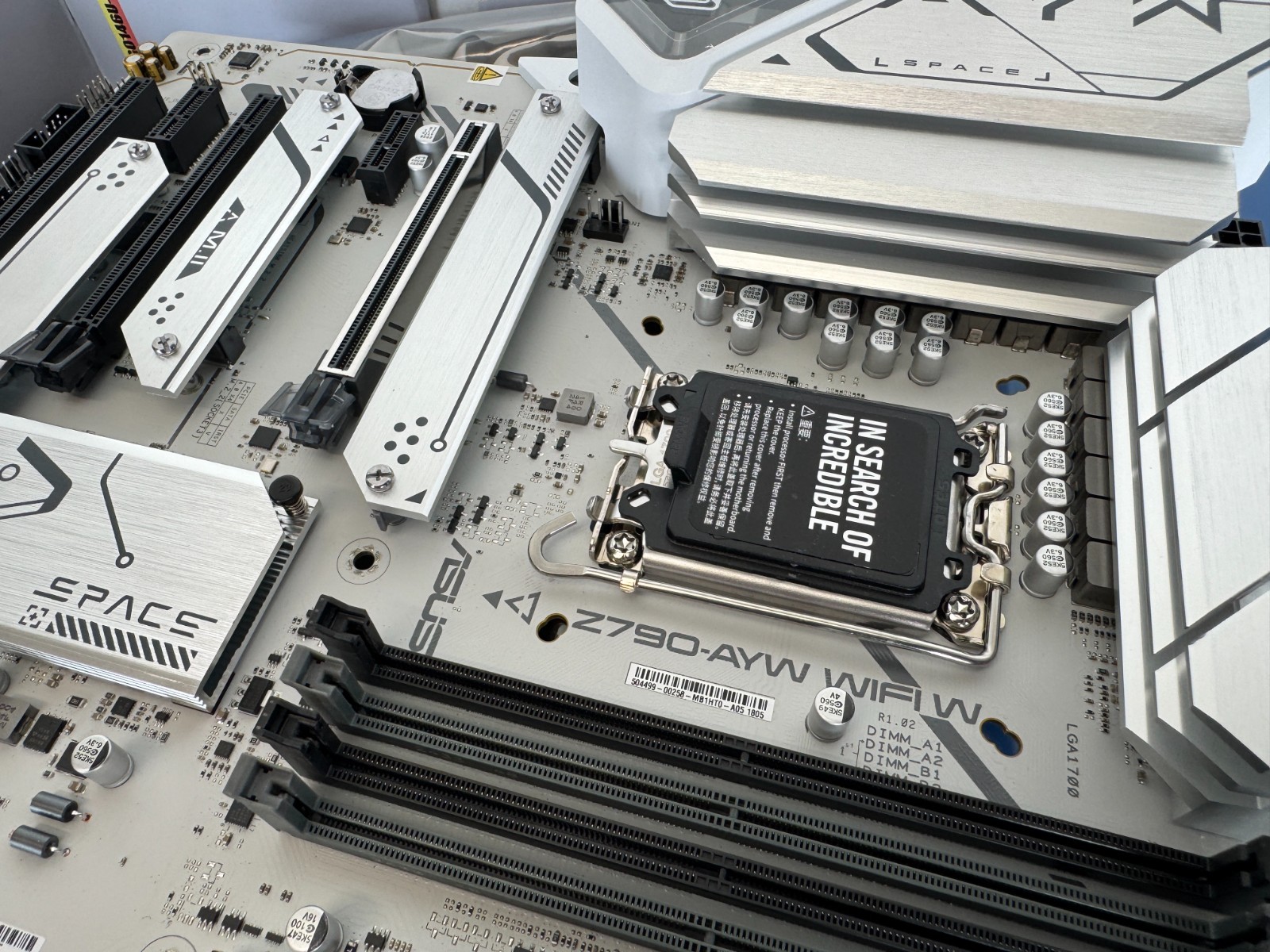

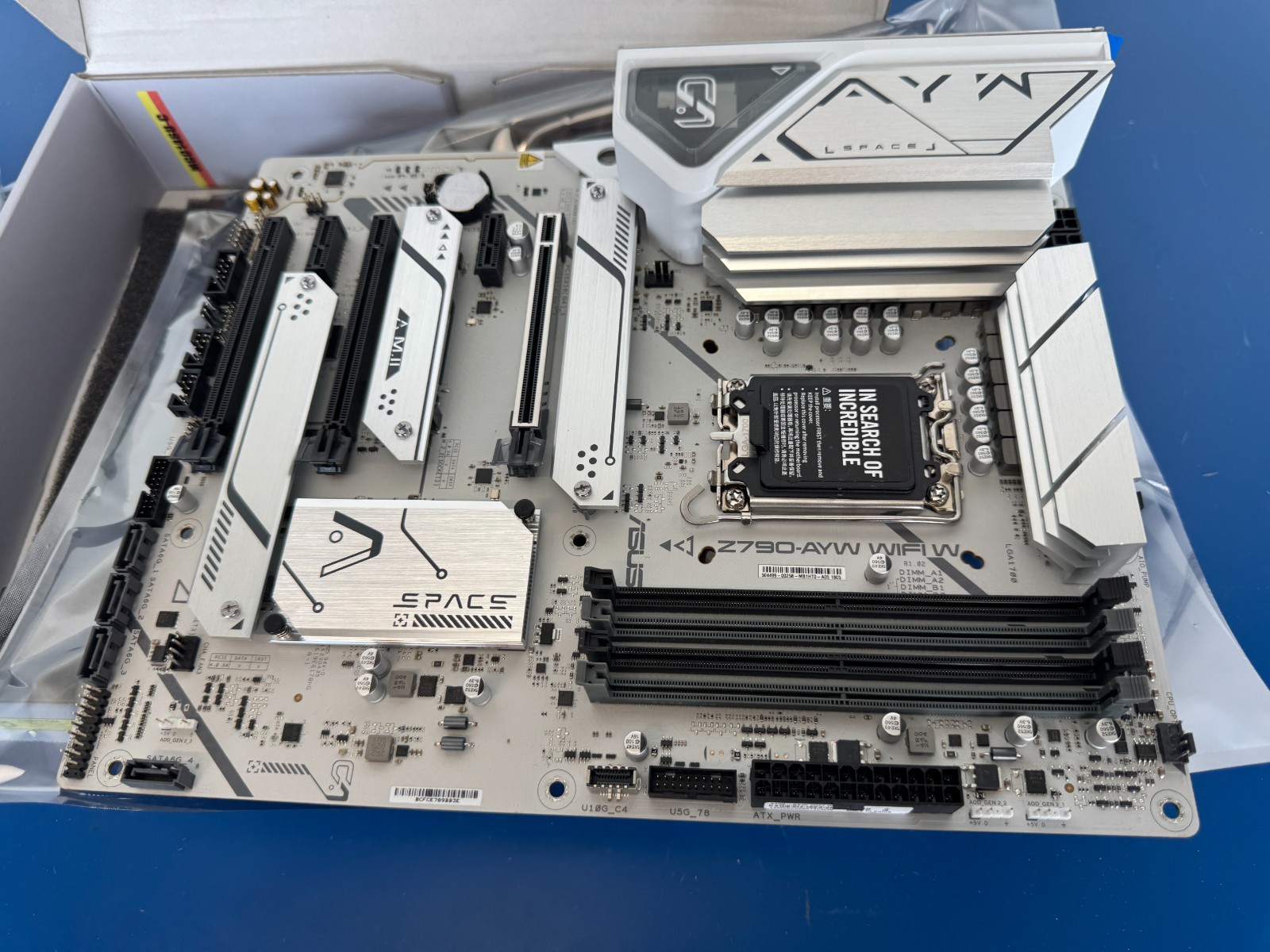

ASUS Z790-AYW WIFI W Intel Z790 (LGA 1700) ATX motherboard with PCIe 4.0, 3x M.2

$264.99

1 in stock

Additional information

Brand

Form Factor

Model

MPN

Number of Memory Slots

Socket Type

Description

OUTLUT Computers & Electronic Inc.

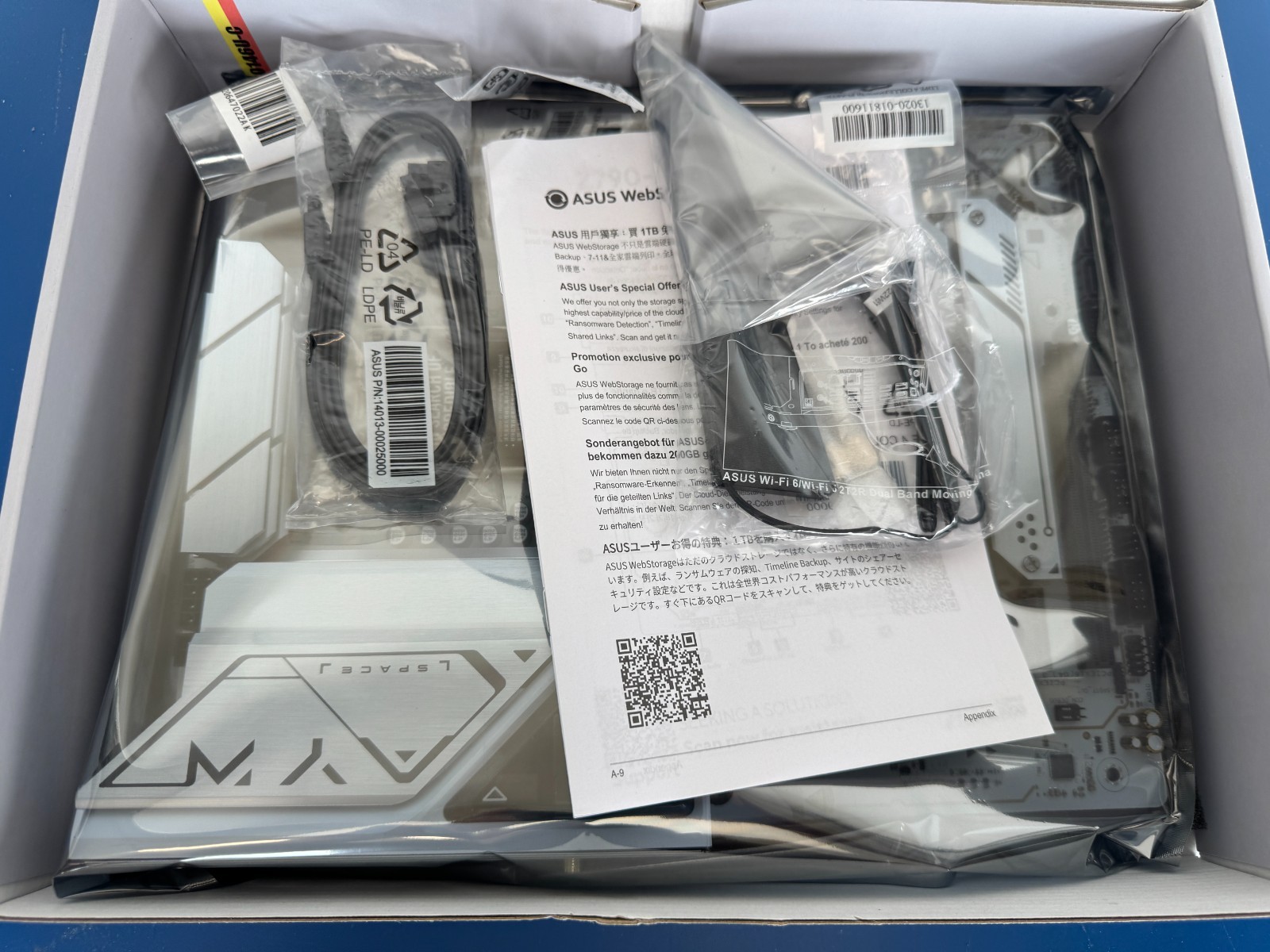

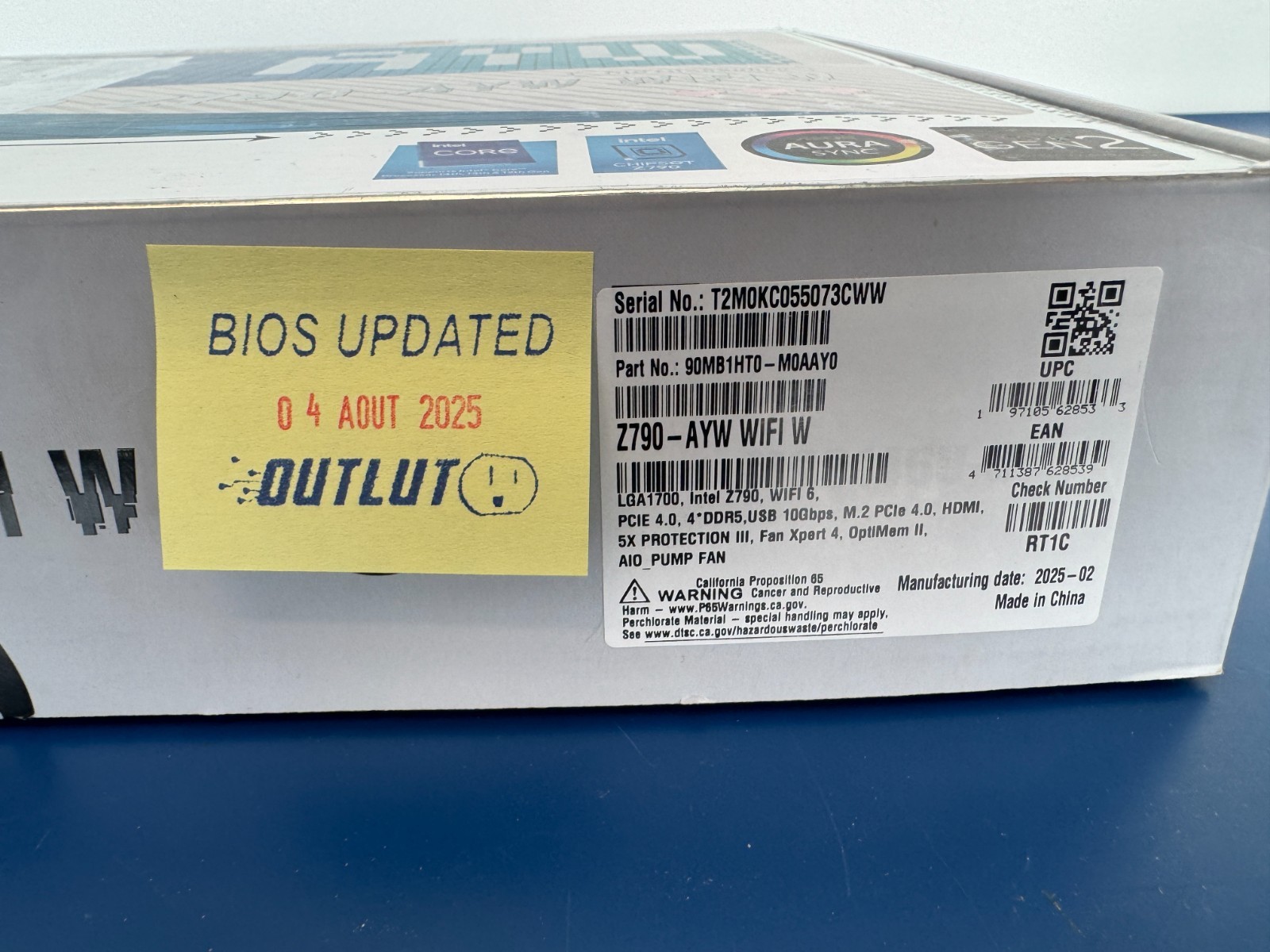

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Learn more about ASUS Z790-AYW WIFI W

Model
Brand
ASUS
Model
Z790-AYW WIFI W
Part Number
90MB1HT0-M0AAY0
Supported CPU

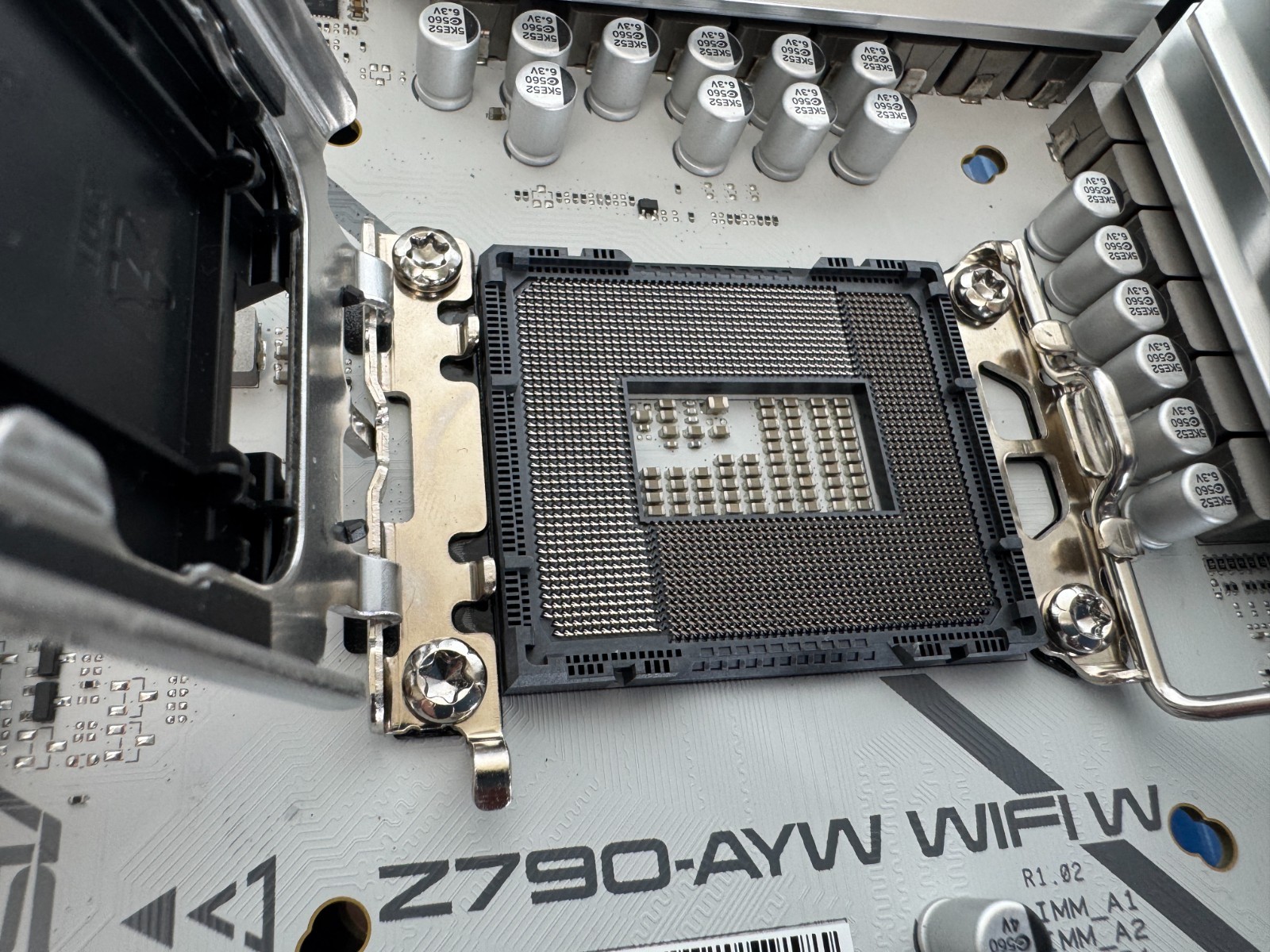

CPU Socket Type
LGA 1700
CPU Type
Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)
Chipsets
Chipset
Intel Z790
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
DDR5 5600
Maximum Memory Supported
192GB
Memory Performance Profile
Intel XMP 3.0
Memory Feature
DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Expansion Slots
PCI Express 4.0 x16
Intel Core Processors (14th & 13th & 12th Gen):
1 x PCIe 4.0 x16 slot

Intel Z790 Chipset:
2 x PCIe 4.0 x16 slots (support x4 mode)

PCI Express x1
2 x PCIe 4.0 x1 slots
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
Intel Core Processors (14th & 13th & 12th Gen):
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel Z790 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

SATA RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Additional RAID Controller
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10
Onboard Audio
Audio Channels
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
LAN Chipset
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Max LAN Speed
2.5Gbps
Wireless LAN
Wi-Fi 802.11 ax
Bluetooth
Bluetooth 5.3

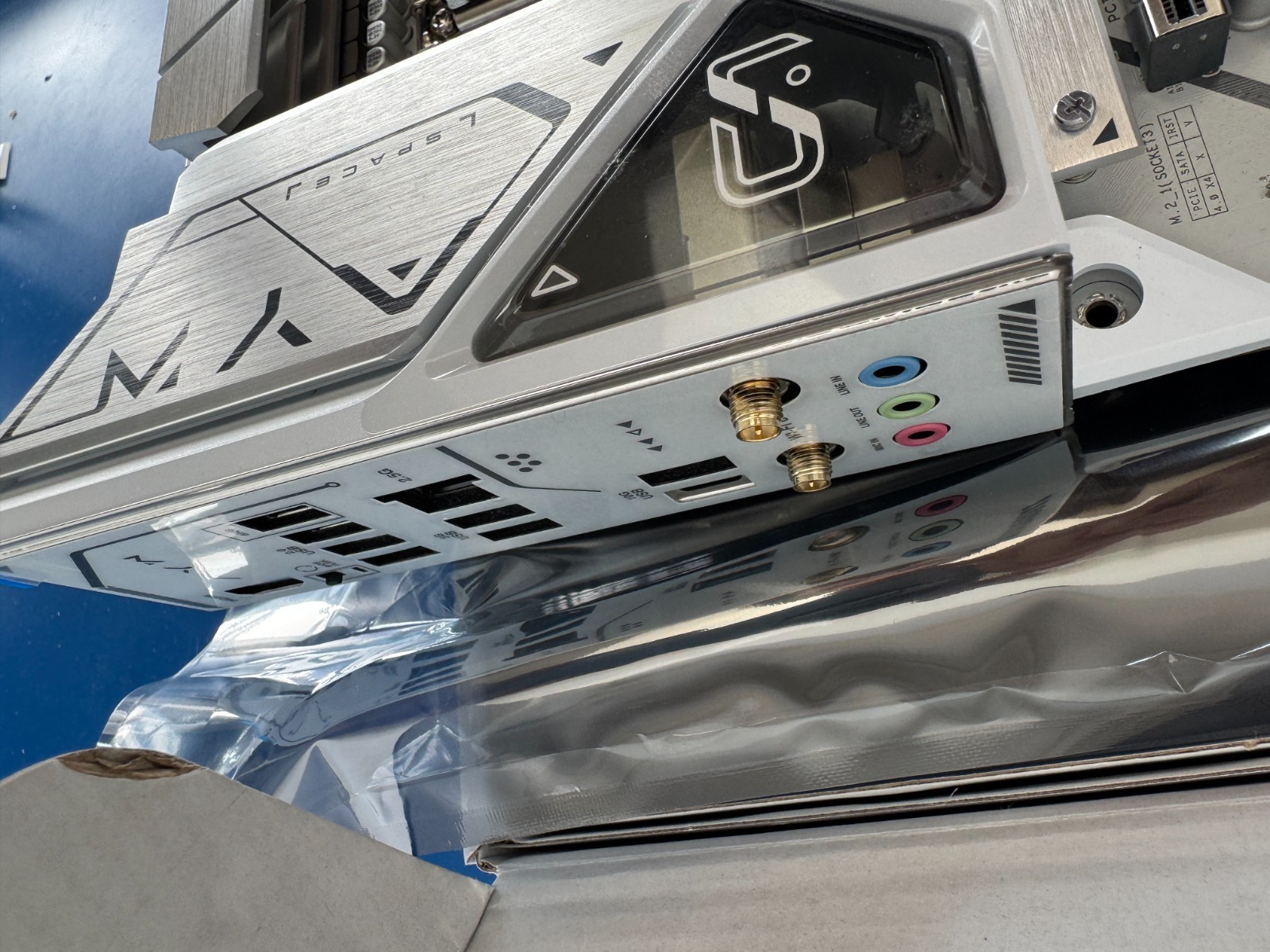

Rear Panel Ports
Back I/O Ports
2 x USB 10Gbps ports (1 x Type-A+1 x Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt (USB4) Header

Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0″ x 9.6″
Power Pin
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11
Supported
Features
Features
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– M.2 heatsinks
– VRM heatsinks design
ASUS EZ DIY
– BIOS FlashBack button
– ProCool
– Pre-mounted I/O shield
Aura Sync
– Addressable Gen 2 headers

Software Features
ASUS Exclusive Software:
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two- Way AI Noise Cancelation
AI Suite 3
– TurboV EVO
– PC Cleaner
– DIGI+ VRM
ASUS CPU- Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
MyASUS
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode


Shipping Information
This item ships to Canada & USA only !

Terms of Sales

We take painstaking care to pack our customers items for maximum safety.  All items will usually ship within 24h!  All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.



Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received in.
