Description
OUTLUT Computers & Electronic Inc.
Pristine condition never used open box. Professionally tested to ensure 100% functionality. Only one unit available, over 50% off from retail price!
General specifications
Product Name Eaton 9PX UPS Catalog Number 9PX1500RTN-L UPC 786689526160 Product Length/Depth 17.7 in Product Height 3.4 in Product Width 17.3 in Product Weight 36.5 lb Warranty 5 year limited Compliances FCC part 15 Class B
CE Marked
IEC 62040-2 Cat C1 Certifications cULus Listed
NOM
ICC-ES AC156 OSHPD Seismic certified Global Catalog 9PX1500RTN-L
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX1500RTN-L |
| UPC | 786689526160 |
| Product Length/Depth | 17.7 in |
| Product Height | 3.4 in |
| Product Width | 17.3 in |
| Product Weight | 36.5 lb |
| Warranty | 5 year limited |
| Compliances | FCC part 15 Class B CE Marked IEC 62040-2 Cat C1 |
| Certifications | cULus Listed NOM ICC-ES AC156 OSHPD Seismic certified |
| Global Catalog | 9PX1500RTN-L |
Battery
Battery management Integrated battery management system (BMS) for temperature regulation and life cycle monitoring Battery replacement Hot-swappable internal batteries and extended battery modules (EBMs) Battery type Lithium-ion Battery Chemistry Lithium Iron Phosphate (LiFePo4) Extended battery capability Add up to 4 extended battery modules (EBM). Part number 9PXEBM48RT-L
| Battery management | Integrated battery management system (BMS) for temperature regulation and life cycle monitoring |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Battery type | Lithium-ion |
| Battery Chemistry | Lithium Iron Phosphate (LiFePo4) |
| Extended battery capability | Add up to 4 extended battery modules (EBM). Part number 9PXEBM48RT-L |
Electrical output
Receptacle (8) 5-15R, 120V Topology Online/Double-conversion Wattage 1350 W VA rating 1500 VA Output waveform True sine wave Voltage 120V Output power factor 0.9 Output nominal voltage 120V default (100/110/120/125V) Output voltage range ±1% steady-state Output frequency 50/60 Hz
| Receptacle | (8) 5-15R, 120V |
| Topology | Online/Double-conversion |
| Wattage | 1350 W |
| VA rating | 1500 VA |
| Output waveform | True sine wave |
| Voltage | 120V |
| Output power factor | 0.9 |
| Output nominal voltage | 120V default (100/110/120/125V) |
| Output voltage range | ±1% steady-state |
| Output frequency | 50/60 Hz |
Electrical input
Input connection 5-15P Input cord length 8 ft Input nominal voltage 120V default (100/110/120/125V) Input frequency range 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz Input power factor >0.99 typical
| Input connection | 5-15P |
| Input cord length | 8 ft |
| Input nominal voltage | 120V default (100/110/120/125V) |
| Input frequency range | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz |
| Input power factor | >0.99 typical |
Communications
Communication RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included Expansion slots (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M3) included Ethernet interface Yes Includes network card Yes Software compatibility Intelligent Power Software Suite User interface Graphical display, 5-button programmable menu
| Communication | RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included |
| Expansion slots | (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M3) included |
| Ethernet interface | Yes |
| Includes network card | Yes |
| Software compatibility | Intelligent Power Software Suite |

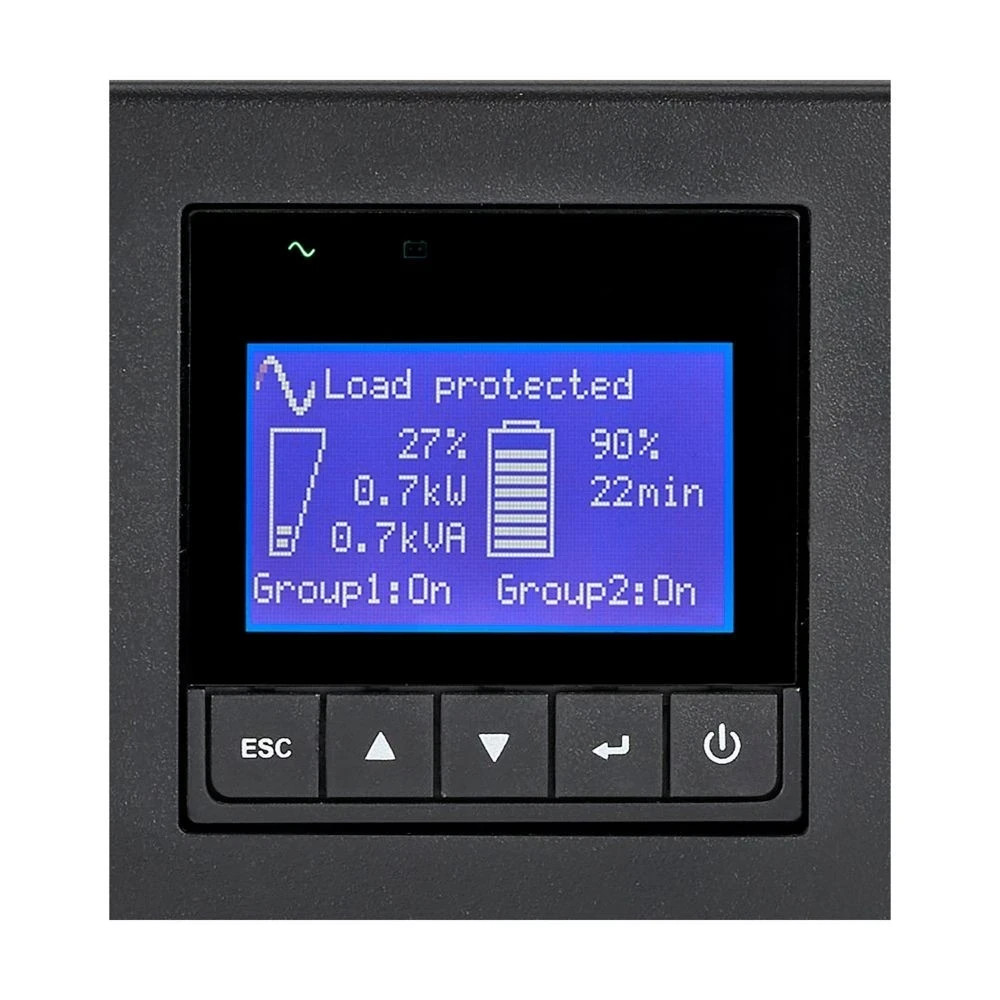

| User interface | Graphical display, 5-button programmable menu |
Environmental
Altitude 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C) BTU Rating Online: 512, Battery: 897 Noise level <47 dB at 1 meter Relative humidity 0-96% non-condensing Temperature range 0° to 40°C (32° to 104°F)
| Altitude | 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C) |
| BTU Rating | Online: 512, Battery: 897 |
| Noise level | <47 dB at 1 meter |
| Relative humidity | 0-96% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
Additional specifications
Special features Gigabit Network Card (NETWORK-M3) included Form factor Rack/tower Rack size 2U Rack mounting kit Yes Efficiency at max. load 90 % Package contents - UPS
- Quick start guide
- Safety instructions
- USB communciation cable
- RS-232 serial communication cable
- 4-post rail for 19-inch enclosures
- Software leaflet
- Software leaflet
- 2 pedestals for tower position
- Gigabit Network Card (NETWORK-M3)
Internal bypass Yes
| Special features | Gigabit Network Card (NETWORK-M3) included |
| Form factor | Rack/tower |
| Rack size | 2U |
| Rack mounting kit | Yes |
| Efficiency at max. load | 90 % |
| Package contents |
|
| Internal bypass | Yes |
