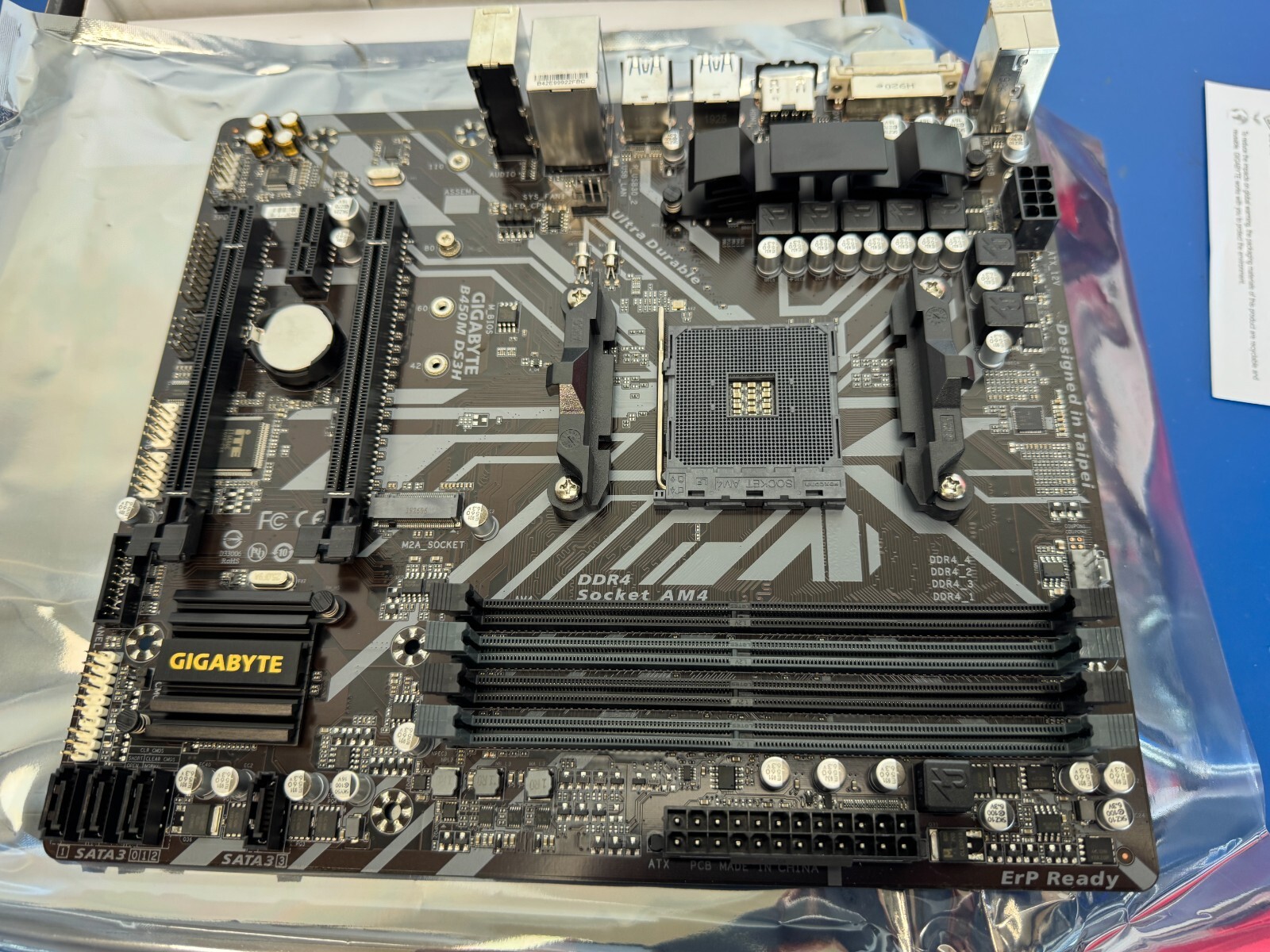

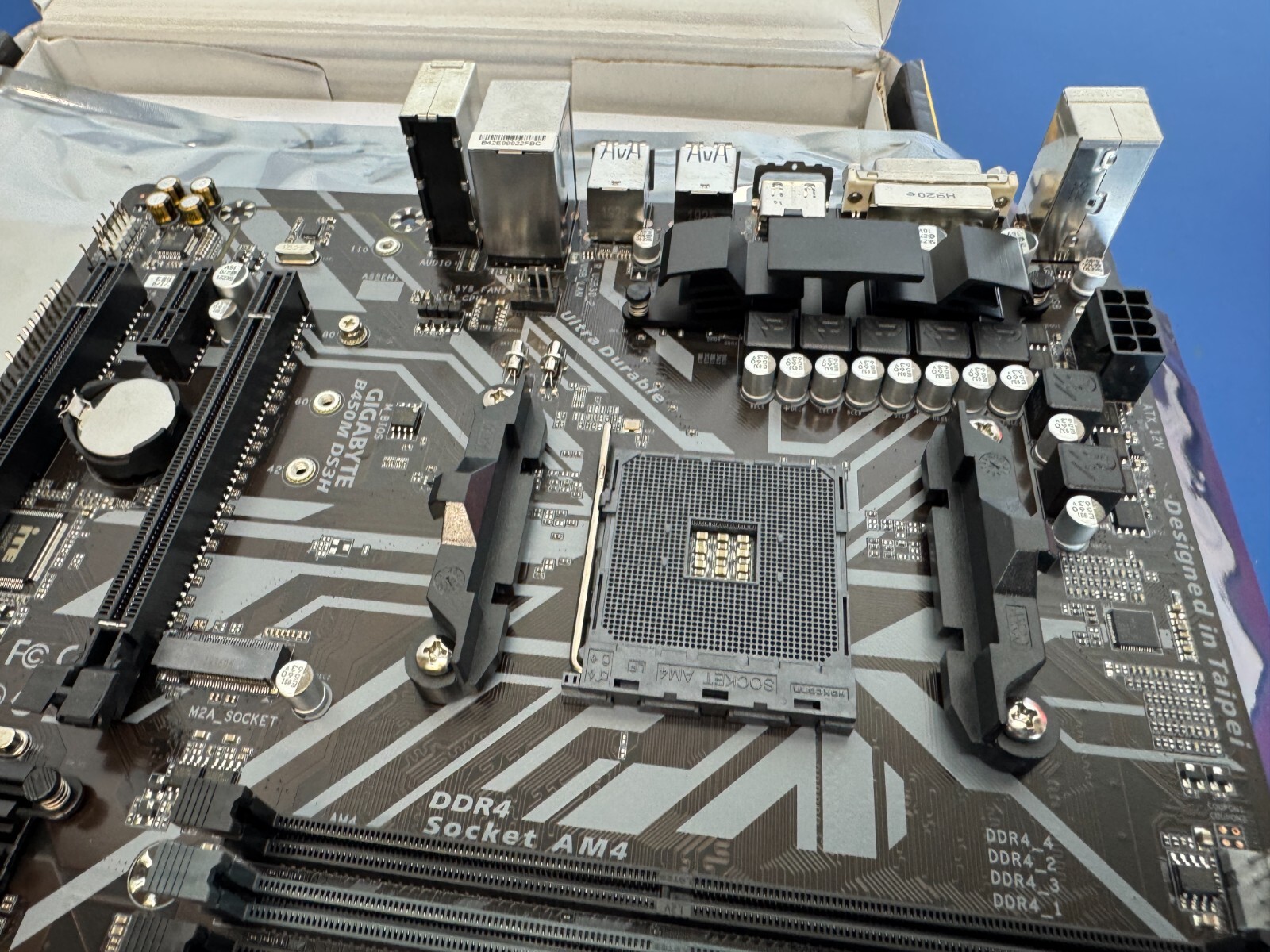

CPU

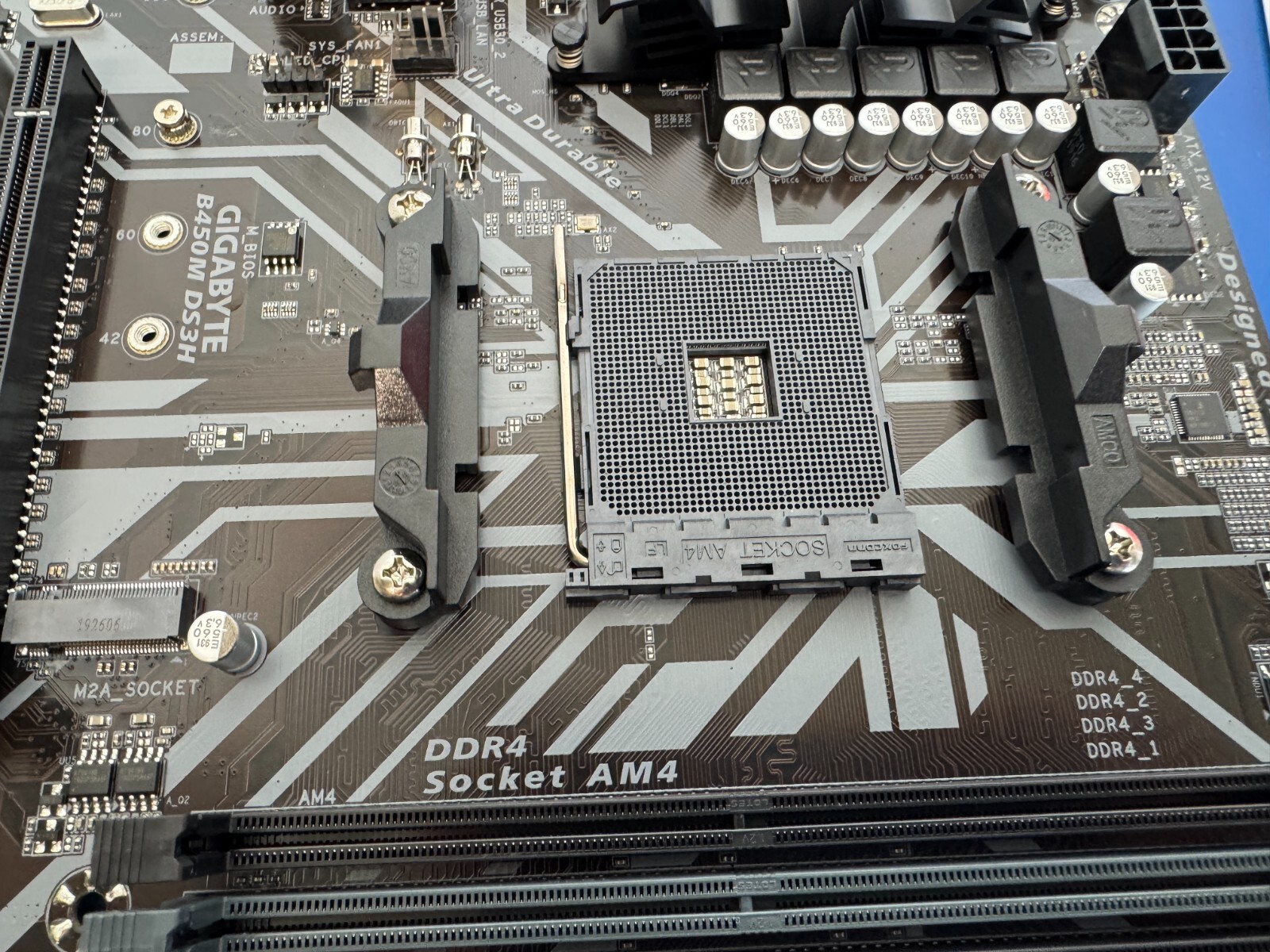

AM4 slot:

Supports AMD Ryzen™ 5000 Series / Ryzen 5000G Series / 3rd Gen Ryzen™ / 2nd Gen Ryzen™ / 1st Gen Ryzen™ / 2nd Gen Ryzen™ Integrated Radeon™ Vega Graphics / 1st Gen Ryzen™ Integrated Radeon™ Vega Graphics / Athlon™ integrated Radeon™ Vega graphics core processor

Chipset

AMD B450

RAM

4 DDR4 DIMM slots, support up to 64 GB

Supports dual-channel memory technology

Support DDR4 2933/2667/2400/2133 MHz

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display function

Built-in processor with display capability:

1 DVI-D socket, can support resolution up to 1920×1200@60 Hz

* This DVI-D socket does not support the function of converting to VGA.

1 HDMI socket, can support resolution up to 4096×2160@60 Hz (Note)

* Support HDMI 2.0 version and HDCP 2.2. (Note)

Supports *Maximum Shared Display Memory*16 GB

(Note) Whether this specification is supported depends on the CPU.

Sound effect

Built-in Realtek® ALC887 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

* To enable 7.1-channel audio output, you must use the audio output on the front panel of the HD (High Definition) audio module, and select the multi-channel audio function through the audio software.

Support S/PDIF output

The internet

Built-in Realtek® GbE network chip (10/100/1000 Mbit)

Expansion slot

1 PCI Express x16 slot, supporting x16 running specification (PCIEX16) (Note)

* To maximize the performance of the display adapter, be sure to install the *PCIEX16 slot when installing a display adapter.

(PCIEX16 slot supports PCI Express 3.0)

1 PCI Express x16 slot, supporting x4 running specification (PCIEX4)

1 PCI Express x1 slot

(PCIEX4 and PCI Express x1 slots support PCI Express 2.0)

(Note) Whether this specification is supported depends on the CPU.

Multiple Display Technology

Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technology

Storage device interface

1x M.2 socket (support Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD)

*Only M.2 SATA SSD is supported when using AMD 7th Gen A-series/Athlon™ series or Athlon™ X4 processors.

4 SATA 3.0 sockets

Supports RAID 0, RAID 1 and RAID 10 functions

USB

Built into the chipset:

2 USB 3.1 Gen 1 ports need to be connected to the USB socket on the motherboard via a flat cable

8 USB 2.0/1.1 ports (4 on the rear panel, 4 need to be connected from the USB socket on the motherboard via a cable)

Built into CPU:

4 USB 3.1 Gen 1 ports on the rear panel

Internal socket

1 24-pin ATX main power socket

1 x 8-pin ATX 12V power socket

1 CPU fan header

1 system fan socket

1 M.2 Socket 3 socket

4 SATA 6Gb/s sockets

1 front control panel socket

1 front audio socket

1 S/PDIF output socket

1 cooling fan strip/RGB LED strip with power socket

1 USB 3.1 Gen 1 socket

2 USB 2.0/1.1 sockets

1 security encryption module (TPM) socket (2×10 pin, only used with GC-TPM2.0)

1 serial interface socket

1 clear CMOS data pin

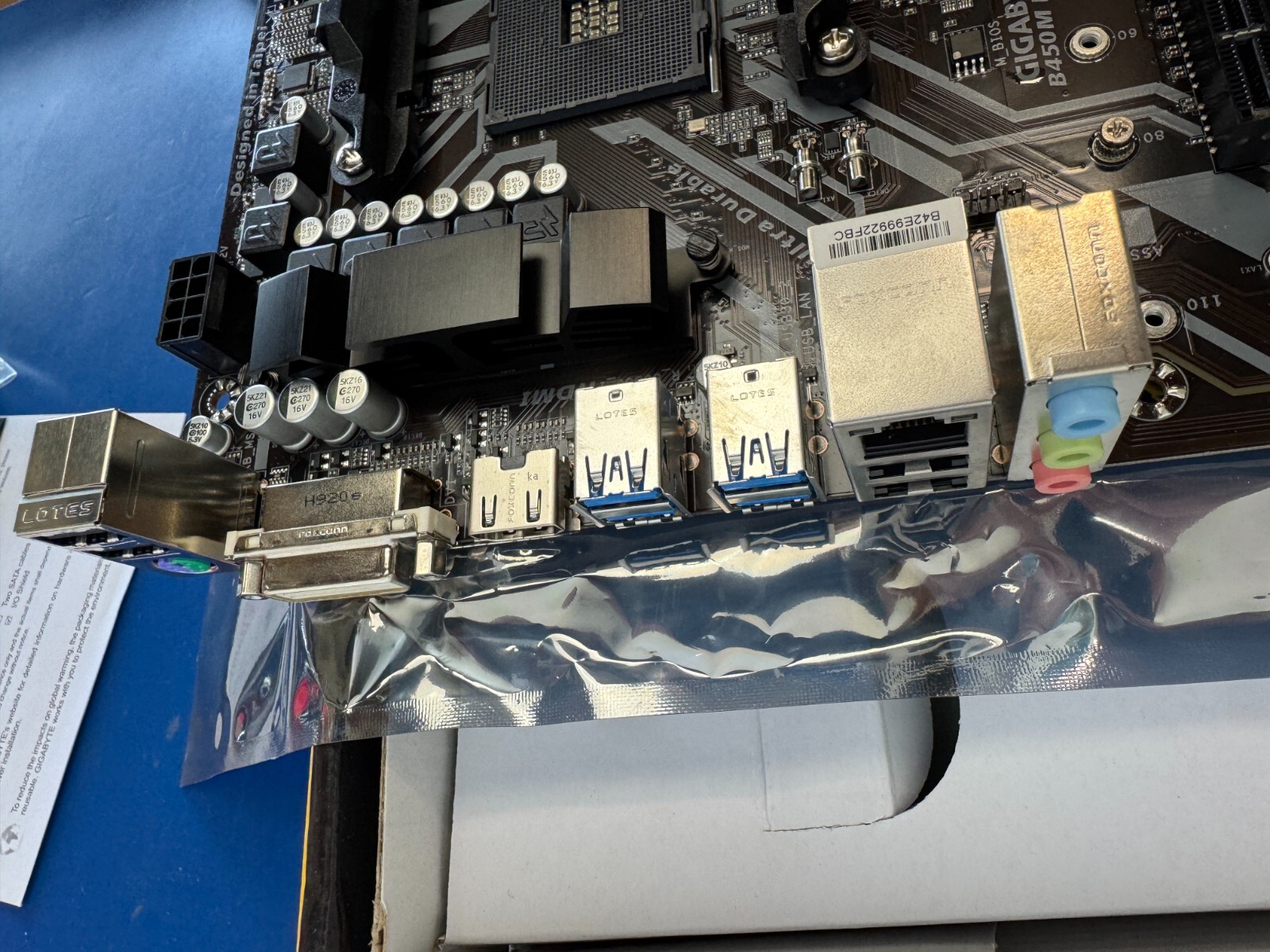

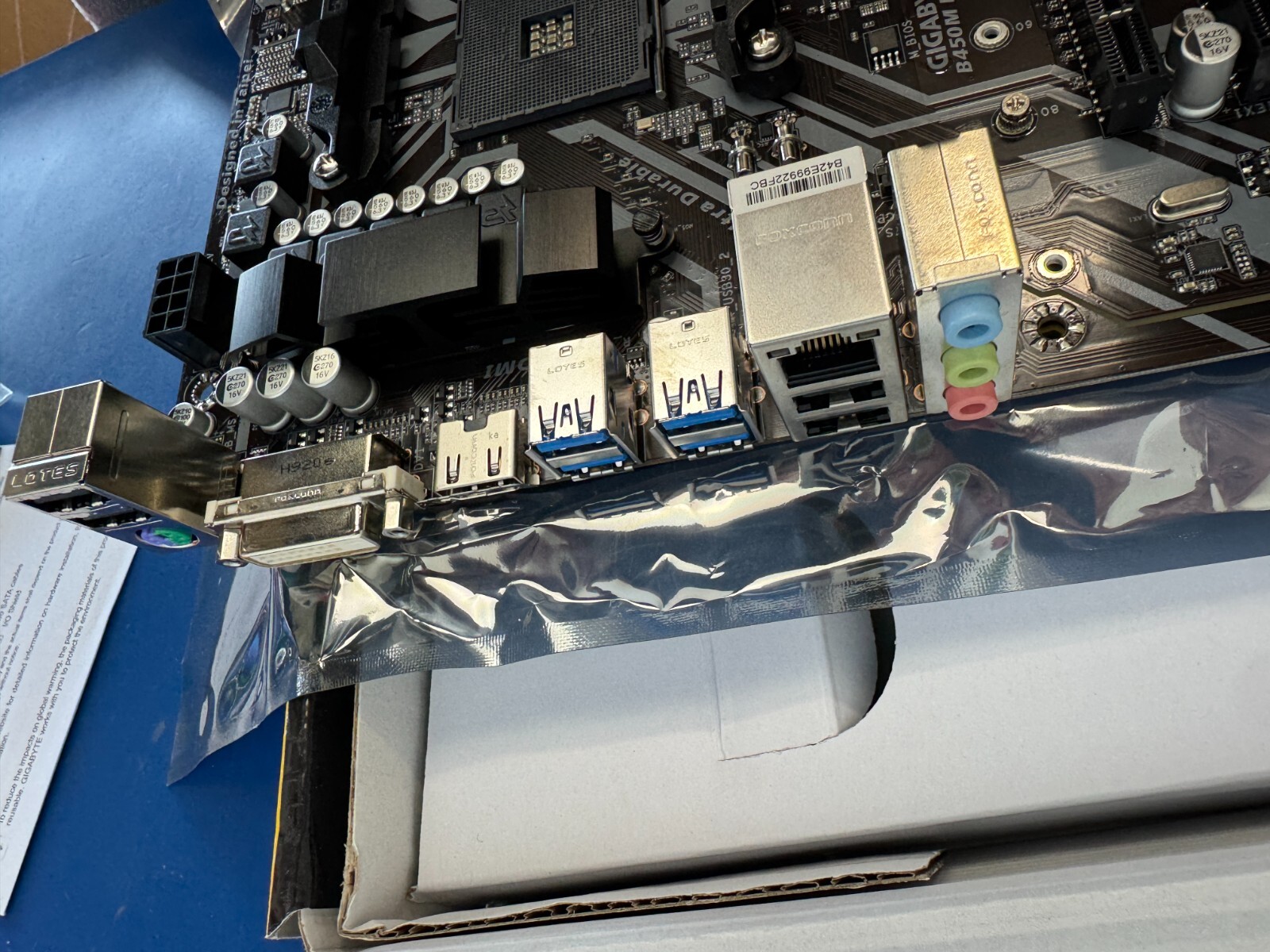

Rear panel unit connection socket

1 PS/2 keyboard/mouse socket

1 DVI-D socket

1 HDMI socket

4 USB 3.1 Gen 1 ports

4 USB 2.0/1.1 ports

1 RJ-45 interface

3 audio interfaces

I/O Controller

Built-in iTE® I/O controller chip

BIOS

1 x 128 Mbit flash

Use an authorized AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating system

Support Windows 10 64-bit

Support Windows 7 64-bit

* To install Windows 7 64-bit, AMD Pinnacle Ridge & Summit Ridge CPU is required.

* To install Windows 7, please download/install the “Windows USB Installation Tool” from the *GIGABYTE website.

Form factor

Micro ATX ; 24.4cm x 21.5cm
