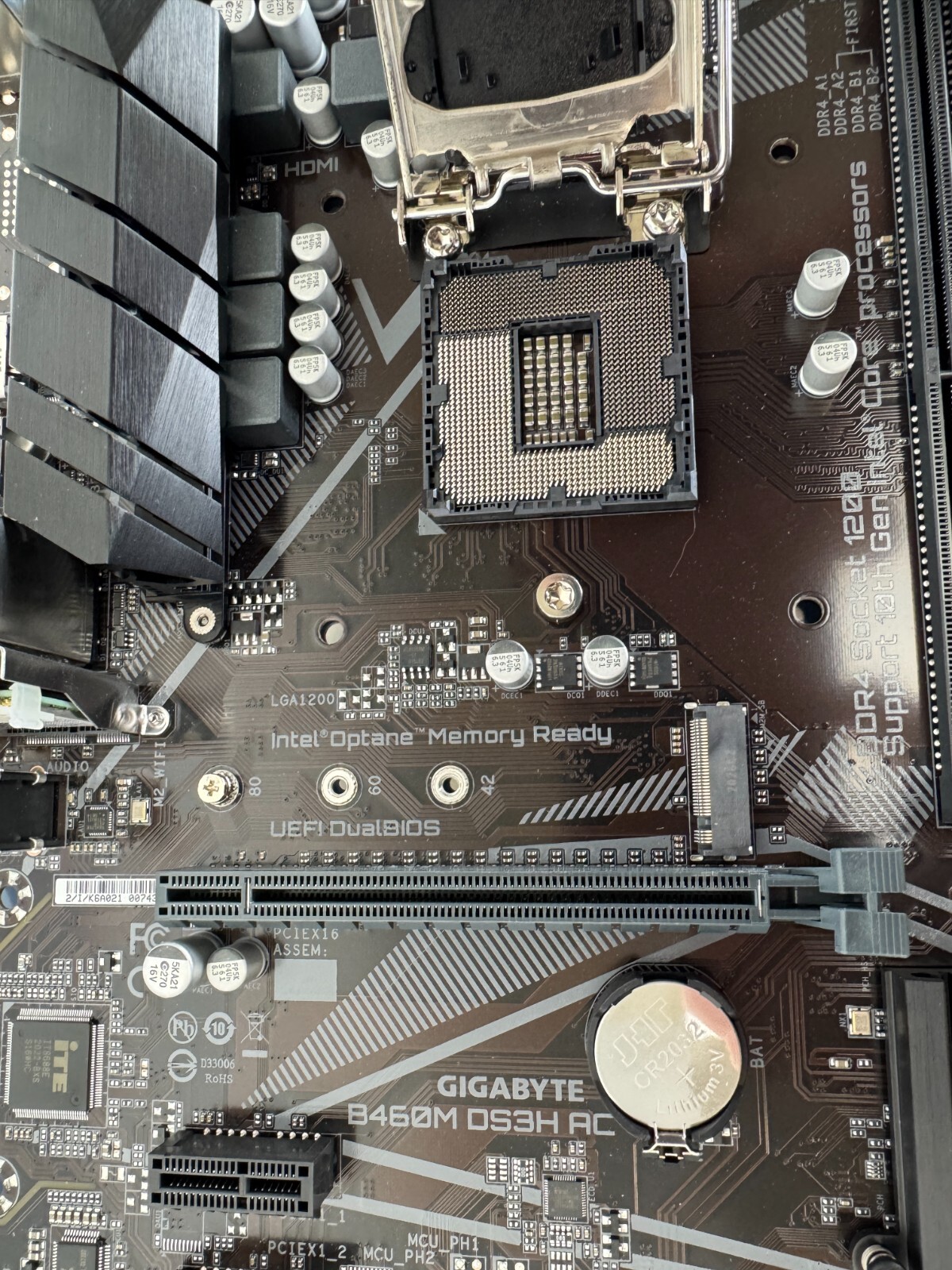

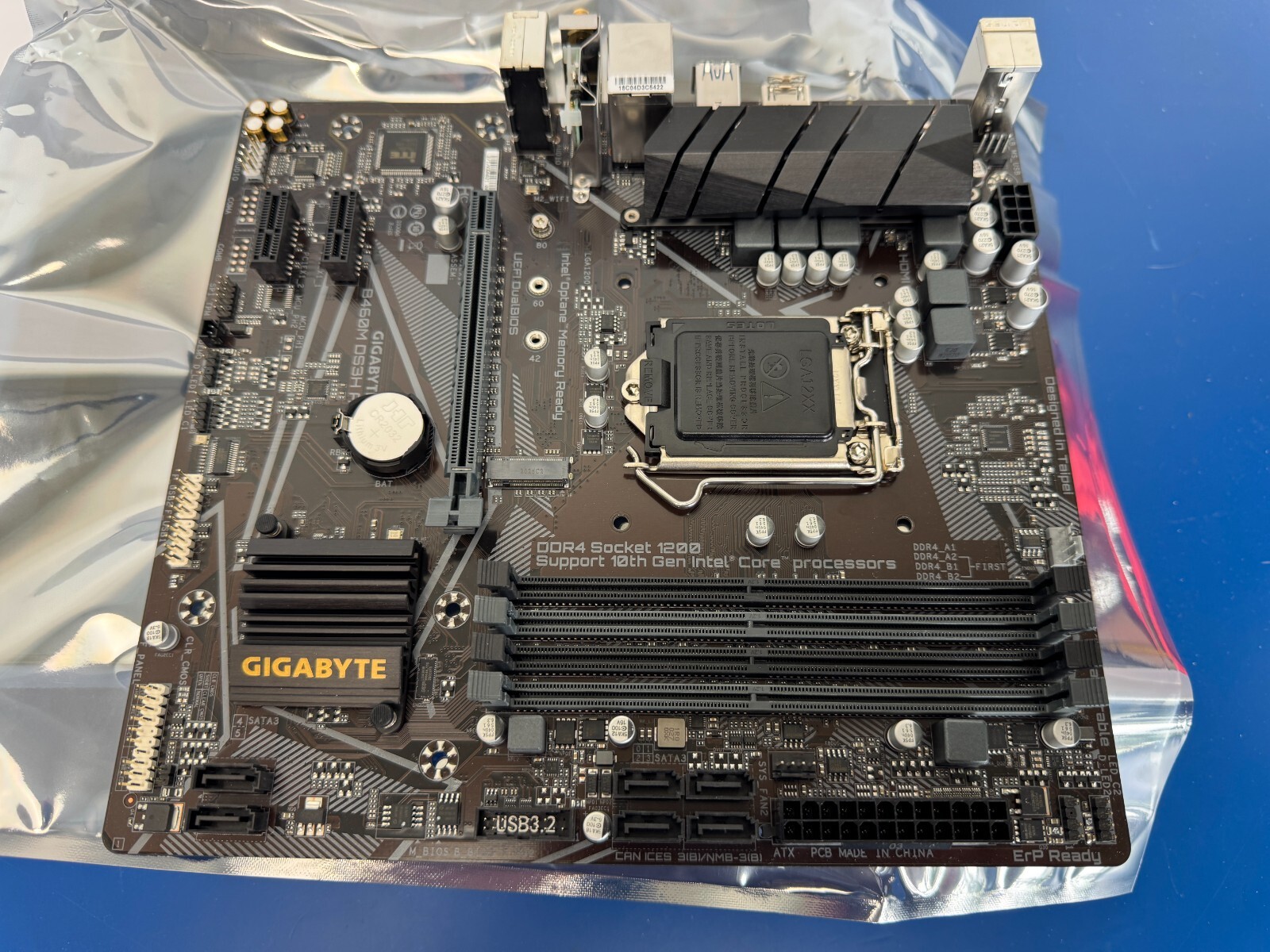

GIGABYTE B460M DS3H AC Motherboard Intel B460 LGA 1200 4×DDR4 Micro ATX 1×M.2



CPU

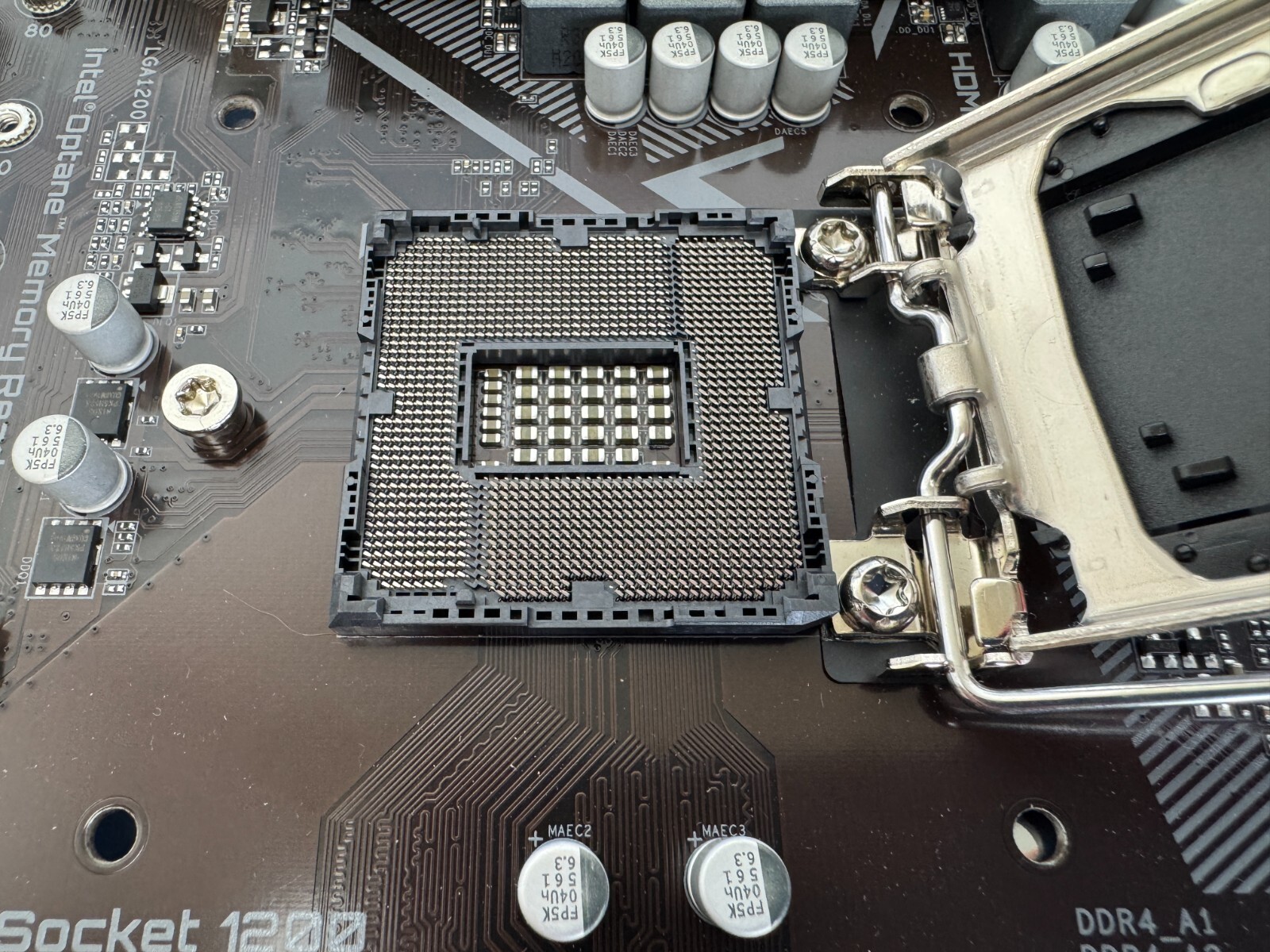

LGA1200 Socket Support – 10th Generation Intel® Core™ i9 Processor/Intel® Core™ i7 Processor/Intel® Core™ i5 Processor/Intel® Core™ i3 Processor/Intel® Pentium® Processor/Intel® Celeron ® processor

L3 cache memory depends on CPU

Chipset

Intel® B460

RAM

Intel® Core™ i9/i7 Processor:

Support DDR4 2933/2666/2400/2133 MHz

Intel® Core™ i5/i3/Pentium®/Celeron® Processor:

Support DDR4 2666/2400/2133 MHz

4 DDR4 DIMM slots supporting up to 128 GB (single slot supports 32 GB capacity)

Supports dual-channel memory technology

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display function

Graphics-based processor-supports Intel® HD Graphics:

1 HDMI port, supports resolutions up to 4096×2160@30 Hz

*Support HDMI version 1.4 and HDCP 2.3.

Supports maximum shared display memory*512 MB

Sound effect

Integrated Realtek® ALC887 chip

Support High Definition Audio

Support 2/4/5.1/7.1-channel

The internet

Integrated Realtek® GbE network chip (1000 Mbit/100 Mbit)

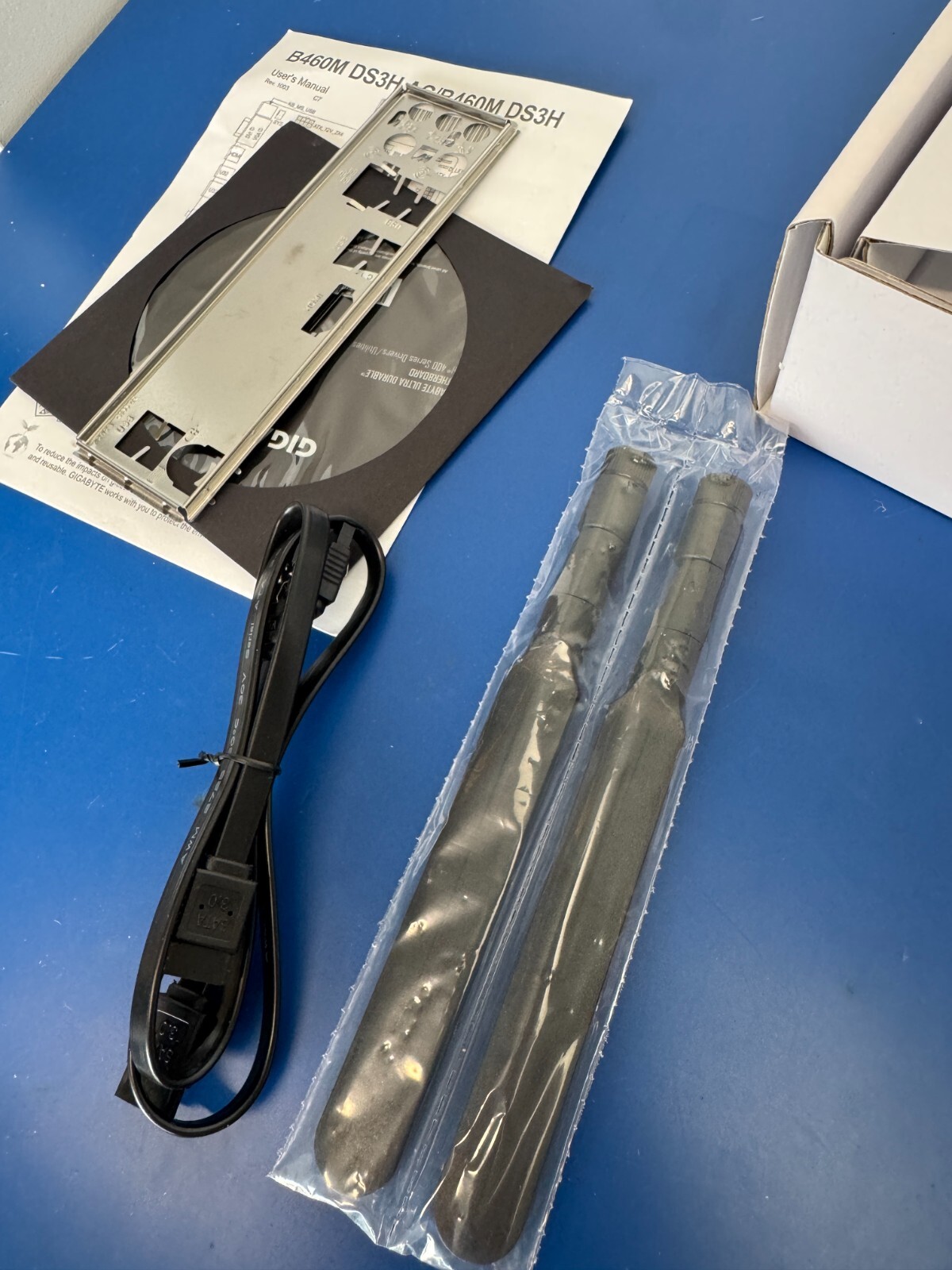

Wireless communication module

Intel® Wi-Fi 3168

Wi-Fi 802.11a/b/g/n/ac, supports 2.4/5 GHz wireless dual-band

BLUETOOTH 4.2

Support 11ac wireless communication standard, can support transmission speed up to 433 Mbps

* Actual transfer speed will vary depending on usage environment and equipment.

Expansion slot

1 PCI-E x16 slot, supporting x16 operating specification (PCIEX16)

2 PCI-E x1 slots

(All PCI-E slots support PCI-E 3.0)

Support ASPM L1.2 power management protocol

Storage device interface

1 x M.2 slot (support Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD)

6 SATA 3.0 ports

Supports SATA RAID 0, RAID 1, RAID 5 and RAID 10 functions

* For the installation precautions of M.2/SATA socket, please refer to the chapter “1-7 Introduction of socket and jumper”.

Supports Intel® Optane™ Memory Technology

Support ASPM L1.2 PCI-E power management protocol

USB

Chipset based:

6 USB 3.2 Gen 1 ports (4 on the rear panel, 2 need to be connected from the USB socket on the motherboard via a cable)

2 USB 2.0/1.1 ports on the rear panel

Based on chipset + USB 2.0 Hub::

4 USB 2.0/1.1 ports, which need to be connected from the USB socket on the motherboard via a cable

Internal socket

1 24PIN motherboard power socket

1 8PIN CPU power socket

1 CPU fan header

2 system fan sockets

2 programmable LED strip power sockets

2 RGB LED strip power sockets

6 SATA 3.0 ports

1 M.2 SSD slot

1 motherboard jumper socket

1 front audio jack

1 USB 3.2 Gen 1 socket

2 USB 2.0/1.1 sockets

1 security encryption module socket (only used with GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0)

1 clear CMOS data pin

Rear panel unit connection socket

1 PS/2 keyboard/mouse interface

1 HDMI interface

4 USB 3.2 Gen 1 ports

2 USB 2.0/1.1 ports

1 RJ-45 network cable interface

2 SMA antenna ports (2T2R)

3 audio interfaces

I/O Controller

Integrated iTE® I/O controller chip

BIOS

2 x 128 Mbit flash

Use an authorized AMI UEFI BIOS

DualBIOS™ support

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS

Support Windows 10 64-bit

Form Factor

Micro ATX ; 24.4cm x 22.5cm
