Description

OUTLUT Store

100% authentic product.

Pristine condition never used. Professionally tested to ensure 100% functionality.

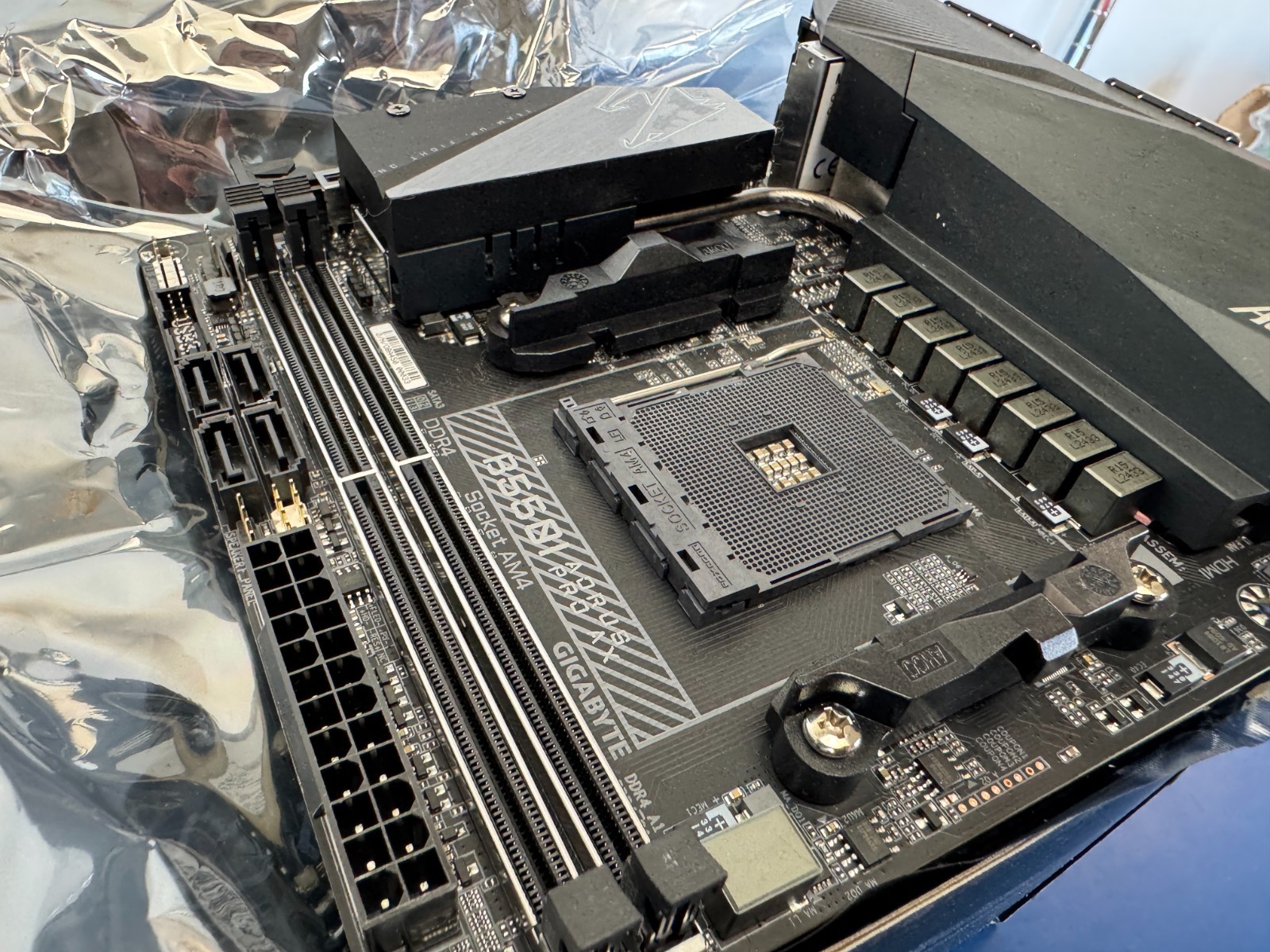

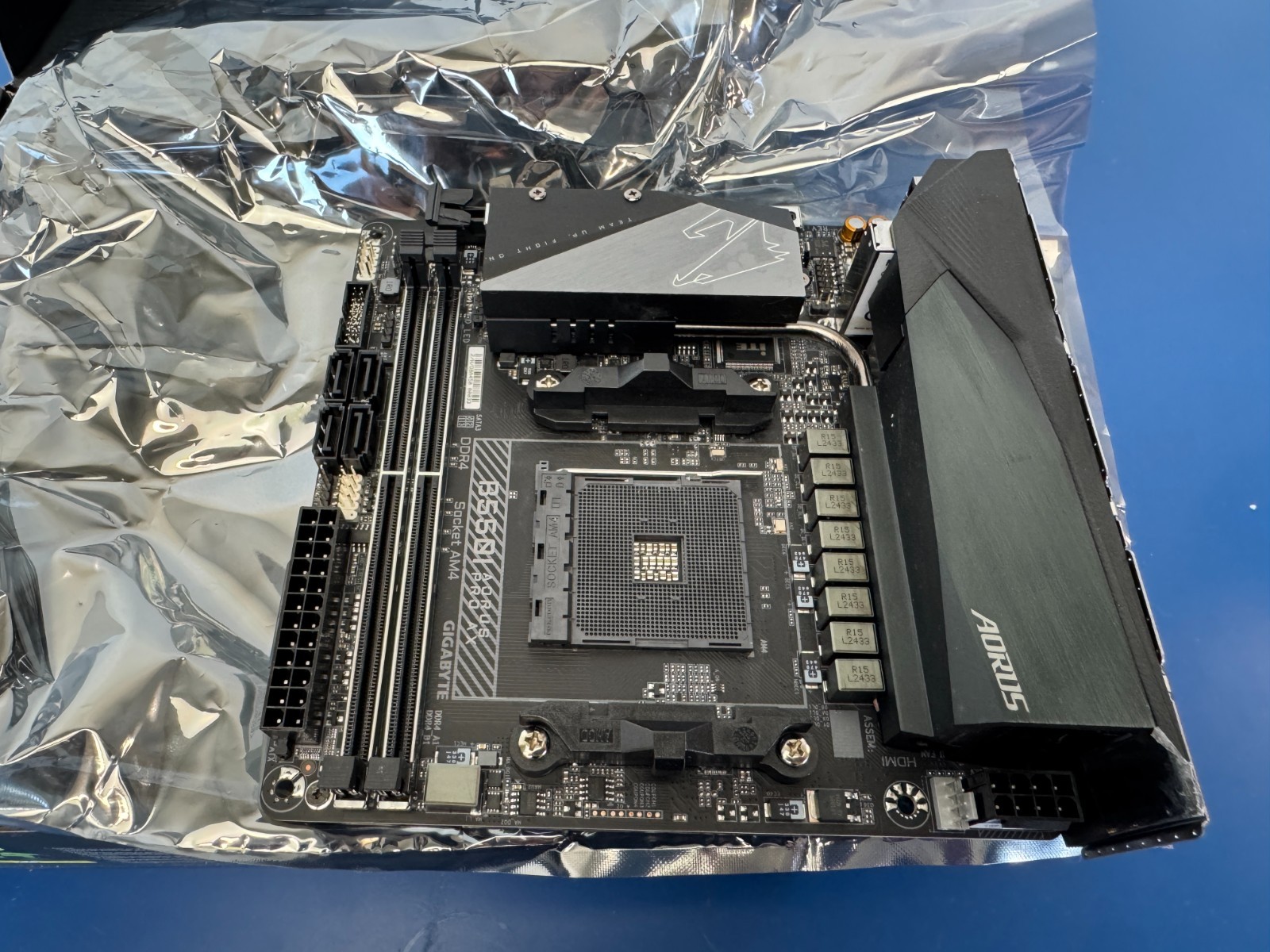

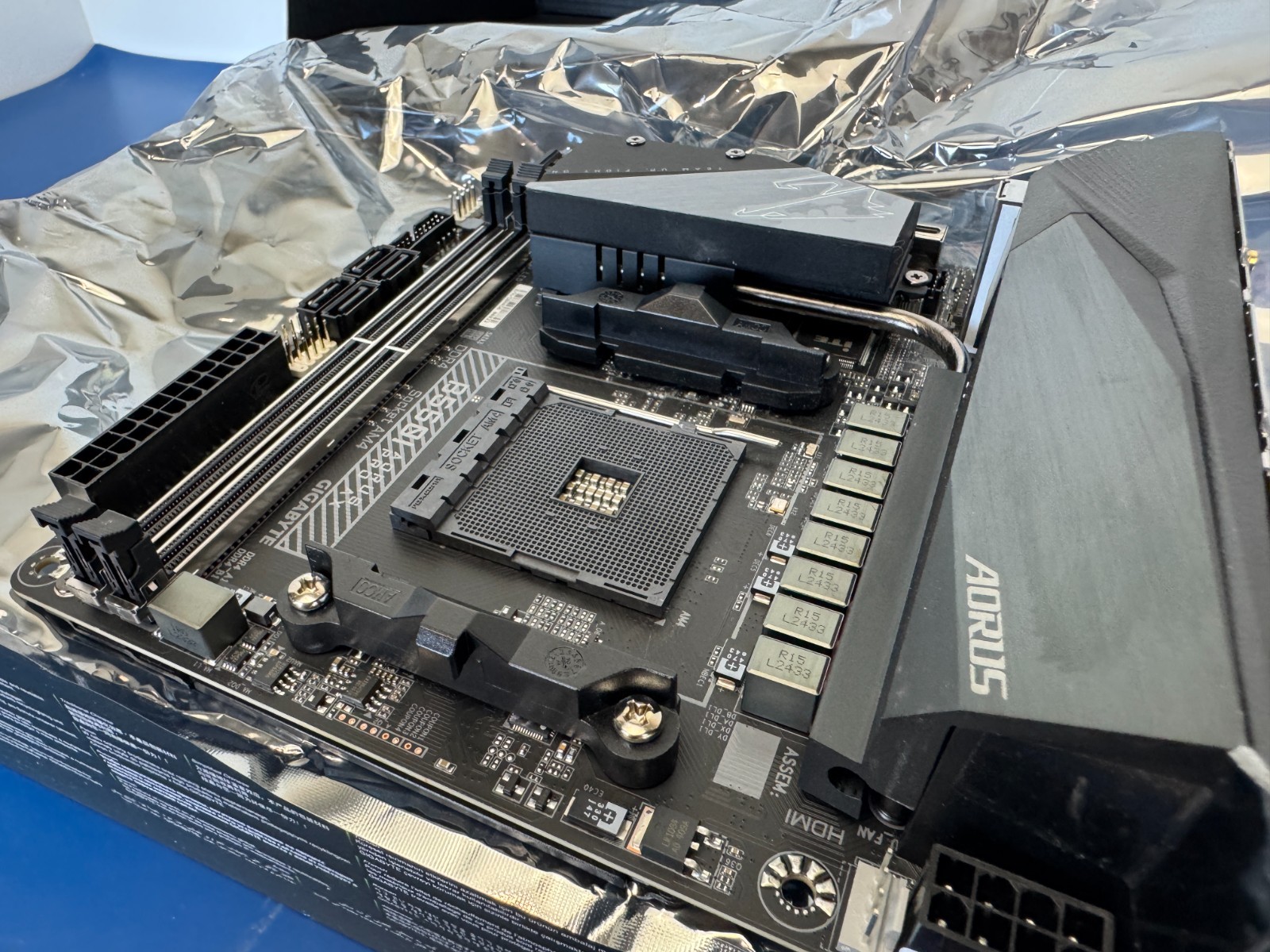

Learn more about GIGABYTE B550I AORUS PRO AX

Model

Brand: GIGABYTE

Model: B550I AORUS PRO AX

Supported CPU

CPU Socket Type: AM4

CPU Type: AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors * Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.

Chipsets

Chipset: AMD B550

Memory

Number of Memory Slots: 2×288pin

Memory Standard: 3rd Gen AMD Ryzen Processors:Support for DDR4 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modulesNew Generation AMD Ryzen with Radeon Graphics processors:Support for DDR4 5300(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules

Maximum Memory Supported: 64GB

Channel Supported: Dual Channel

Expansion Slots

PCI Express 4.0 x16: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen processors support PCIe 4.0 x16 modeNew Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode

Storage Devices

SATA 6Gb/s: 4 x SATA 6Gb/s

M.2: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs- New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:- Supporting SATA and PCIe 3.0 x4/x2 SSDs

SATA RAID: 0/1/10

Onboard Video

Onboard Video Chipset: Integrated in the New Generation AMD Ryzen with Radeon Graphics processors:1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Support for up to 3 displays at the same timeMaximum shared memory of 16GB

Onboard Audio

Audio Chipset: Realtek ALC1220-VB codec* The back panel line out jack supports DSD audio.

Audio Channels: 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Onboard LAN

LAN Chipset: Realtek 2.5GbE LAN chip

Max LAN Speed: 10/100/1000/2500Mbps

Wireless LAN: Intel Wi-Fi 6 AX200WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-BandSupport for 11 ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.

Bluetooth: BLUETOOTH 5

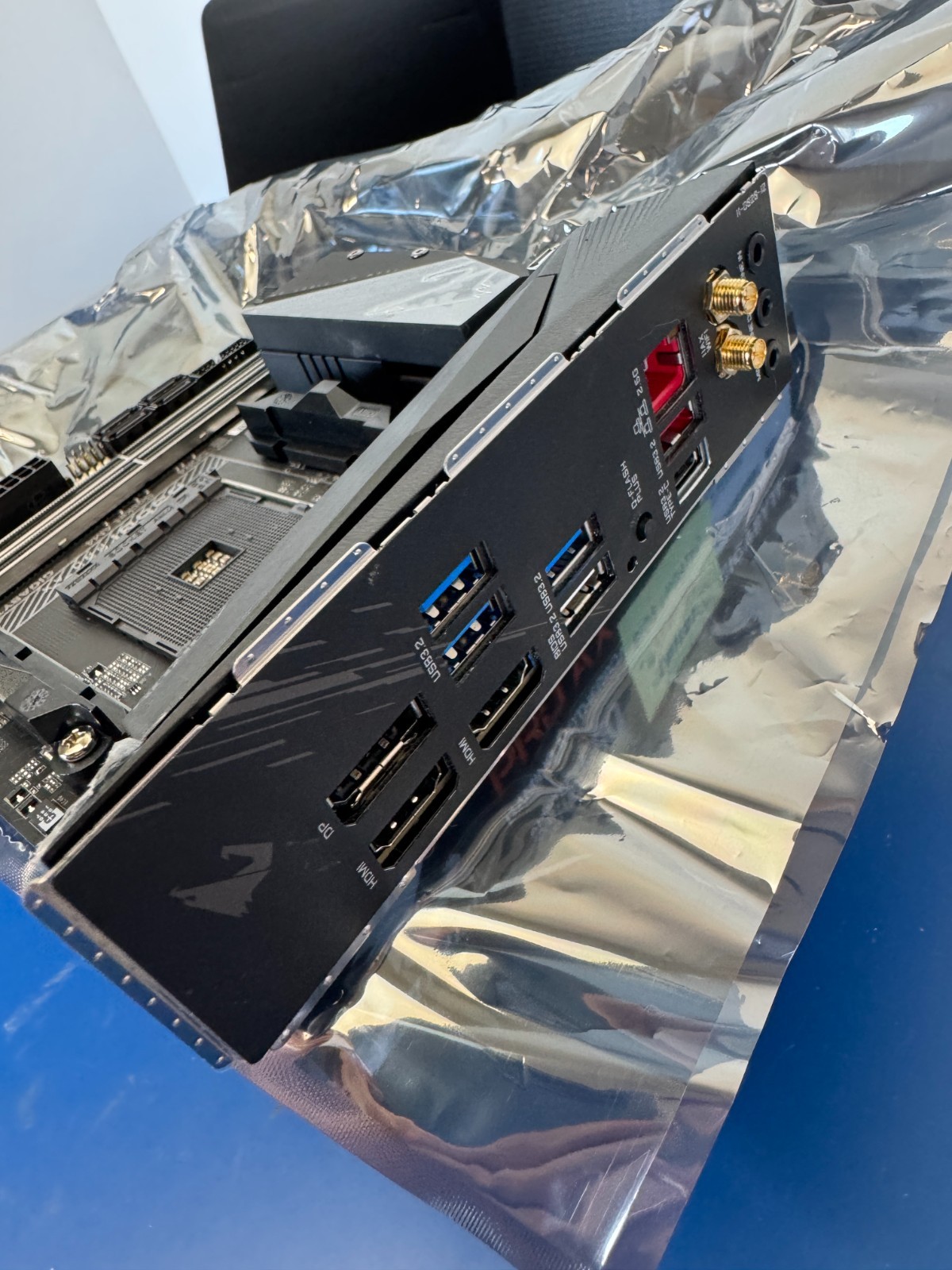

Rear Panel Ports

Back I/O Ports: 1 x DisplayPort2 x HDMI ports1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports1 x USB Type-C port, with USB 3.2 Gen 2 support1 x Q-Flash Plus button1 x RJ-45 port2 x SMA antenna connectors (2T2R)3 x audio jacks

Internal I/O Connectors

Onboard USB: 1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header

Other Connectors: 1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x speaker header1 x Trusted Platform Module (TPM) header (2×6-pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper

Physical Spec

Form Factor: Mini ITX

LED Lighting: RGB

Dimensions (W x L): 6.7″ x 6.7″

Power Pin: 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector

Windows 11 Compatibility

Windows 11: Supported

Features

Features: I/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress InstallBundled Software:Norton Internet Security (OEM version)XSplit Gamecaster + Broadcaster (12 months license)Realtek 8125 Gaming LAN Bandwidth Control UtilityOperating System:Support for Windows 10 64-bit

Shipping Information

This item ships to Canada & USA only !

Terms of Sales

We take painstaking care to pack our customers items for maximum safety. All items will usually ship within 24h!

Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received it. All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.

Additional information

Weight	0.0 kg
MPN	B550IAORUSAX
Condition	Open box
