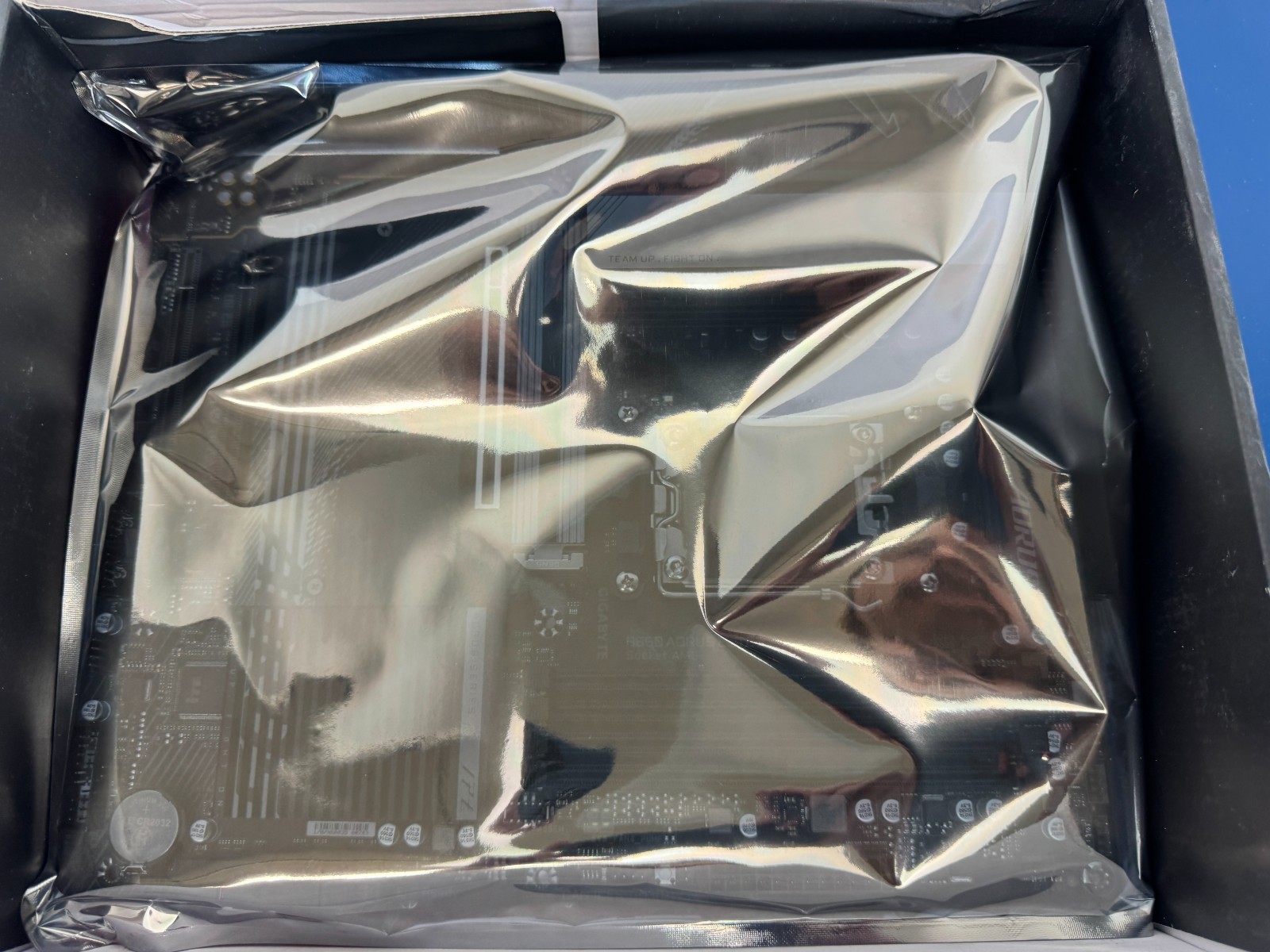

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

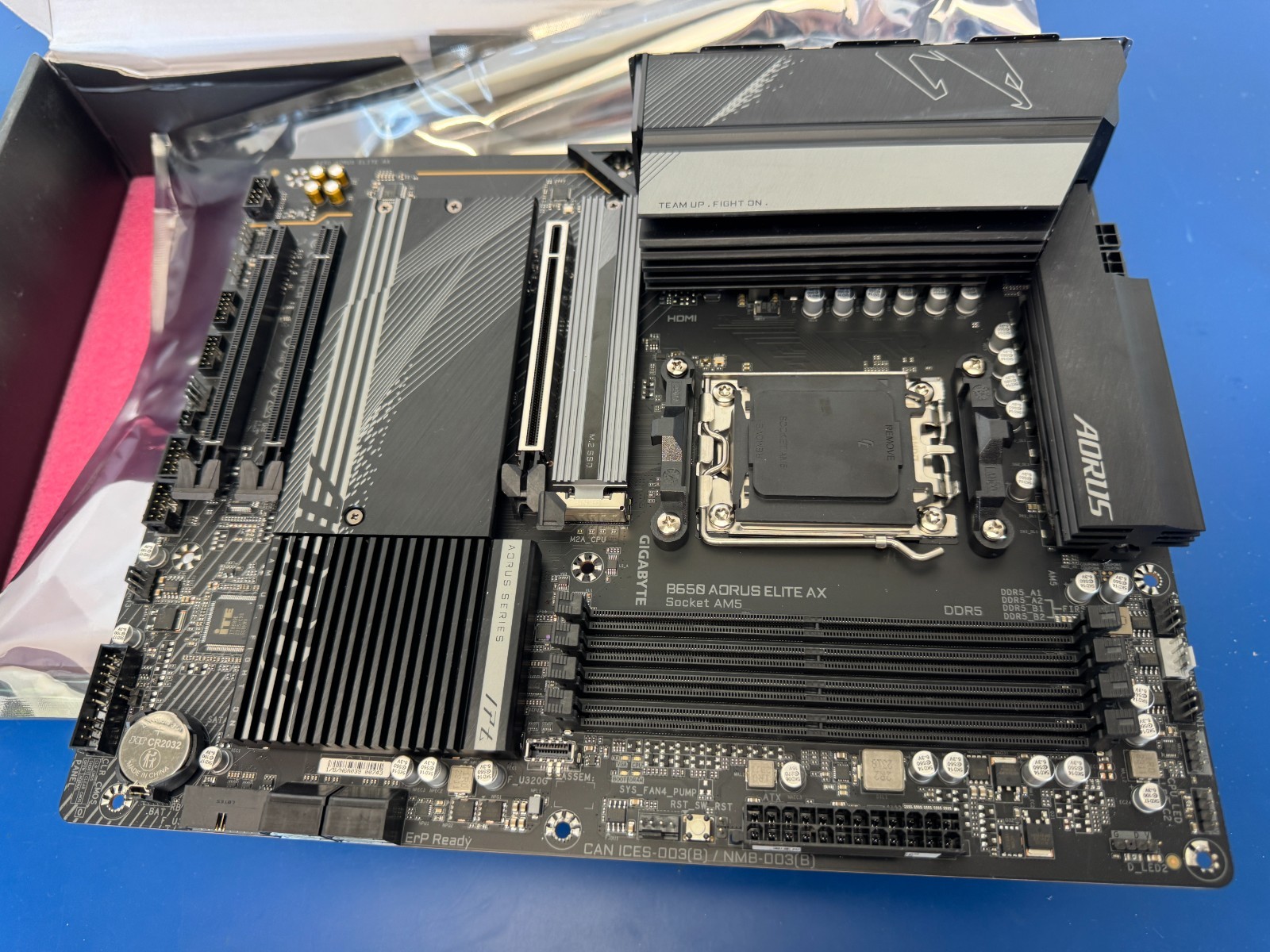

Model

Brand

GIGABYTE

Series

B650 AORUS ELITE AX

Supported CPU

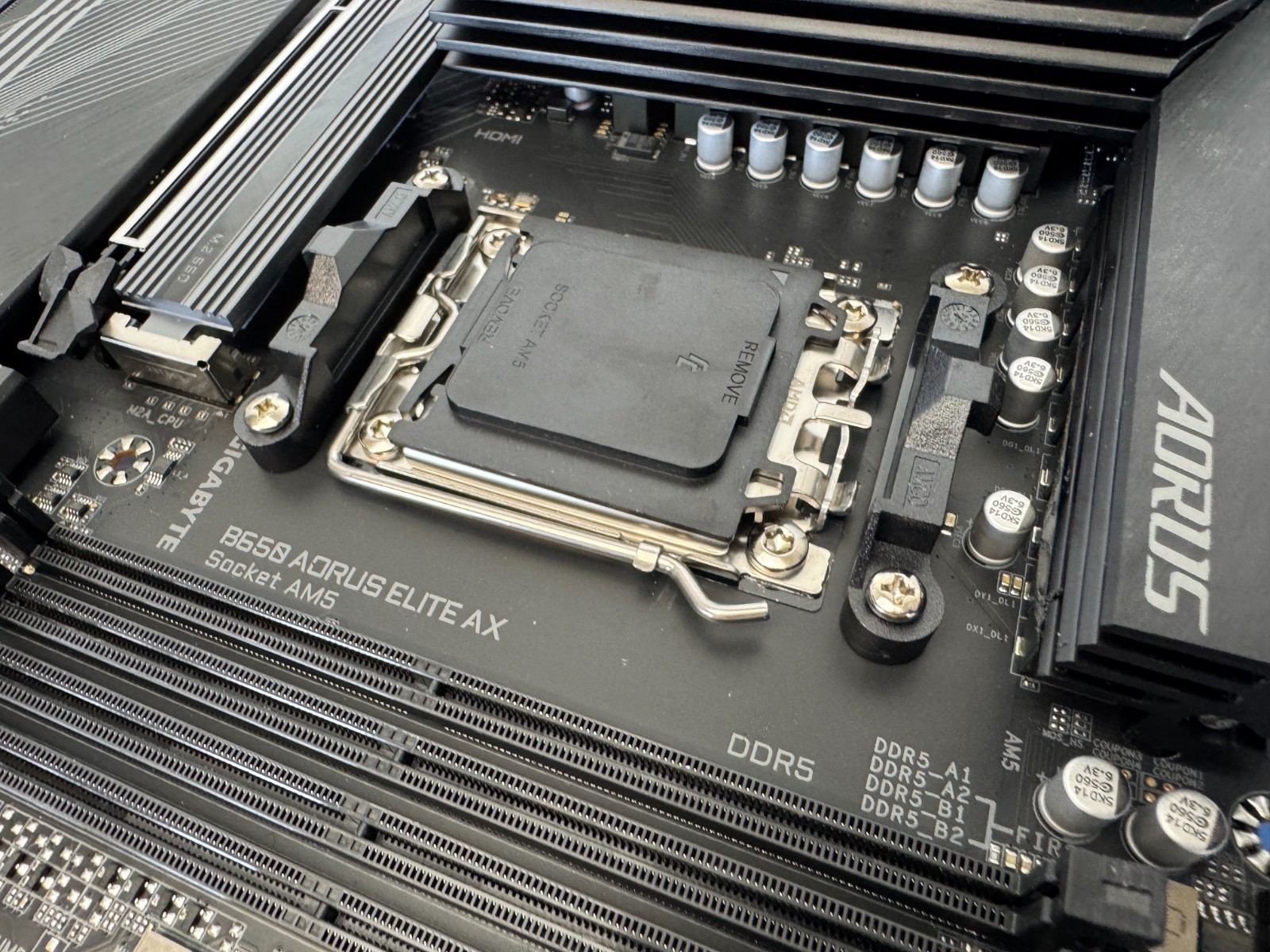

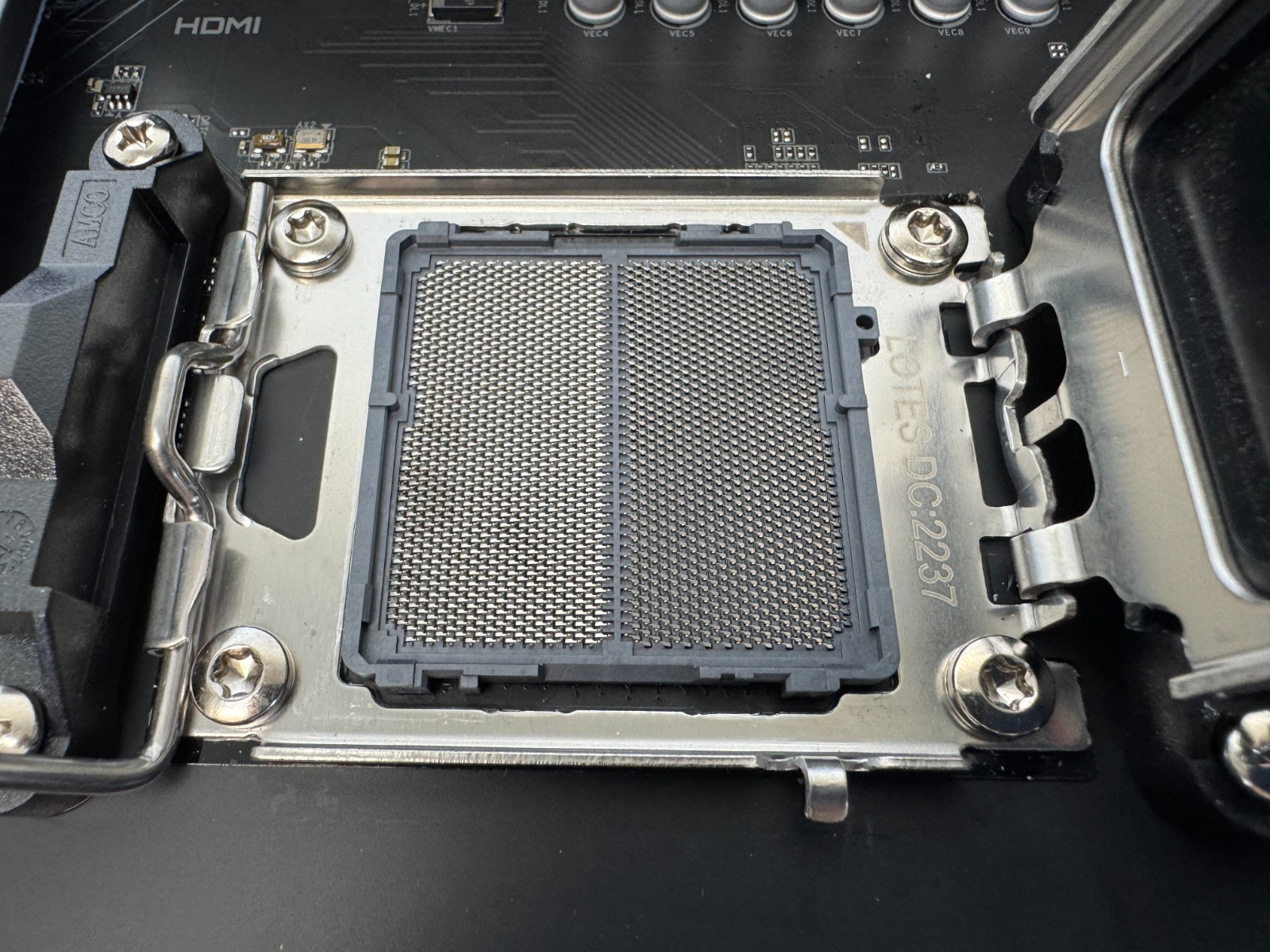

CPU Socket Type

AM5

CPU Type

Ryzen 7000 8000 9000 Series

Chipsets

Chipset

AMD B650

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory module

Maximum Memory Supported

128GB (32GB Single DIMM Capacity)

Channel Supported

Dual Channel

ECC Supported

Non-ECC

Buffer Supported

Un-buffered

Expansion Slots

PCI Express 4.0 x16

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

PCI Express 3.0 x16

2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)

SATA RAID

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Onboard Audio

Audio Chipset

Realtek® Audio CODEC
High Definition Audio

Audio Channels

7.1 Channels

Onboard LAN

Max LAN Speed

2.5Gbps

Wireless LAN

AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)

Bluetooth

Bluetooth 5.2

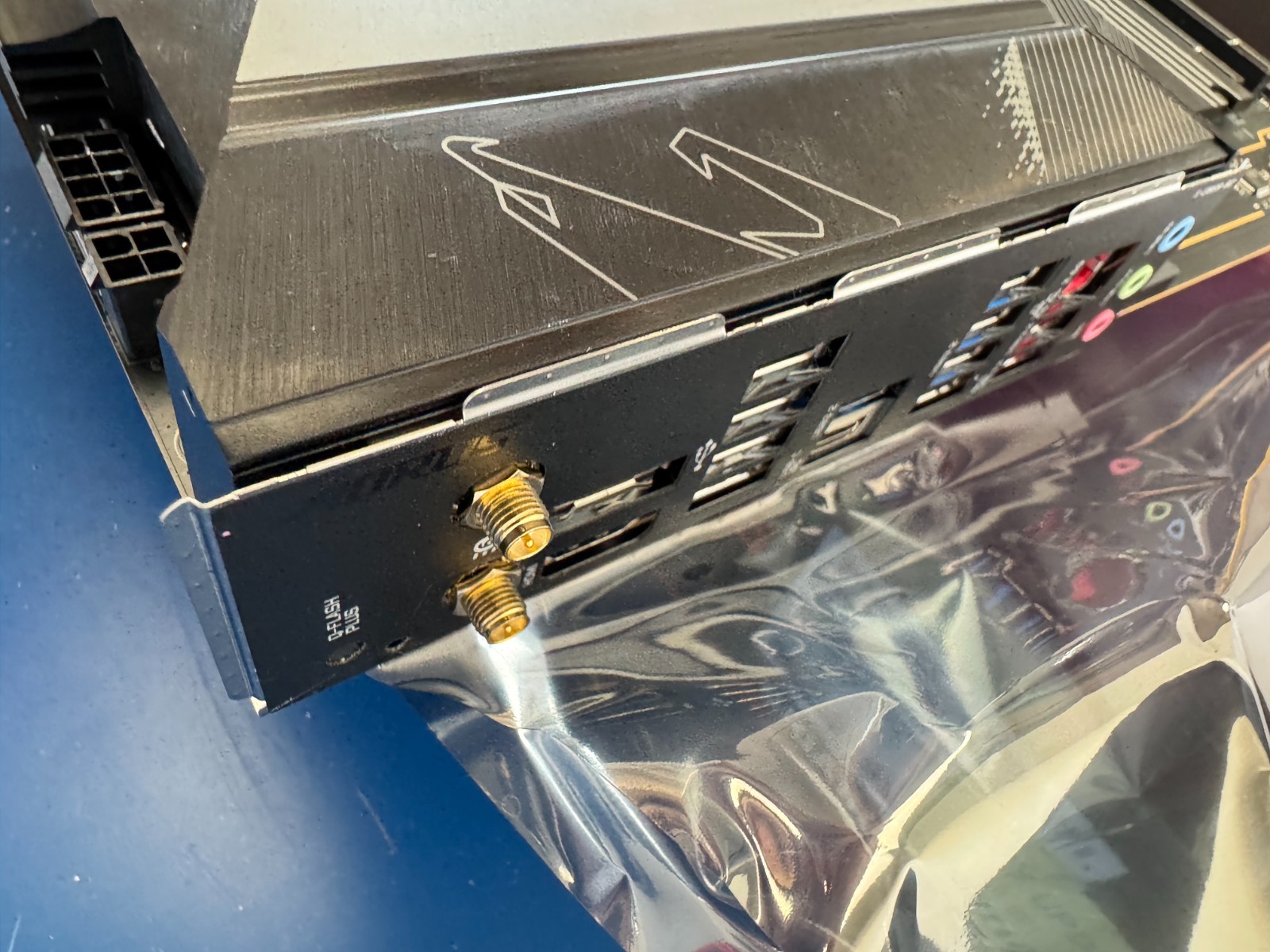

Rear Panel Ports

Back I/O Ports

1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI 2.0 port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O Connectors

Other Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0″ x 9.6″

Windows 11 Compatibility

Windows 11

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Features

Features

AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance:Twin 14*+2+1 Phases Digital VRM Solution
Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage:1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Fully Covered Heatpipe & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
