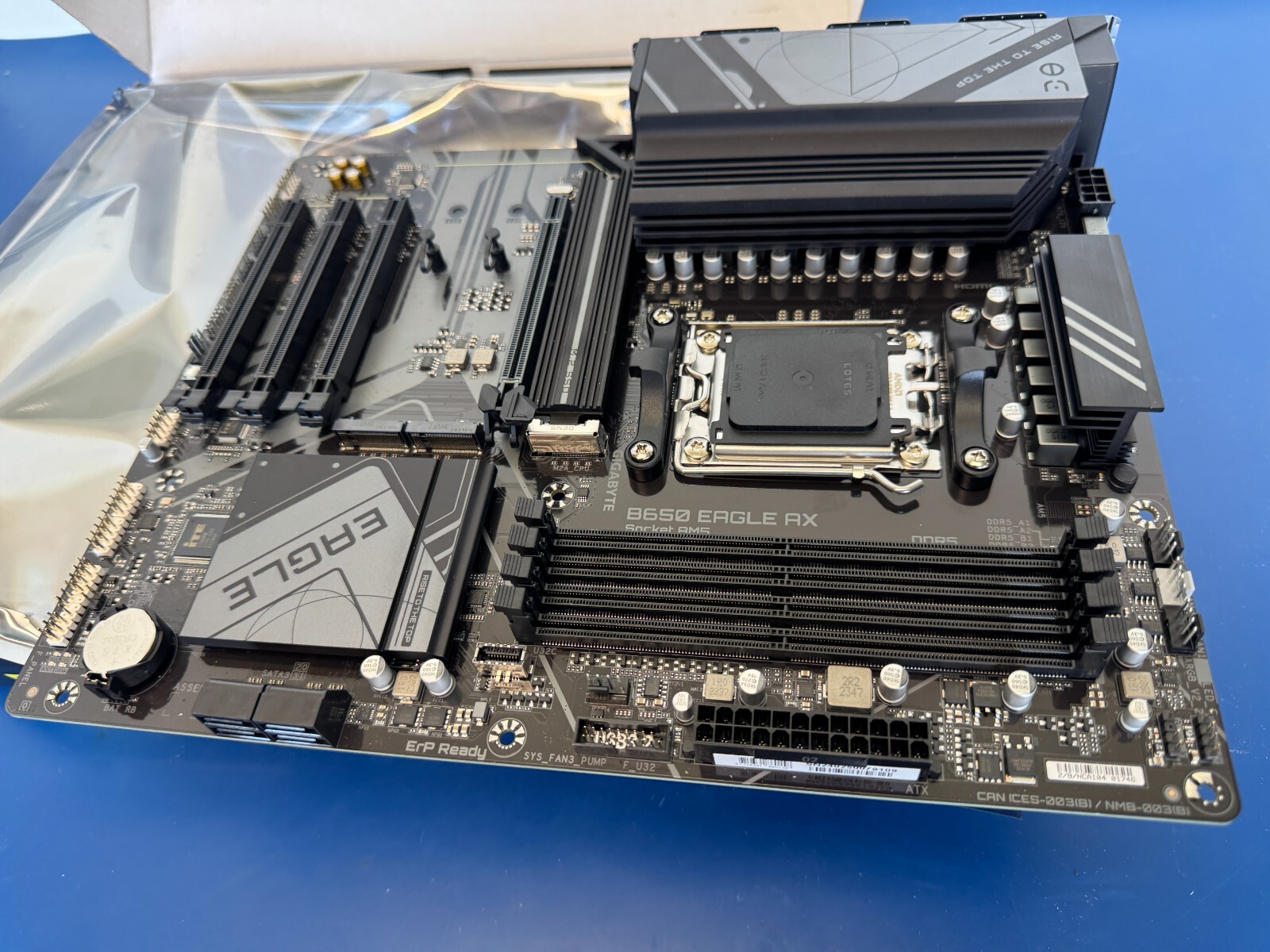

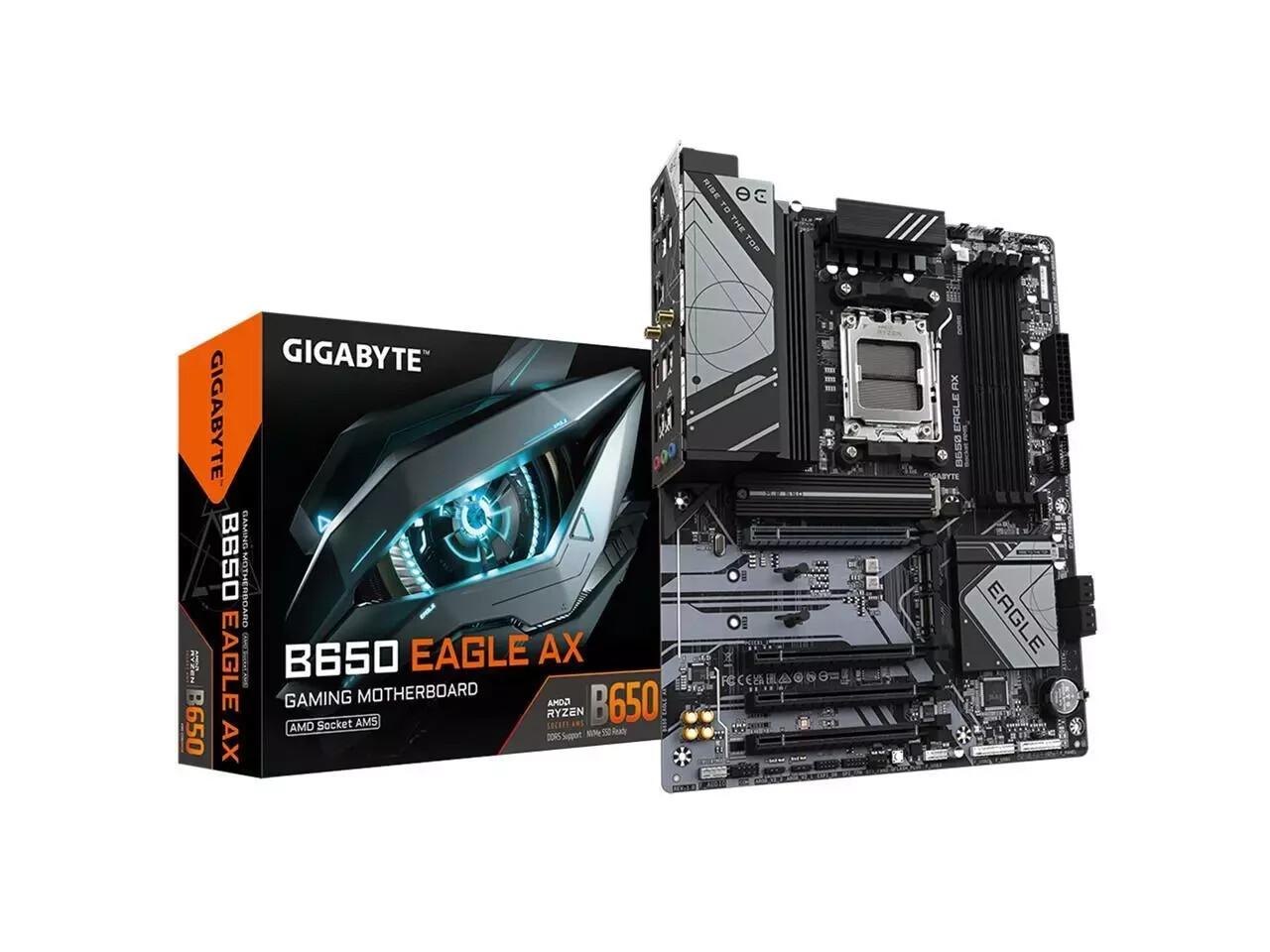

Learn more about GIGABYTE B650 EAGLE AX

Model

Brand

GIGABYTE

Model

B650 EAGLE AX

Supported CPU

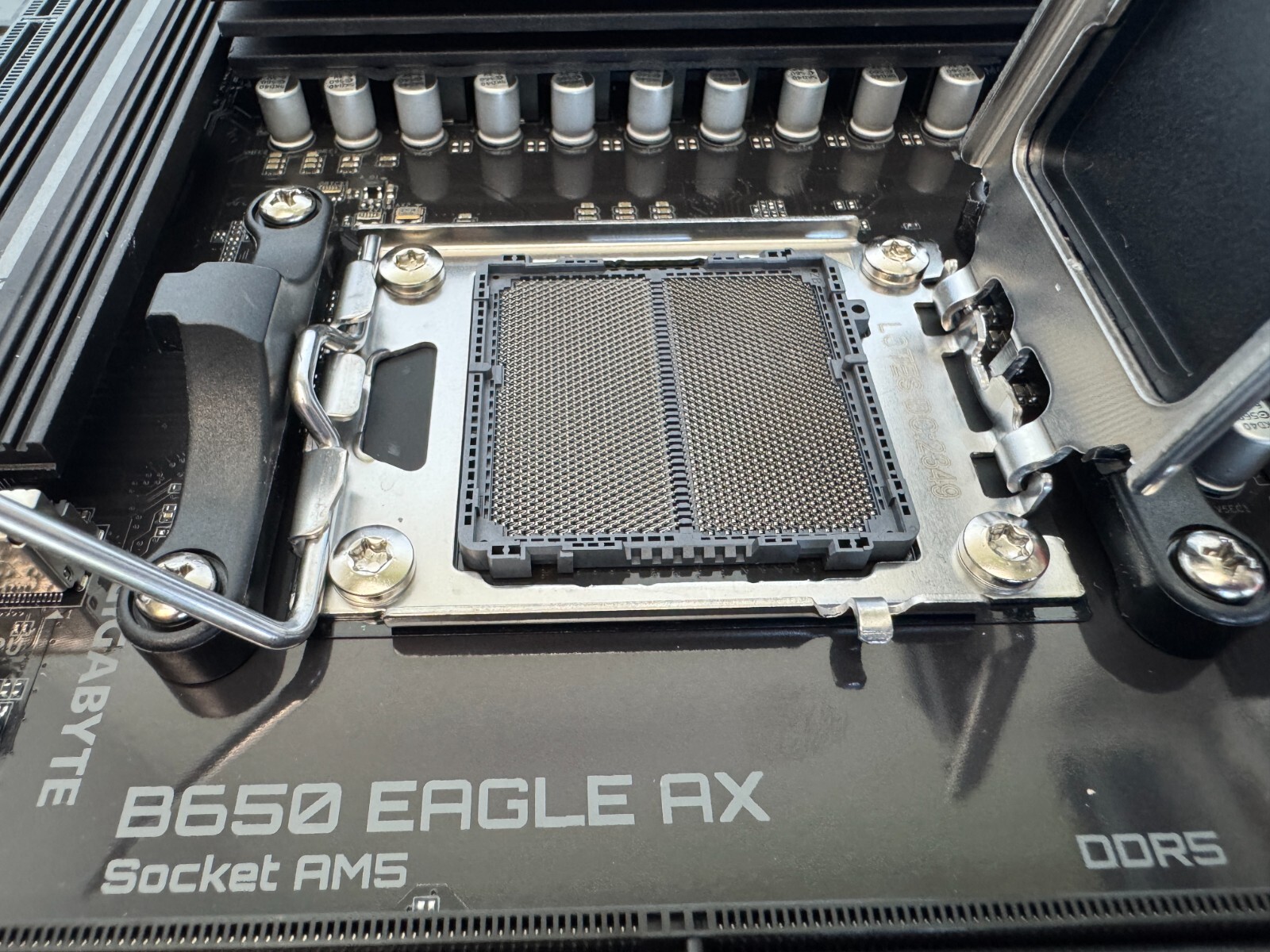

CPU Socket Type

AM5

CPU Type

Ryzen 7000 Series / Ryzen 8000 Series

Chipsets

Chipset

AMD B650

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5 5200

Maximum Memory Supported

192GB

Channel Supported

Dual Channel

ECC Supported

Non-ECC

Memory Feature

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules

Expansion Slots

PCI Express 4.0 x16

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

PCI Express 3.0 x16

3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
– AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
– AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
– AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs
– AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
– AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)

SATA RAID

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Additional RAID Controller

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

Onboard Audio

Audio Channels

7.1 Channels

Onboard LAN

Max LAN Speed

1Gbps

Wireless LAN

Wi-Fi 802.11 ax

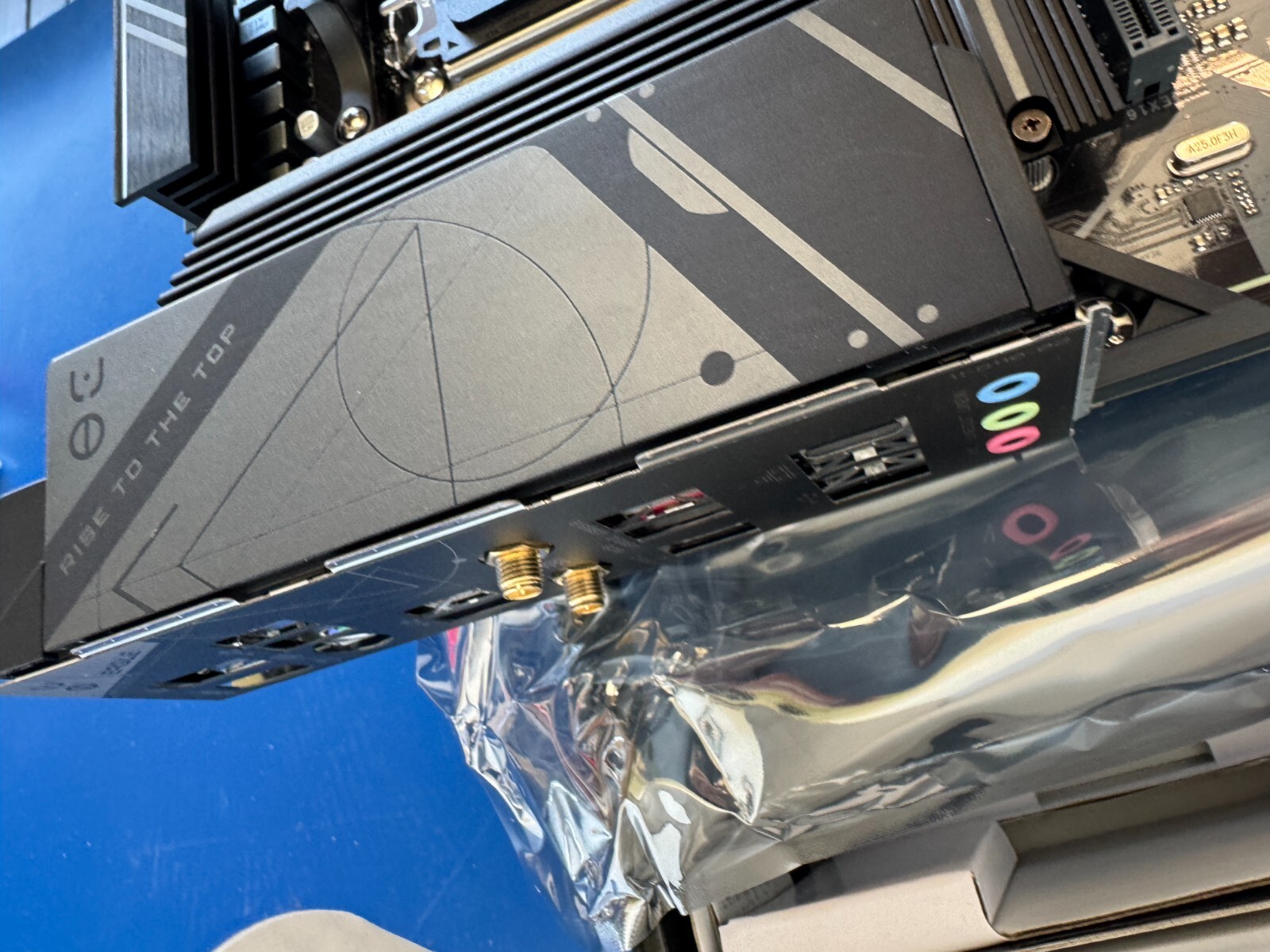

Rear Panel Ports

Back I/O Ports

1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O Connectors

Onboard USB

1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers

Other Connectors

1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x serial port header j
1 x Clear CMOS jumper

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0″ x 9.6″

Power Pin

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Windows 11 Compatibility

Windows 11

Support for Windows 11 64-bit
Support for Windows 10 64-bit
