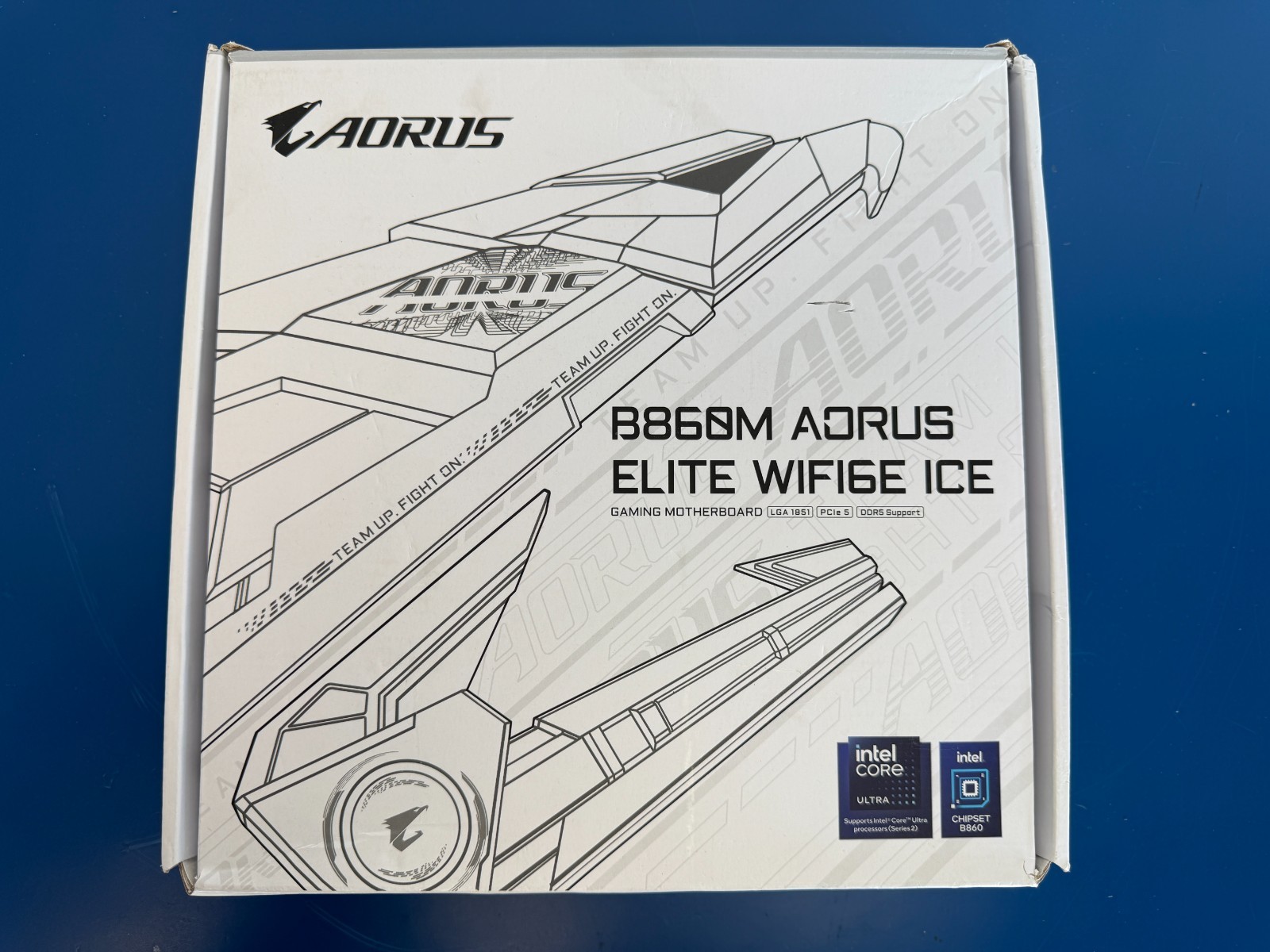

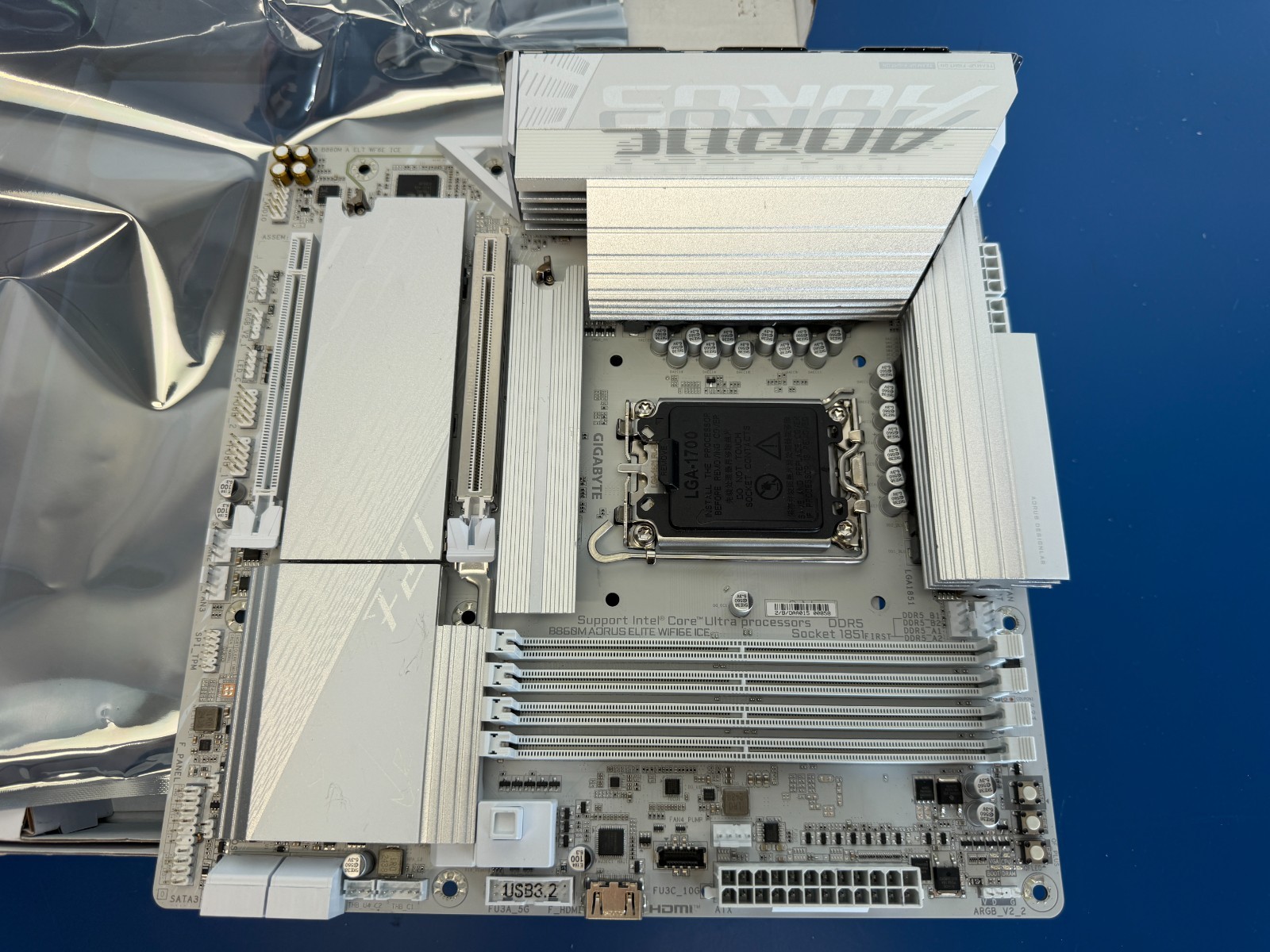

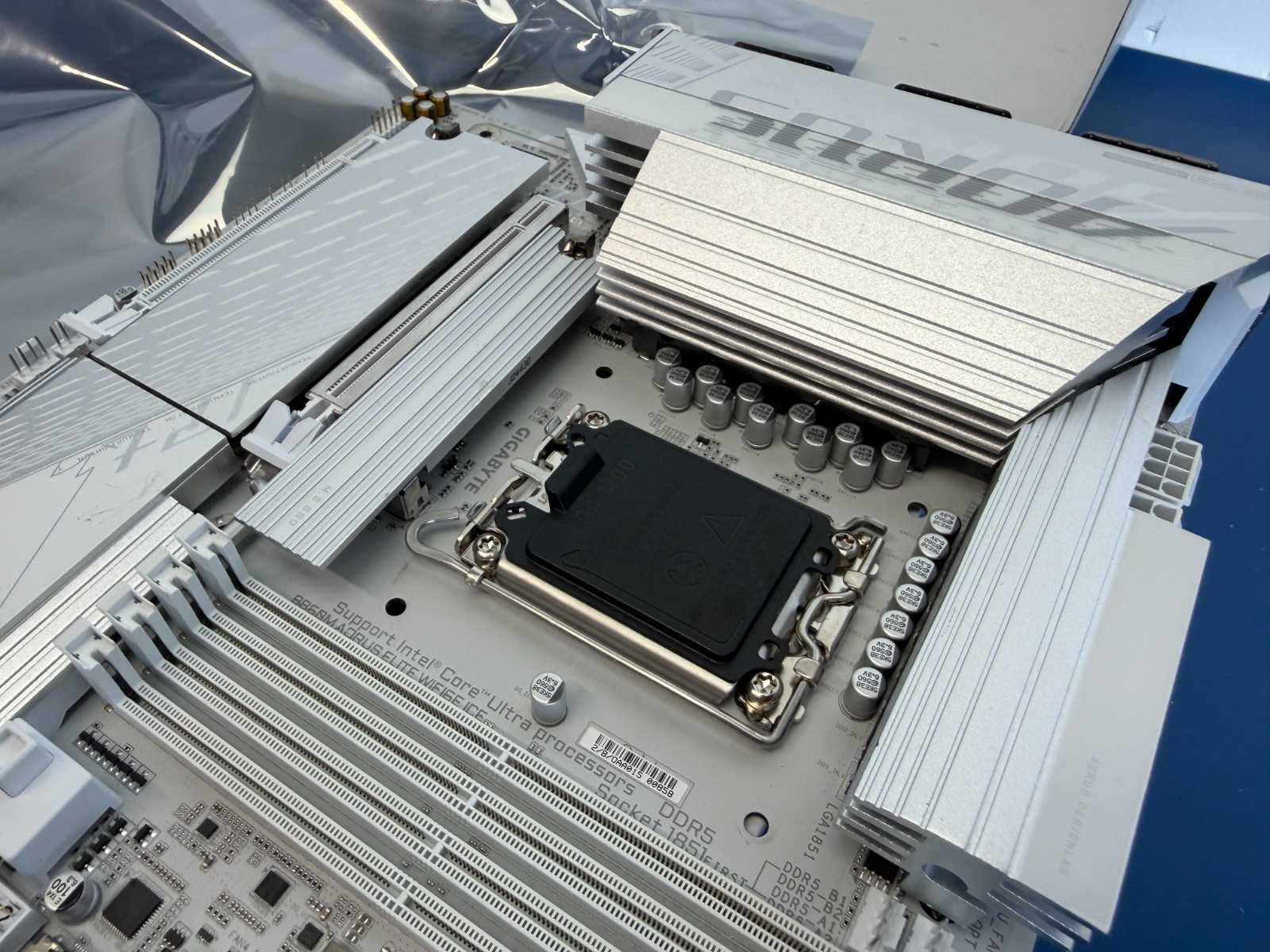

GIGABYTE B860M AORUS ELITE WIFI6E ICE Intel Core Ultra (Series 2) LGA 1851 Mothe

$215.34

1 in stock

Additional information

Weight1.5 kg
Dimensions35 × 30 × 10 cm
Brand

Form Factor

Socket Type

Number of Memory Slots

Model

MPN

Country of Origin

Description

OUTLUT Computers & Electronic Inc.

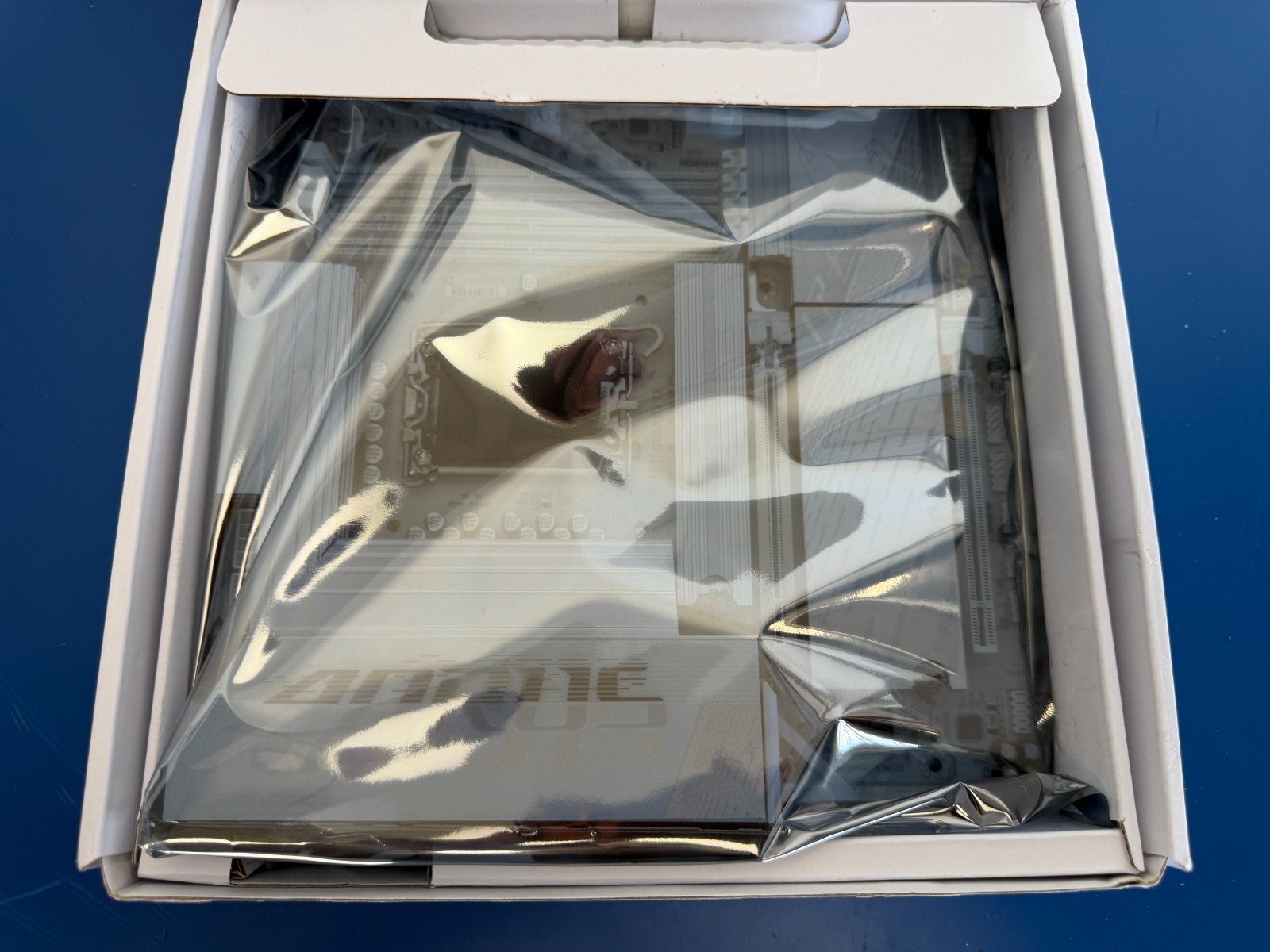

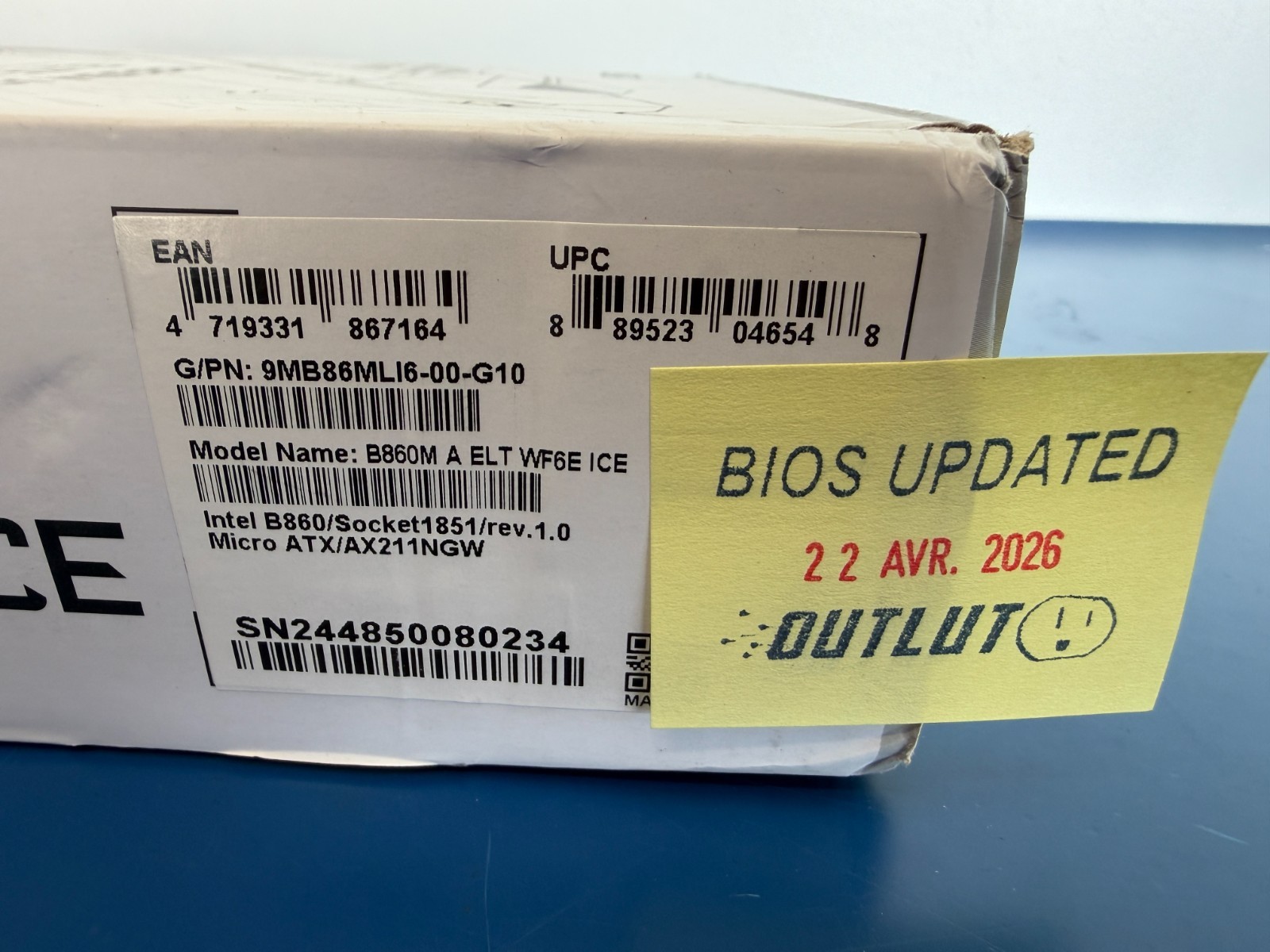

Pristine condition open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Learn more about GIGABYTE B860M AORUS ELITE WIFI6E ICE

Model
Brand
GIGABYTE
Model
B860M AORUS ELITE WIFI6E ICE
Supported CPU

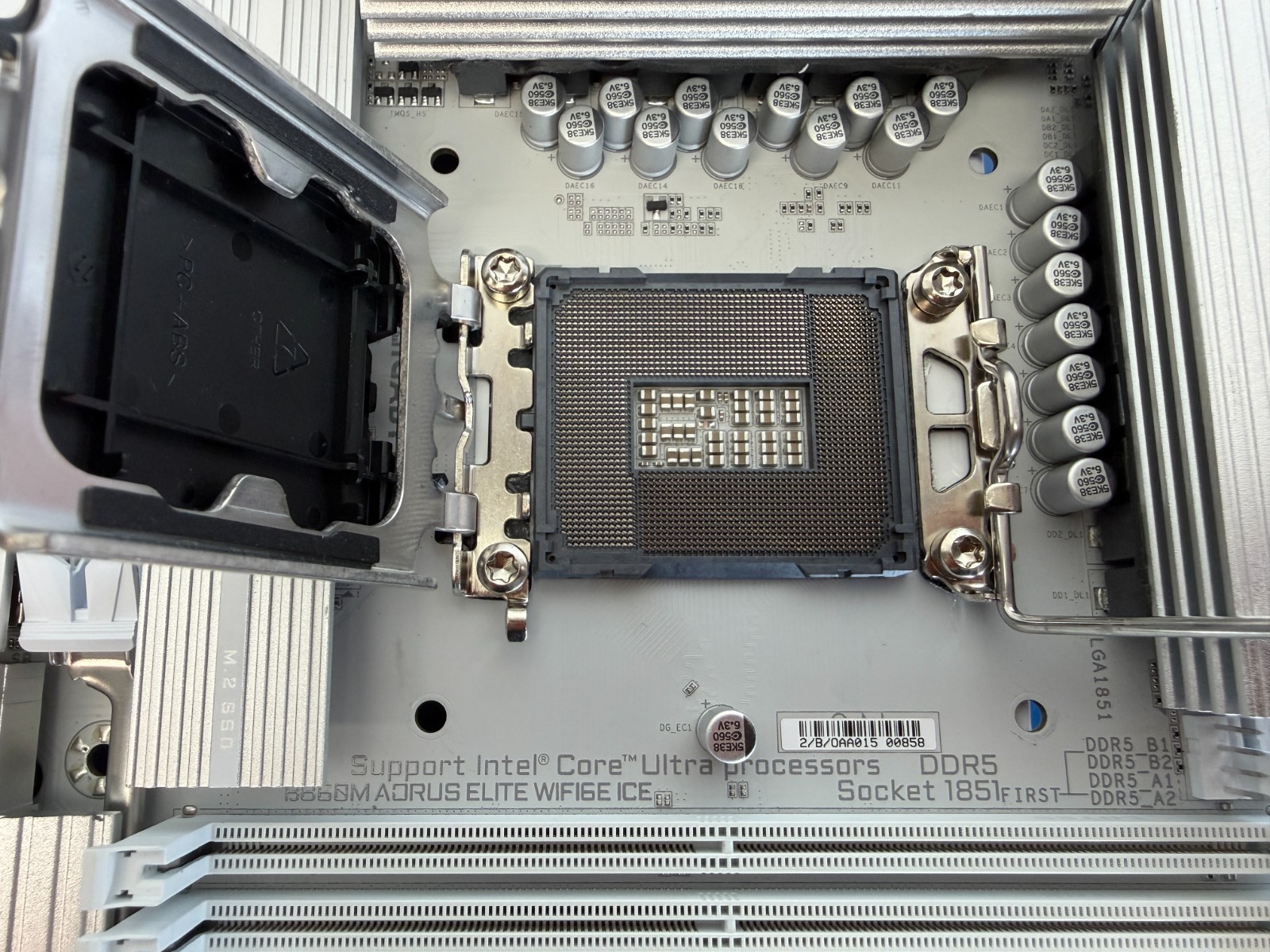

CPU Socket Type
LGA 1851
CPU Type
Intel Core Ultra Processors (Series 2)
Chipsets
Chipset
Intel B860
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
DDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9200
Maximum Memory Supported
256GB
Channel Supported
Dual Channel
Memory Feature
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

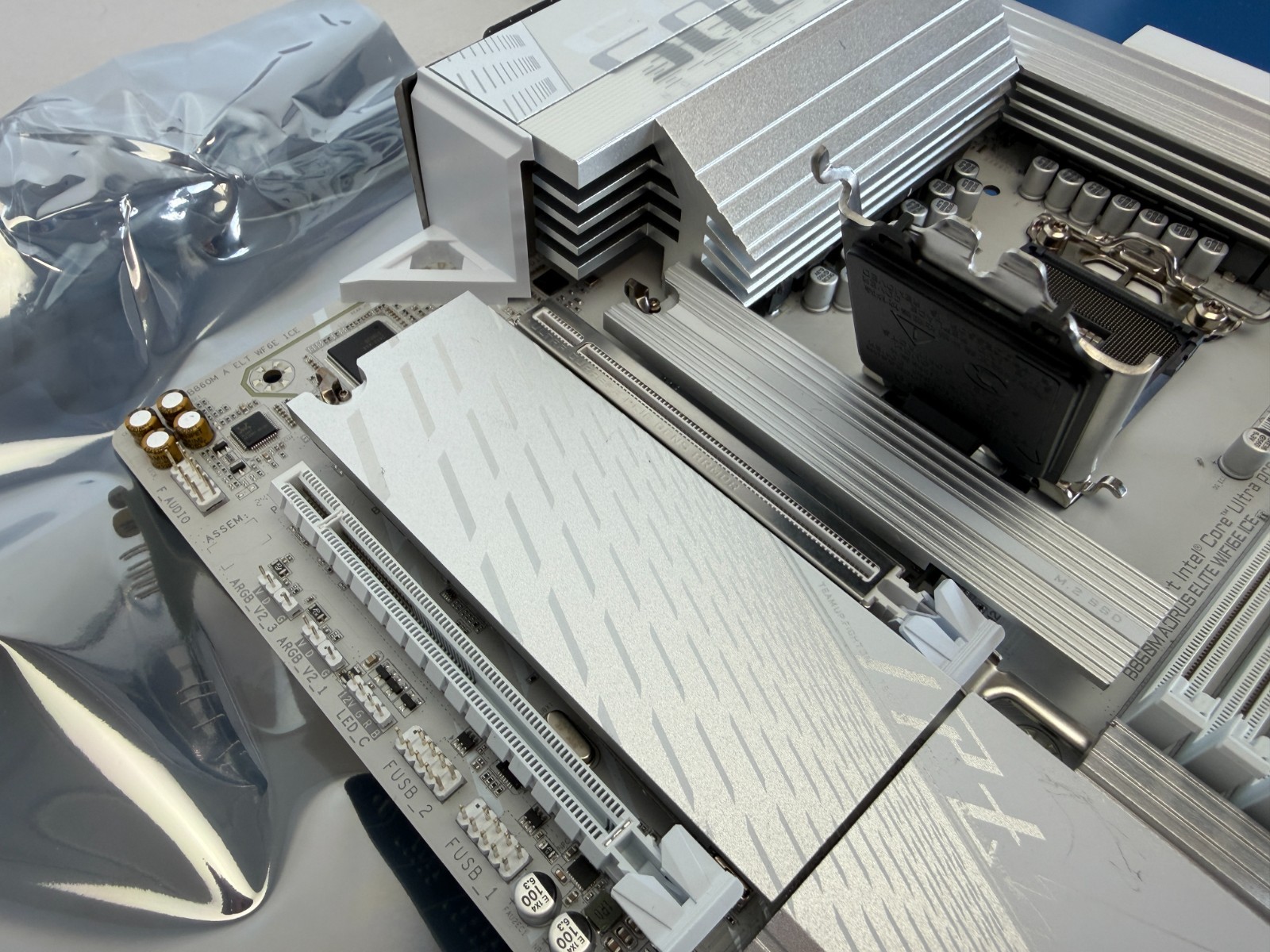

Expansion Slots
PCI Express 5.0 x16
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16
Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
CPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB)
SATA RAID
0/1/5/10
Onboard Audio
Audio Channels
7.1 Channels
Onboard LAN
Max LAN Speed
2.5Gbps
Wireless LAN
Wi-Fi 802.11 ax
Bluetooth
Bluetooth 5.3

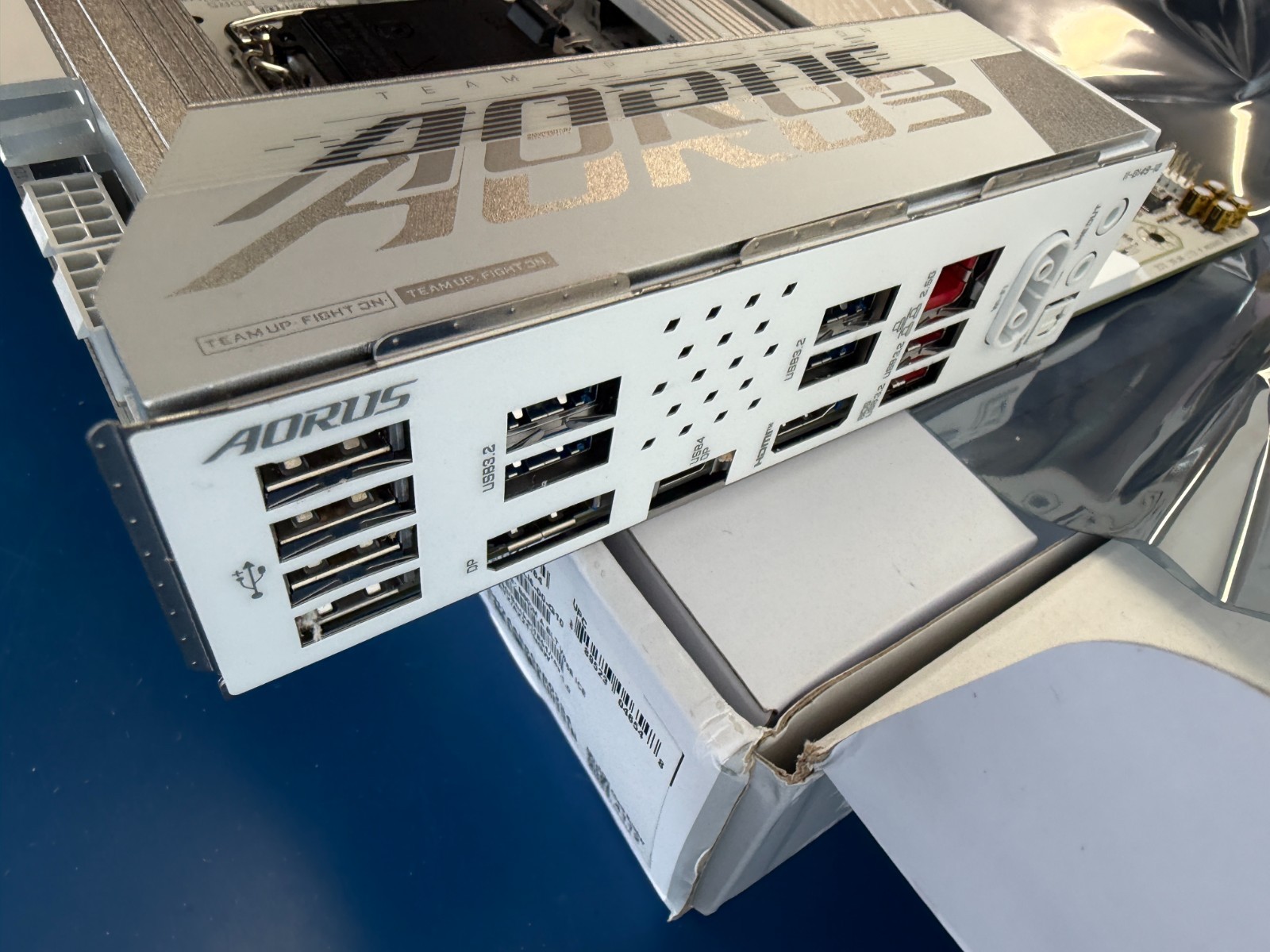

Rear Panel Ports
Back I/O Ports
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x USB4 USB Type-C port (DisplayPort)
1 x HDMI port
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Internal I/O Connectors
Onboard USB
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Software Feature
BIOS Feature
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
