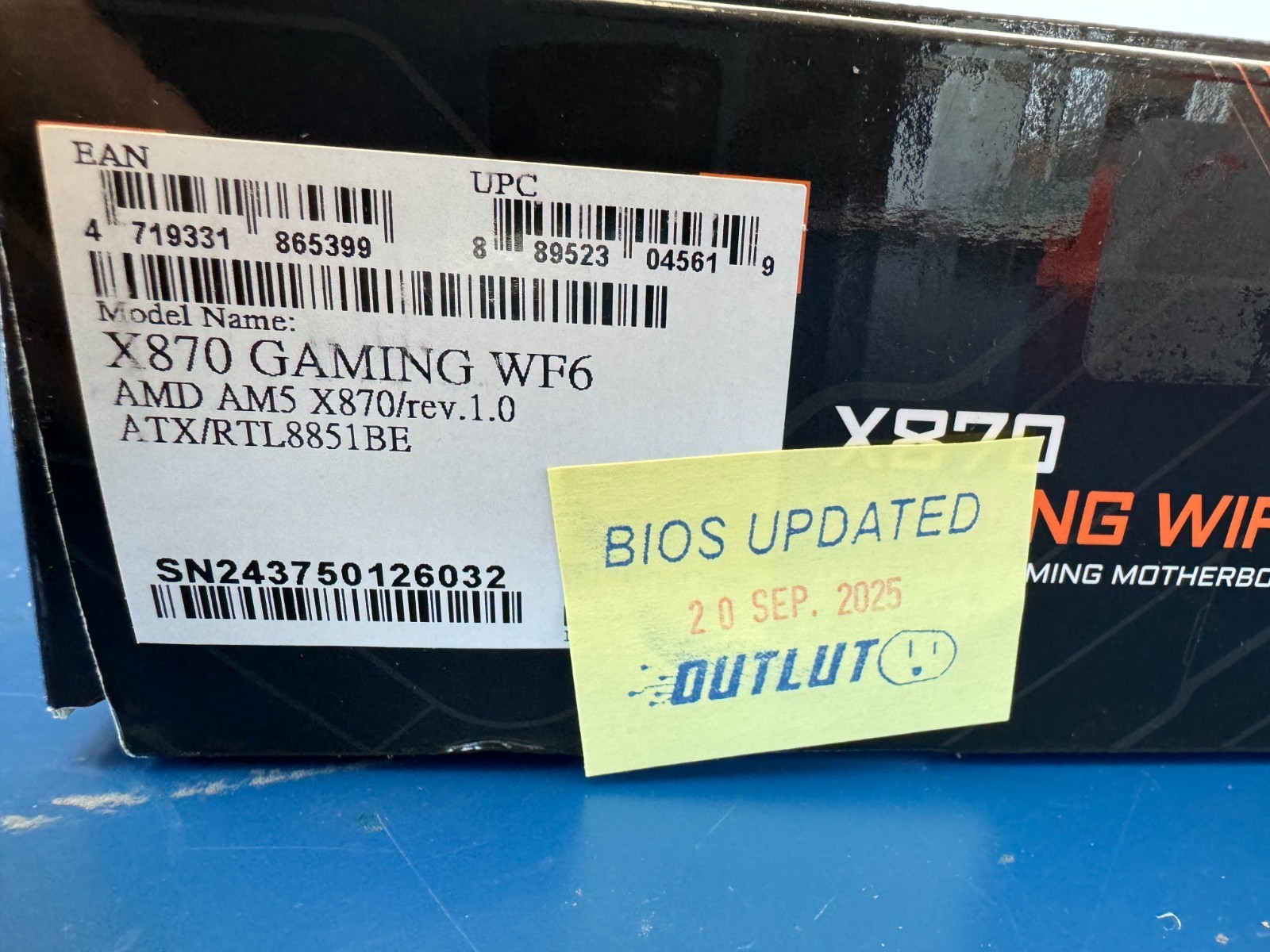

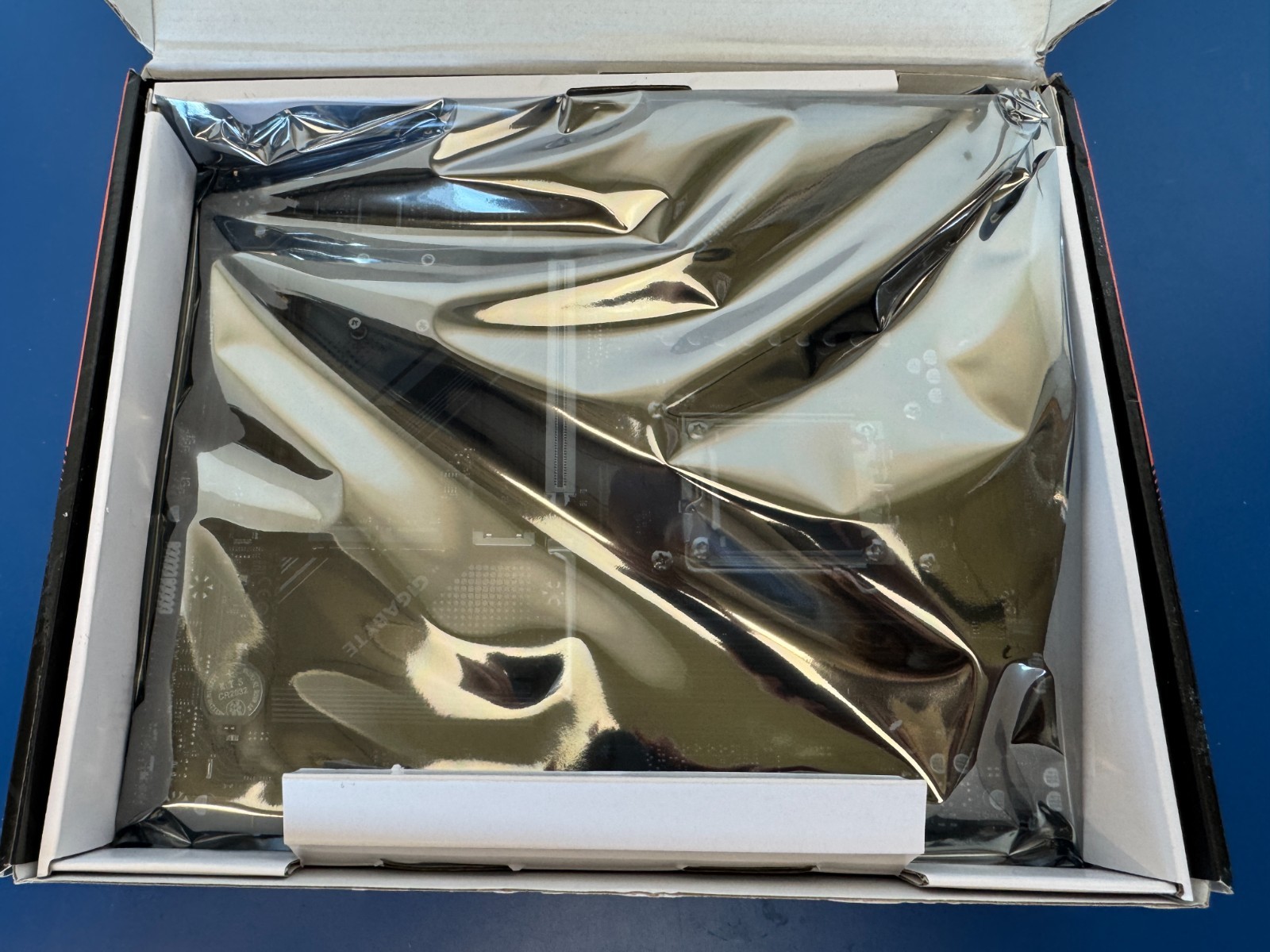

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Model

Brand

GIGABYTE

Supported CPU

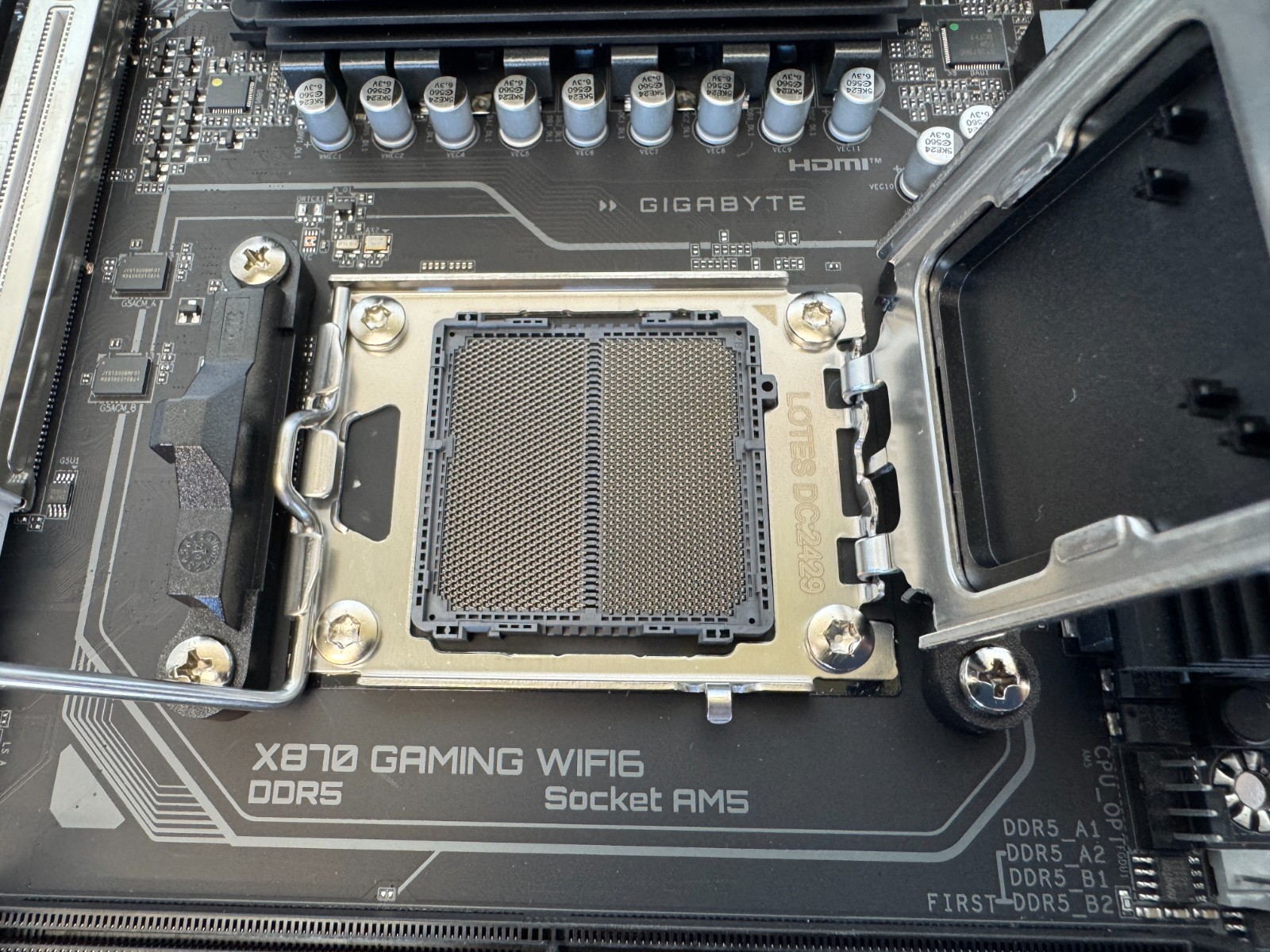

CPU Socket Type

AM5

CPU Type

Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets

Chipset

AMD X870

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

Maximum Memory Supported

256GB

Expansion Slots

PCI Express 5.0 x16

1 x PCI Express 5.0 x16

PCI Express 3.0 x16

2 x PCI Express 3.0 x16

PCI Slots

3 x PCI Slots

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

1 x M.2 (Support PCIe 4.0 x2) / 1 x M.2 (Support PCIe 4.0 x4) / 1 x M.2 (Support PCIe 5.0 x4)

Onboard Audio

Audio Channels

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Onboard LAN

Max LAN Speed

2.5Gbps

Wireless LAN

Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0)
– WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

Rear Panel Ports

Back I/O Ports

1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x USB4® USB Type-C® ports
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0″ x 9.6″

Software Feature

Windows 11

Supported
