Description
OUTLUT Computers & Electronic Inc.

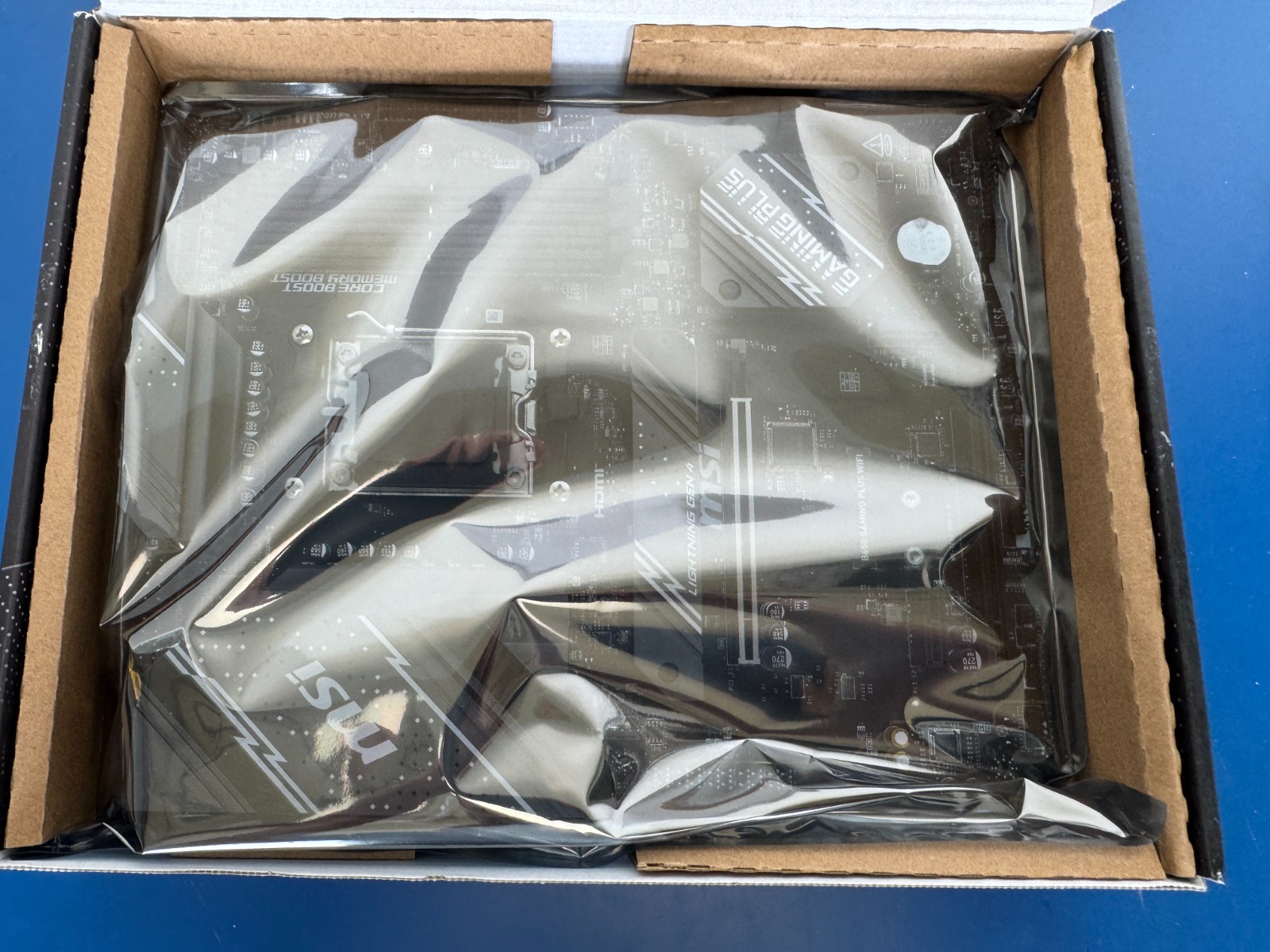

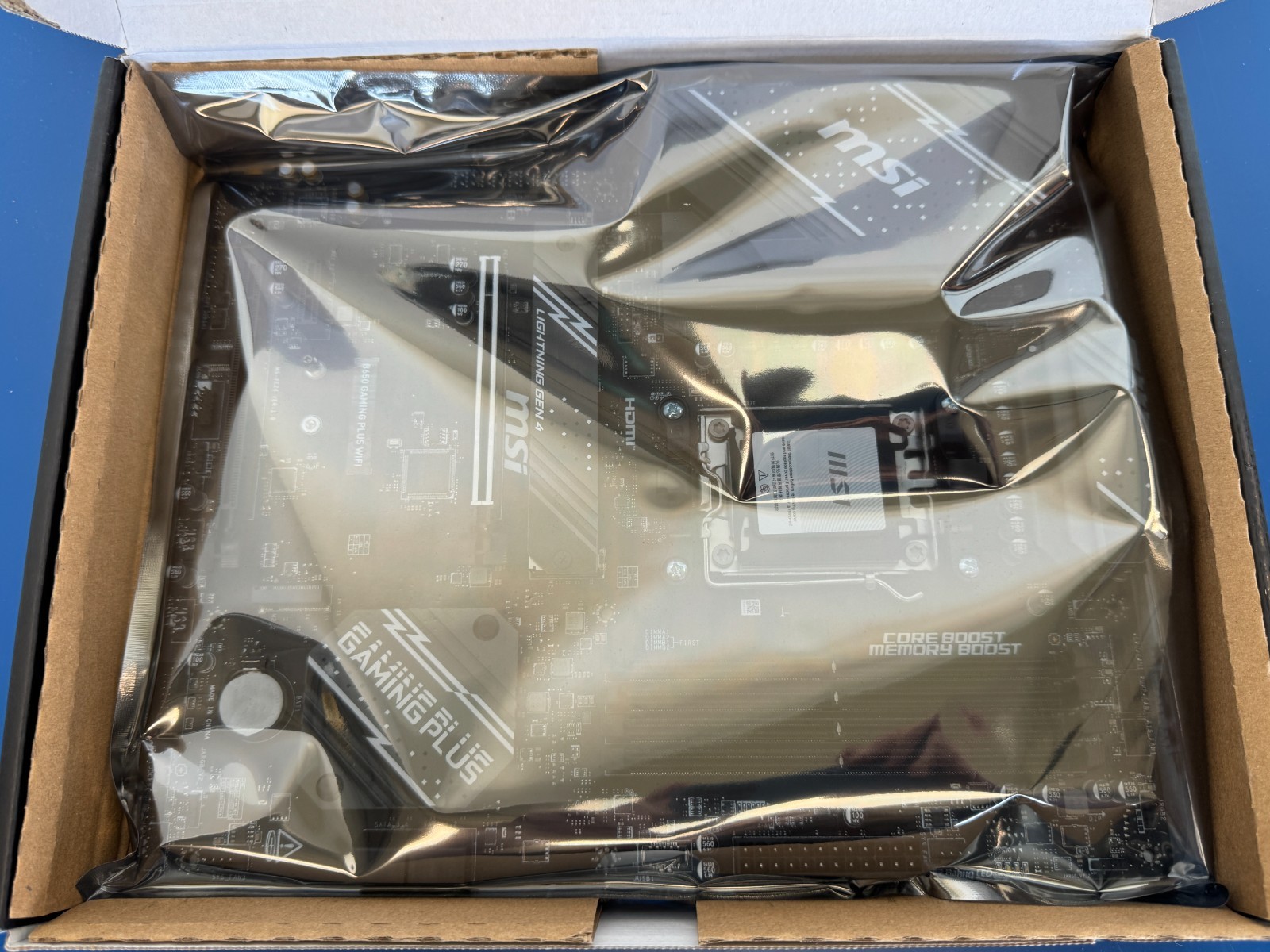

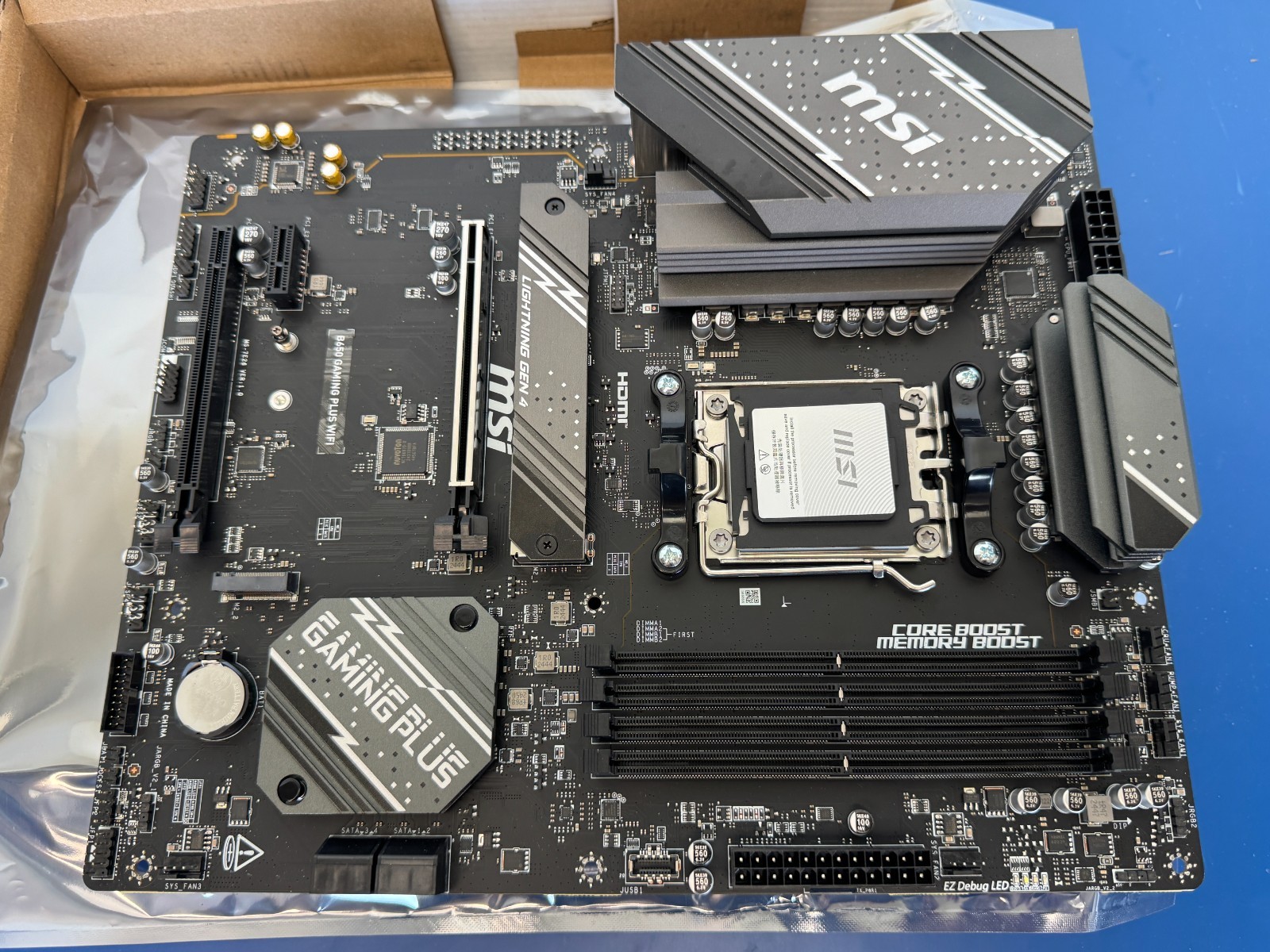

MISSING i/o SHIELD!!! Pristine condition never used open box. Professionally tested to ensure 100% functionality.

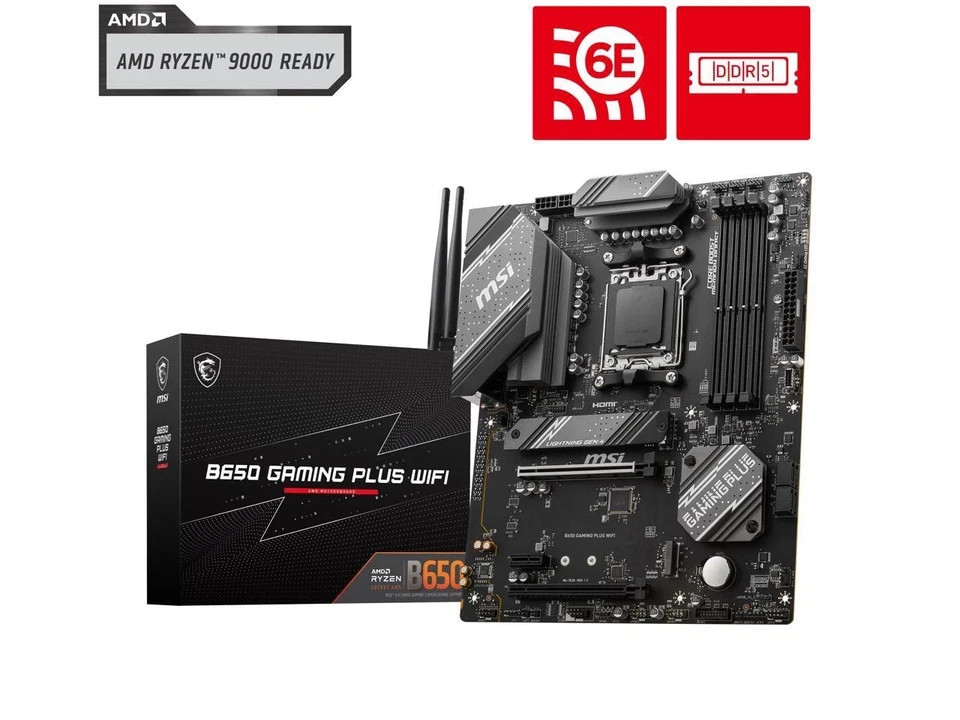

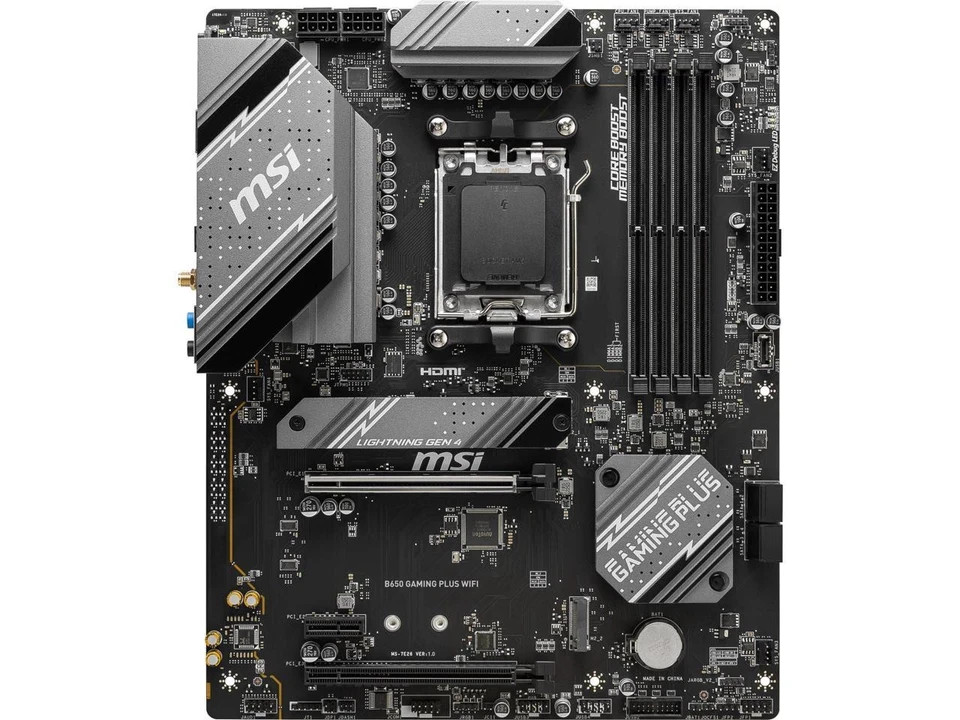

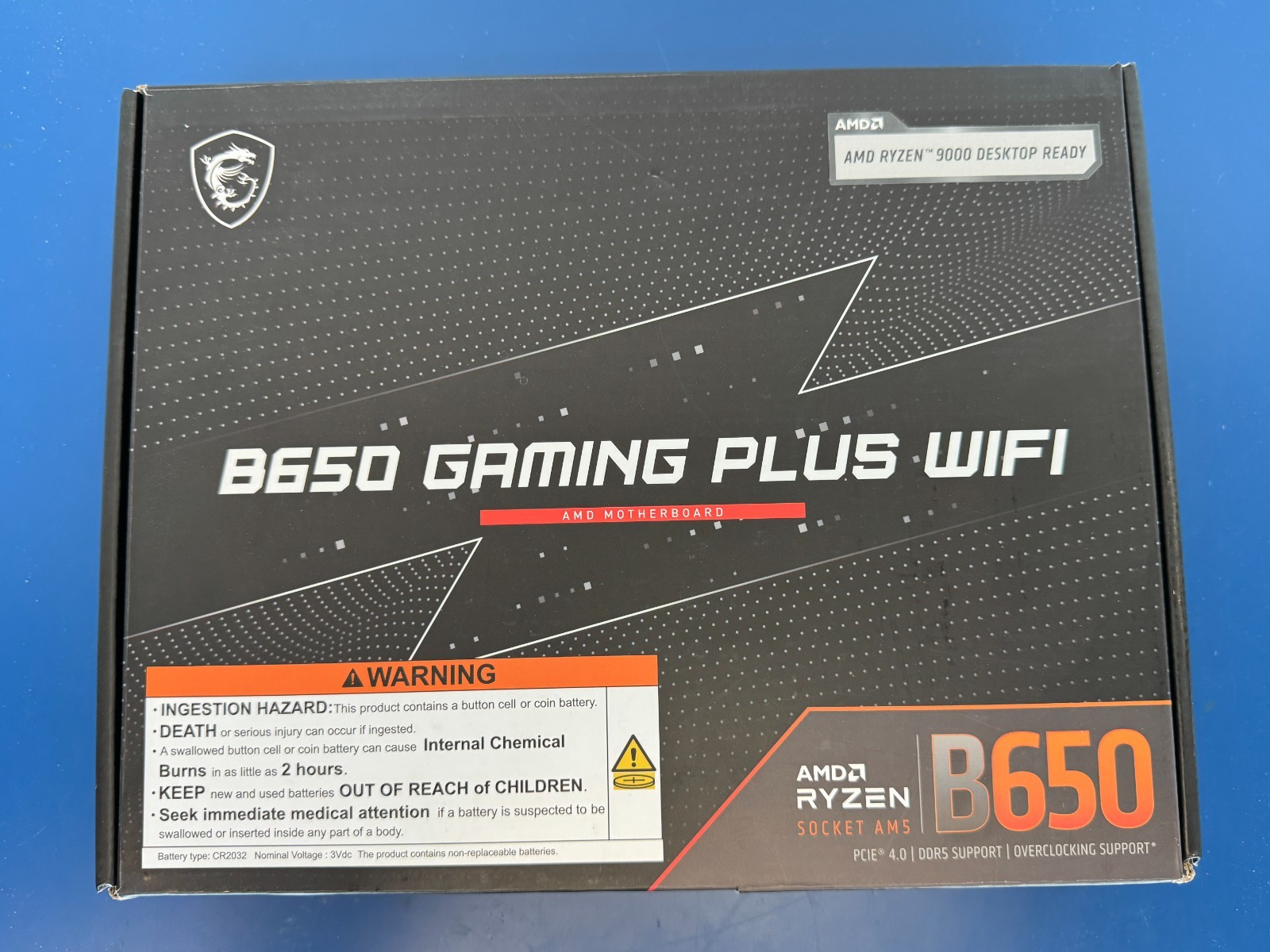

Learn more about MSI B650 GAMING PLUS WIFI
Model
Brand
MSI
Model
B650 GAMING PLUS WIFI
Supported CPU

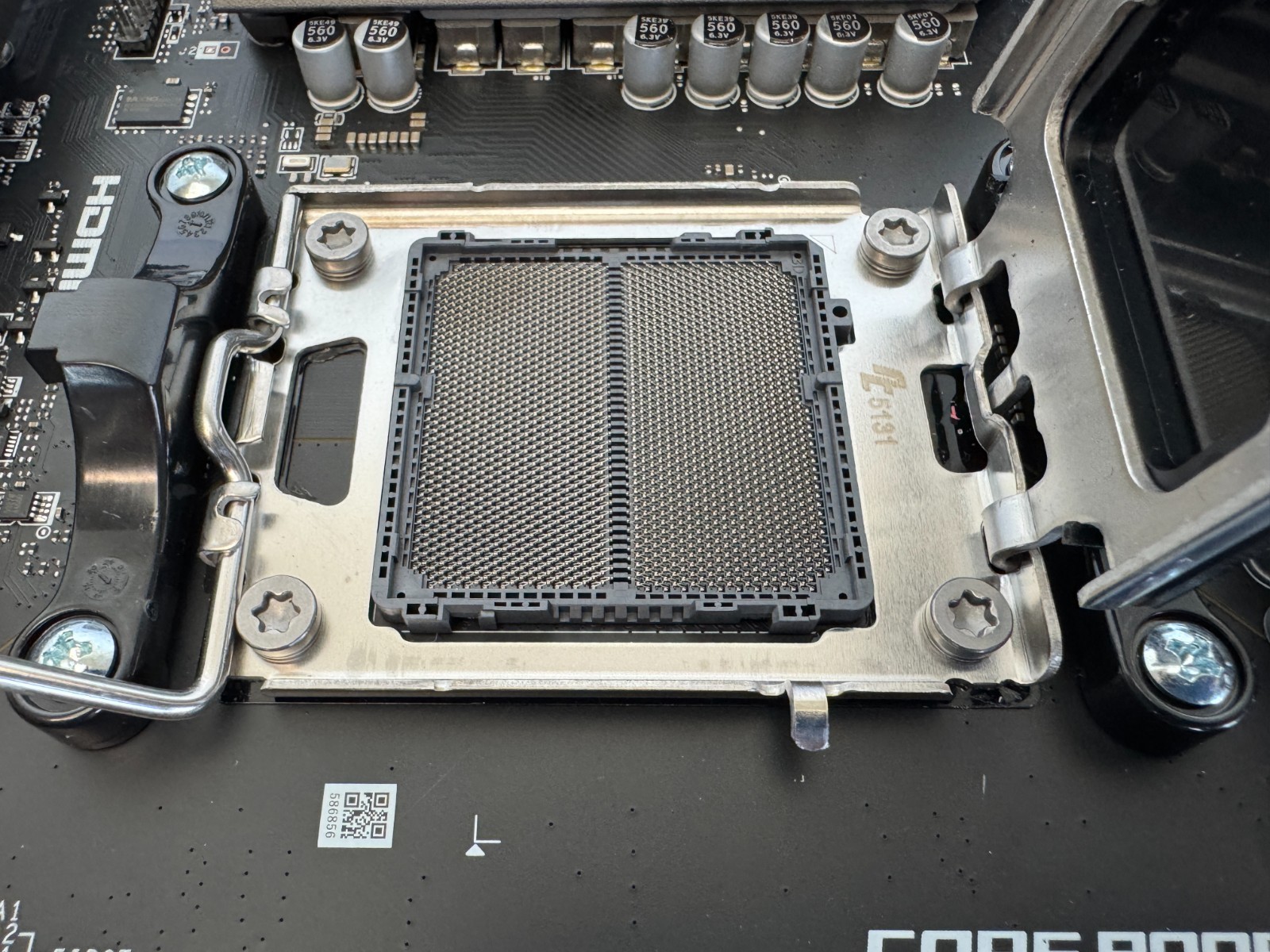

CPU Socket Type
AM5
CPU Type
Ryzen 7000 Series
Chipsets
Chipset
AMD B650
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6000+ MHz
1DPC 2R Max speed up to 6000+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5400+ MHz
Maximum Memory Supported
192GB
Channel Supported
Dual Channel
ECC Supported
Non-ECC
Buffer Supported
Un-buffered
Memory Feature
Supports AMD EXPO
Expansion Slots
PCI Express 4.0 x16
2x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1
1x PCI-E x1 slot
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Onboard Audio
Audio Chipset
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek 8125BG 2.5G LAN
Max LAN Speed
2.5Gbps
Wireless LAN
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
Bluetooth
Supports Bluetooth 5.3**
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

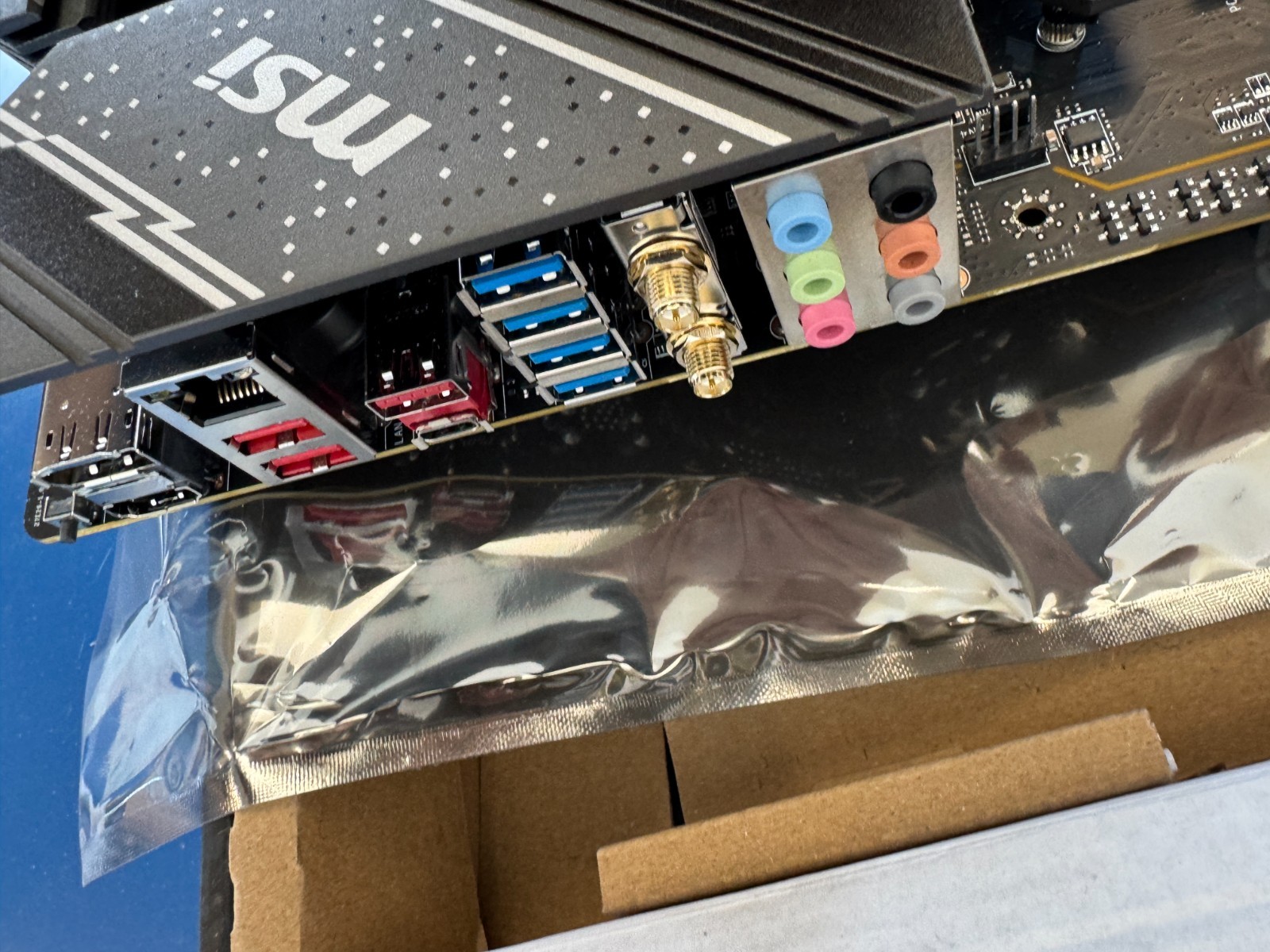

Rear Panel Ports
Back I/O Ports
1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2×2 Type-C / 2 x Antenna Bracket / 3 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 Type-A / 6 x Audio Jacks
Internal I/O Connectors
Onboard USB
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
Other Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0″ x 9.6″Shipping Information
This item ships to Canada & USA only !
Terms of Sales
We take painstaking care to pack our customers items for maximum safety. All items will usually ship within 24h! All sold items have their serial numbers recorded for fraud prevention and to ensure our shopper can shop with peace of mind.
Returns are only accepted if the item has been misrepresented or is defective. You must contact us within 7 days of receiving item to arrange return. Item must be returned in the same state you received in.
