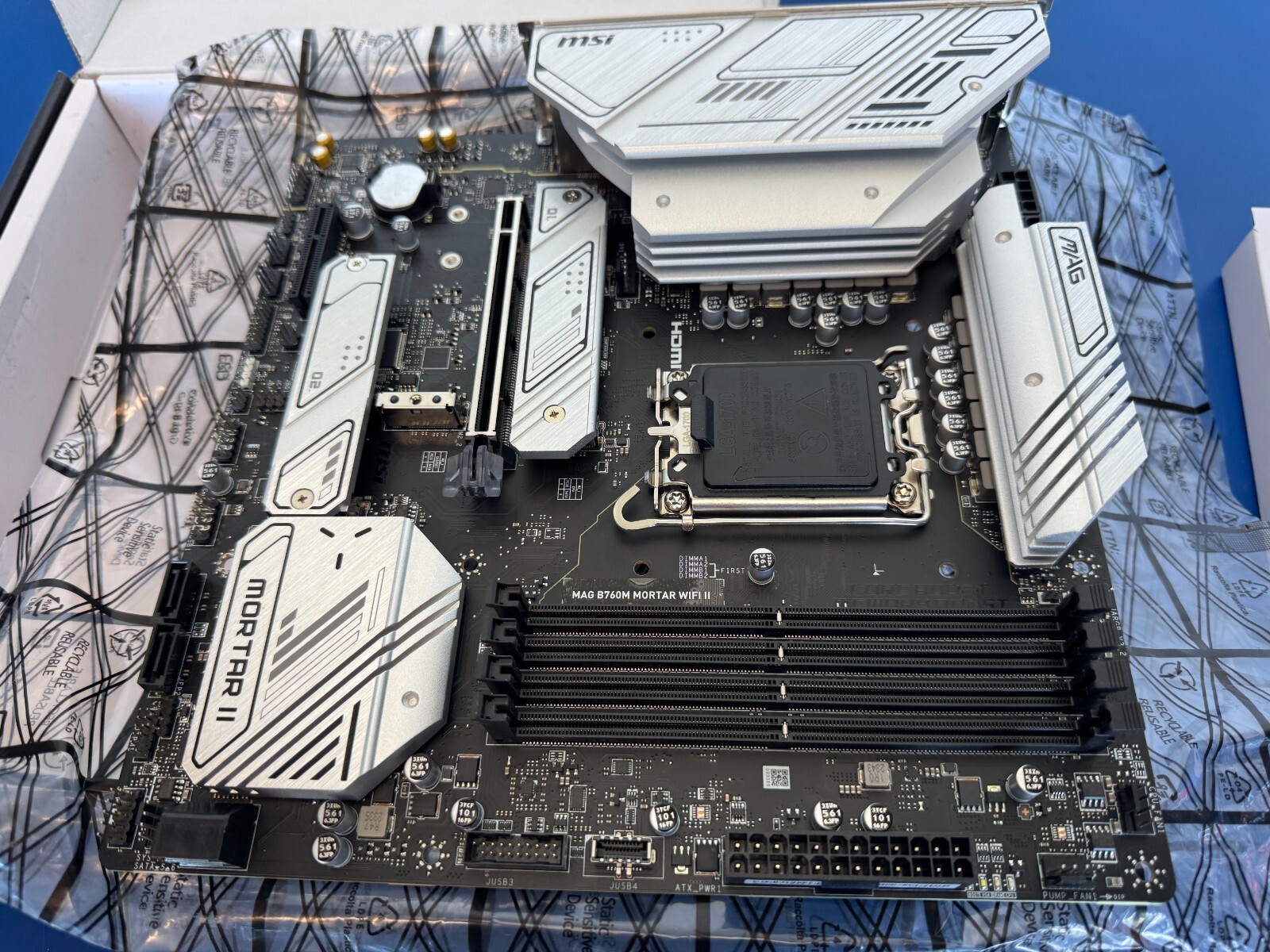

Learn more about MSI MAG B760M MORTAR WIFI II

Model

Brand

MSI

Model

MAG B760M MORTAR WIFI II

Supported CPU

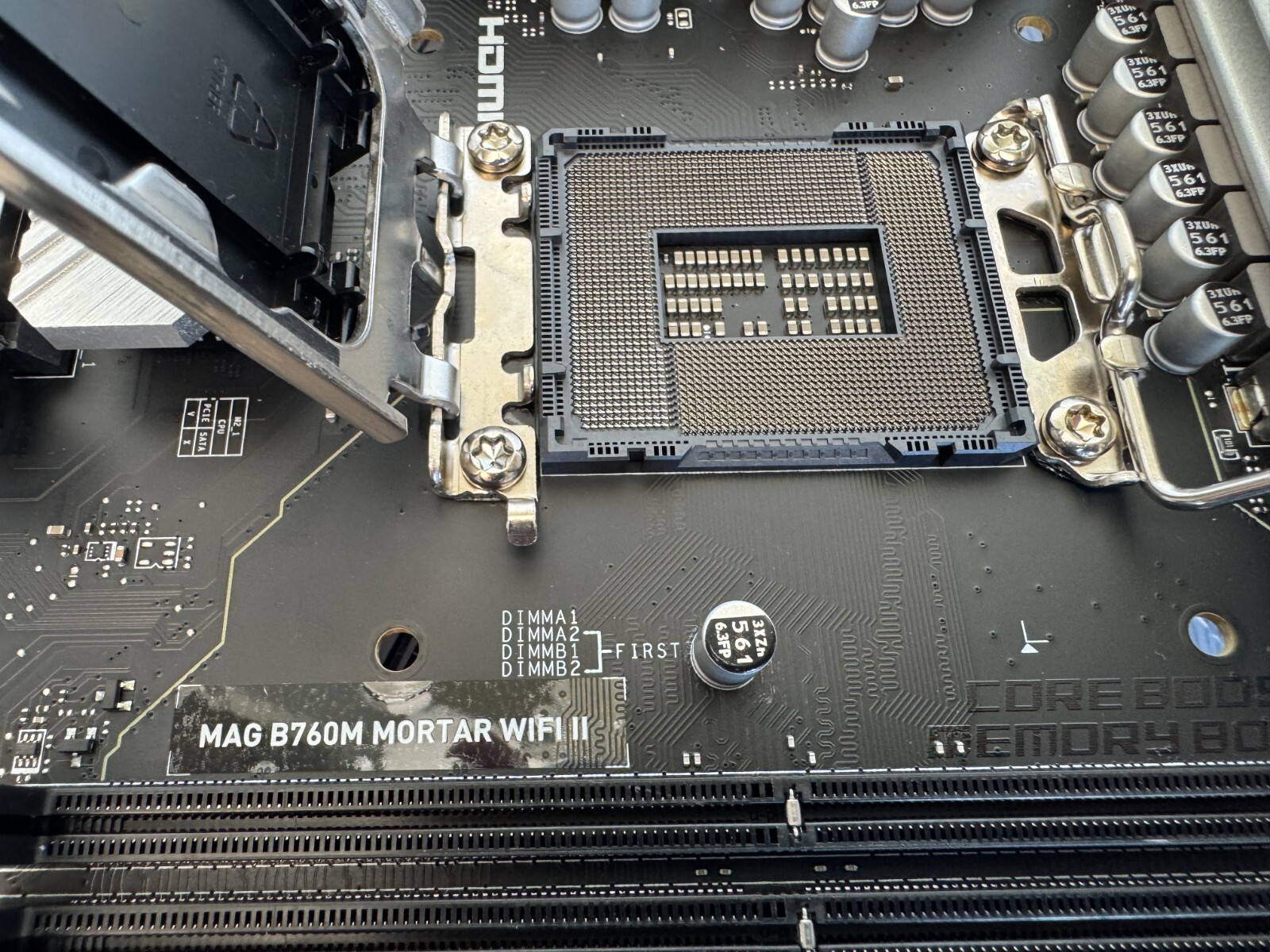

CPU Socket Type

LGA 1700

CPU Type

Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets

Chipset

Intel B760

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)

Maximum Memory Supported

192GB

Channel Supported

Dual Channel

Memory Feature

Max. overclocking frequency:
– 1DPC 1R Max speed up to 7800+ MHz
– 1DPC 2R Max speed up to 6600+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile

Expansion Slots

PCI Express 5.0 x16

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI Express x4

PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices

SATA RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Onboard Audio

Audio Chipset

Realtek ALC897

Audio Channels

7.1-Channel High Definition Audio

Onboard LAN

Max LAN Speed

2.5Gbps

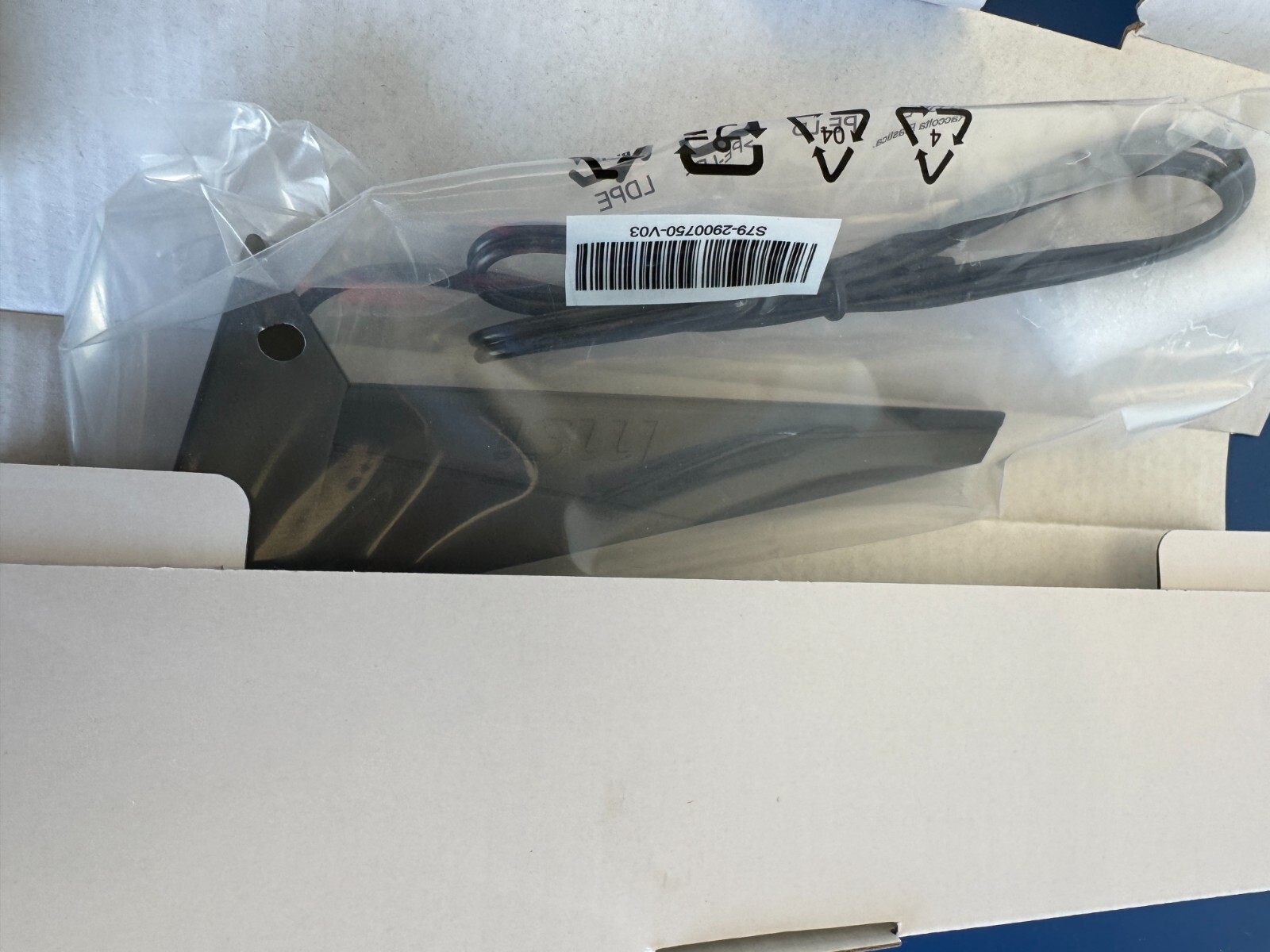

Wireless LAN

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth

Bluetooth 5.3
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

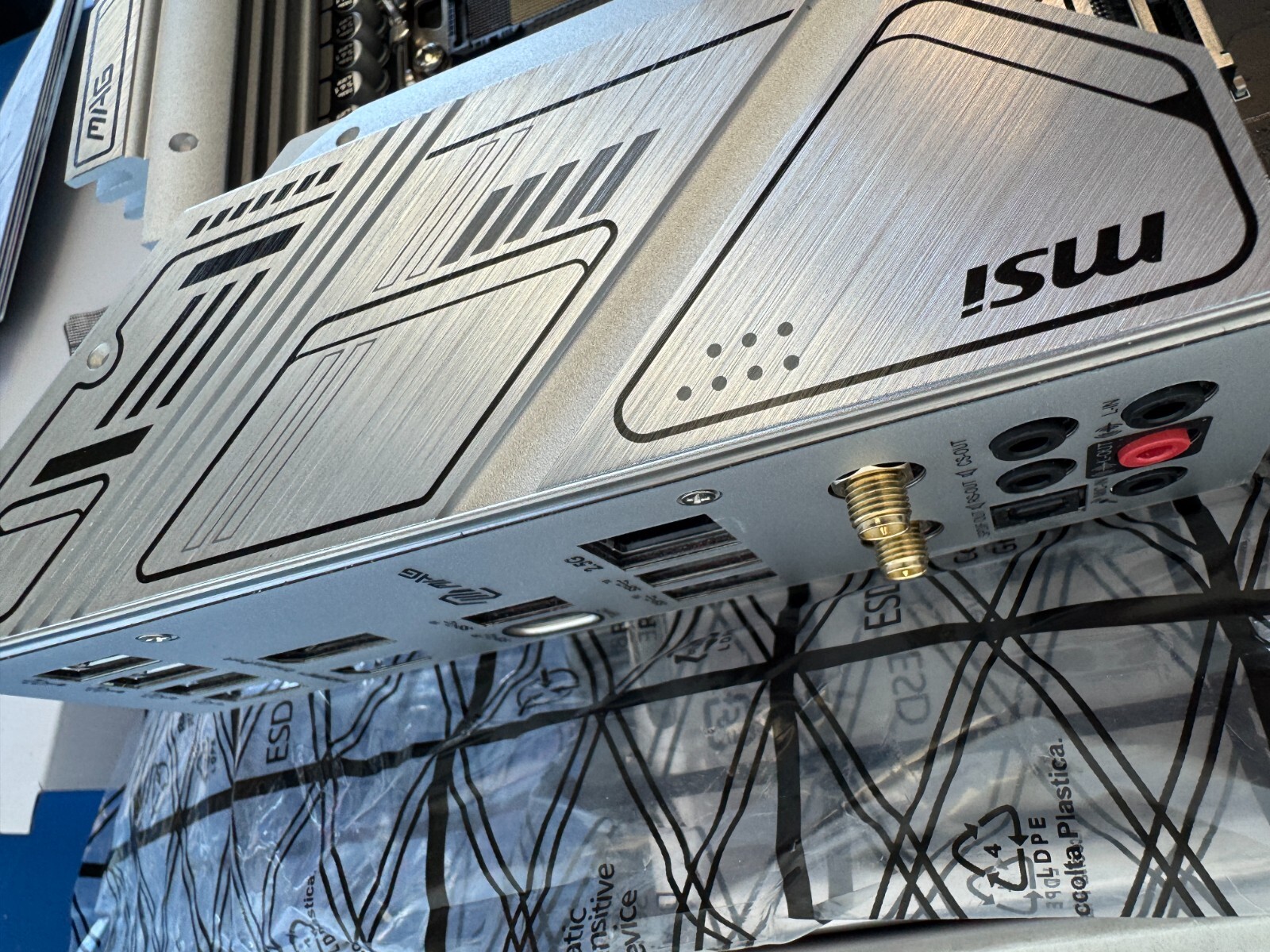

Rear Panel Ports

Back I/O Ports

1 x DisplayPort 1.4
3 x USB 3.2 Gen 2 10Gbps Type-A
1 x 2.5G LAN Port
2 x Wi-Fi / Bluetooth
6 x HD Audio Connectors
4 x USB 2.0
1 x HDMI 2.1 Port
1 x USB 3.2 Gen 2×2 20Gbps Type-C

Internal I/O Connectors

Onboard USB

4 x USB 2.0 ports
2 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2 Type C ports

Other Connectors

1 x CPU Fan
1 x Pump Fan
4 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
2 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
1 x USB4 card connector (JTBT_U4_1, supports RTD3)

Software Feature

Windows 11

Supported

Physical Spec

Form Factor

Micro ATX

LED Lighting

4 x EZ Debug LED

Dimensions (W x L)

9.6″ x 9.6″

Power Pin

1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)

Features

Features

Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
