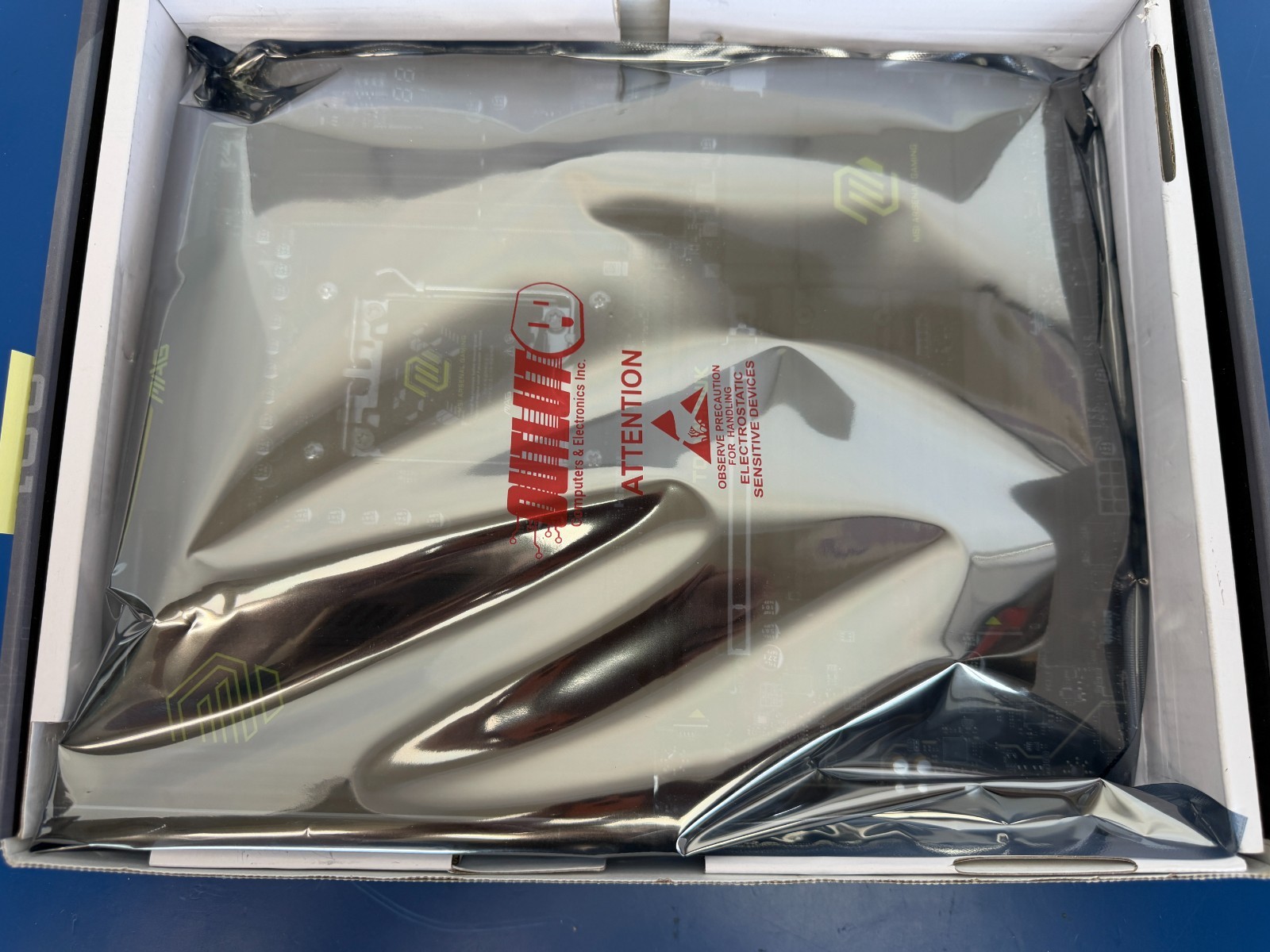

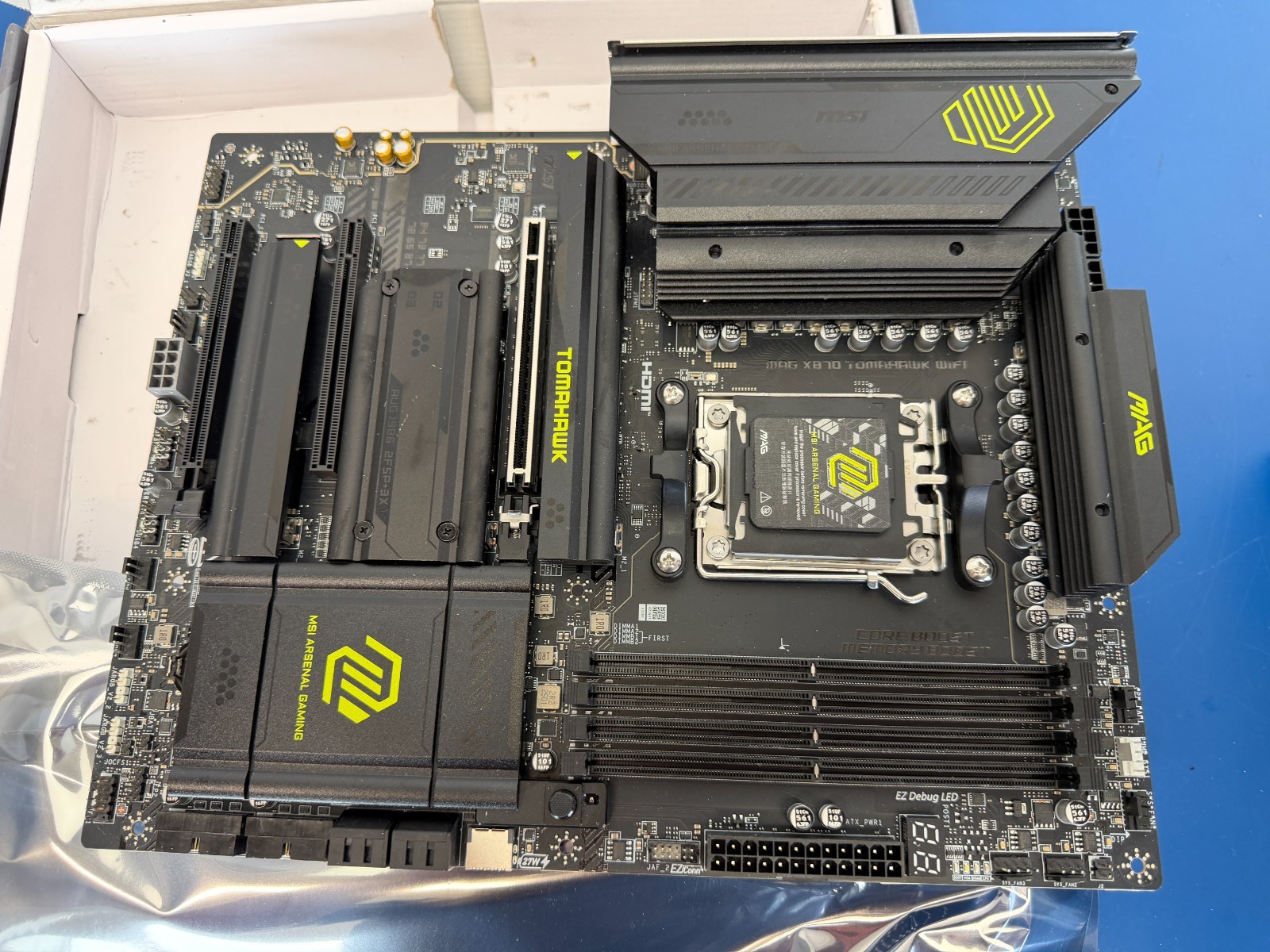

MISSING ONE OF THE M.2 Heatsink!  Otherwise Pristine condition never used open box.  Professionally tested to ensure 100% functionality.

Learn more about MSI MAG X870 TOMAHAWK WIFI

Model

Brand

MSI

Model

MAG X870 TOMAHAWK WIFI

Supported CPU

CPU Socket Type

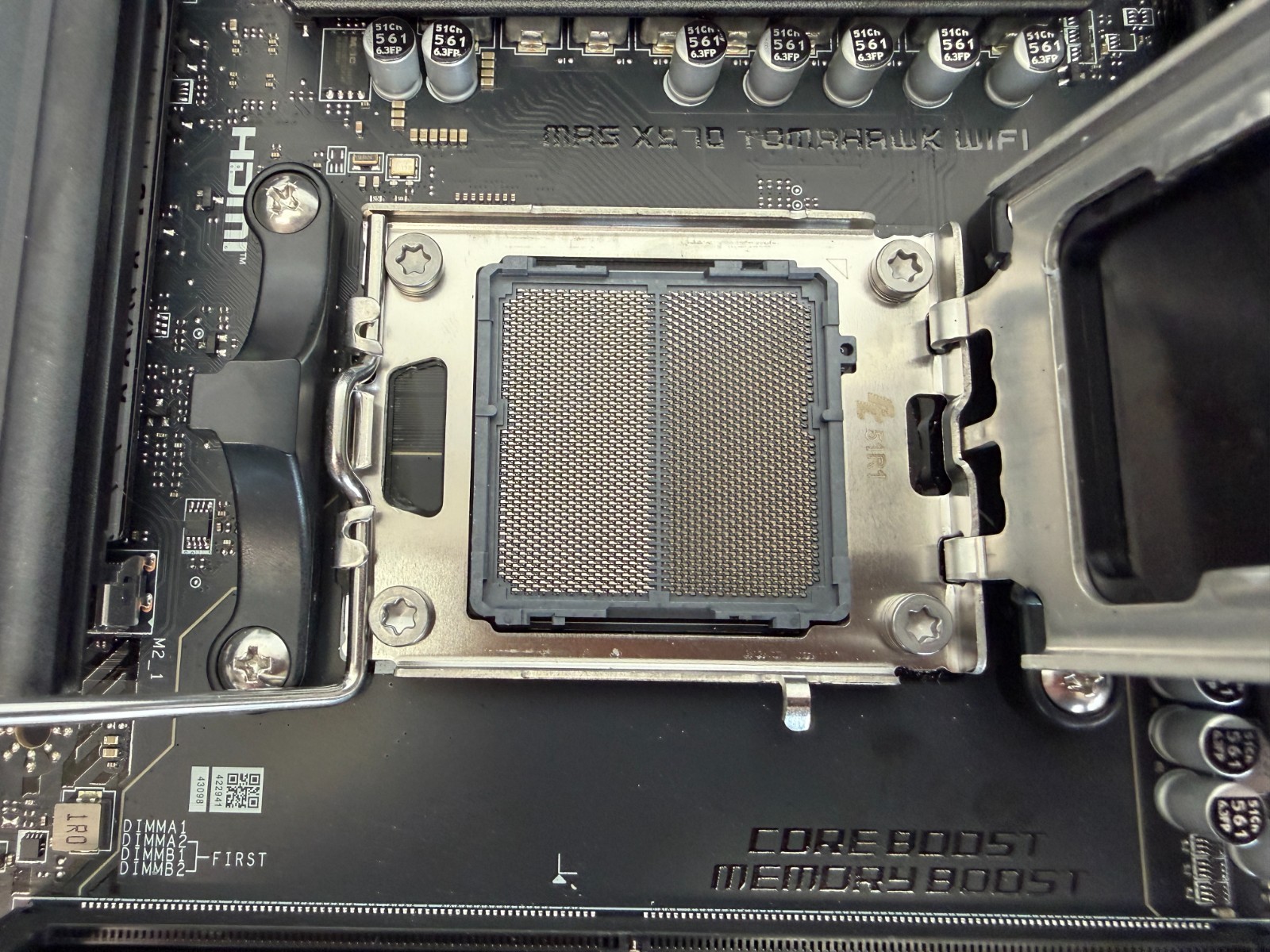

AM5

CPU Type

Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets

Chipset

AMD X870

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400

Maximum Memory Supported

256GB

Channel Supported

Dual Channel

ECC Supported

Non-ECC

Buffer Supported

Un-buffered

Expansion Slots

PCI Express 5.0 x16

PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16

PCI Express x4

PCI_E3 slot (From Chipset X870) Supports up to PCIe 4.0 x4

PCI Express x1

PCI_E2 slot (From Chipset X870) Supports up to PCIe 3.0 x1

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

M2_1 slot (From CPU)
– Supports up to PCIe 5.0 x4
– Supports 2280/110 storage devices
M2_2 slot (From CPU)
– Supports up to PCIe 5.0 x4
– Supports 2260/80 storage devices
M2_3 slot (From Chipset)
– Supports up to PCIe 4.0 x2
– Supports 2260/80 storage devices
M2_4 slot (From Chipset)
– Supports up to PCIe 4.0 x4
– Supports 2260/80 storage devices
* The M2_2 slot will be unavailable when using Ryzen 5 8500G processor.
** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot

SATA RAID

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Onboard Audio

Audio Chipset

Realtek ALC4080

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Realtek 8126-VB

Max LAN Speed

5Gbps

Wireless LAN

Wi-Fi 802.11 be

Bluetooth

Bluetooth 5.4

Rear Panel Ports

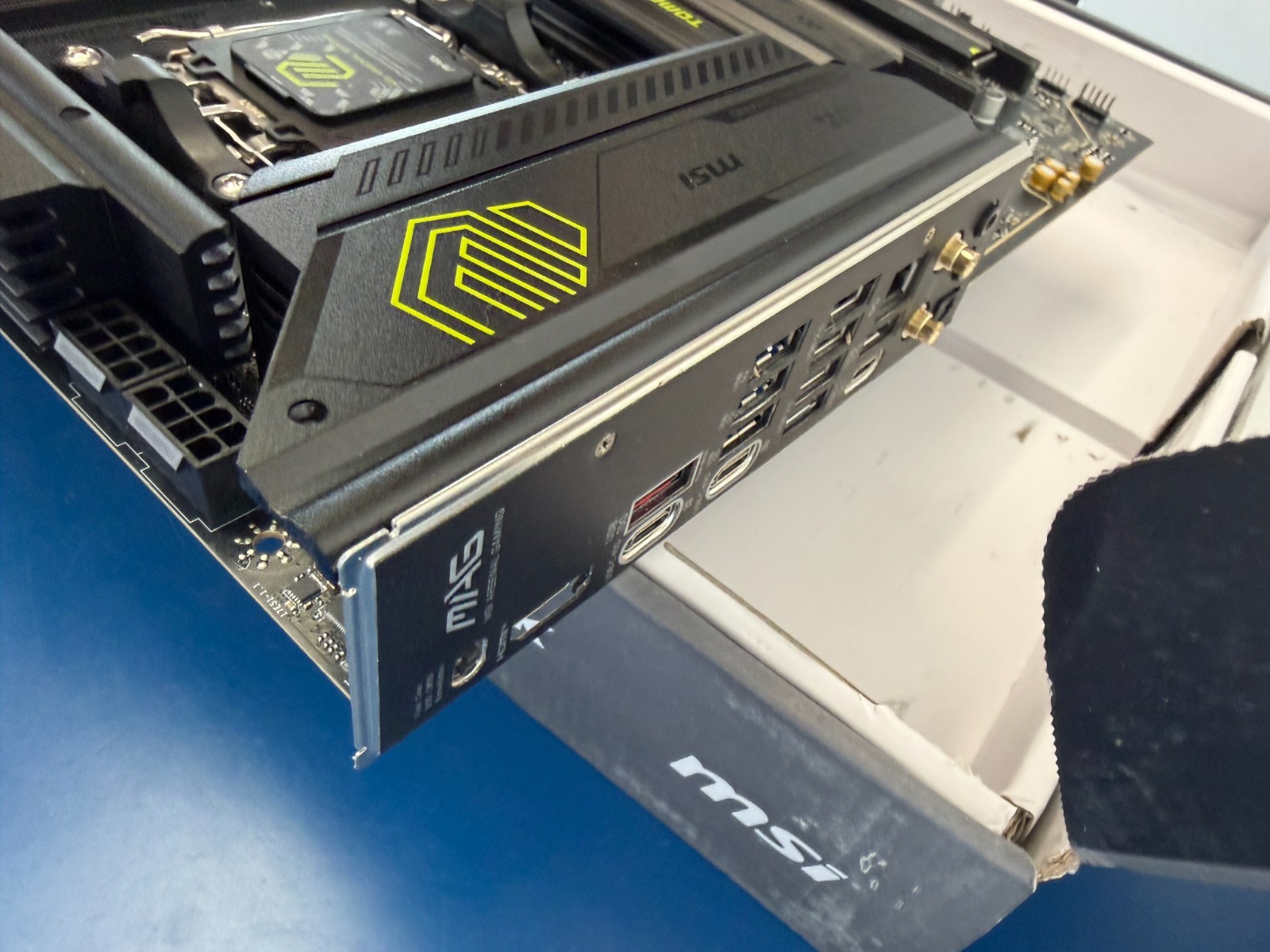

Back I/O Ports

1 x Flash BIOS button
1 x Clear CMOS button
1 x HDMI port
1 x USB 10Gbps Type-A (From CPU)
1 x USB 10Gbps Type-A (From X870 chipset)
1 x USB 10Gbps Type-C (From X870 chipset)
2 x USB 40Gbps Type-C (From ASM4242)
3 x USB 5Gbps Type-A (From GL3523)
4 x USB 2.0 Type-A ports (From GL850)
1 x 5Gbps LAN (RJ45) port
2 x Wi-Fi Antenna connectors
2 x audio jacks
1 x Optical S/PDIF Out connector

Internal I/O Connectors

Onboard USB

AMD X870 Chipset
– 1 x USB 20Gbps Type-C front panel port with Power Delivery Supports up to 27W fast charging
– 2 x USB 5Gbps connectors Supports additional 4 USB 5Gbps ports
– 2 x USB 2.0 connectors Supports additional 4 USB 2.0 ports

Other Connectors

Fan Connectors
– 1x 4-pin CPU fan connector
– 6x 4-pin system fan connectors
– 1x 4-pin water-pump/ system fan connector
– 1x EZ Conn-Header V2 (JAF_2 with 11-Pin)

System Connectors
– 1x Front panel audio connector
– 2x System panel connectors
– 1x Chassis Intrusion connector
– 1x TPM module connector

Jumpers
– 1x Clear CMOS jumper
– 1x OC safe boot BIOS jumper

Physical Spec

Form Factor

ATX

LED Lighting

1 x 4-pin RGB LED connector
3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
4 x EZ Debug LED
1 x 2-Digit Debug Code LED
1 x EZ Conn-Header V2 (JAF_2 with 11-Pin)

Dimensions (W x L)

12.0″ x 9.6″

Power Pin

1 x 24-pin Power Connector (ATX_PWR)
2 x 8-pin Power Connector (CPU_PWR)
1 x 8-pin Power Connector (PCIE_PWR)

Software Feature

BIOS Feature

1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.7
Multi-language

Software

Drivers
MSI Center
Acrobat
Adobe Creative Cloud
AIDA64 Extreme-MSI Edition
CPU-Z MSI GAMING
MSI App Player (BlueStacks)
Norton 360

Features

Features

MSI Center Features
– MSI AI Engine
– Game Highlights
– Frozr AI Cooling
– Hardware Monitoring
– Live Update
– MSI Companion
– System Diagnosis
– Cooling Wizard
– LAN Manager
– Mystic Light
– Ambient Link
– True Color
– User Scenario
– Super Charger +

Thermal Features

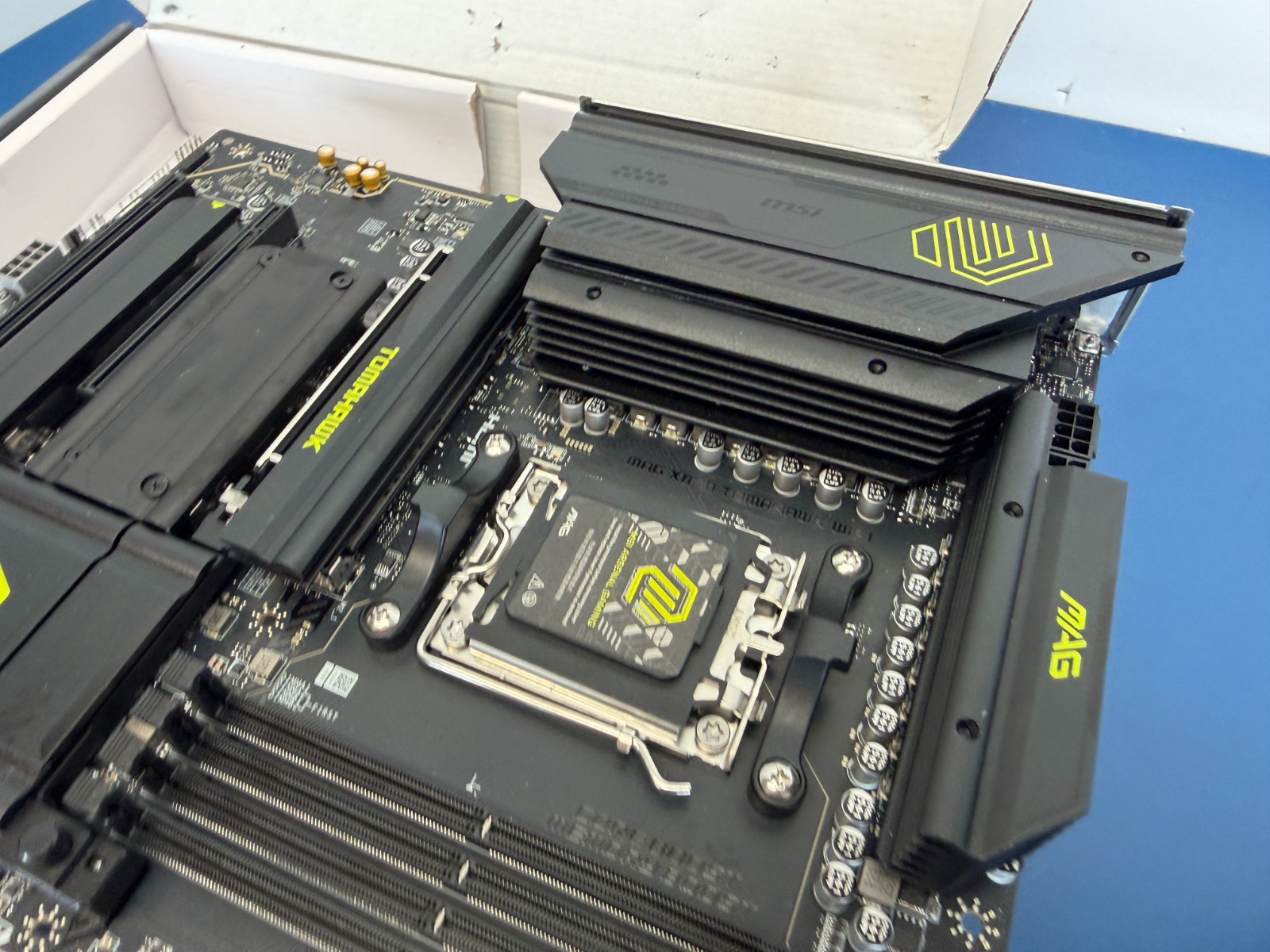

– K7 MOSFET thermal pad / K5 Extra choke pad
– Extended Heatsink Design
– Fan headers (CPU + Combo+PUMP + SYSTEM)
– M.2 Shield Frozr

Performance
– Lightning Gen 5 PCI-E Slot / M.2
– Lightning Gen 4 PCI-E Slot / M.2
– Front USB Type-C
– USB with PD
– Supplemental PCIe Power Connector
– Core Boost
– Dual CPU Power
– Memory Boost
– Server Grade PCB
– 2oz Copper thickened PCB

DIY Friendly
– EZ M.2 Sheild Frozr II
– EZ M.2 Clip II
– EZ PCIe Release
– Flash BIOS Button
– Clear CMOS Button
– Pre-installed I/O Shield
– EZ Antenna
– EZ Front Panel Cable
– EZ Conn-Design
– PCI-E STEEL ARMOR II
– EZ Digi-Debug LED
– EZ LED Control

Audio
– Audio Boost 5

RGB Support
– Mystic Light
– Mystic Light Extension (RGB)
– Mystic Light Extension (ARGB V2)
– Ambient Devices Support

BIOS
– Click BIOS X
– AI Boost
– Performance Preset
