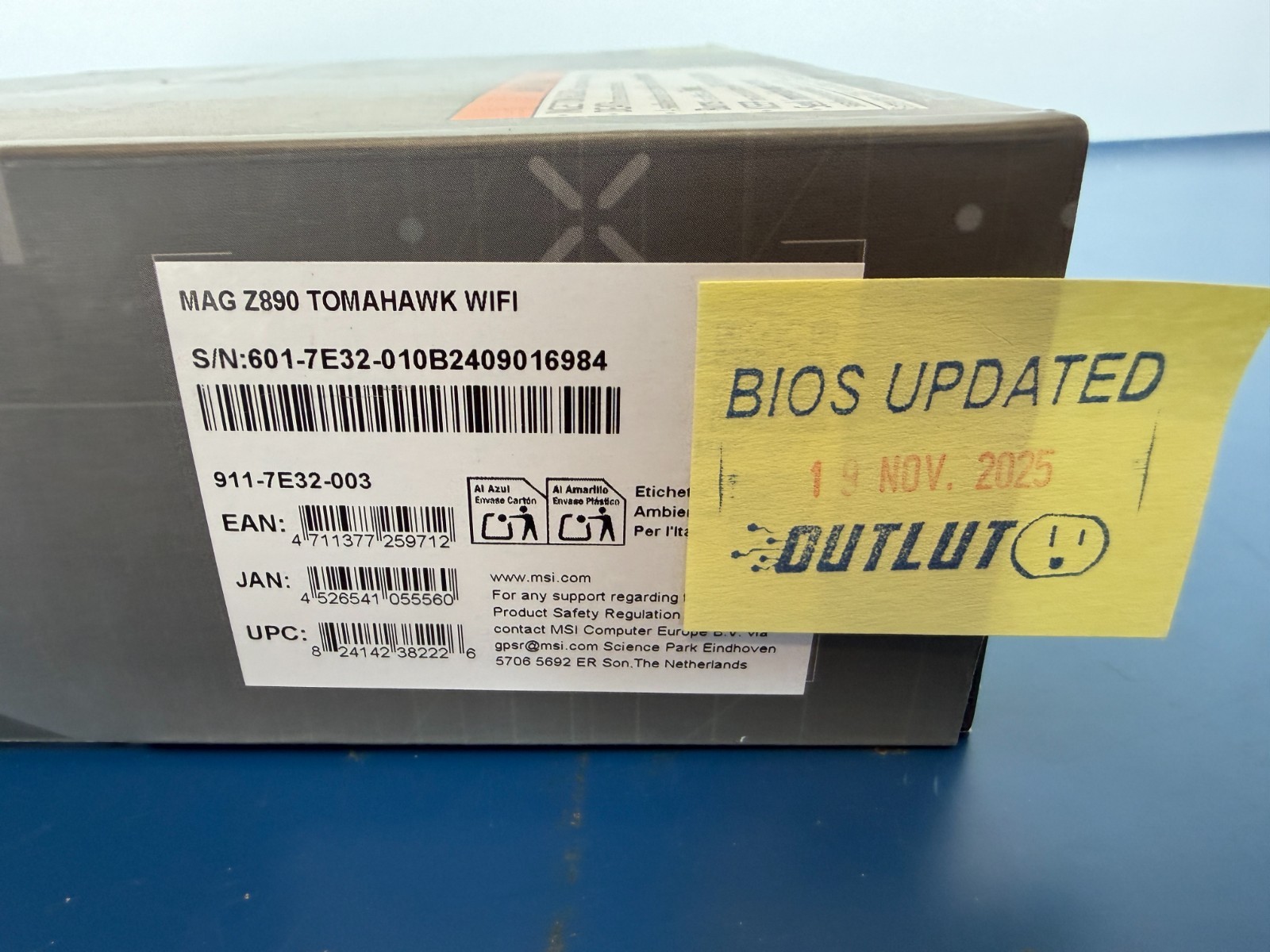

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Learn more about MSI MAG Z890 TOMAHAWK WIFI

Model

Brand

MSI

Model

MAG Z890 TOMAHAWK WIFI

Supported CPU

CPU Socket Type

LGA 1851

CPU Type

Intel Core Ultra Processors (Series 2)

Chipsets

Chipset

Intel Z890

Memory

Number of Memory Slots

4x288pin (DDR5)

Maximum Memory Supported

256GB

Channel Supported

Dual Channel

Memory Feature

Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

Expansion Slots

PCI Express 5.0 x16

1 x PCI Express 5.0 x16

PCI Express 4.0 x16

2 x PCI Express 4.0 x16

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

2 x Key M (CPU) + 1 x Key M (PCIe/SATA) + 1 x Key M(PCIe) + 1 x Key E (WiFi/BT)

Onboard Audio

Audio Chipset

Realtek ALC1220

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Killer E5000B-CG

Max LAN Speed

5Gbps

Wireless LAN

WIFI 7

Bluetooth

Yes

Rear Panel Ports

Back I/O Ports

1 x Audio Jack / 1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2 / 2 x Thunderbolt 4 / 3 x USB 3.1 Gen 2 Type-A / 4 x USB 3.0

Software Feature

Windows 11

Supported

Physical Spec

Form Factor

ATX
