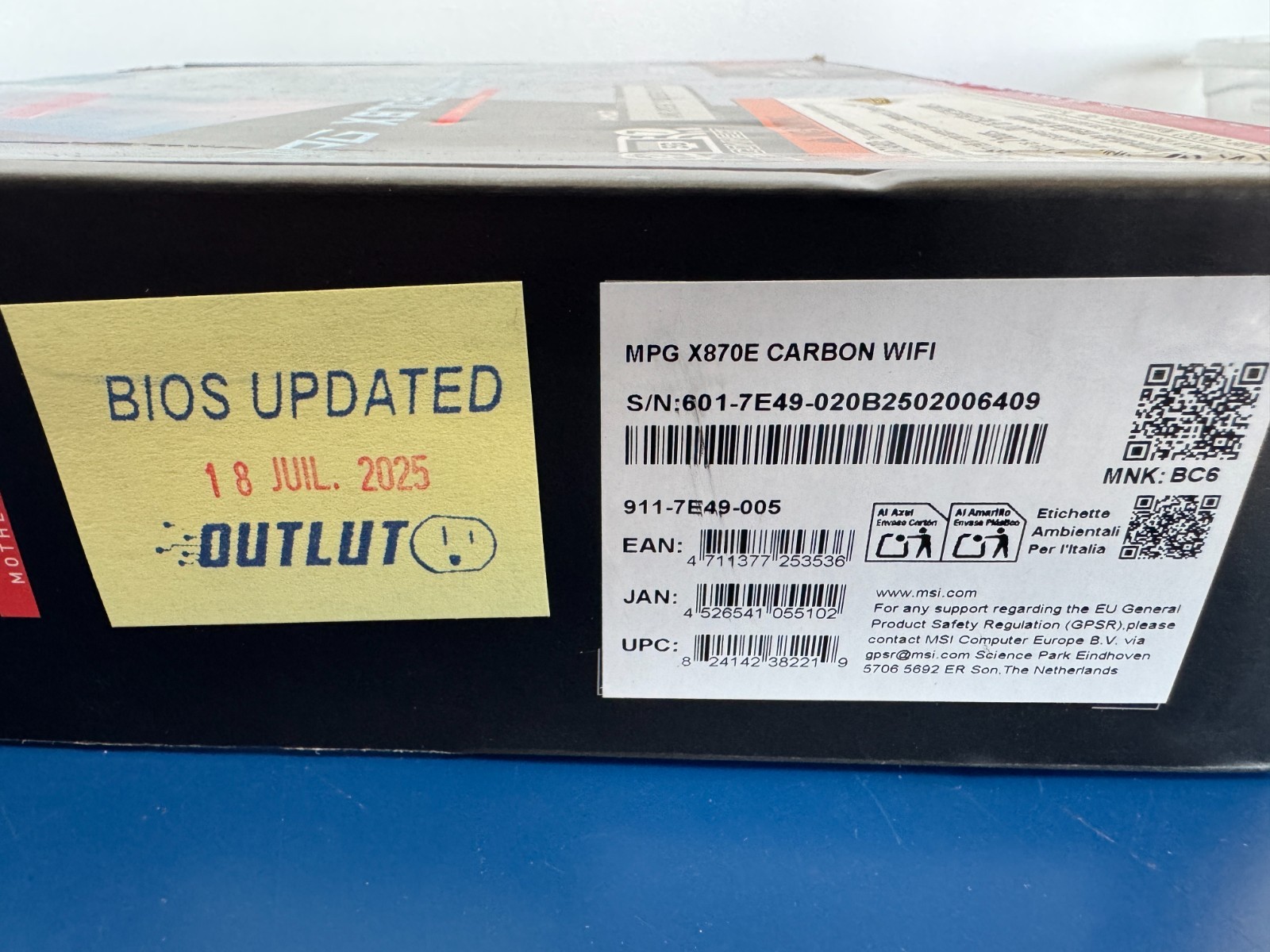

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.

Learn more about MSI MPG X870E CARBON WIFI

Model

Brand

MSI

Model

MPG X870E CARBON WIFI

Supported CPU

CPU Socket Type

AM5

CPU Type

Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets

Chipset

AMD X870E

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400

Maximum Memory Supported

256GB

Channel Supported

Dual Channel

ECC Supported

Non-ECC

Buffer Supported

Un-buffered

Memory Feature

Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
– 1DPC 1R Max speed up to 8400+ MT/s
– 1DPC 2R Max speed up to 6400+ MT/s
– 2DPC 1R Max speed up to 6400+ MT/s
– 2DPC 2R Max speed up to 4800+ MT/s

Expansion Slots

PCI Express 5.0 x16

PCI_E1 slot (From CPU): Support up to PCIe 5.0 x16
PCI_E2 slot (From CPU): Support up to PCIe 5.0 x4
* Supports x16/x0 or x8/x4 (For Ryzen 9000/7000 Series processors)
* Supports x8/x0 (For Ryzen 7 8700G and Ryzen 5 8600G processor)
* Supports x4/x0 (For Ryzen 5 8500G processor)

PCI Express x4

PCI_E3 slot (From X870E chipset): Supports up to PCIe 4.0 x1

Other Slots

* PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

4 x M.2 slots (Key M)
M2_1 slot (From CPU)
– Supports up to PCIe 5.0 x4
– Supports 2260/2280 storage devices
M2_2 slot (From CPU)
– Supports up to PCIe 5.0 x4
– Supports 2260/2280 storage devices
M2_3 slot (From Chipset)
– Supports up to PCIe 4.0 x4
– Supports 2280/22110 storage devices
M2_4 slot (From Chipset
– Supports up to PCIe 4.0 x4
– Supports 2260/2280 storage devices

* PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.

SATA RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Additional RAID Controller

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Onboard Audio

Audio Chipset

Realtek ALC4080

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Realtek 8126 5Gbps LAN controller

Second LAN Chipset

Realtek 8125 2.5Gbps LAN controller

Max LAN Speed

5Gbps + 2.5Gbps

Wireless LAN

Wi-Fi 802.11 be

Bluetooth

Bluetooth 5.4

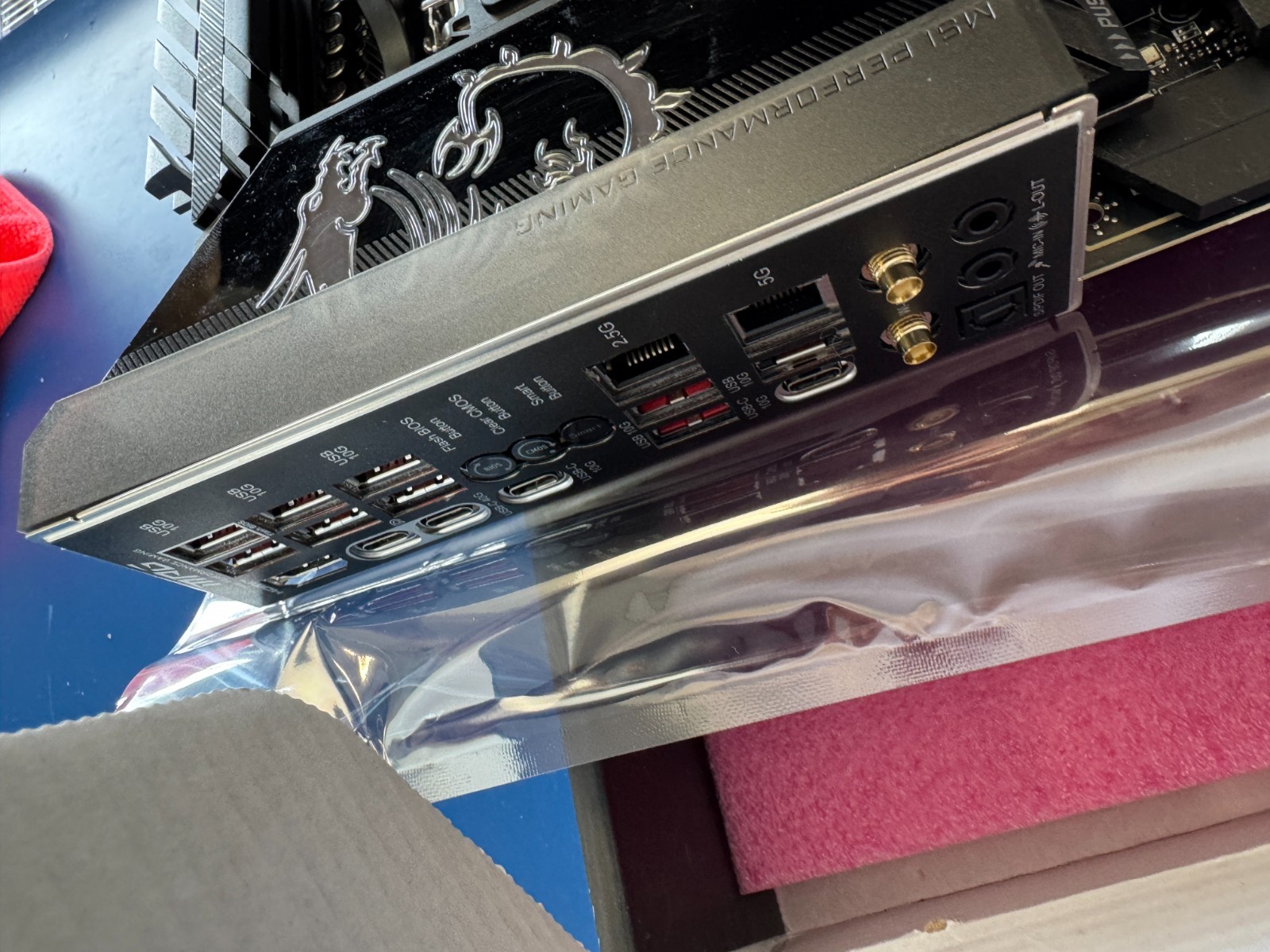

Rear Panel Ports

Back I/O Ports

2 x USB 10Gbps Type A (From X870E Chipset)
4 x USB 10Gbps Type A (From RTS5420)
1 x HDMI port
2 x USB 40Gbps Type-C (From CPU/ASM4242)
2 x USB 10Gbps Type C (1 from CPU/ 1 from X870E Chipset)
3 x USB 10Gbps Type A (1 from CPU/ 1 from X870E Chipset)
1 x Clear CMOS Button
1 x Flash BIOS Button
1 x Smart Button
1 x 5G LAN (RJ45) port
1 x 2.5G LAN (RJ45) port
2 x Wi-Fi Antenna connectors
2 x audio jacks
1 x Optical S/PDIF Out connector

Internal I/O Connectors

Other Connectors

AMD X870 Chipset
– 1x USB 3.2 Gen 2×2 20Gbps Type-C connectors Supports up to 27W fast charging
– 2x USB 3.2 Gen 1 5Gbps connectors Supports additional 4 USB 3.2 Gen 1 5Gbps ports
– 2x USB 2.0 Type-A connectors Supports additional 4 USB 2.0 ports

Fan Connectors
– 1x 4-pin CPU fan connector
– 1x 4-pin PUMP_SYS fan connectors
– 5x 4-pin system fan connectors

System Connectors
– 1x Front panel audio connector
– 2x System panel connectors
– 1x Chassis Intrusion connector
– 1x 2-pin Thermal sensor connectors
– 1x EZ Conn-Header V2 (JAF_2)

Jumpers
– 1x Clear CMOS jumper
– 1x OC safe boot jumper

Physical Spec

Form Factor

ATX

LED Lighting

1 x 4-pin RGB LED connector
3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
4 x EZ Debug LED
1 x 2-Digit Debug Code LED

Dimensions (W x L)

12.0″ x 9.6″

Power Pin

1 x 24-pin Power Connector (ATX_PER)
2 x 8-pin Power Connector (CPU_PWR)
1 x 8-pin Power Connector (PCIE_PWR)

Software Feature

BIOS Feature

1 x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.7
Multi-language

Software

Drivers
MSI Center
Acrobat
Adobe Creative Cloud
AIDA64 Extreme-MSI Edition
CPU-Z MSI GAMING
MSI App Player(BlueStacks)
Norton 360
Voicemod

Features

Features

EZ DIY
– Magnetic M.2 Shield Frozr
– EZ M.2 Clip II
– EZ PCIe Release
– Smart Button
– Flash BIOS Button
– Clear CMOS Button
– Pre-installed I/O Shield
– EZ Antenna
– EZ Front Panel Cable
– EZ Conn-Design
– PCI-E Steel Armor II
– EZ Digi-Debug LED
– EZ LED Control (Switch)

Thermal Features
– Heat-pipe Design
– Extended Heatsink Design
– M.2 Shield Frozr
– 7W/mK MOSFET thermal pad
– 5W/mK Extra choke pad
– FAN Headers (CPU*1 + PUMP_SYS*1 + SYSTEM*5)

Performance
– Core Boost
– VRM Power Design (VCore
– M.2 Shield Frozr
– 7W/mK MOSFET thermal pad
– Choke thermal pad
– Fan headers (CPU + PUMP + SYSTEM)

Performance
– Core Boost
– VRM Design
– Dual CPU Power
– Memory Force
– Lightning Gen 5 PCI-E Slot
– Lightning Gen 5 M.2 Slot
– Lightning Gen 4 PCI-E Slot
– Lightning Gen 4 M.2 Slot
– Front USB Type-C
– USB with PD (27W/Front Type-C(
– Supplemental PCIe Power Connector
– Server Grade PCB
– 2oz Copper thickened PCB

Audio
– Audio Boost 5

RGB
– Mystic Light
– Mystic Light Extension (RGB)
– Mystic Light Extension (A-RGB V2)
– Ambient Devices Support

BIOS
– Click BIOS X
– AI Boost
– Performance Preset
