Pristine condition never used open box.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

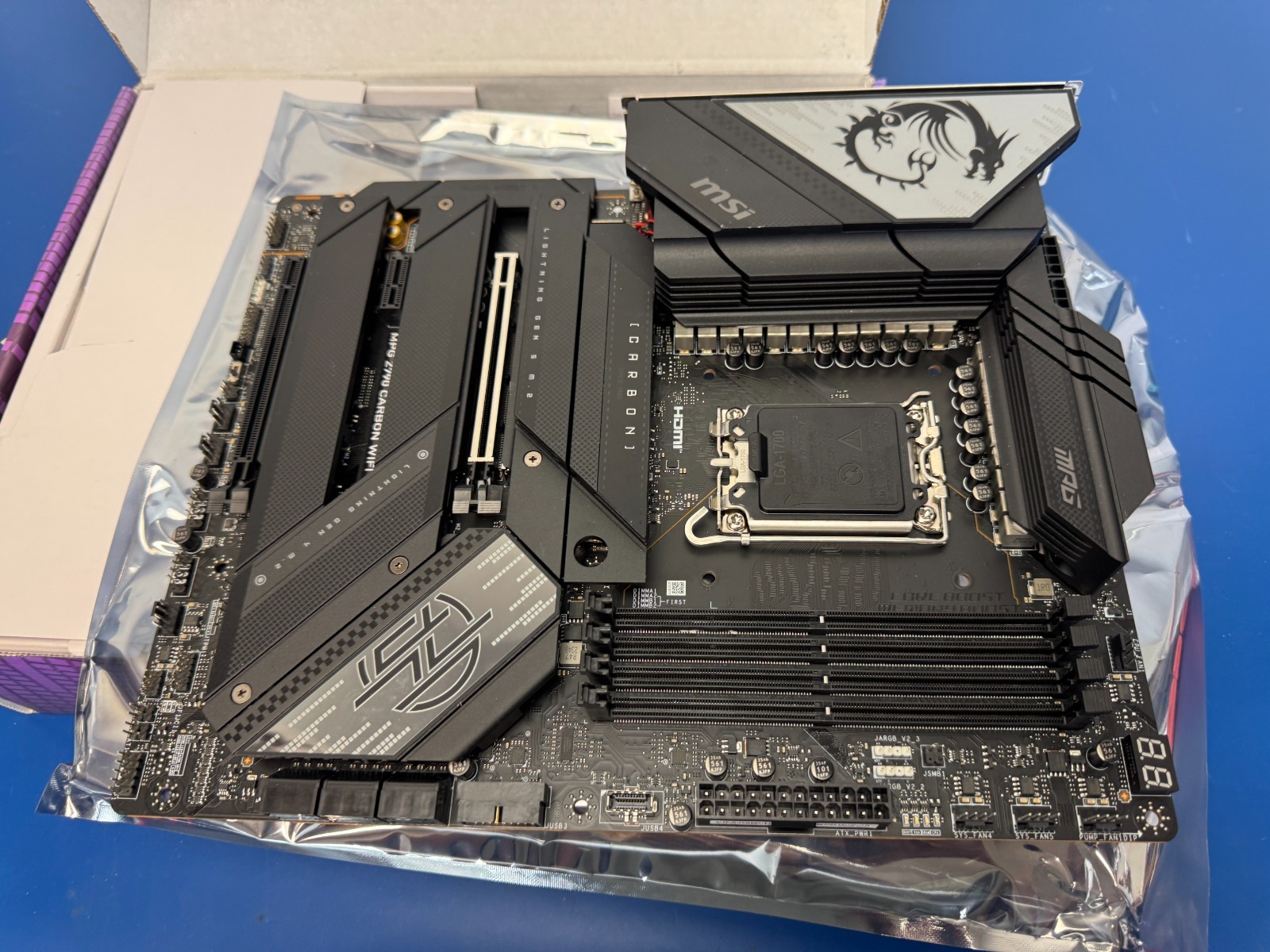

Learn more about MSI MPG Z790 CARBON WIFI II

Model

Brand

MSI

Model

MPG Z790 CARBON WIFI II

Supported CPU

CPU Socket Type

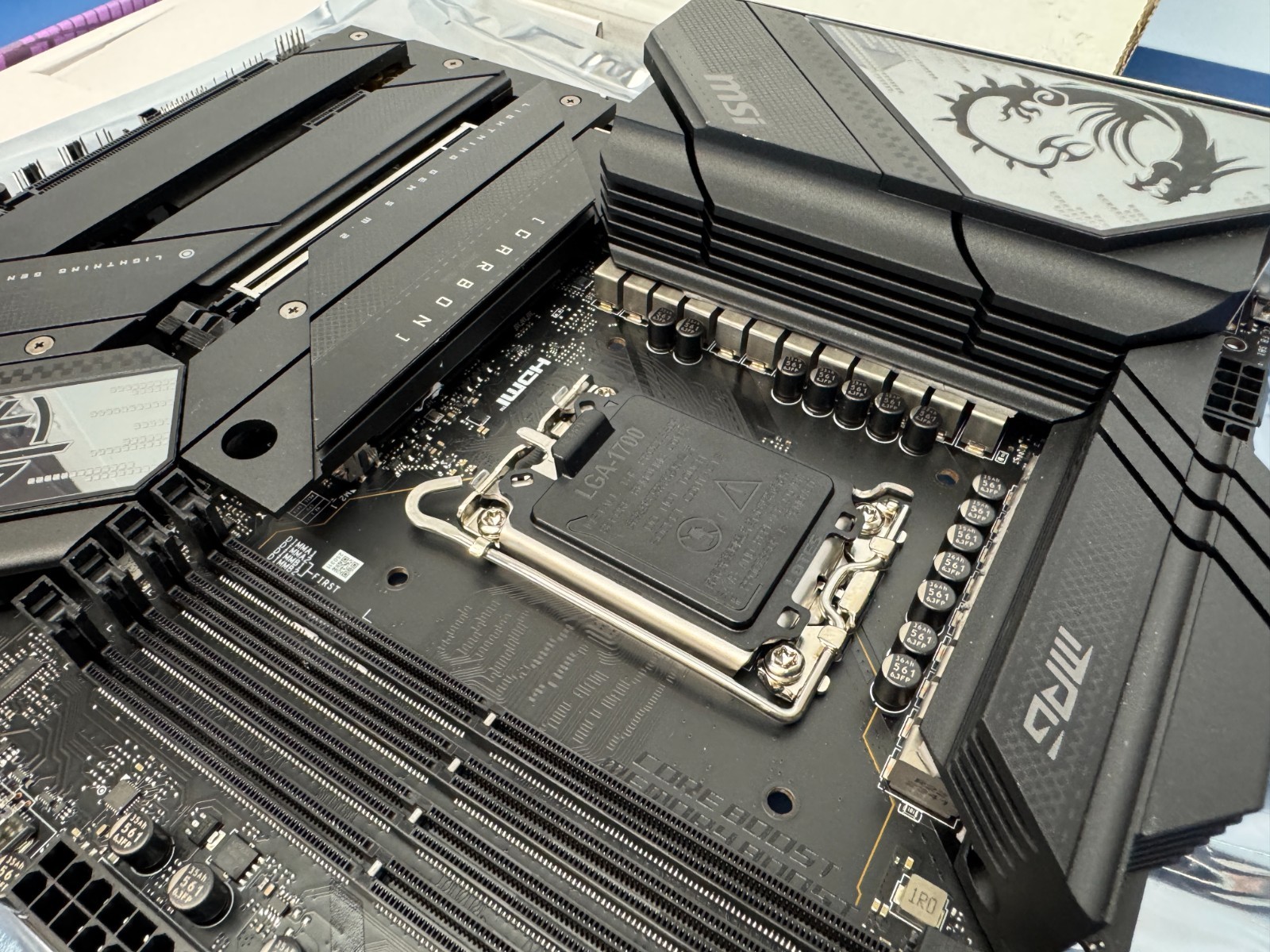

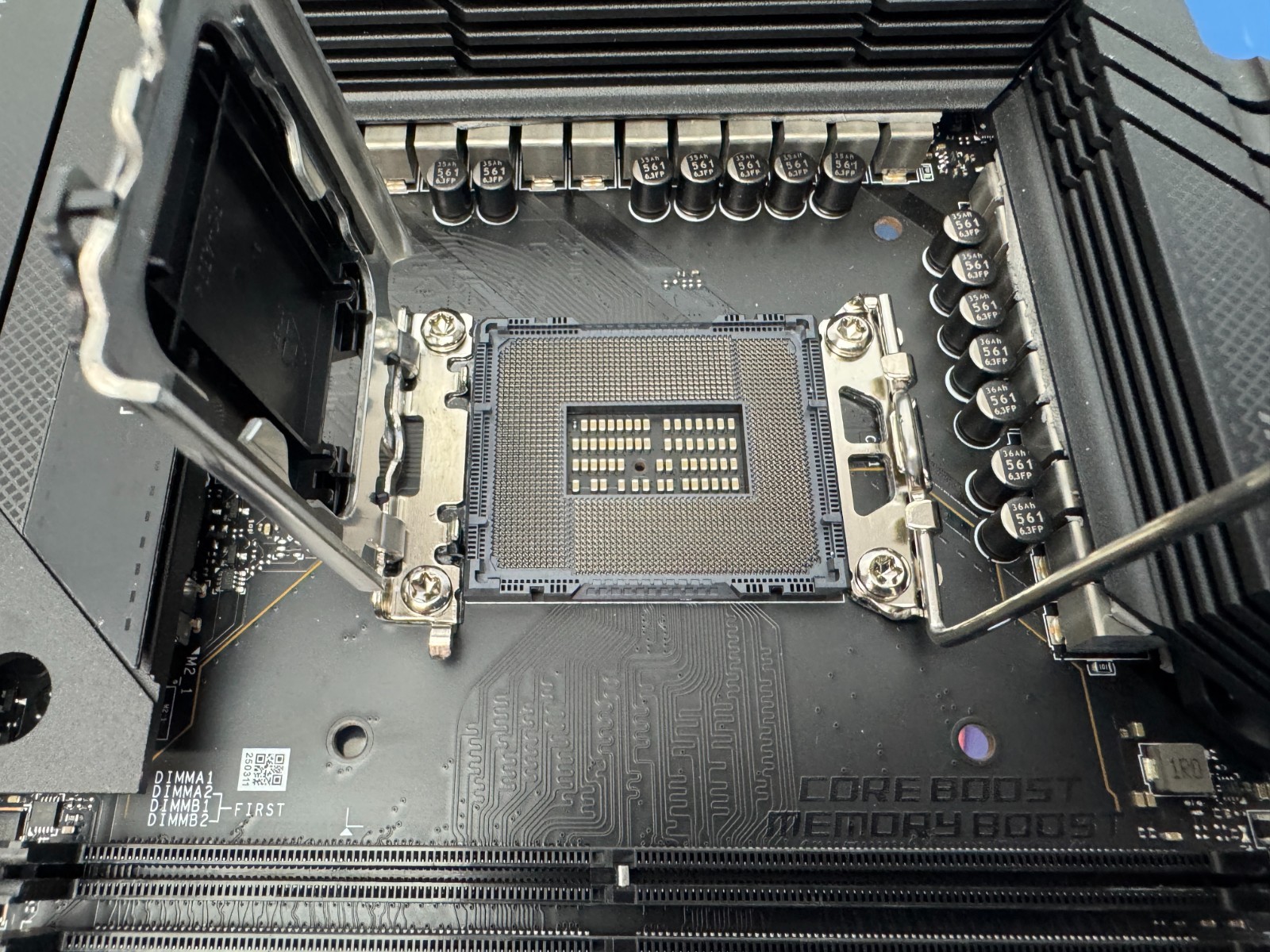

LGA 1700

CPU Type

Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold

Chipsets

Chipset

Intel Z790

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5 5600

Maximum Memory Supported

192GB

Channel Supported

Dual Channel

Memory Performance Profile

Intel XMP 3.0

Memory Feature

Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
– 1DPC 1R Max speed up to 7800+ MHz
– 1DPC 2R Max speed up to 6600+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Expansion Slots

PCI Express 5.0 x16

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI Express x4

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI Express x1

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices

*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot.

SATA RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
* SATA_A1~A2 do not support RAID function.

Additional RAID Controller

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard LAN

Max LAN Speed

2.5Gbps

Wireless LAN

Wi-Fi 7

Bluetooth

Bluetooth 5.4

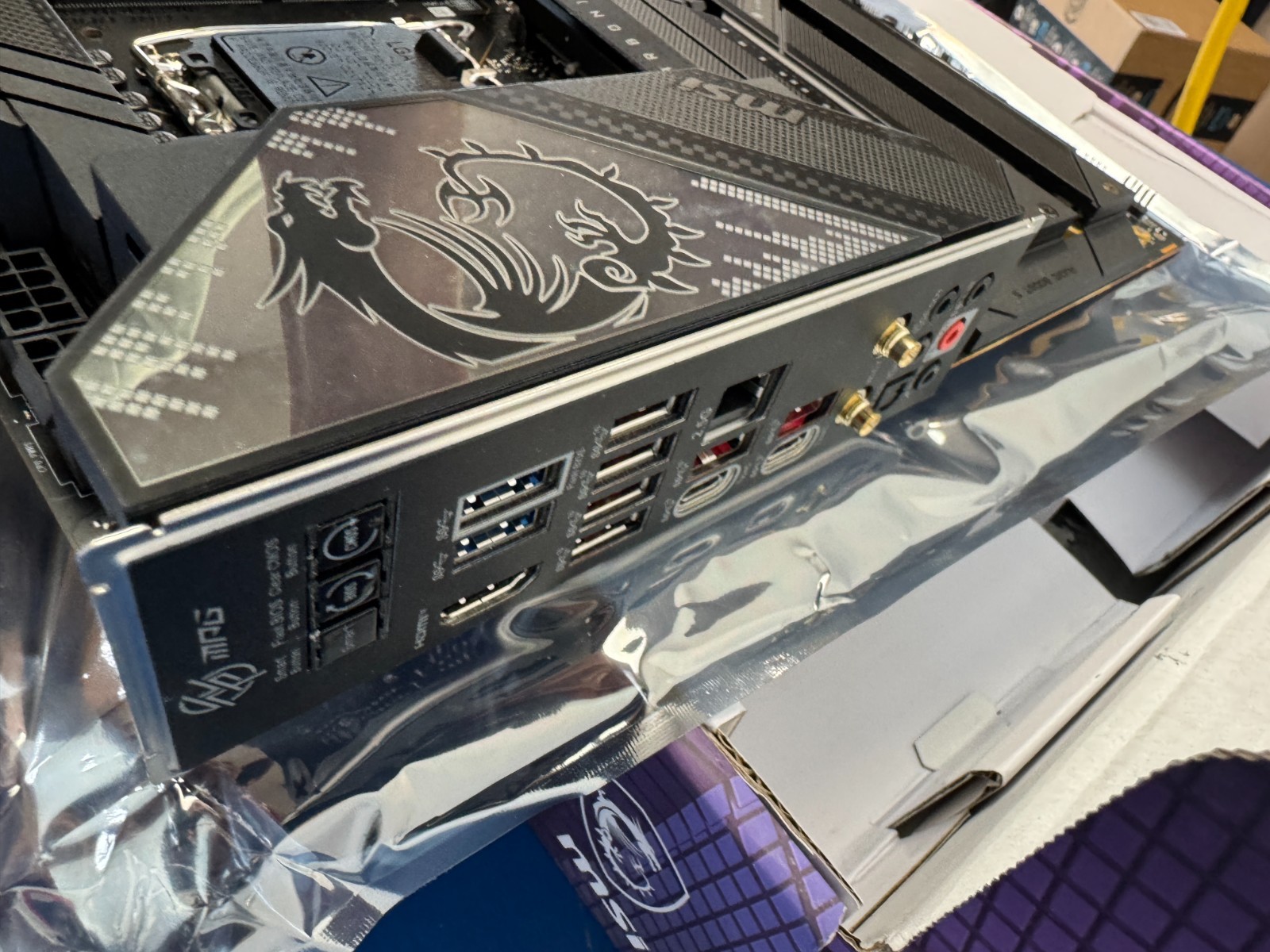

Rear Panel Ports

Back I/O Ports

1 x Flash BIOS / 1 x Clear CMOS
2 x USB 3.2 Gen 1 5 Gbps (Type-A)
6 x USB 3.2 Gen 2 10Gbps (Type-A)
1 x 2.5G LAN
2 x Wi-Fi / Bluetooth
5 x Audio Connectors
1 x Smart Button
1 x HDMI
1 x USB 3.2 Gen 2 10Gbps (Type-C)
1 x USB 3.2 Gen 2×2 20Gbps (Type-C)
1 x Optical S/PDIF Out

Physical Spec

Form Factor

ATX

LED Lighting

4 x EZ Debug LED
1 x 2-Digit Debug Code LED
1 x EZ LED Control switch

Dimensions (W x L)

12.0″ x 9.6″

Windows Compatibility

Windows 11

Supported

Packaging

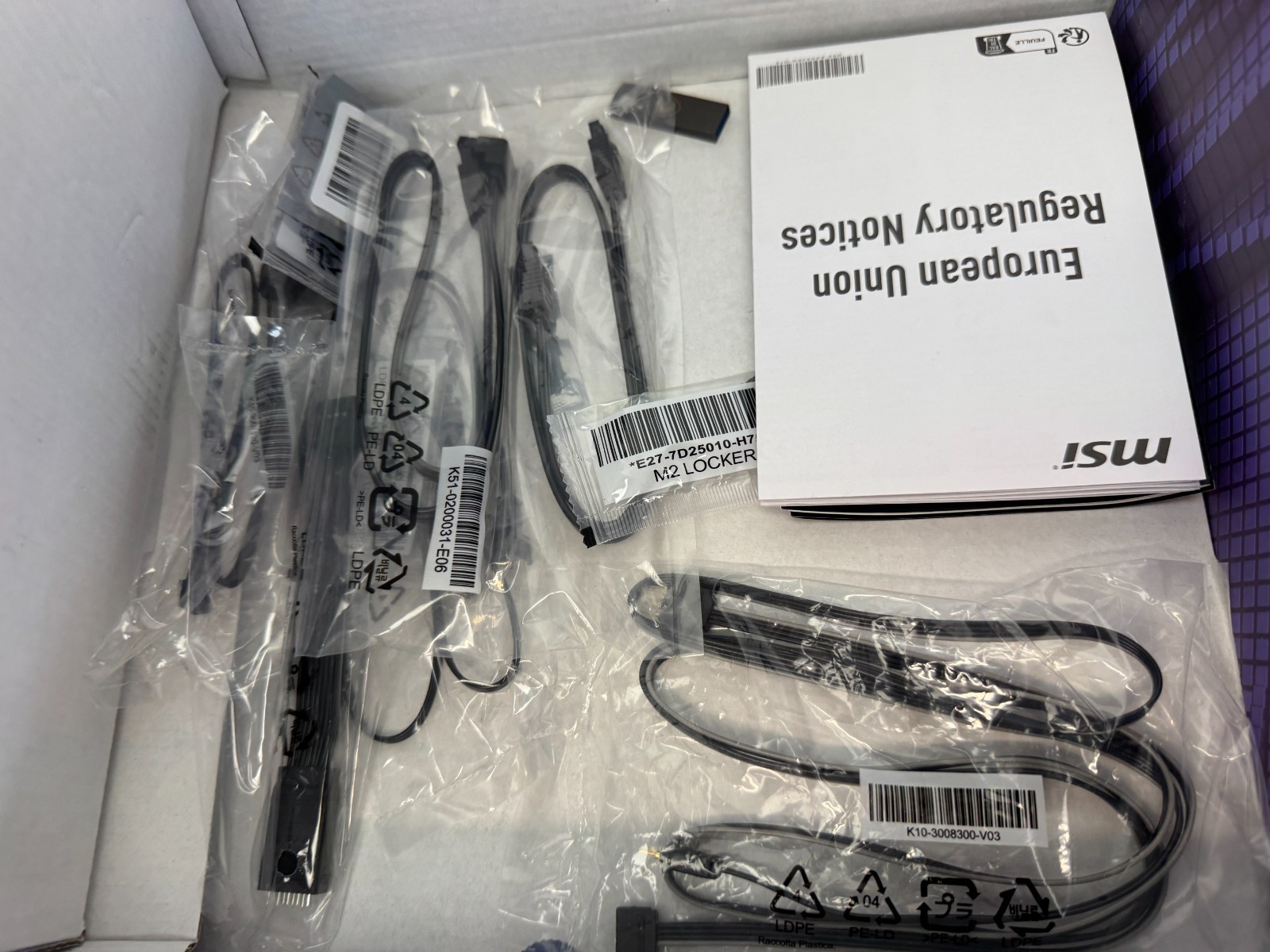

Package Contents

Quick Installation Guide
Cable Sticker
4 x EZ M.2 Clip Packages
Shout out flyer

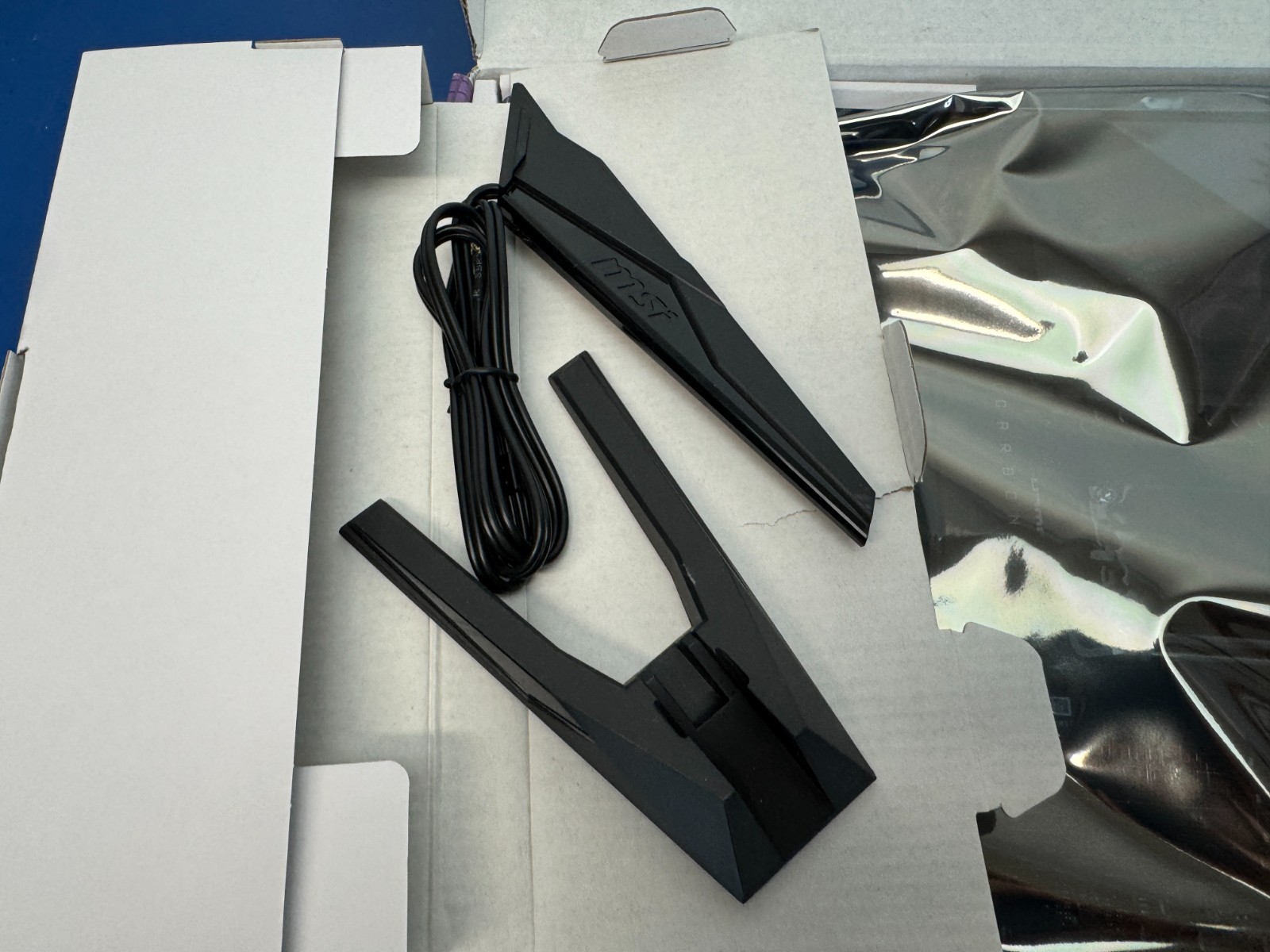

Wi-Fi Antenna
USB Drive
2 x SATA Cables
JARGB Extension Cable
JRGB Extension Cable (1 to 2)
ARGB & Fan Extension Y-Cable Cable
Front panel cable
