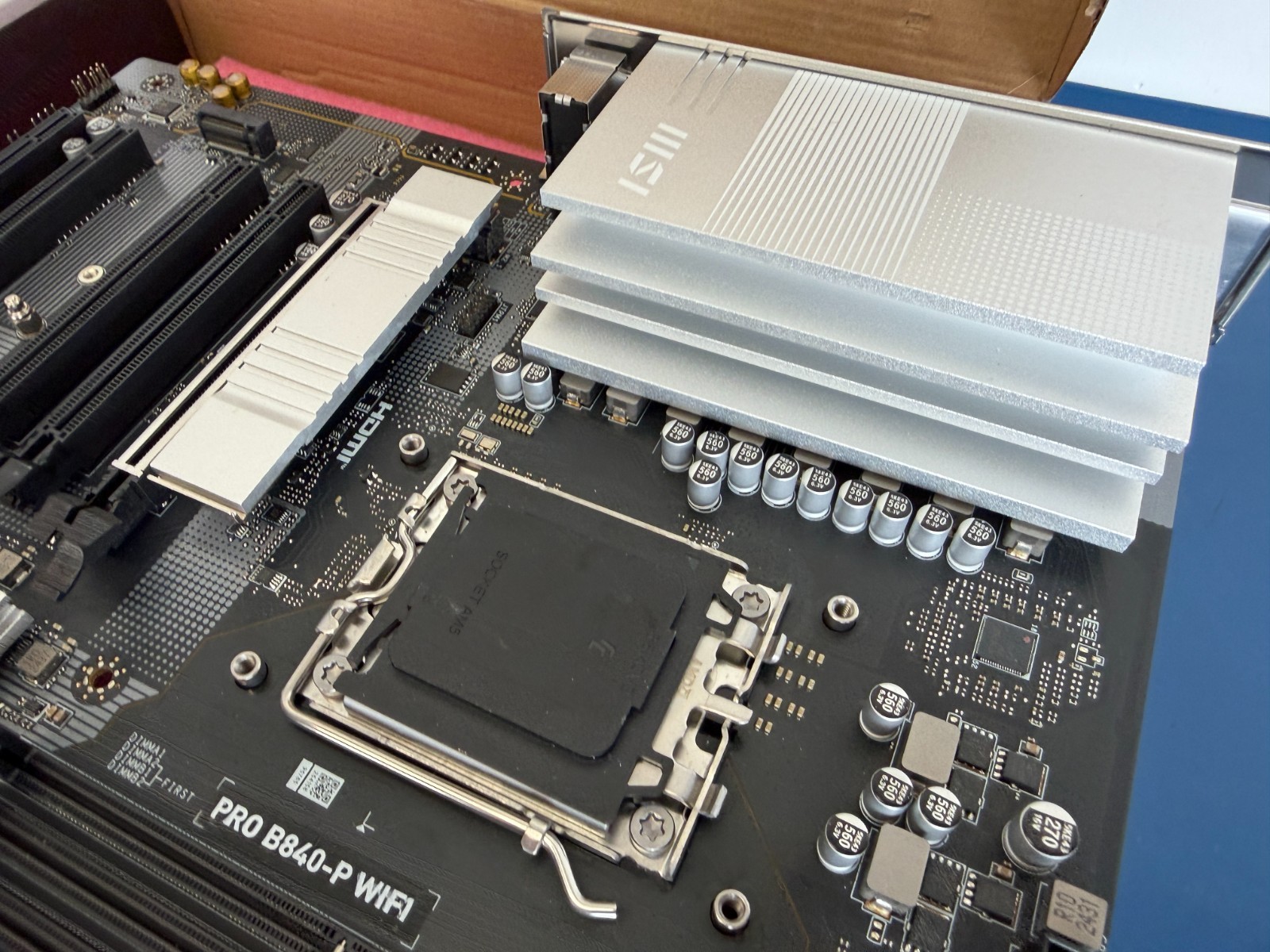

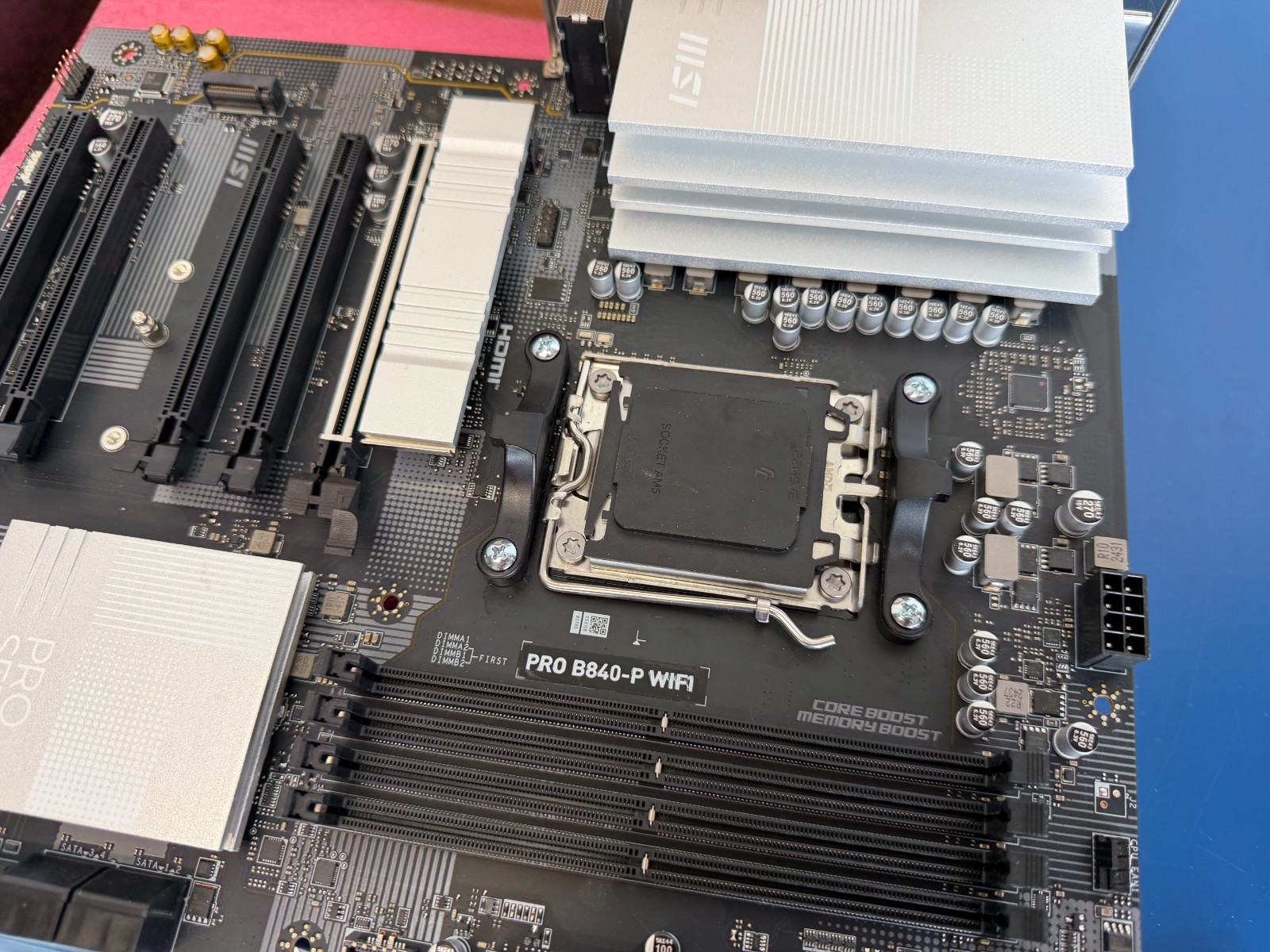

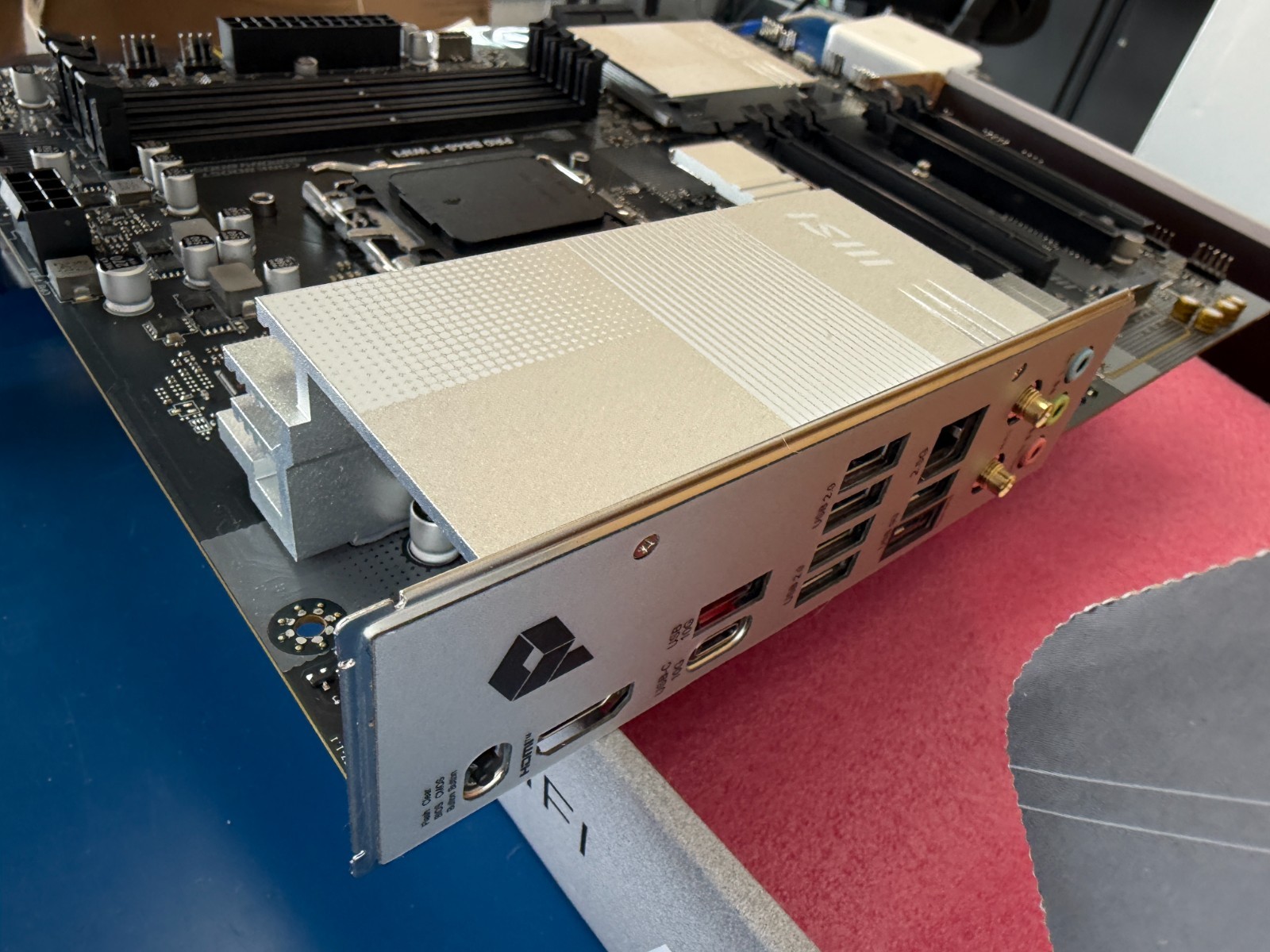

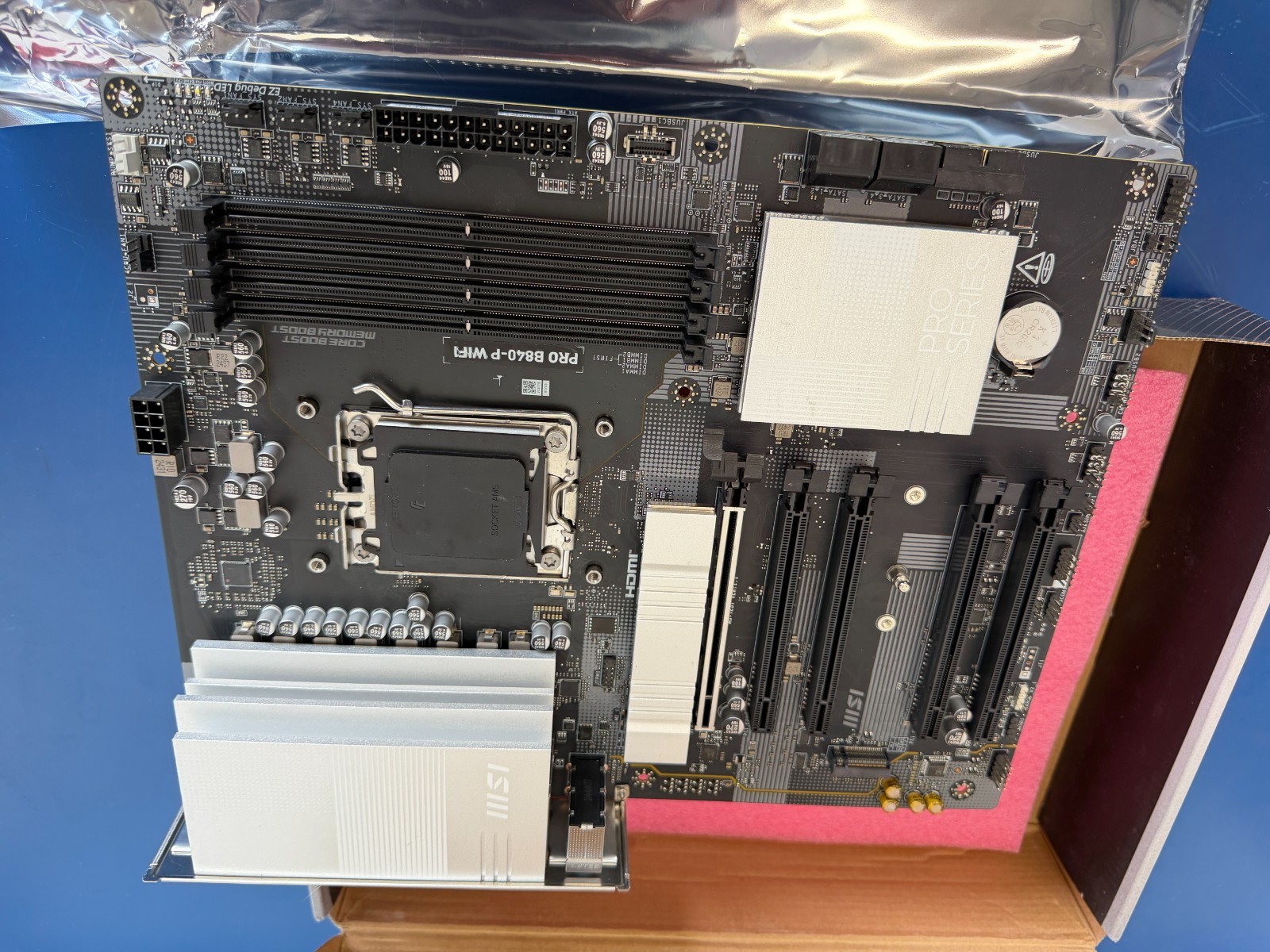

MSI PRO B840-P WIFI AMD B840 Socket AM5 DDR5 PROB840PWIFI ATX Motherboard

Mfr Part Number: PROB840PWIFI

Chipset: AMD B840

CPU:

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

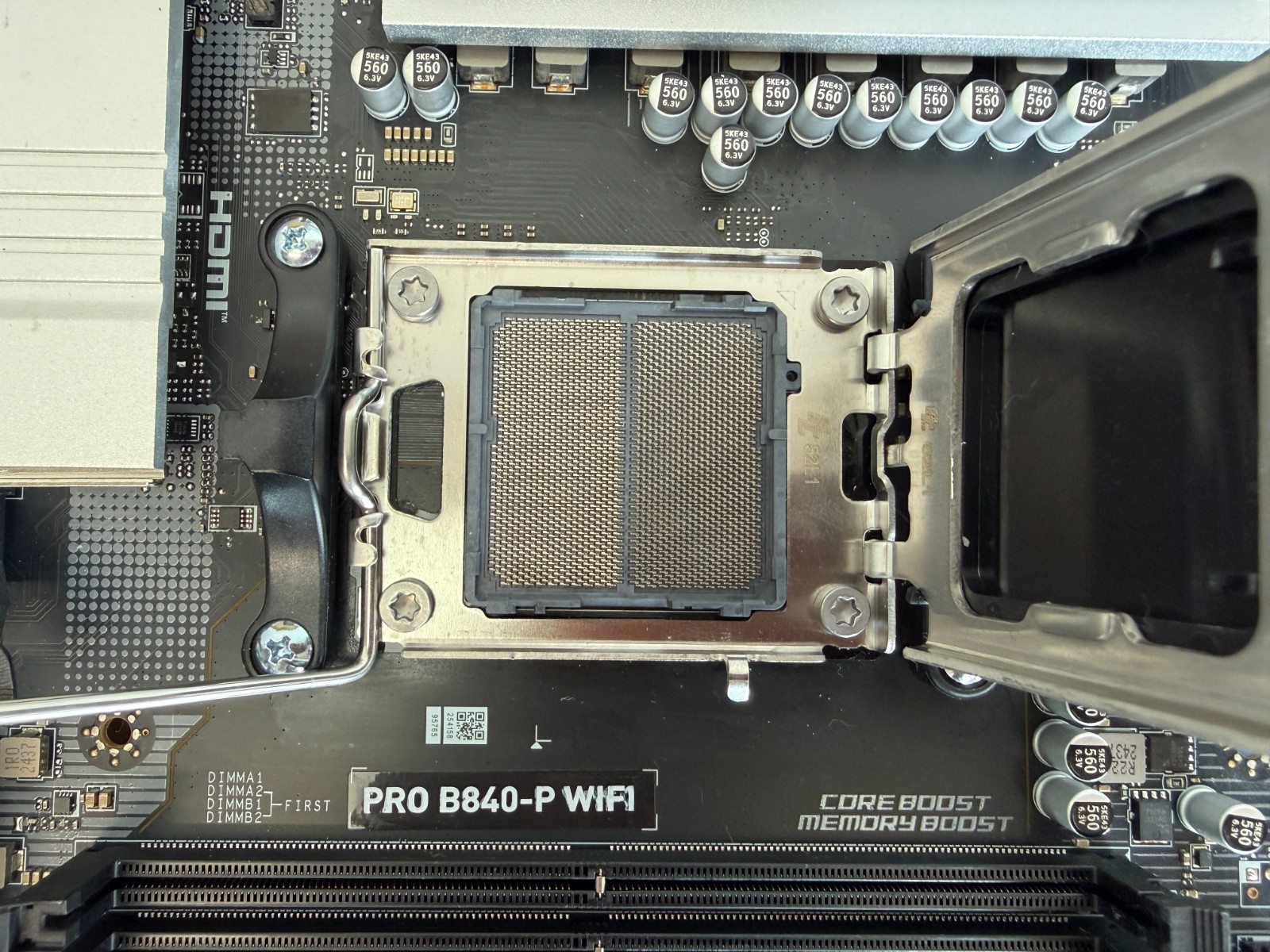

Socket AM5

Memory:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s

Ryzen 9000 Series Processors max. overclocking frequency:

-1DPC 1R Max speed up to 8000+ MT/s

-1DPC 2R Max speed up to 6400+ MT/s

-2DPC 1R Max speed up to 6400+ MT/s

-2DPC 2R Max speed up to 5600+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

Onboard Graphics:

1x HDMI

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

Slot 5x PCI-E x16 slot:

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)

PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot

-Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)

-Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)

-Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)

Audio:

Realtek ALC897

7.1-Channel High Definition Audio

Storage:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

4x SATA 6G

M2_2 slot

Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors)

Supports up to PCIe 3.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)

Supports up to PCIe 3.0 x2 (For Ryzen 8500/ 8300 Series processors)

RAID:

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB:

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 5Gbps Type C (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

LAN: Realtek 8125D 2.5G LAN

Internal IO:

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 5Gbps Type C ports
