100% authentic product.

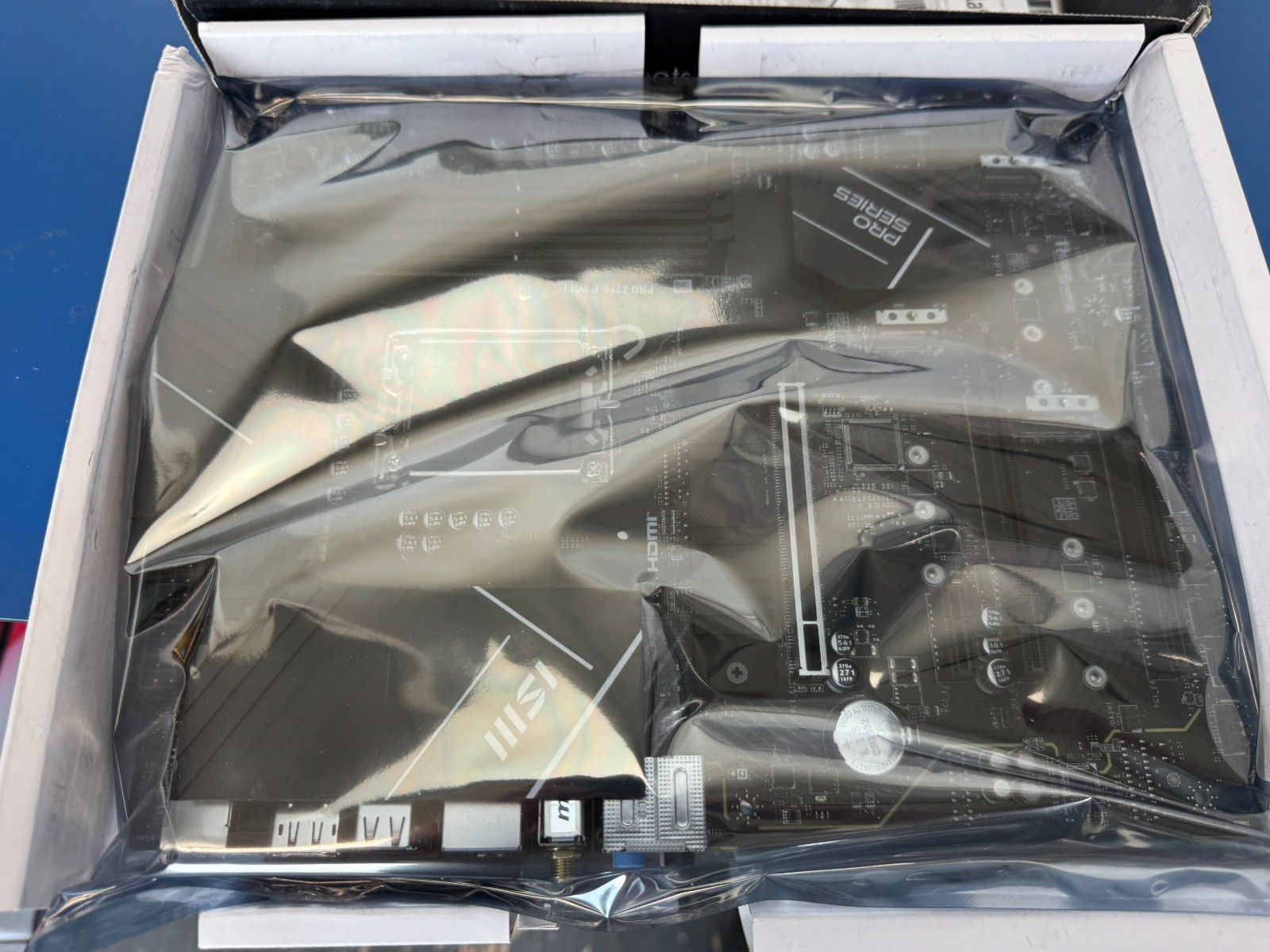

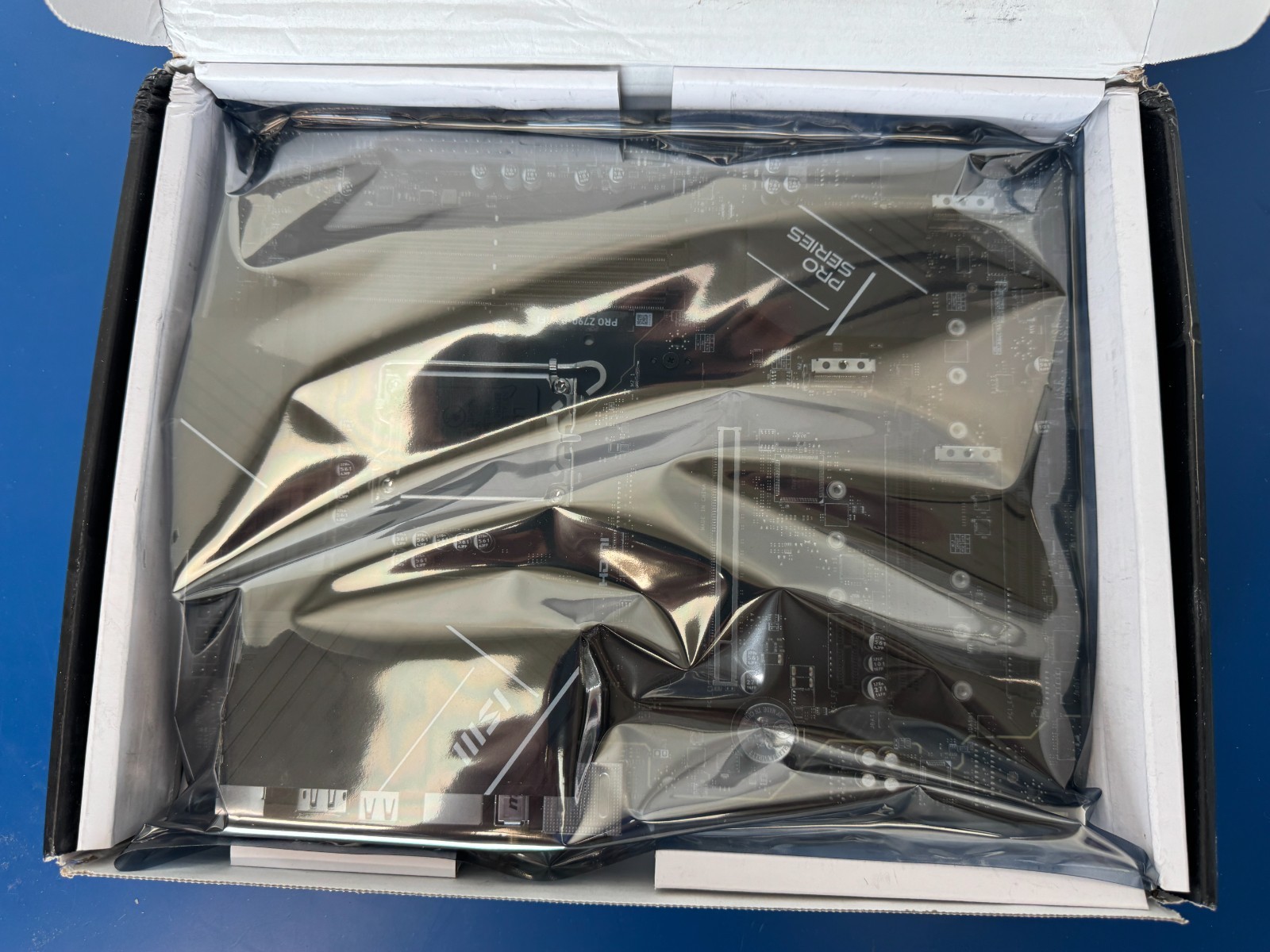

Pristine condition never used open box. Professionally tested only to ensure 100% functionality.

Learn more about MSI PRO Z790-P WIFI

Model

Brand

MSI

Model

PRO Z790-P WIFI

Supported CPU

CPU Socket Type

LGA 1700

CPU Type

Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors

Chipsets

Chipset

Intel Z790

Memory

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

Supports 1R 5600 MHz (by JEDEC & POR)

Max. overclocking frequency:
– 1DPC 1R Max speed up to 7000+ MHz
– 1DPC 2R Max speed up to 6400+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Maximum Memory Supported

128GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 5.0 x16

PCI_E1 slot (From CPU)
– Supports up to PCIe 5.0 x16

PCI Express 4.0 x16

PCI_E3 slot (From Z790 chipset)
– PCI_E3 supports up to PCIe 4.0 x4

PCI Express 3.0 x16

PCI_E4 slot (From Z790 chipset)
– PCI_E4 supports up to PCIe 3.0 x1

PCI Express x1

1x PCIe x1 slot (From Z790 chipset)
– PCI_E2 supports up to PCIe 3.0 x1

Storage Devices

SATA 6Gb/s

6x SATA 6Gb/s ports (From Z790 chipset)

M.2

1 x Key M (CPU PCIe) + 1 x Key M (PCH PCIe) + 2 x Key M (PCIe/SATA) + 1 x Key E (WiFi/BT)

4x M.2 slots (Key M)
M2_1 slot (From CPU)
– Supports up to PCIe 4.0 x4
– Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z790 chipset)
– Supports up to PCIe 4.0 x4
– Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (From Z790 chipset)
– Supports up to PCIe 4.0 x4
– Supports SATA 6Gb/s
– Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z790 chipset)
– Supports up to PCIe 4.0 x4
– Supports SATA 6Gb/s
– Supports 2242/ 2260/ 2280 storage devices

SATA RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Audio

Audio Chipset

Realtek ALC897

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

1x Intel 2.5Gbps LAN controller

Max LAN Speed

2.5Gbps

Wireless LAN

Intel Wi-Fi 6E
– The Wireless module is pre-installed in the M.2 (Key-E) slot
– Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz)up to 2.4Gbps
– Supports 802.11 a/ b/ g/ n/ ac/ ax

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

Bluetooth

– Supports Bluetooth 5.2*, FIPS, FISMA
* Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Rear Panel Ports

Back I/O Ports

1x Flash BIOS button
1x PS/2 port
4x USB 2.0 Type-A ports (From Z790 chipset)
1x DisplayPort
1x HDMI port
1x LAN (RJ45) jack
2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset)
1x USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset)
1x USB 3.2 Gen 2×2 20Gbps Type-C port (From Z790 chipset)
2x Wi-Fi Antenna connectors
6x Audio jacks

Internal I/O Connectors

Onboard USB

1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
2x USB 3.2 Gen 1 5Gbps connector (From Z790 chipset)
– Supports additional 4 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
– Supports additional 4 USB 2.0 ports

Other Connectors

Fan Connectors
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors

System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

Jumpers
1x Clear CMOS jumper

LED Features
4x EZ Debug LED
1x 4-pin RGB LED connector
2x 3-pin ARGB Gen2 LED connectors

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0″ x 9.6″

Power Pin

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors

Windows Compatibility

Windows 11

Supported

Features

Features

MSI Center
– LAN Manager
– Mystic Light
– Frozr AI Cooling
– User Scenario
– True Color
– Live Update
– Super Charger
– Speed Up

Cooling
– M.2 Shield Frozr
– Pump Fan
– Smart Fan Control

LED
– Mystic Light Extension (ARGB GEN2/ RGB)
– Mystic Light SYNC
– EZ DEBUG LED
– EZ LED Control

Performance
– DDR5 Boost
– Core Boost
– Lightning USB 20G
– USB 3.2 Gen 2 10G
– USB with Type A+C
– Front USB Type-C

Protection
– PCI-E Steel Armor

Experience
– MSI Center
– Frozr AI Cooling
– Click BIOS 5
– Flash BIOS button
