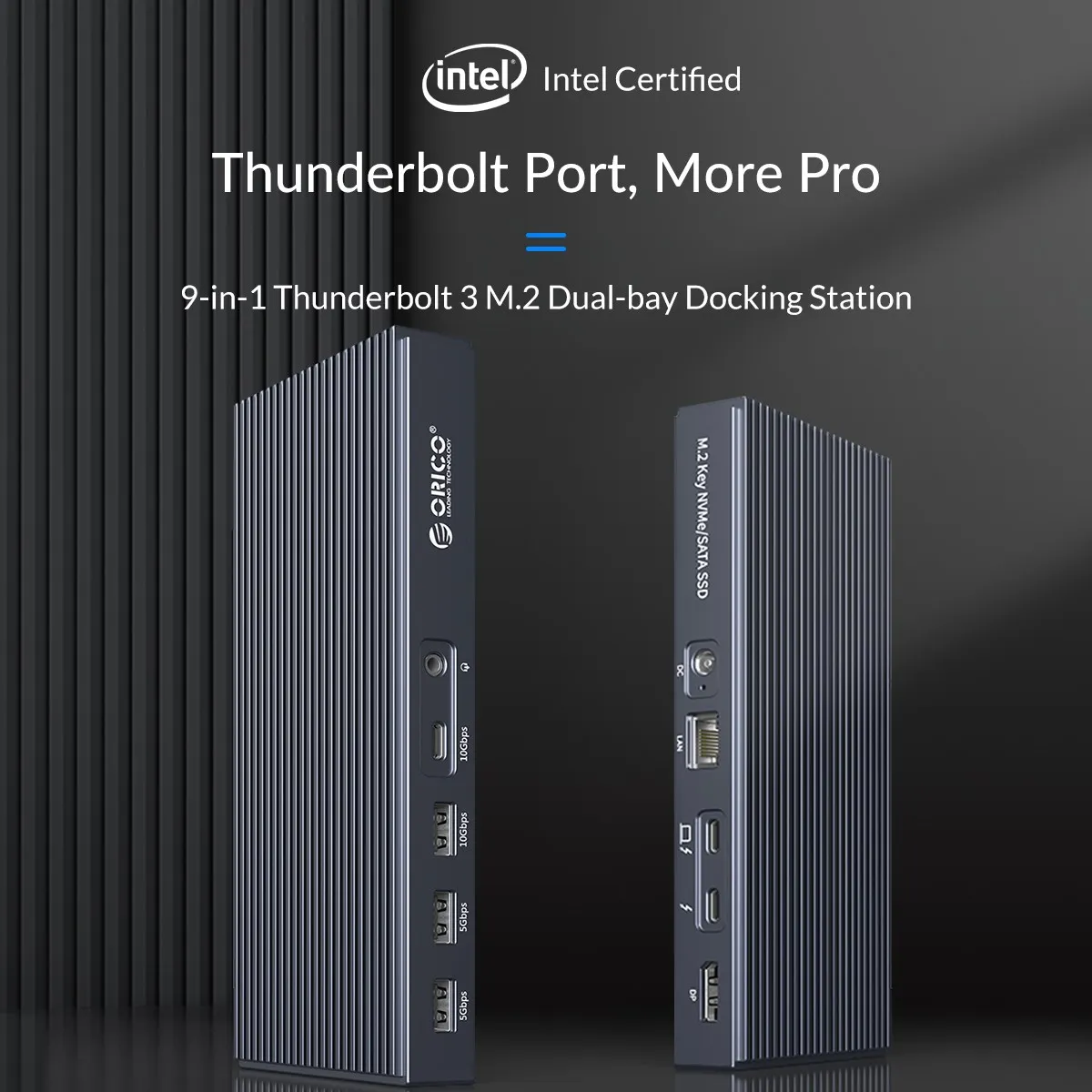

Unique Design

ORICO combines the M.2 Dual-bay(NVMe/NGFF) SSD Enclosure and Multi-functional USB C Docking Station for MacBook, iPad Pro, Mac Mini, laptop, Samsung Note10/S10, Huawei P40/Mate30

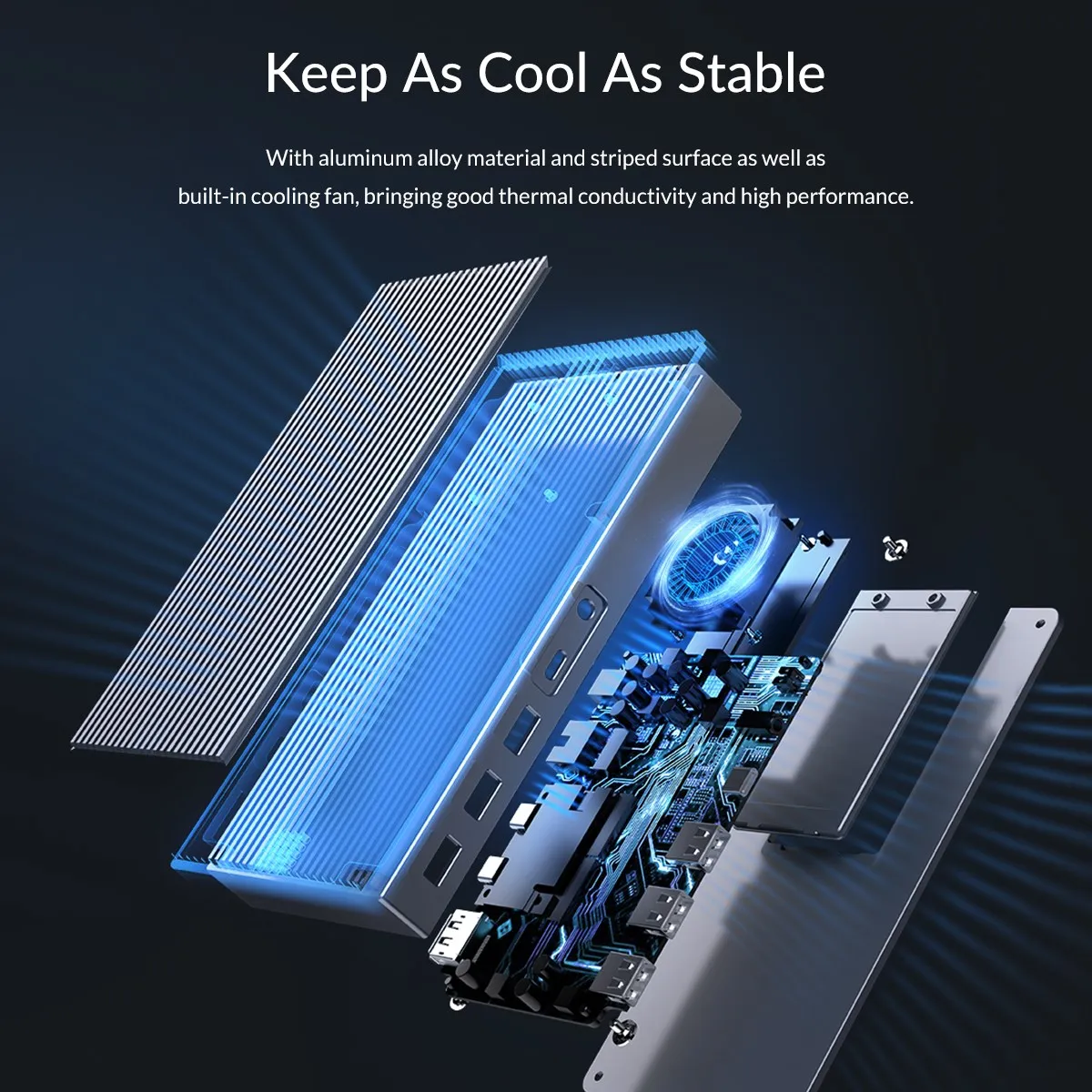

Keep As Cool As Stable

After more than 1 year’s research and development, greatly improve heat dissipation performance to provide better data protection.With aluminum alloy material and striped surface as well as built-in cooling fan, bringing good thermal conductivity and high performance

Easy to Install, Plug and Play

ORICO 9-in-1 Thunderbolt 3 M.2 Dual-bay Docking Station is very simple to install. Plug&Play for Windows 10/8/7/XP/Vista, Mac OS, Linux, Chrome OS

Easy Setup

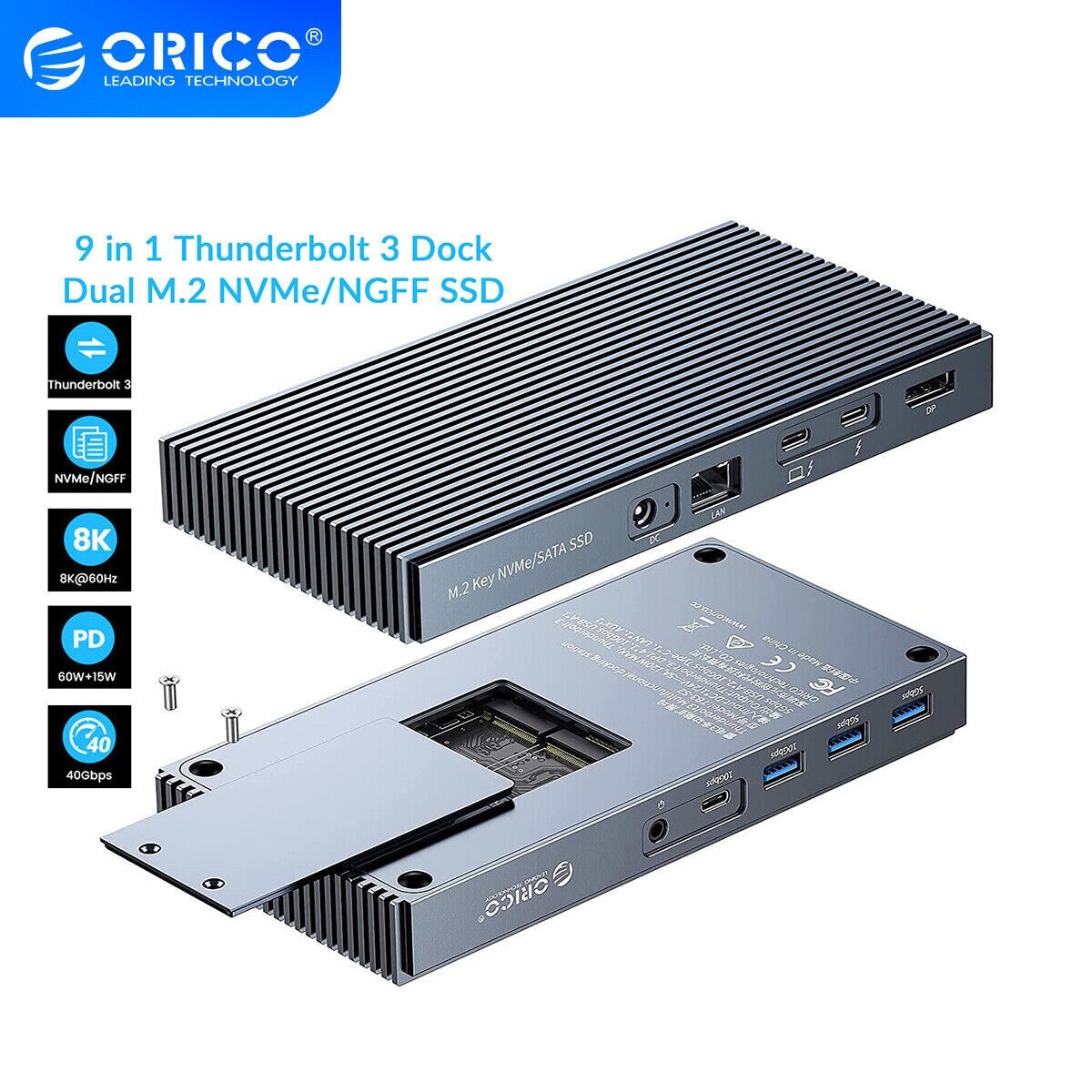

1.Unscrew the back cover.

2.Place SSD into PCBA board.

3.Fix the SSD with screws.

4.Close the back cover.

Specification

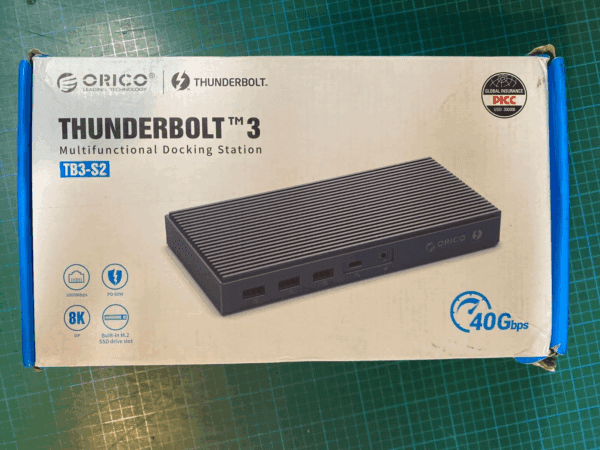

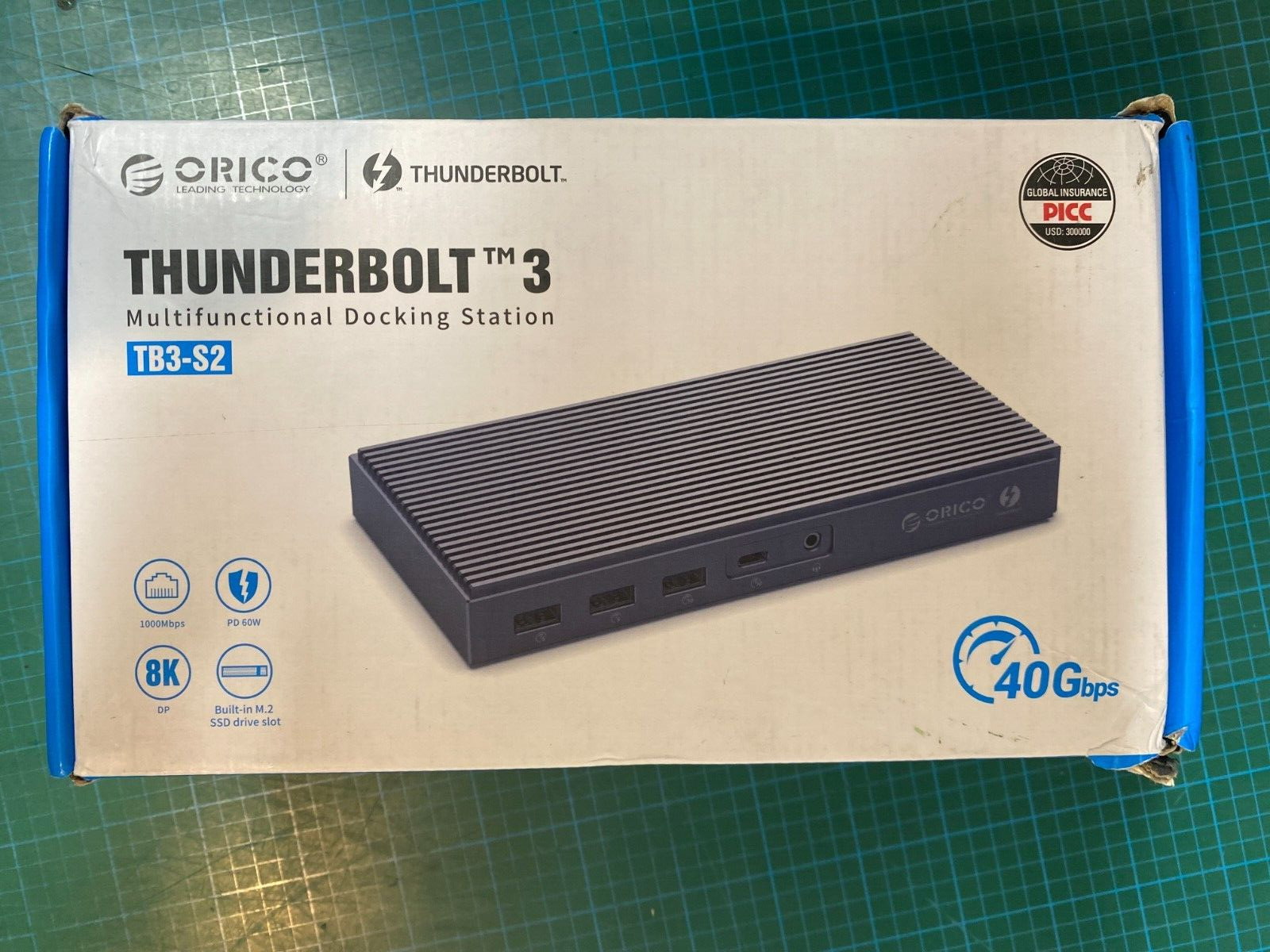

Name: Thunderbolt 3 M.2 Dual-bay Docking Station

Model : TB3-S2

Material：Aluminum Alloy

Color: Gray

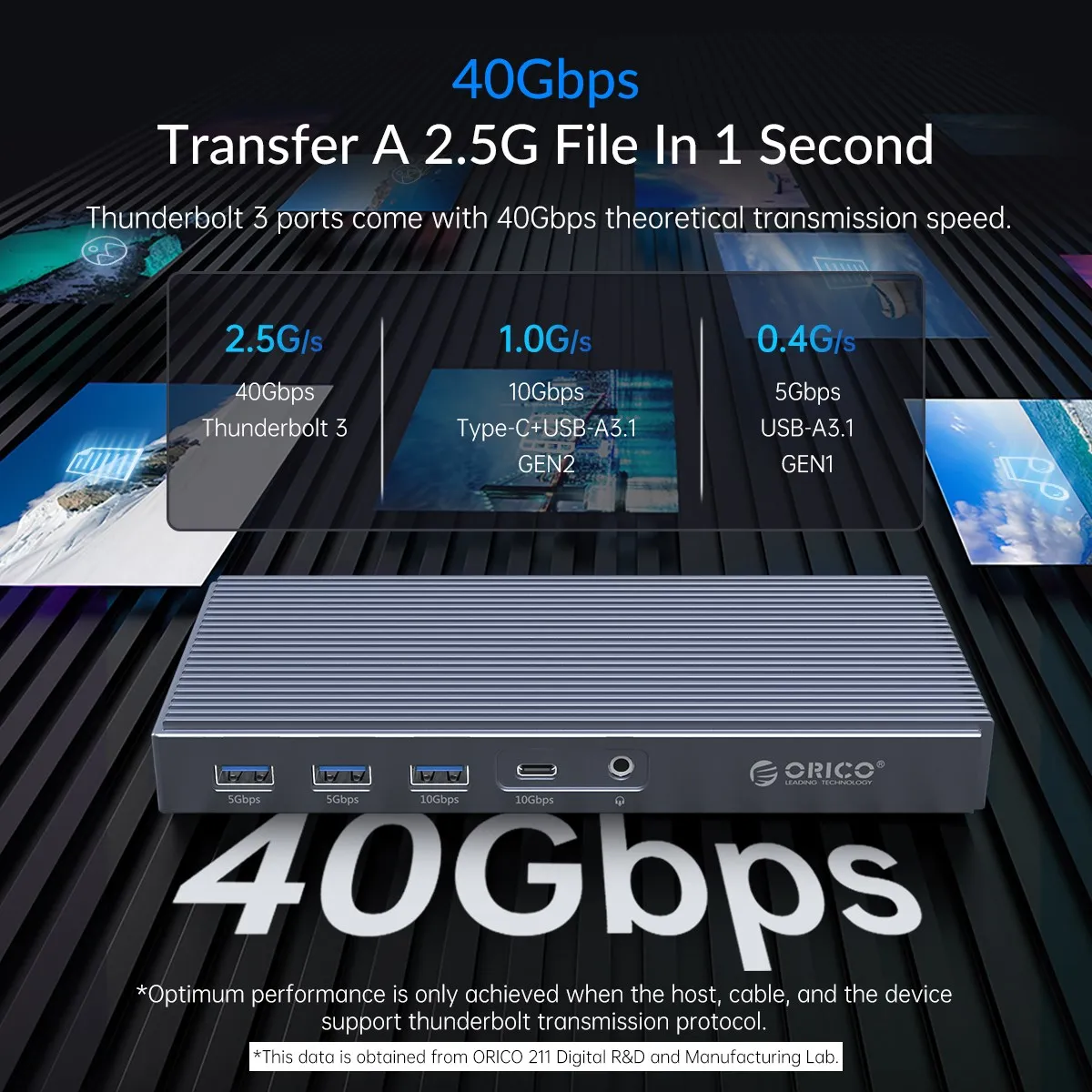

Transmission Speed: 40Gbps MAX(Theoretical)

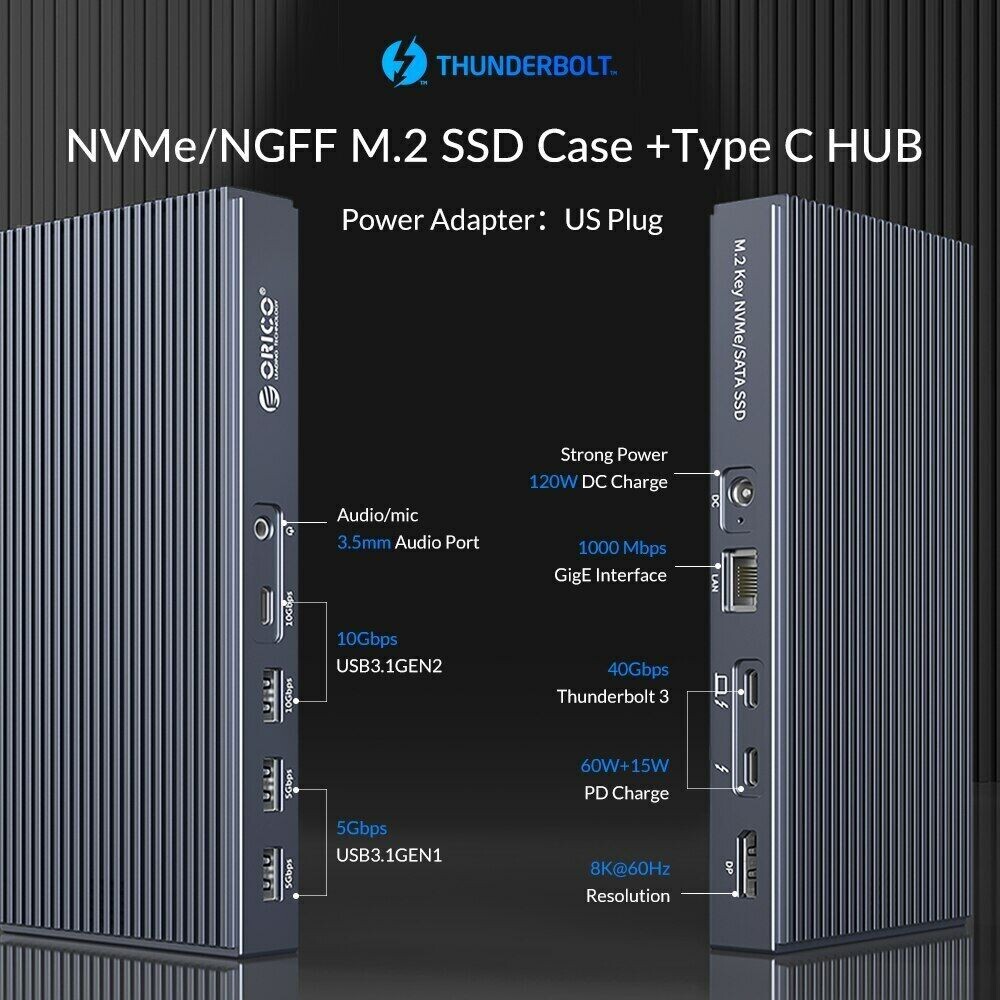

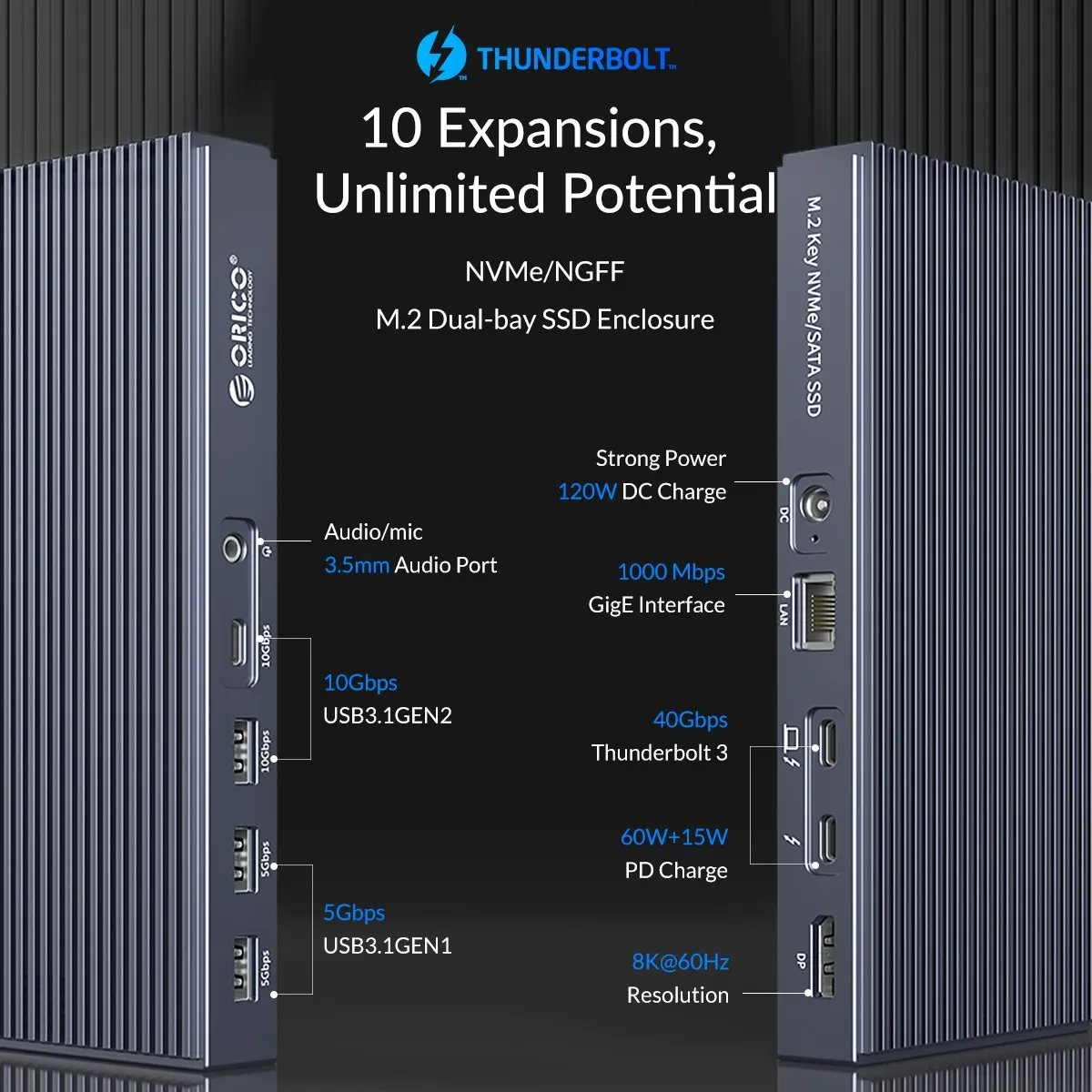

Output:

Thunderbolt 3 in/out 40Gbps x 2

DP 1.4 x 1

USB3.1 Gen 2 x 1

USB3.1 Gen 1 x 2

USB3.1 Gen 2 Type-C x 1

Audio in/outport x 1

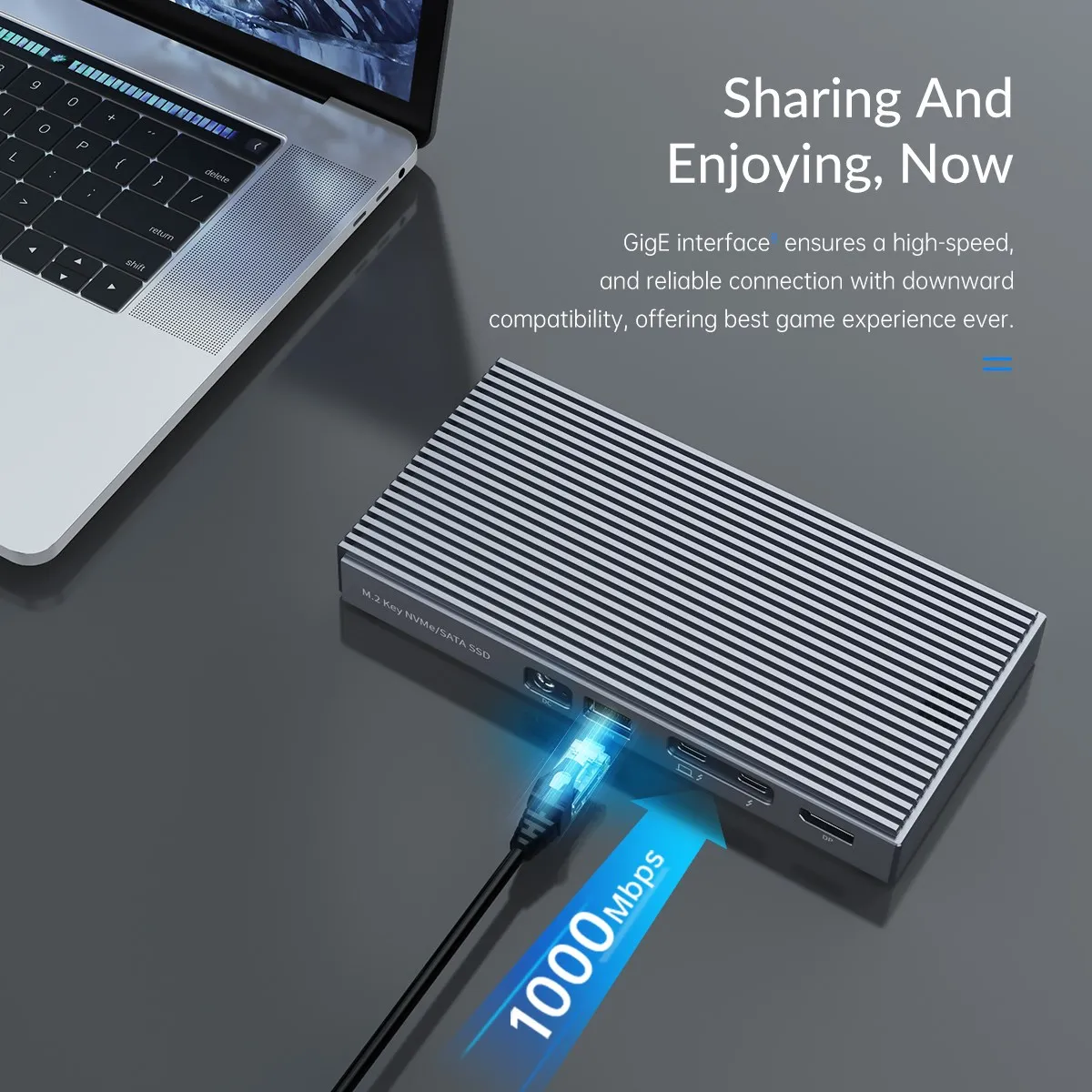

GigE Interface x1

Dimension: 188mm(L)*95mm(W)*24mm(H)

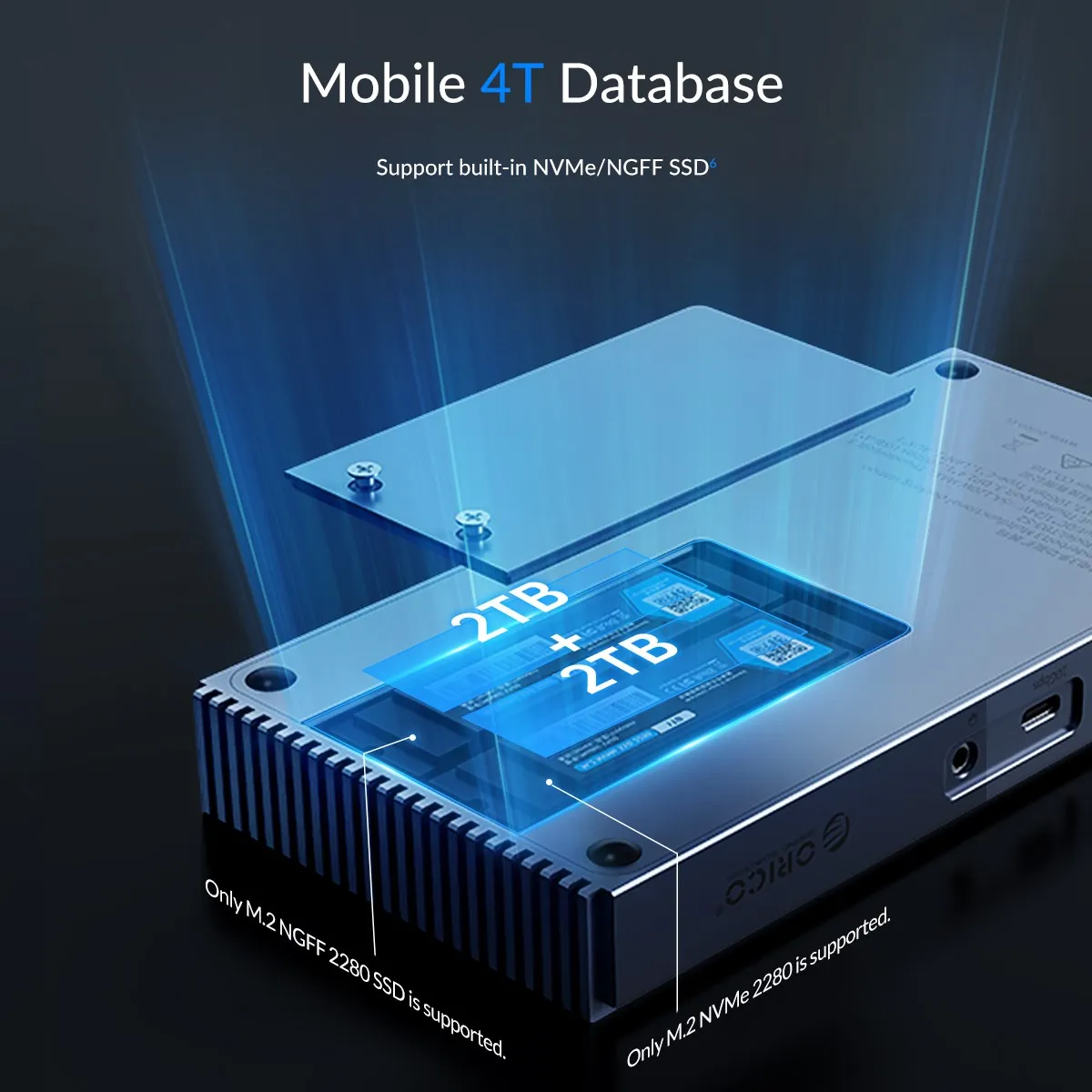

Support SSD Capacity: Maximum 4TB (Theoretical)

Power Adapter: 24V5A 120W

Support Protocol: NVMe/NGFF

Support System: Windows / Mac

Warm Tips

1. The thunderbolt 3 40Gbps theoretical transmission speed only achieves when thunderbolt 3 cable is used. The data is obtained from ORICO lab, subjecting to actual use.

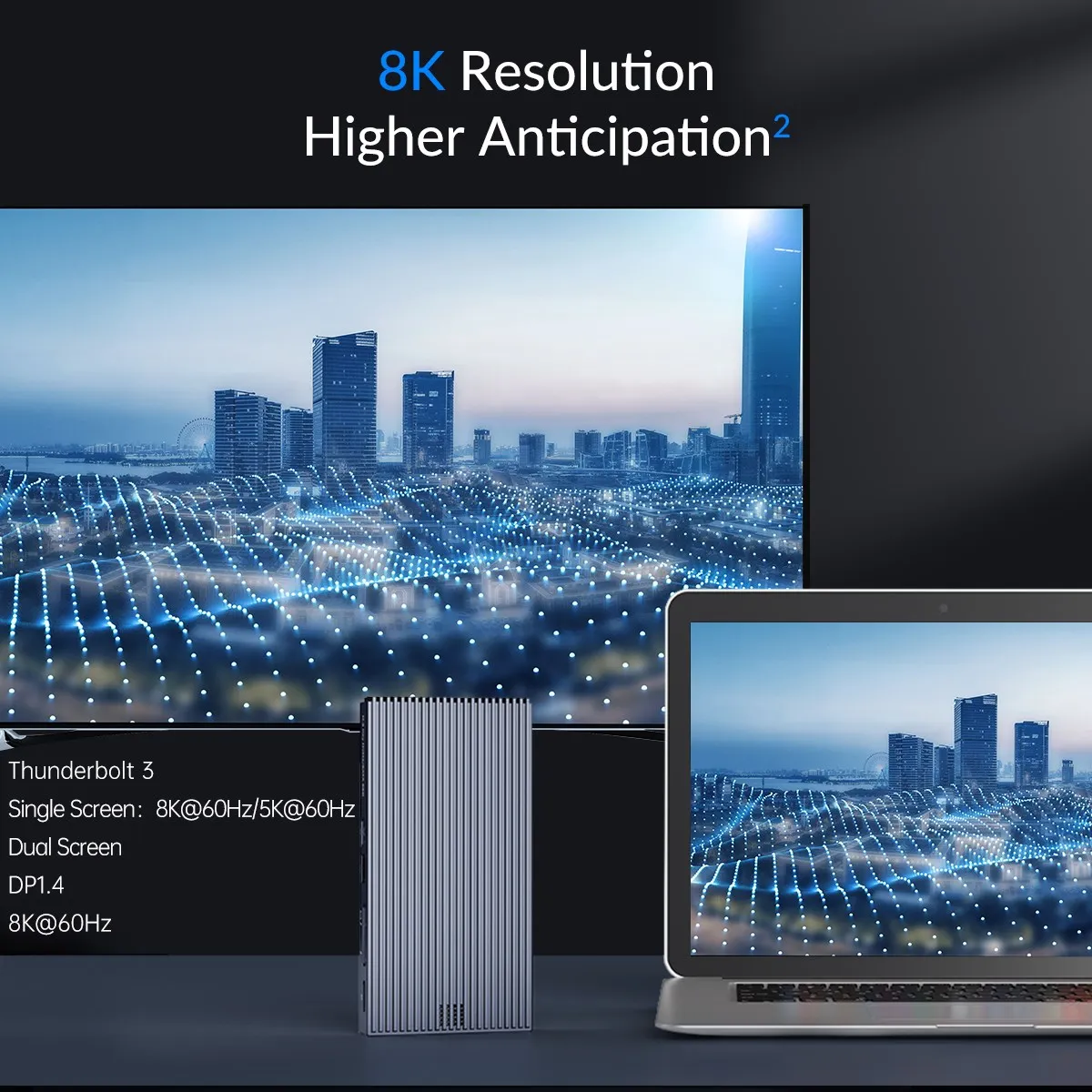

2. Thunderbolt 3 single port output: 8K@60Hz(7680×4320)/5K@60Hz (5120×2880) UHD; Thunderbolt 3 dual port output: 4K@60Hz; DP1.4 output: 8K@60Hz and downward-compatible.

3. 8K resolution only achieves when display devices support 8K resolution or the picture resolution is 8K. Thunderbolt 3 cable and DP 1.4 cable are required to ensure stable connection

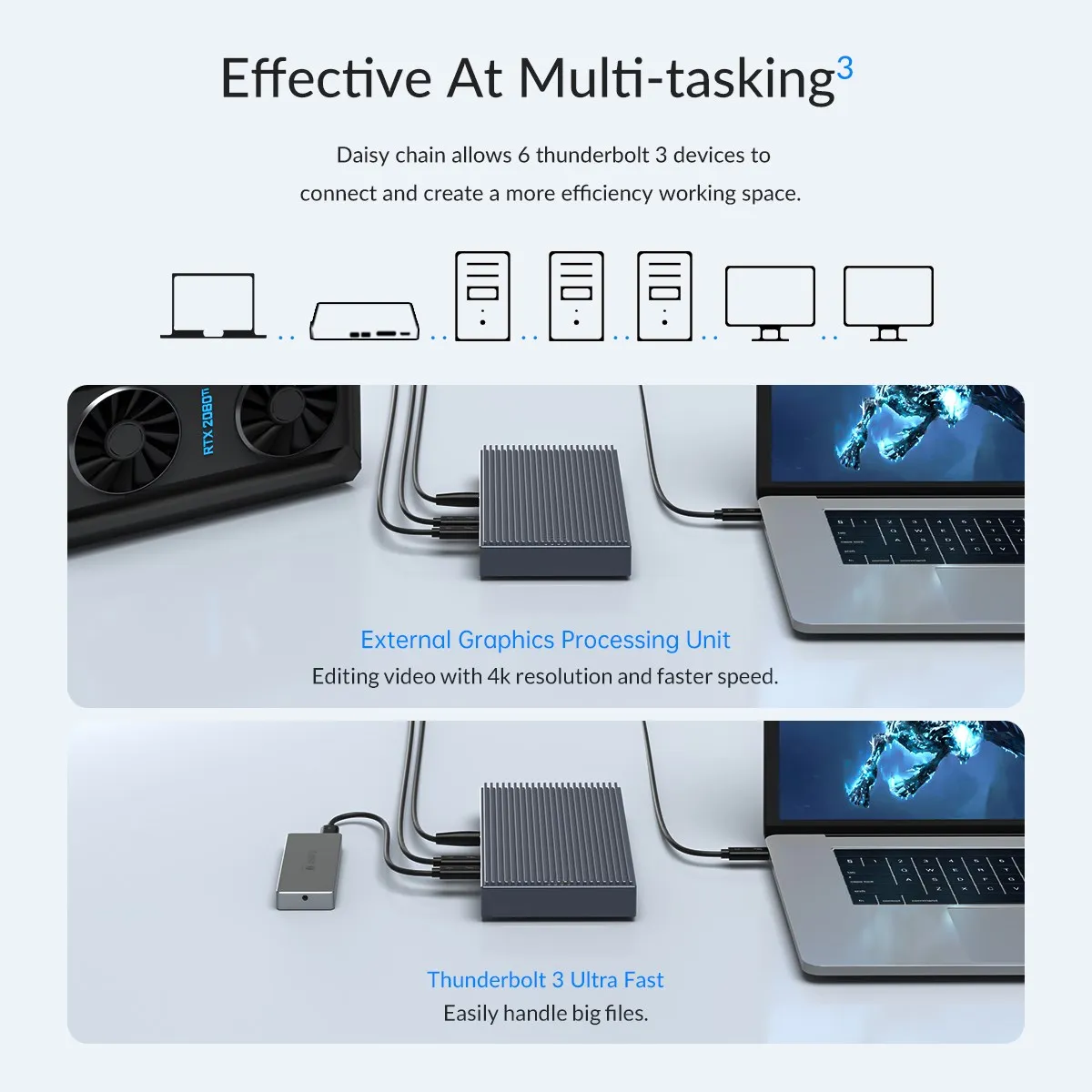

4. Daisy chain connects more than 6 thunderbolt 3 devices to for laptop, iPhone, iPad, USB Type-C Hub, external graphic card and RAID are compatible as well; 15W power delivery is effective

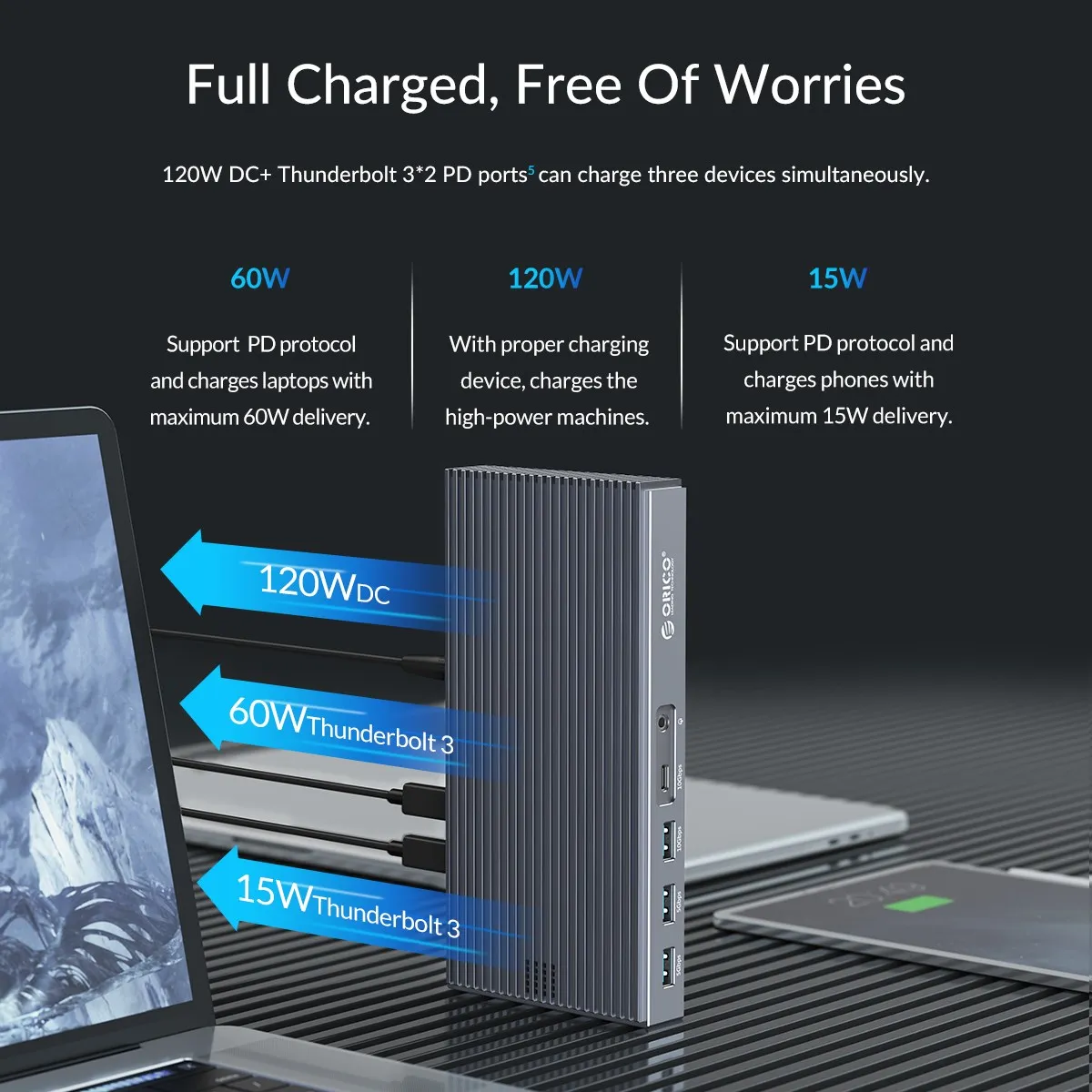

5. Equipped with a 120-power adapter for more convenient charge

6. Thunderbolt 3 A port supports PD 60W charging (5V/9V/15V/20V @3A); Thunderbolt 3 B port supports PD 15W charging (5V/9V/15V/20V @3A)

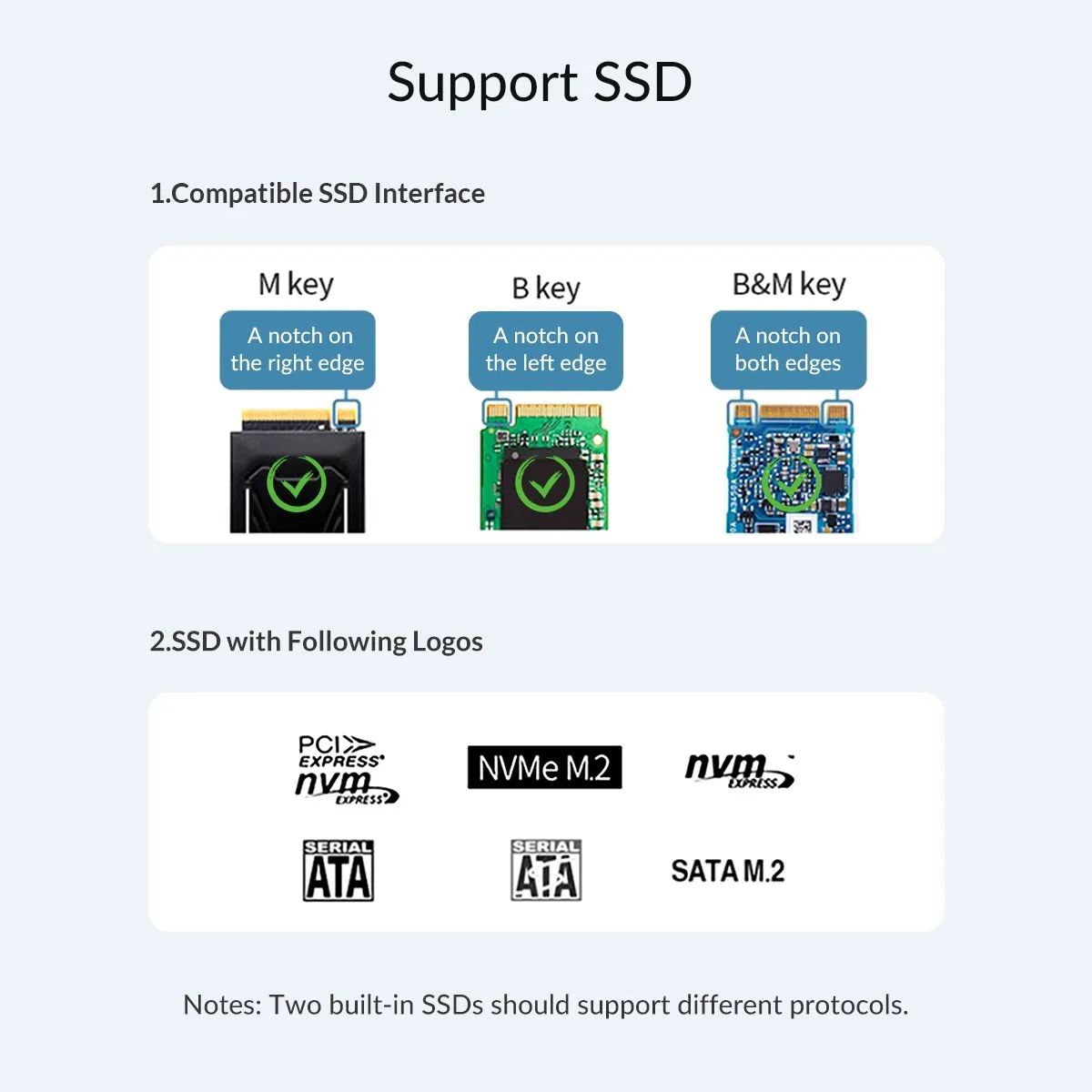

7.Support built-in M.2 M key NVMe with 6Gbps/S and M.2 B key NGFF SSD with 10Gbps/S transmission speed as well as maximum 4TB capacity

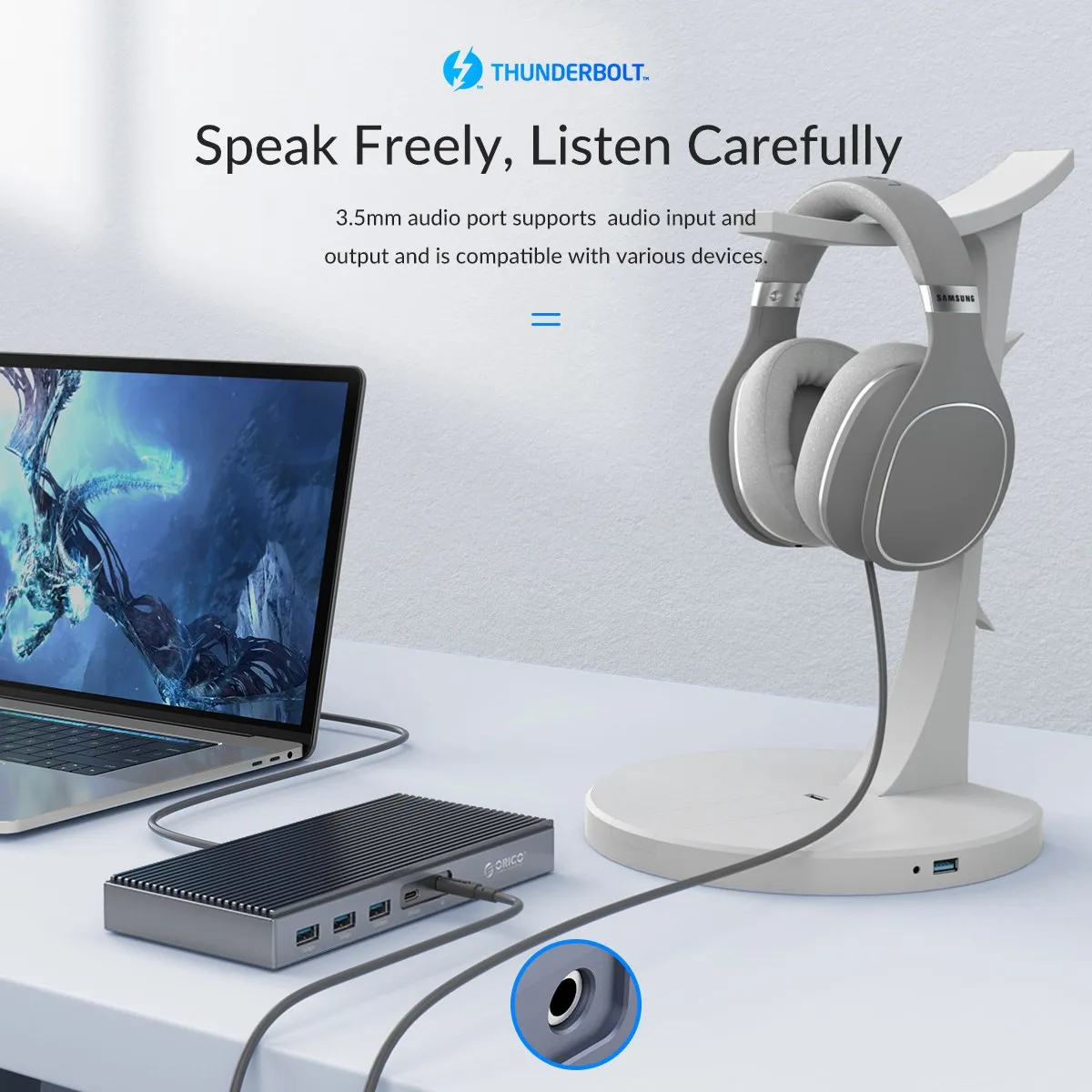

8. 3.5mm audio port supports audio input and output and computer with a sound card is required

9. 1000M broadband speed only achieves when real broadband speed reaches up to 1000M; backward-compatibility is available

10. The radiating area of docking station with striped surface is three time larger than the same one without striped design. Full operation will heat the surface temperature to 50~70℃ and with aluminum alloy body and built-in cooling fan, safe and stable operation will be promised

11. This product and the thunderbolt 3 cable are certified by Intel.

12. For MacBook Air/Pro 2020 with an M1 chip, A8396 can not connect to two monitors at the same time, but you can daisy chain multiple monitors via the Thunderbolt 3 downstream port.
