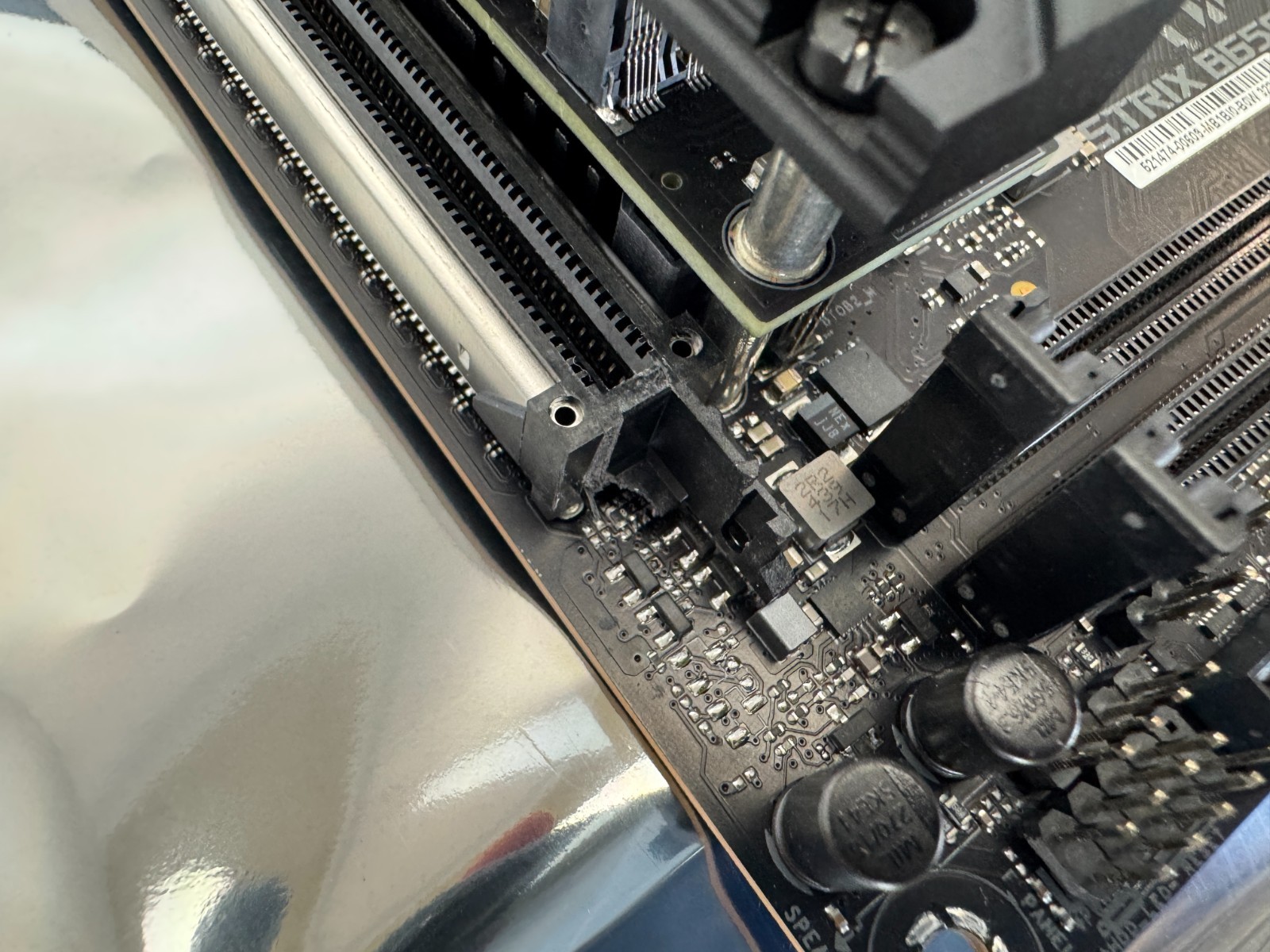

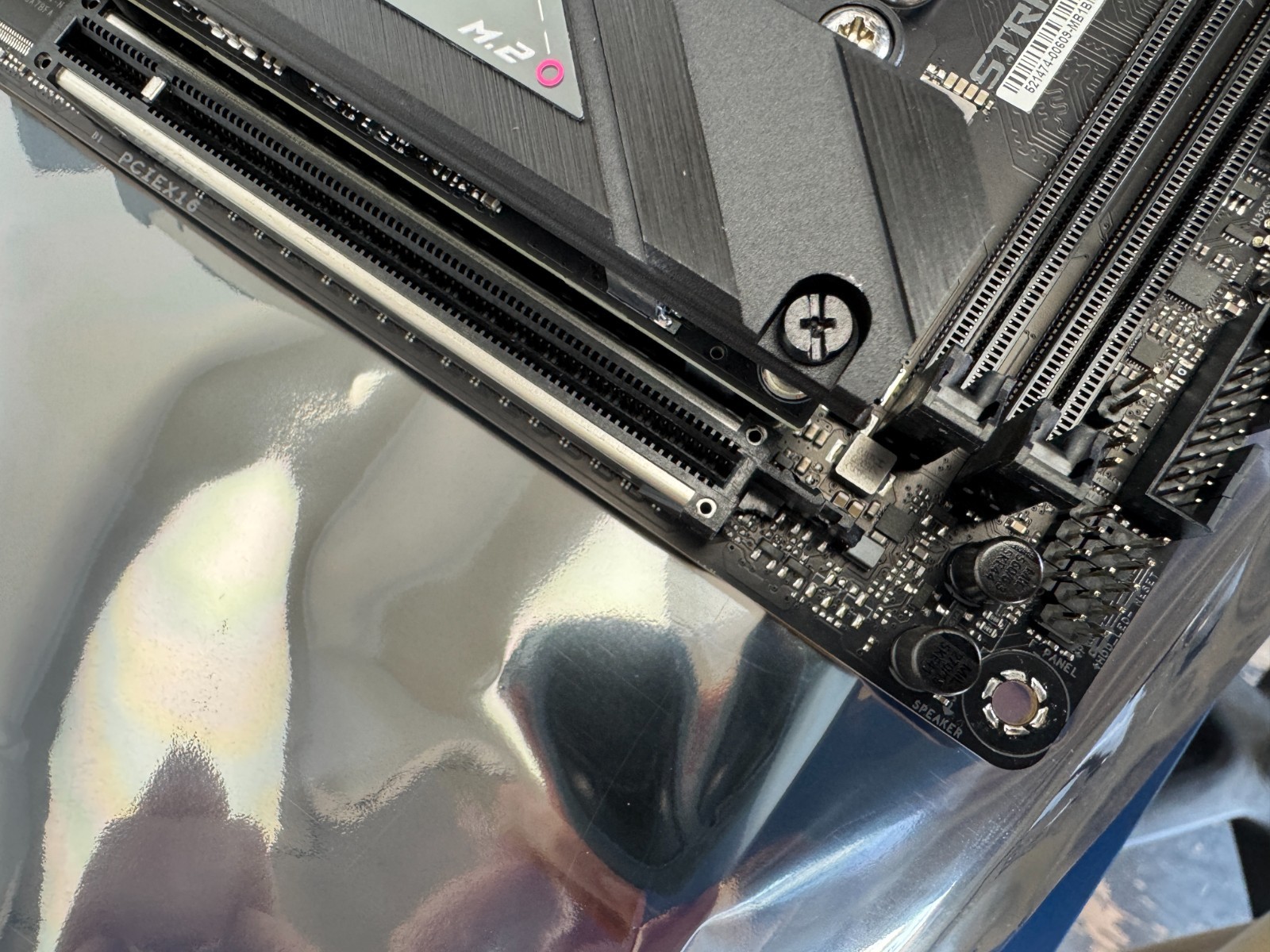

PCIe Clip is broken, see pictures.  It does not affect any functionality and PCIe slot works perfectly fine.  Apart from the disclosed damage, pristine condition never used.  Professionally tested to ensure 100% functionality.  Bios updated to latest.

Learn more about ASUS ROG STRIX B650E-I GAMING WIFI

Model

Brand

ASUS

Series

ROG

Model

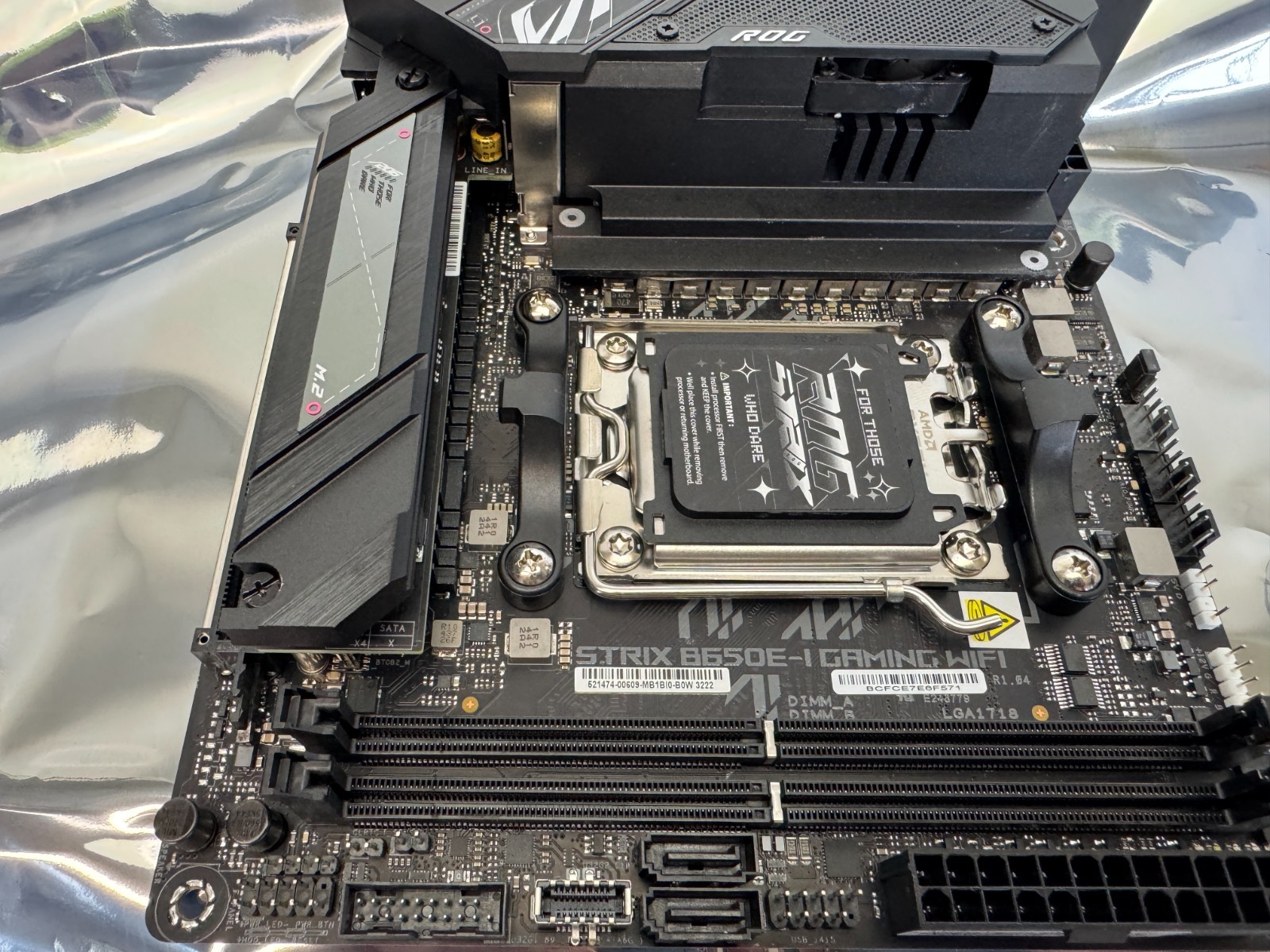

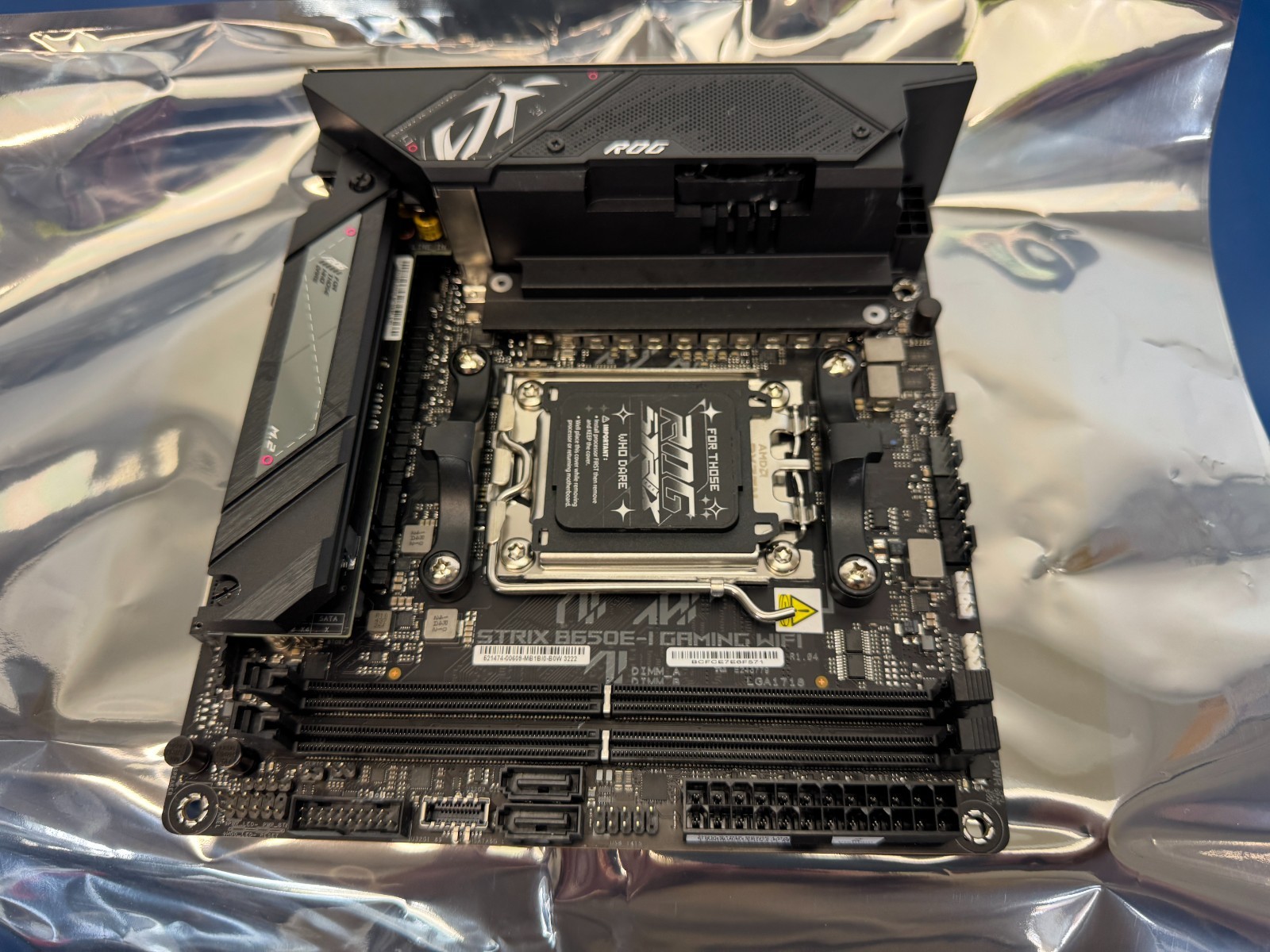

ROG STRIX B650E-I GAMING WIFI

Part Number

90MB1BI0-M0AAY0

Supported CPU

CPU Socket Type

AM5

CPU Type

Supports AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipsets

Chipset

AMD B650E

Memory

Number of Memory Slots

2x288pin (DDR5)

Memory Standard

DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800MHz ECC and Non-ECC, Un-buffered Memory*

Maximum Memory Supported

256GB

Channel Supported

Dual Channel

ECC Supported

Yes

Buffer Supported

Un-buffered

Memory Feature

Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
* Supported memory types, data rate (Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Expansion Slots

PCI Express 5.0 x16

1 x PCIe 5.0 x16 slot*
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Devices

SATA 6Gb/s

2 x SATA 6Gb/s

M.2

AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1.

SATA RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1.

Onboard Audio

Audio Chipset

Realtek ALC4080

Audio Channels

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– Audio Shielding
– Savitech SV3H712 AMP
– LED-illuminated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors

Onboard LAN

Max LAN Speed

1 x Intel 2.5Gb Ethernet
ASUS LANGuard

Wireless LAN

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries.

Bluetooth

Bluetooth v5.2**
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

Rear Panel Ports

Back I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C with DP Alt mode)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
3 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x FlexKey button

Internal I/O Connectors

Onboard USB

1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers supports additional 2 USB 2.0 ports

Other Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header

Storage related
2 x M.2 slots (Key M)
2 x SATA 6Gb/s ports

Miscellaneous
1 x Addressable Gen 2 header
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x 12-1 pin Front Panel Audio header (AAFP)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Physical Spec

Form Factor

Mini ITX

Dimensions (W x L)

6.7″ x 6.7″ (17 cm x 17 cm)

Power Pin

1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Windows 11 Compatibility

Windows 11

Supported

Features

Features

Extreme Engine Digi+
-5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– ProCool

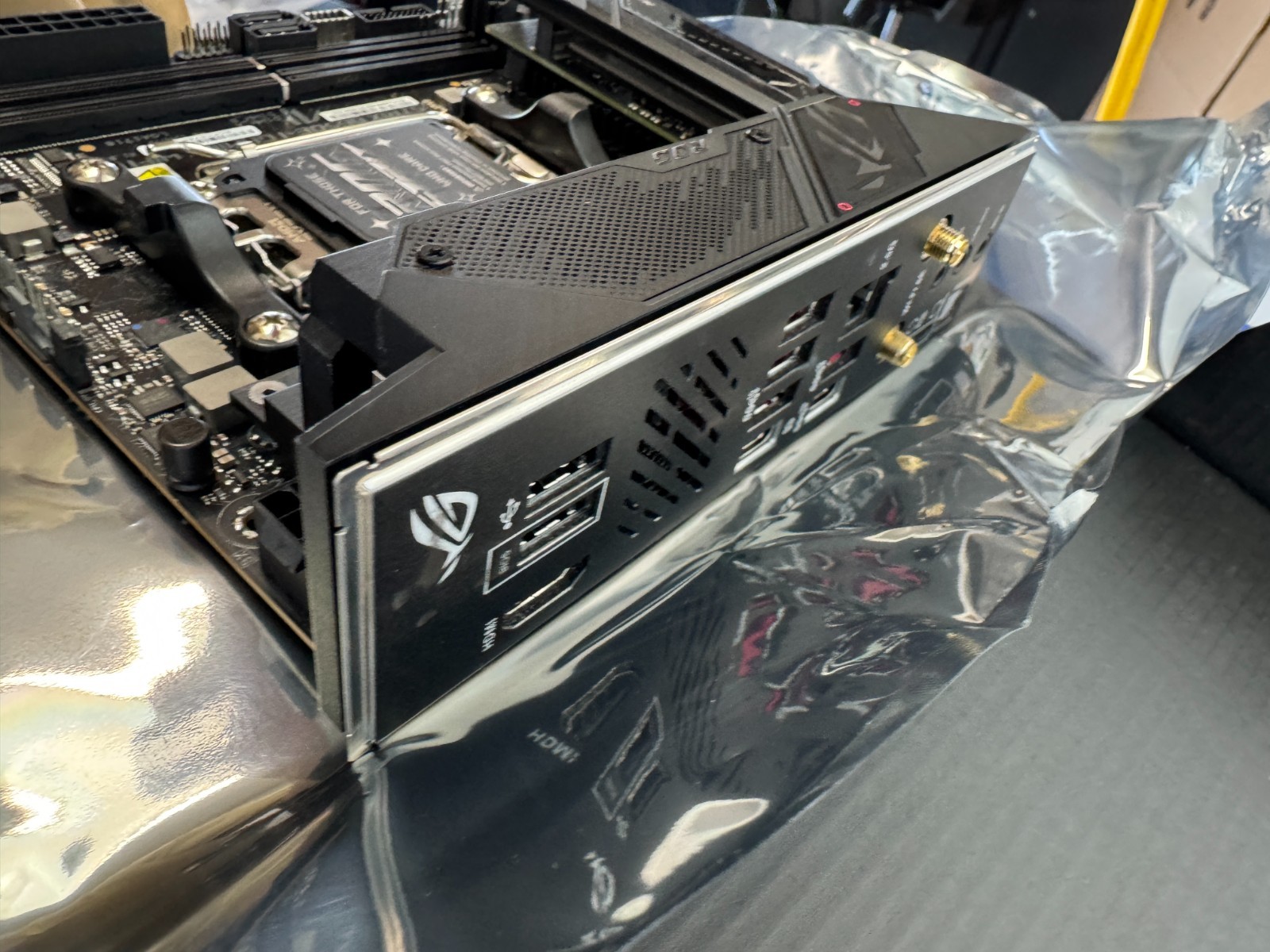

– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– AURA RGB header
– Addressable Gen 2 header
