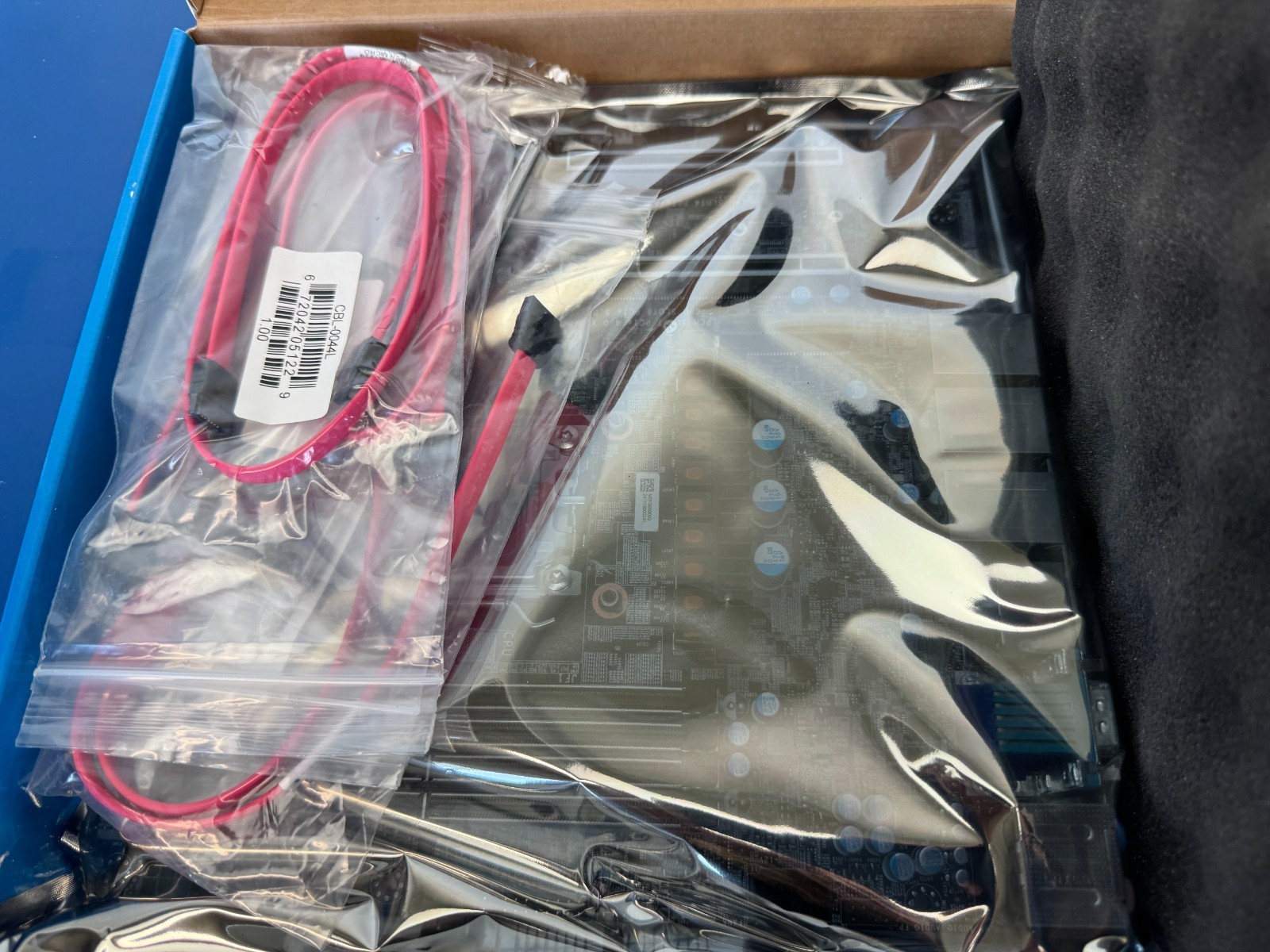

Pristine condition never used open box.  Professionally tested to ensure 100% functionality.

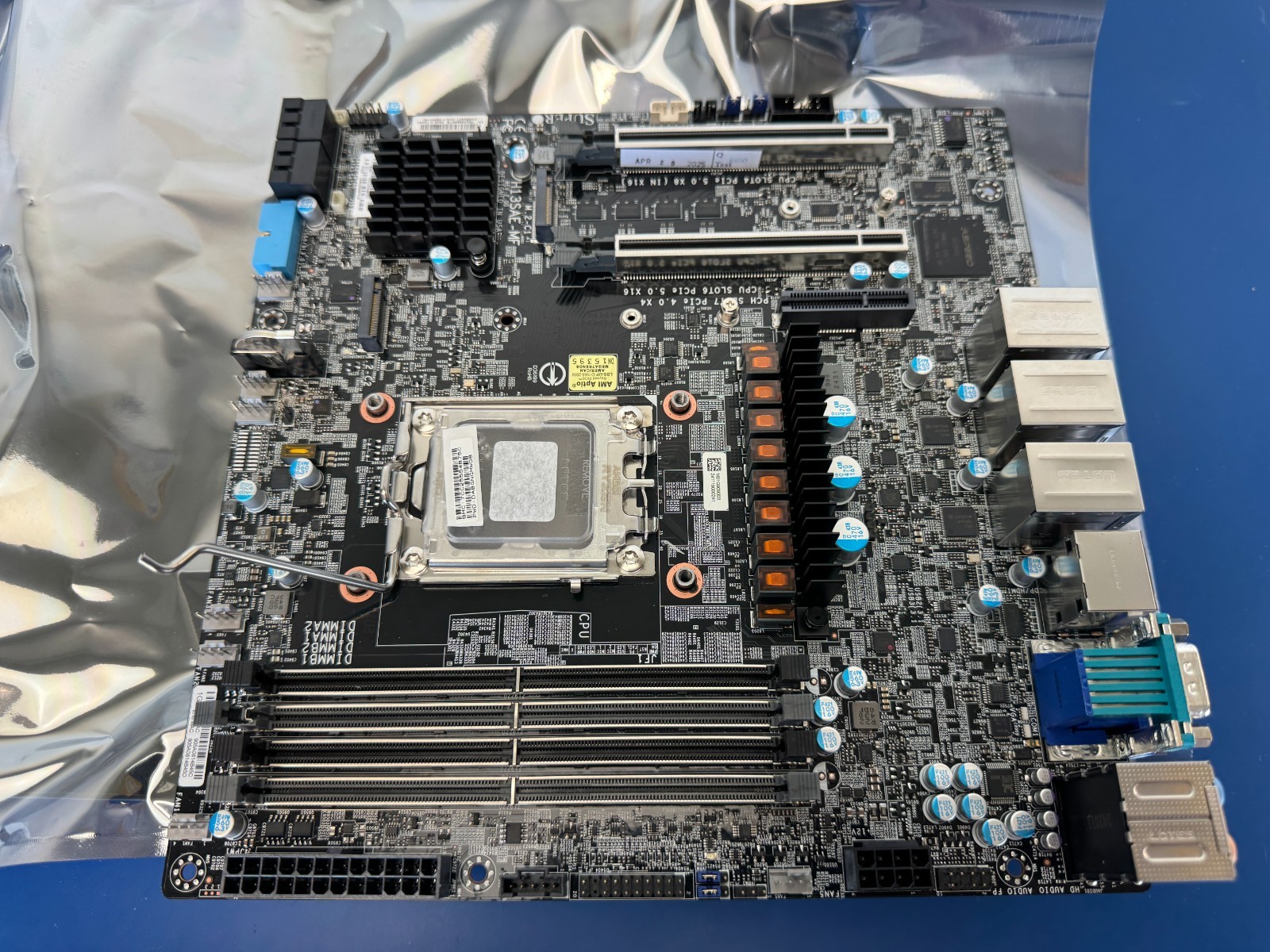

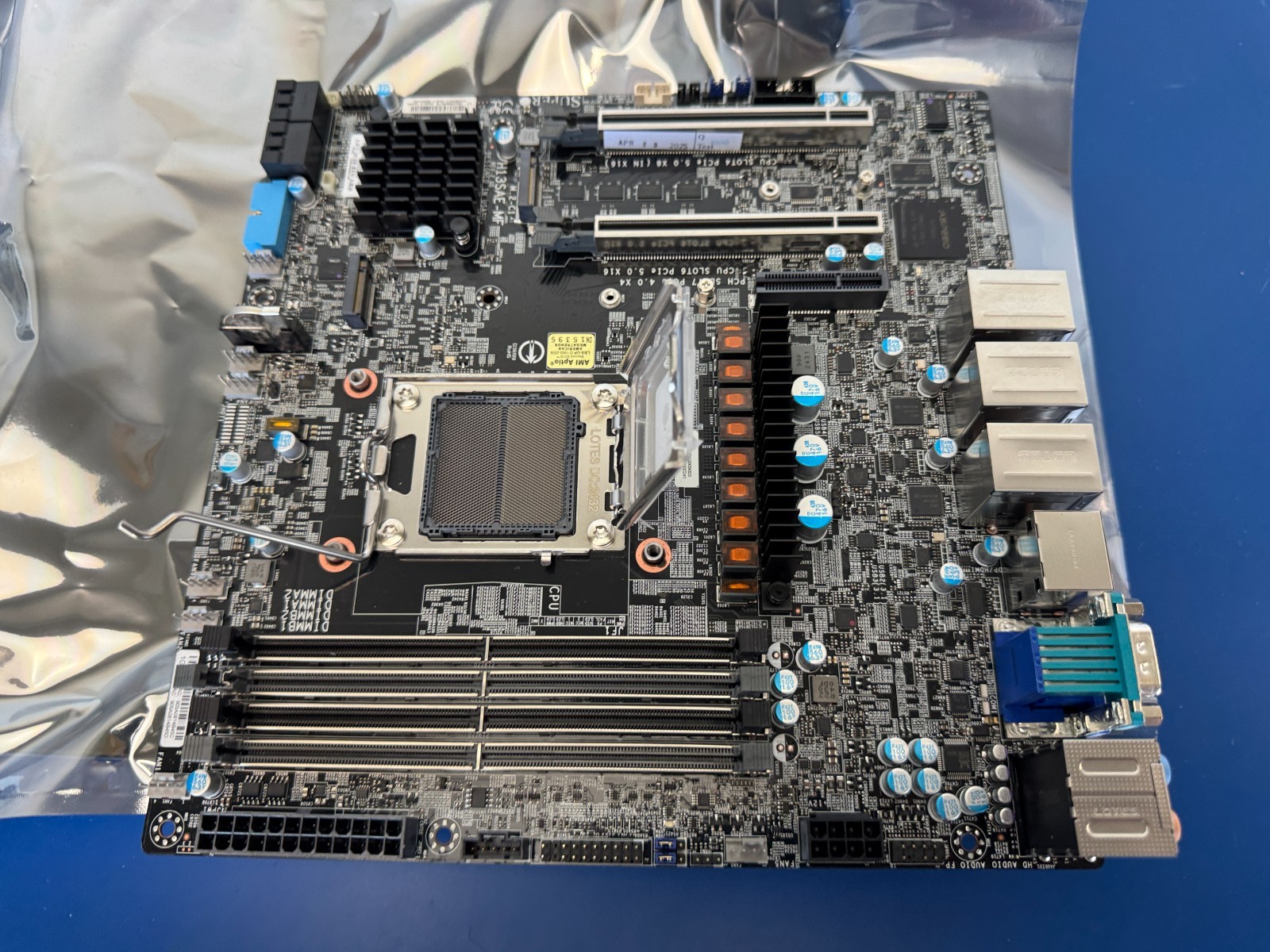

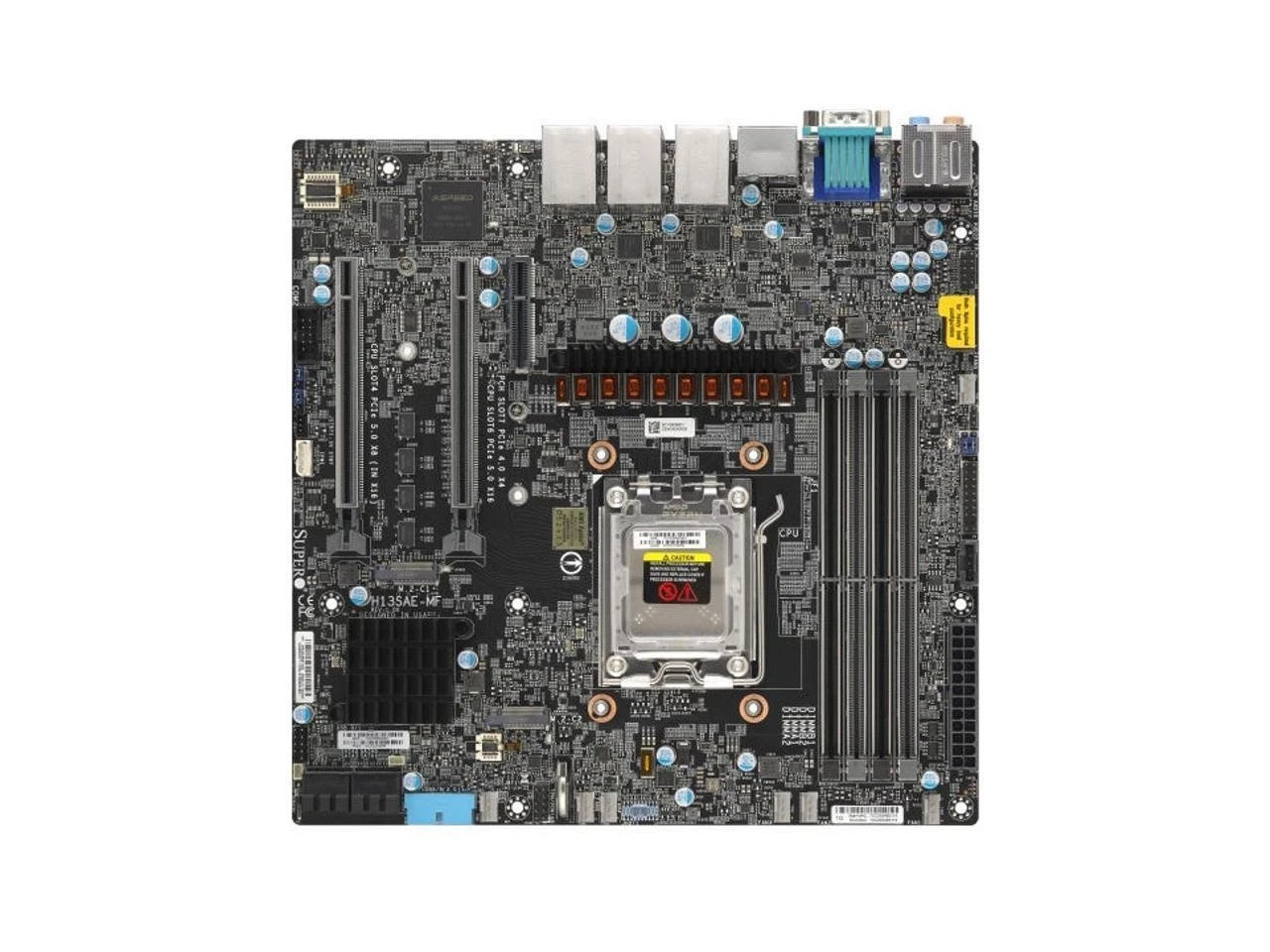

Learn more about Supermicro MBD-H13SAE-MF-O

Model

Brand

SUPERMICRO

Model

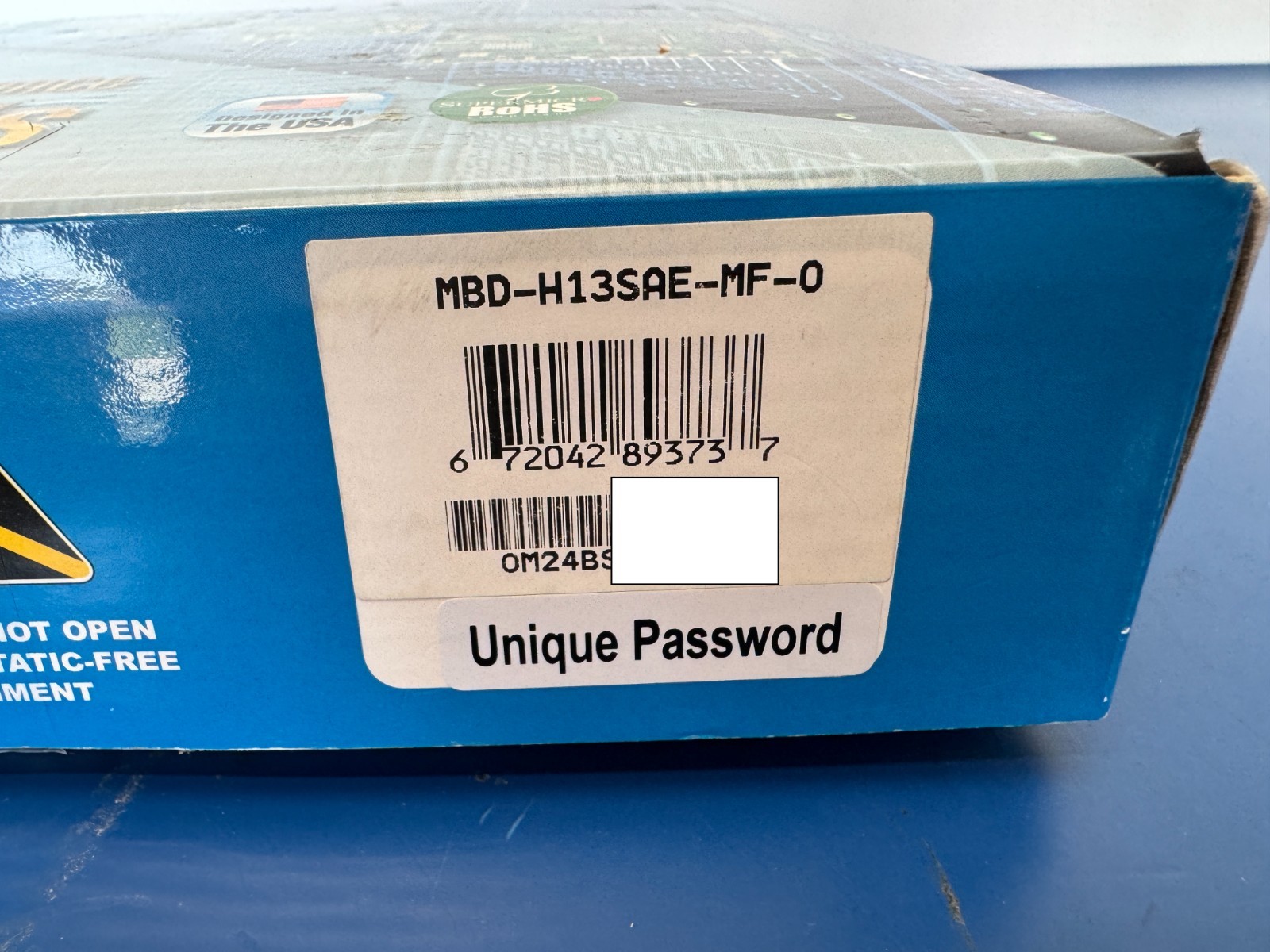

MBD-H13SAE-MF-O

Supported CPU

CPU Socket Type

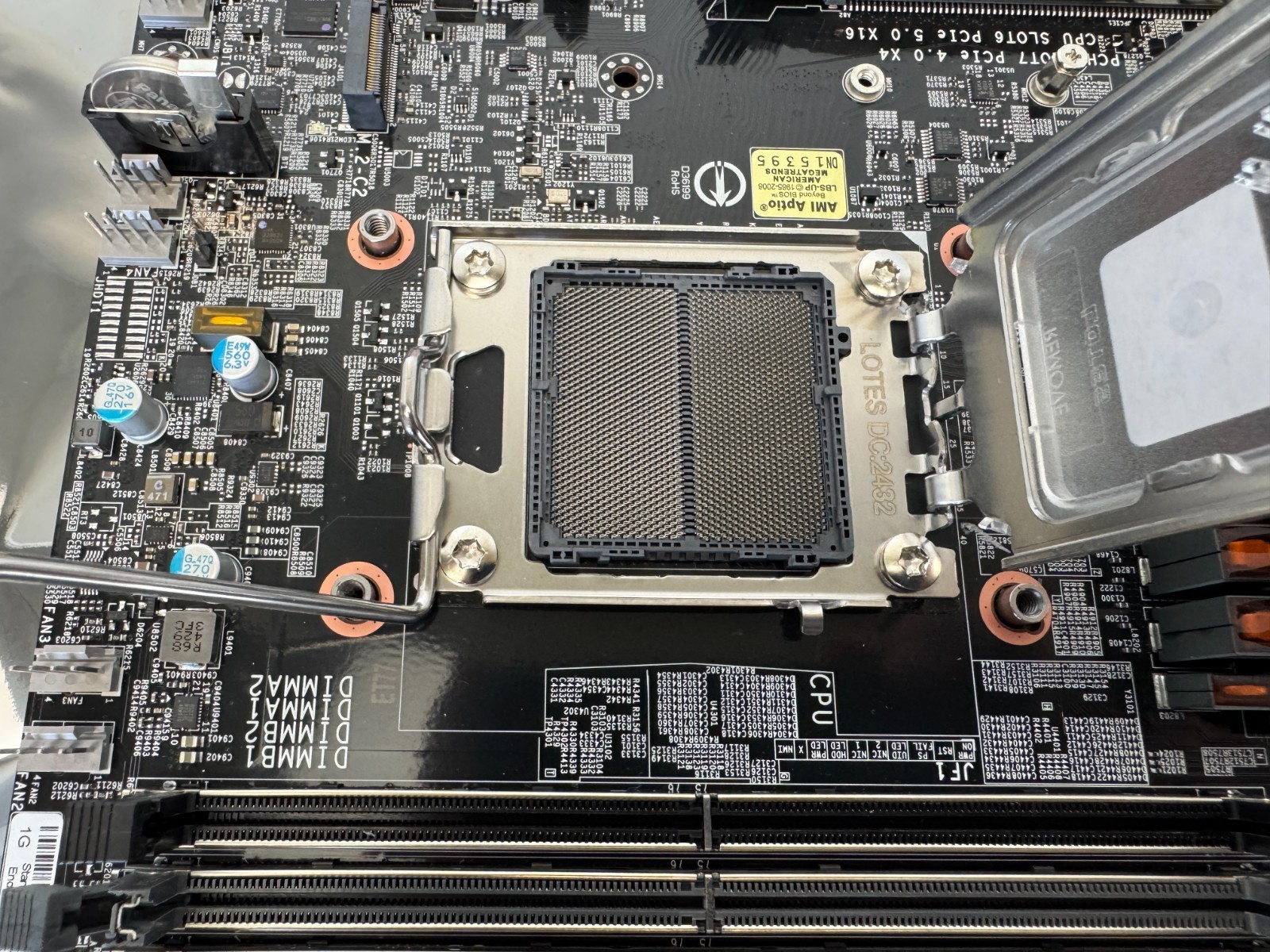

Single Socket LGA-1718 (Socket AM5) supported

CPU Type

AMD Ryzen 7000 Series

Number of Processor Support

1

CPU Features

CPU TDP supports Up to 170W TDP
Up to 16 cores, 32 threads

Chipsets

North Bridge

AMD B650

Memory

Memory Slots

4 x DDR5 288-pin

Memory Standard

Memory Type: 5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (1DPC)/ 3600MT/s (2DPC)
DIMM Sizes: 8GB, 16GB, 24GB, 32GB, 48GB

Expansion Slots

PCI Express 5.0 x16

2 PCIe 5.0 x16 slots (16/NA or 8/8)

PCI Express x4

1 PCIe 4.0 x4

Storage Devices

SATA

4 x SATA 6.0Gb/s

SATA RAID

0/1/10

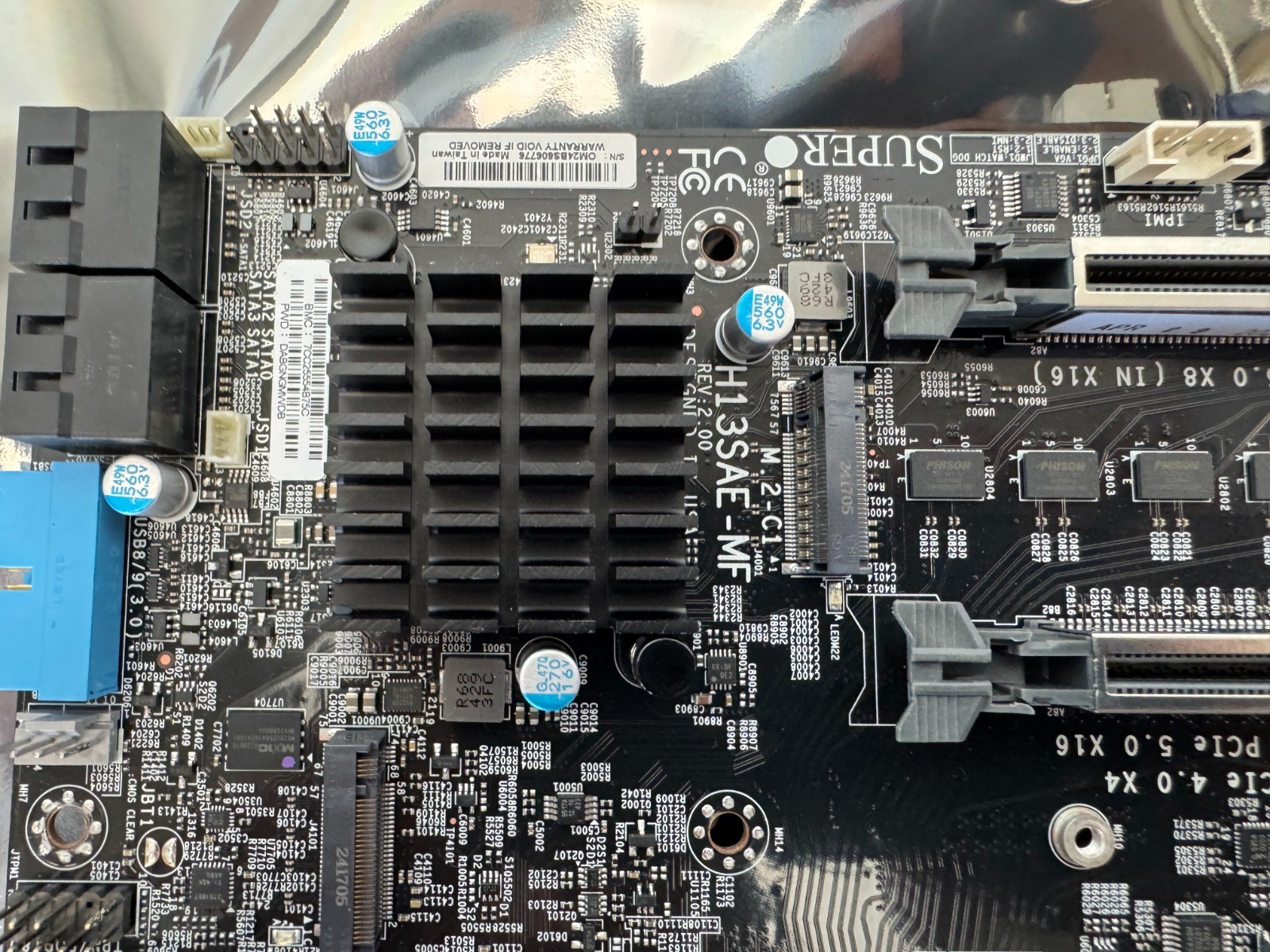

M.2

M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1
Form Factor: 2280/22110
Key: M-Key

Onboard Video

Onboard Video Chipset

Aspeed AST2600

Onboard Audio

Audio Chipset

ALC 888S HD Audio

Onboard LAN

LAN Chipset

Dual LAN with Intel i210 Gigabit Ethernet Controller
Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI

LAN Speed

10/100/1000Mbps

Max LAN Speed

1Gbps

Rear Panel Ports

Back I/O Ports

USB
1 USB 3.2 Gen2x2 port(s) (1 rear type C 20Gb)
5 USB 3.2 Gen2 port(s) (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode)
Video Output
1 HDMI 2.0 port(s), 1 DP 1.4a port(s), 2 rear type C port(s) DP 1.4 Alt mode
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header

Onboard Ports

Onboard USB

2 USB 3.2 Gen1 port(s) (2 headers 5Gb)
1 USB 2 port(s) (1 via header 2 ports by a header)

Dimensions

Form Factor

Micro ATX

Dimensions (W x L)

9.6″ x 9.6″
