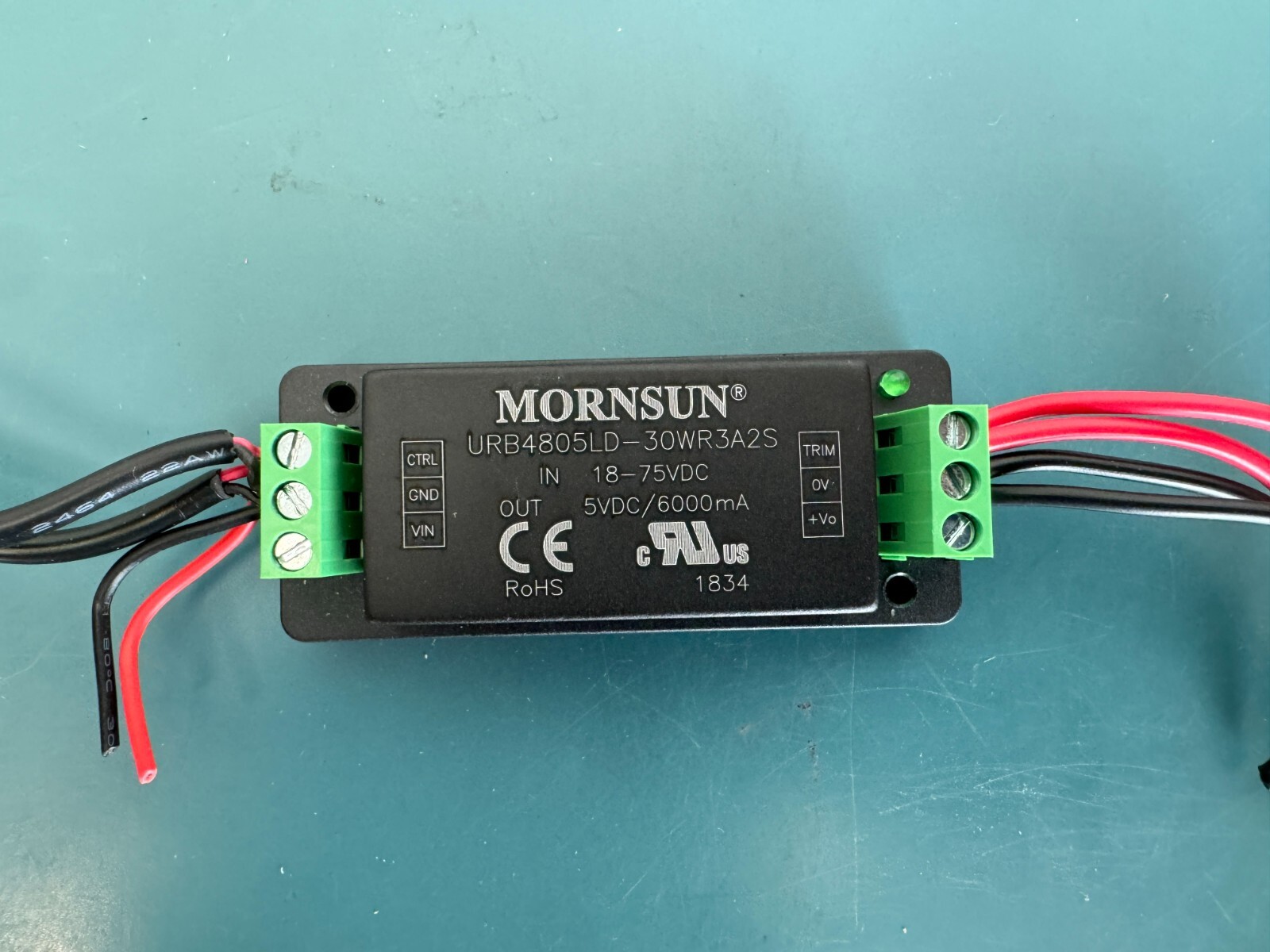

DC/DC converter in encapsulated box format, with 1500Vdc isolation, regulated .

Plastic box with screw.

Input range 18-75Vdc (4:1).

Output voltage  5Vdc .

Output intensity  6000mA .

Power: 30W .

1500Vdc input-output isolation .

Typical efficiency: 88%.

Low noise and 50mVp-p ripple.

No-load consumption <0.15W.

Minimum load of 10%. No-load operation will not damage the converter but will not meet all specifications.

Working temperature: from -40  to +80ºC . See the temperature drift curve in the data sheet.

Remote control.

Dimensions (Length x Width x Height) [mm]:   76 x 31.5 x 21.2.
